RDS-241V

Home  >   AAEON  >   Rugged Mobile Devices  >
Rugged Tablet Accessories

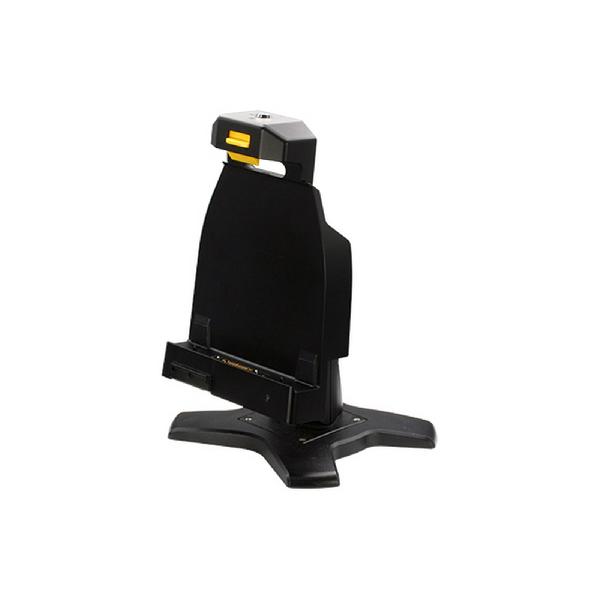

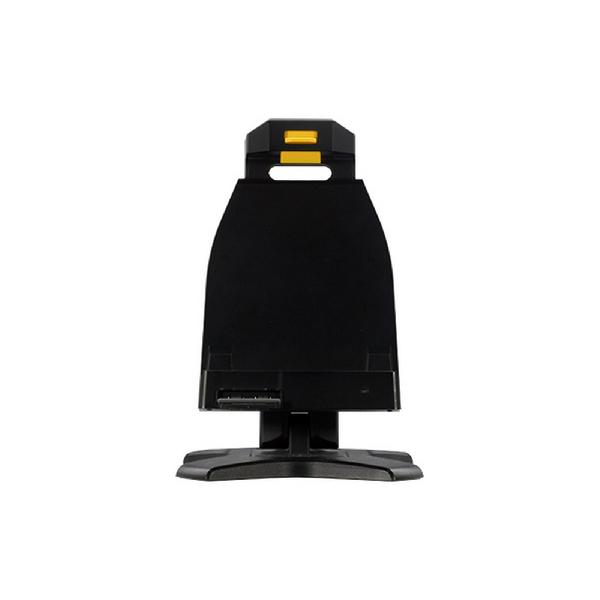

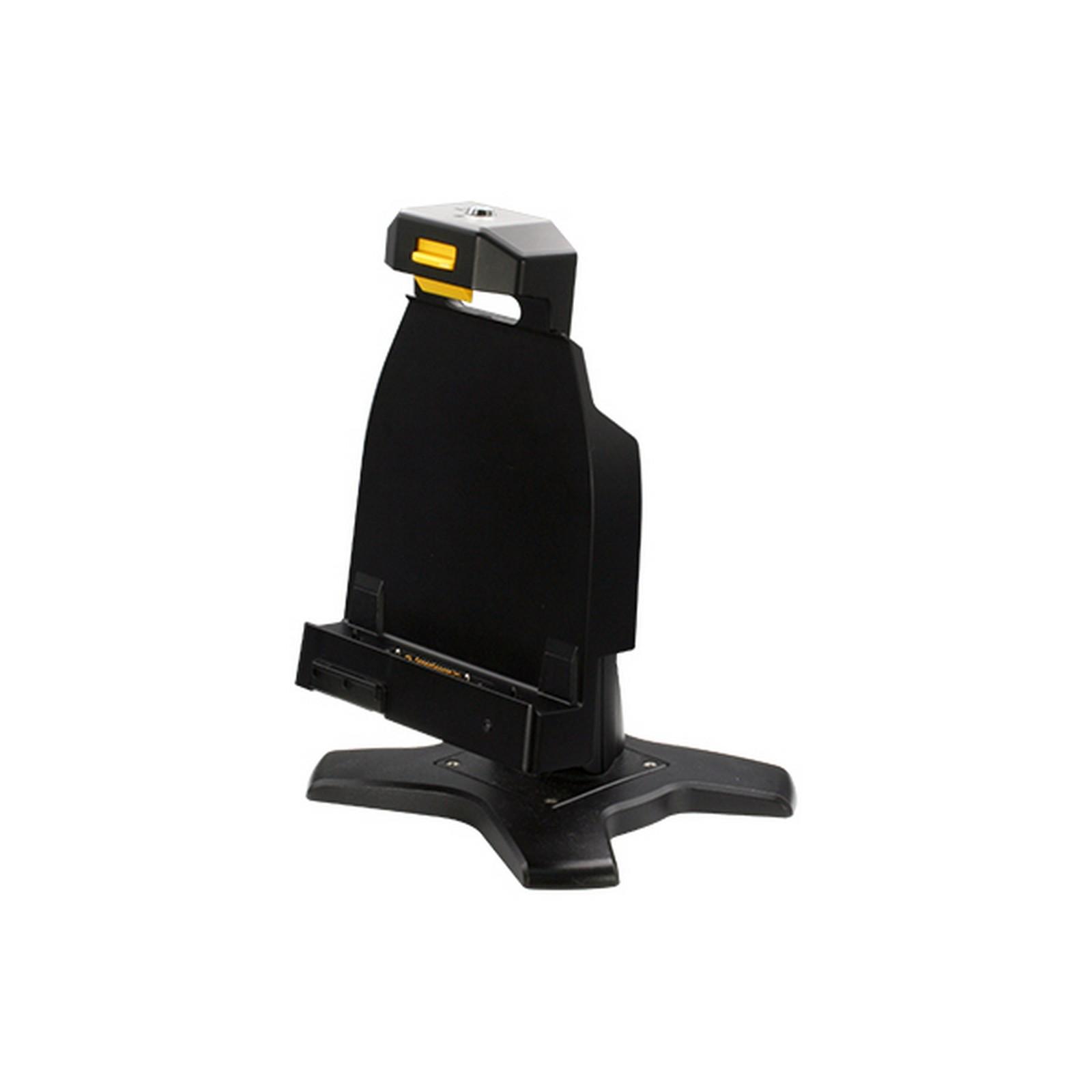

Rugged Docking Station for RTC-1200

Product Feature

  • Apply on RTC-1200
  • Anti-theft Lock with Key & VESA mount
  • Downward-facing I/Os for Easy Cable Management

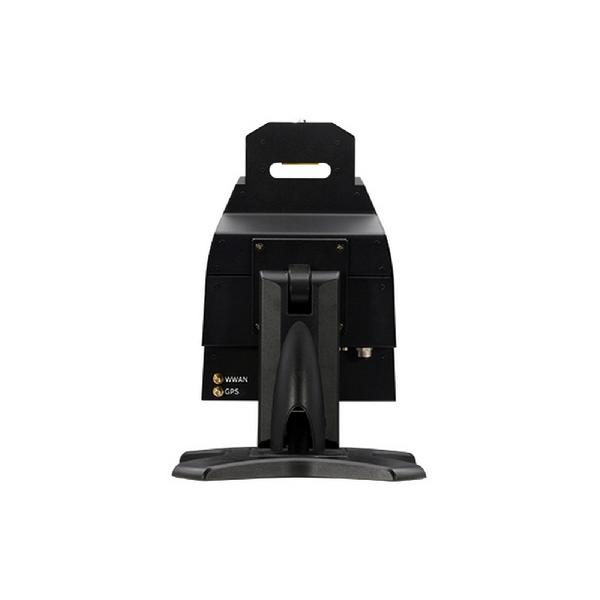

  • Ext. GPS and WWAN with SMA Connector
  • Front-facing I/O: USB x 2 in landscape Side
  • Downward-facing I/Os: USB 3.2 Gen 1 Dual Port x 1 + RS-232 x 2, One with 5V in Pin9 & the Other with GPIO x 8, GbE x 1, M12 DC-in x 1
  • Wide Voltage Range: 9V DC ~ 36V DC in M12-5P Female Connector
  • Adaptor is Additionally: (Car Adaptor with Cigarette Plug or Std Adaptor for YC-14)

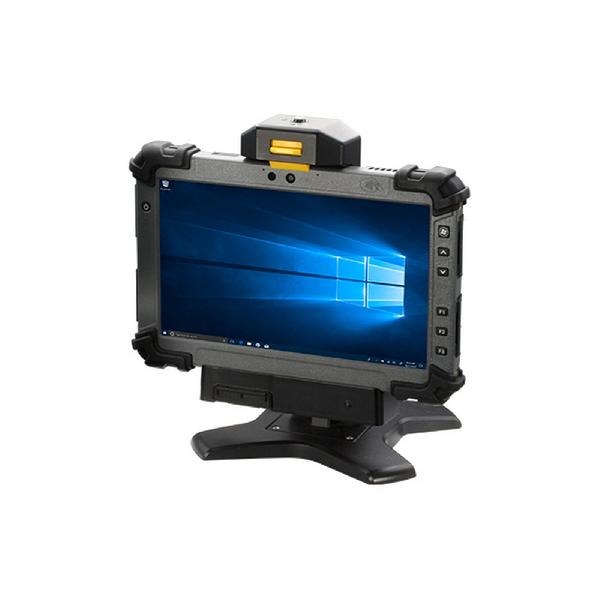

The Rugged Docking Station provides a flexible, rugged solution for connecting with the RTC-1200, from a desktop for office work, or as an interface for machine controllers. The docking station can be ordered with or without the stand for even greater flexibility.

SYSTEM
I/OUSB 2.0 x 2, USB 3.2 Gen 1 Dual Port x 1, RJ-45 jack for 10/100/1000 Base-TX
Ethernet x 1, RS-232 x 2, External antenna for GPS and WWAN x 2
DC INPUTM12 5P Female (DC 9V to 36V)
LED INDICATOROrange:DC in w/o Tablet,Blue:DC in w/ Tablet
MECHANICAL
COLORBlack
CONSTRUCTIONPC
DIMENSIONS (W X H X D)10.28'' x 6.50'' x 2.96'' (261 x 165 x 75mm)
GROSS WEIGHT6.44 lb (2.92kg)
ENVIRONMENTAL
OPERATING TEMPERATURE32°F ~ 104°F (0°C ~ 40°C)
STORAGE TEMPERATURE14°F ~ 122°F (-10°C ~ 50°C)
ESDAir +/- 8KV, Contact +/- 4KV
EMC/ SAFETYCE/FCC Class B/UL
POWER SUPPLY
AC/DC ADAPTERInput: 100-240V,47-63Hz,90W
Output: 19V/ 4.74A
DC/DC ADAPTERInput: 11V-16V DC or 22V-32V DC
Output: 19V DC/ 4.73A/ 90W
Name Type Version Release Date
RDS-241V Datasheet Datasheet V1.0 20 May 2020
