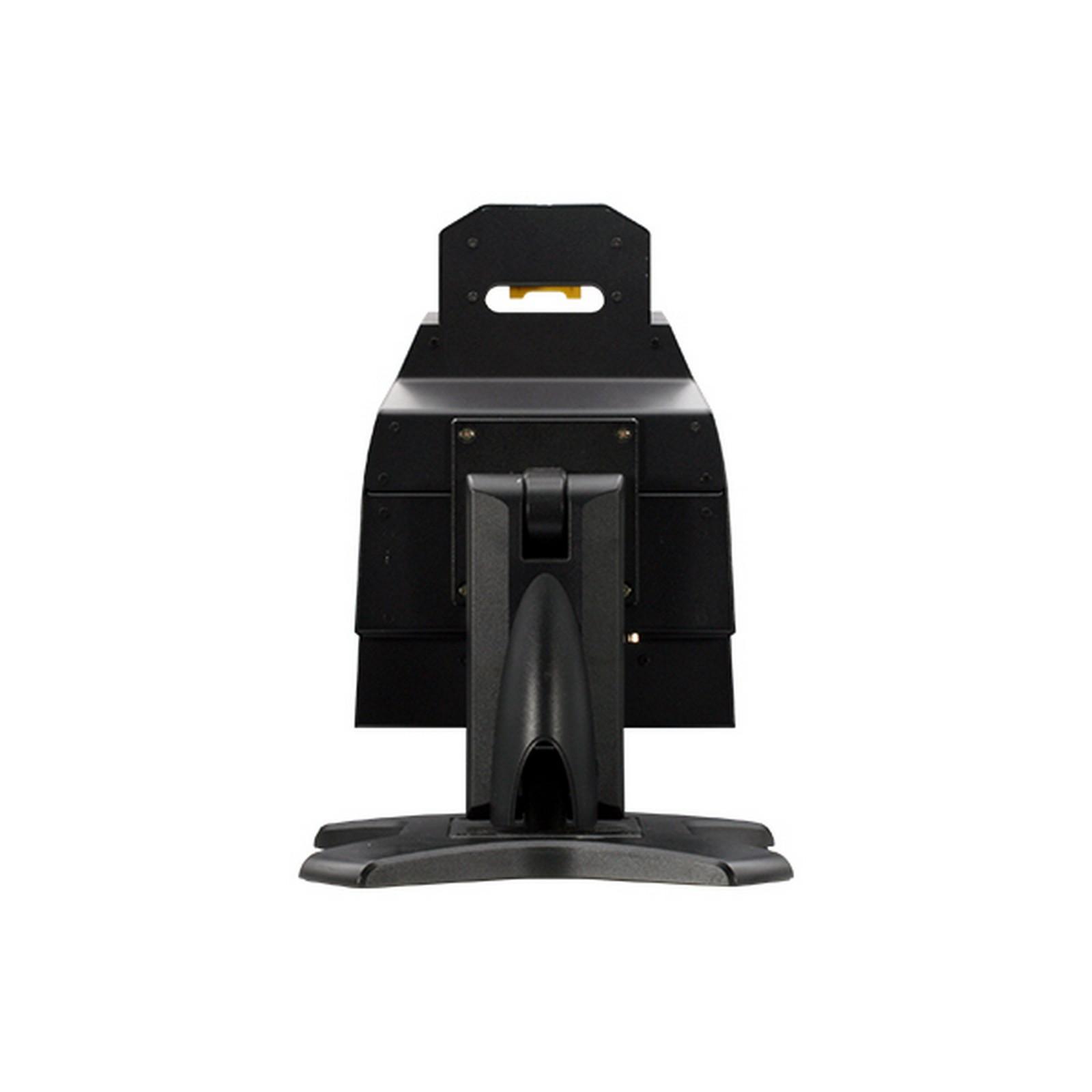

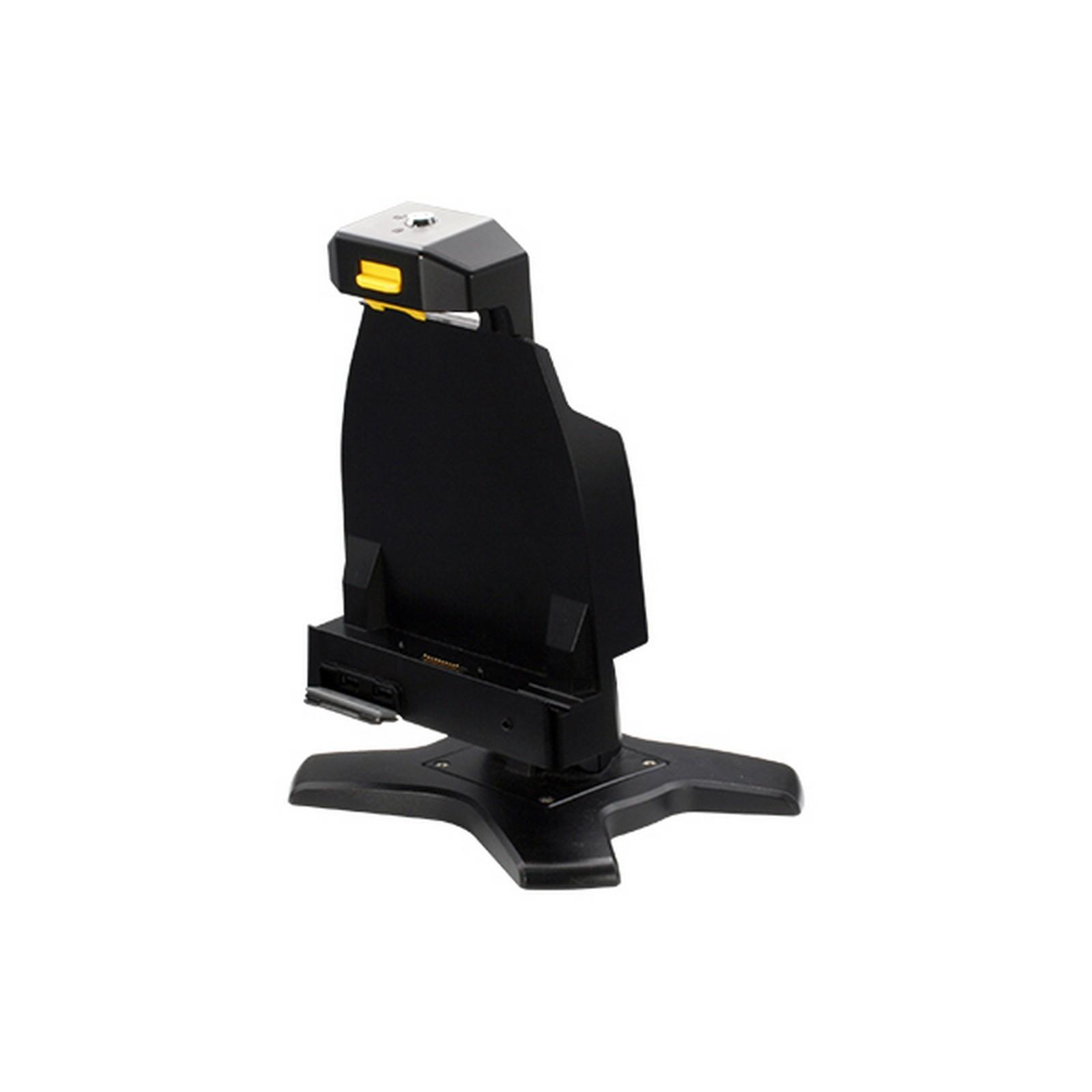

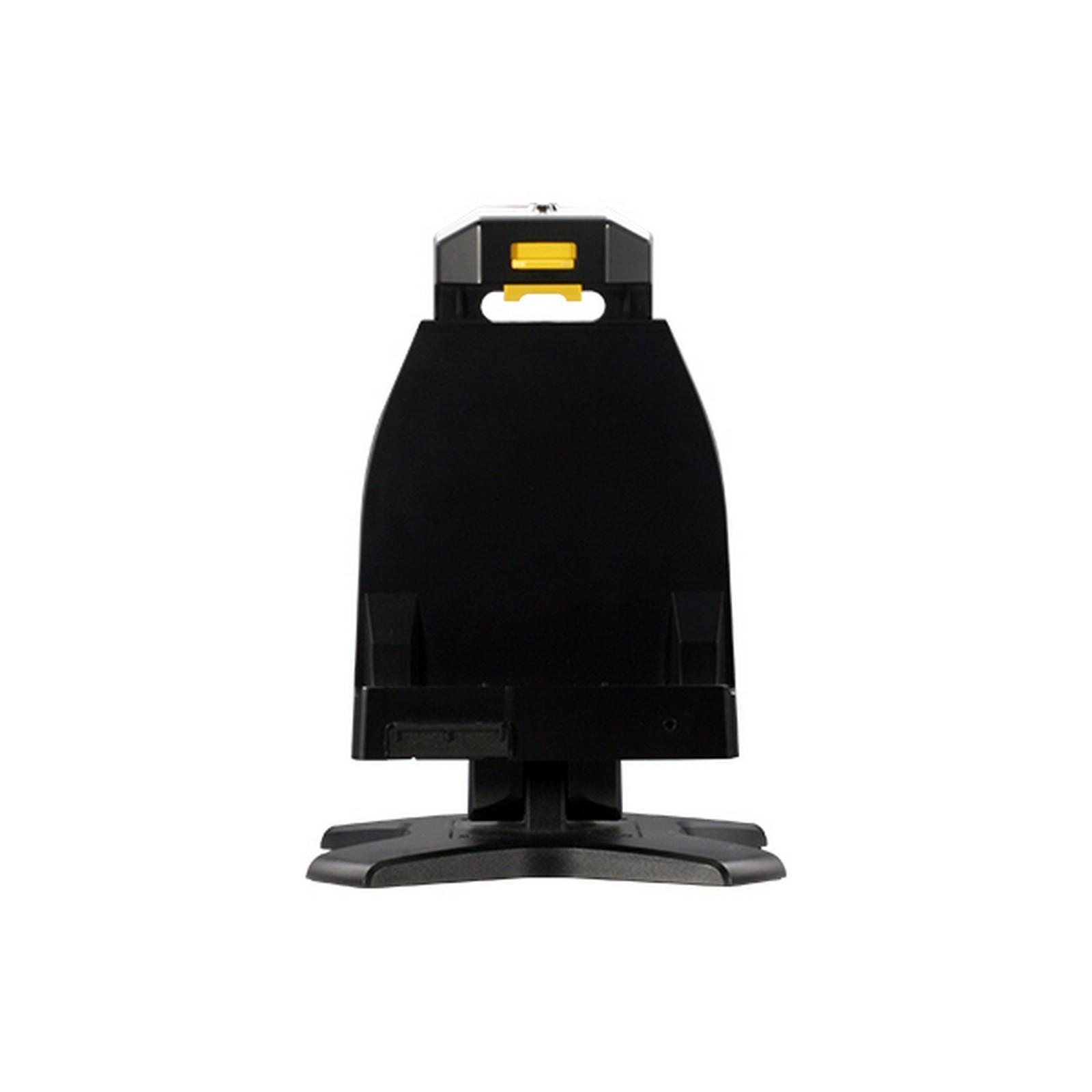

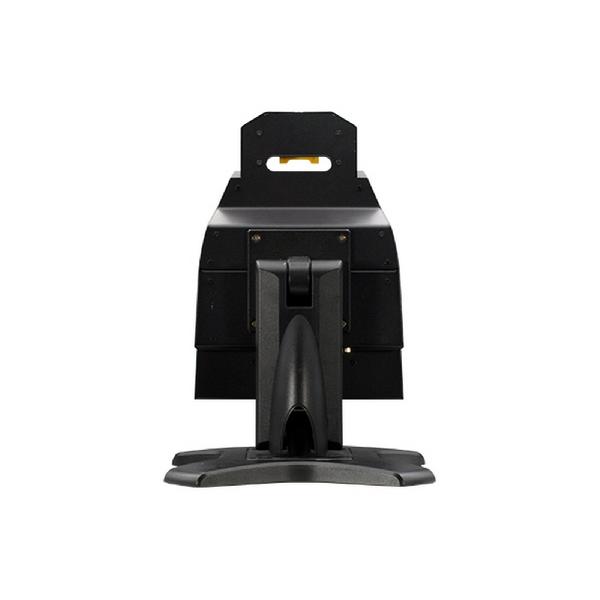

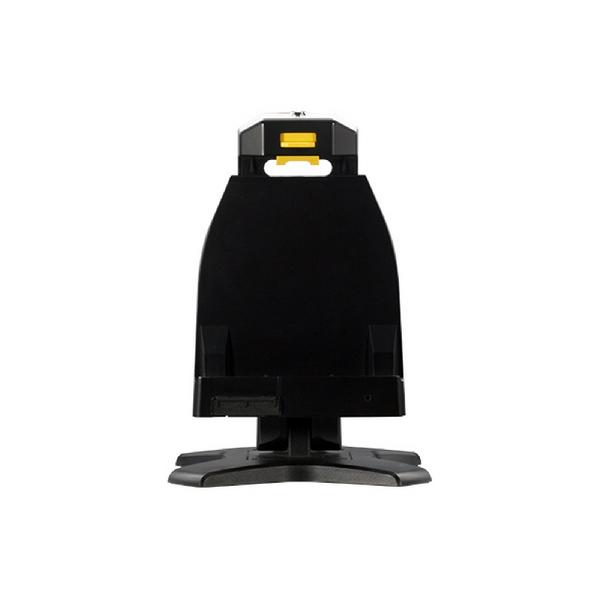

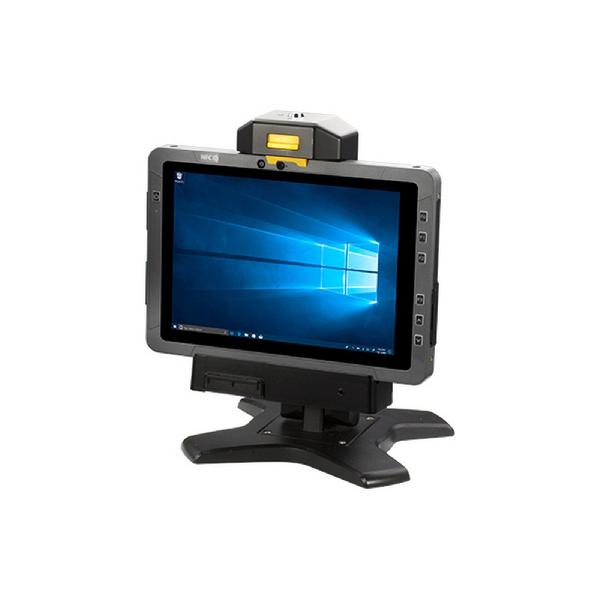

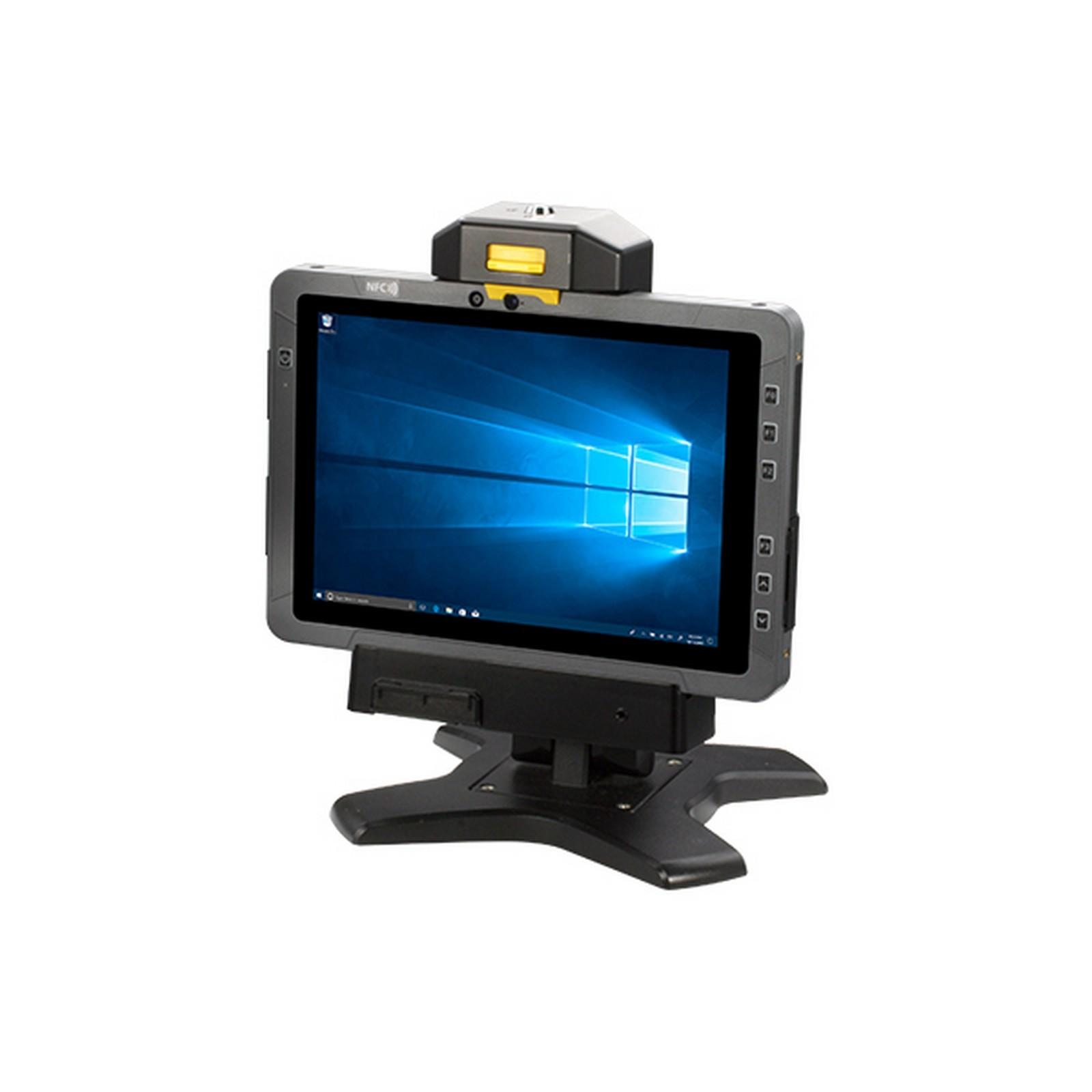

Rugged Docking Station for RTC-1010/ RTC-1010M
| SYSTEM | |
| I/O | Front-facing I/Os: USB 2.0 x 2 with protection cover Downward-facing I/Os: USB 2.0 x 2 RS-232 x 1 (Two: Optional) RJ45 GbE x 1 |
| DC INPUT | Phoenix connector: DINKLE ECH381H-03P Wide Voltage Input: DC 9V to 36V Mating connector: DINKLE EC381V-03P |
| LED INDICATOR | Orange: DC in w/o Tablet Blue: DC in w/ Tablet |
| MECHANICAL | |
| COLOR | Black |
| CONSTRUCTION | PC |
| DIMENSIONS (W X H X D) | 10.08” x 7.28” x 2.96” (256 x 185 x 75 mm) |
| GROSS WEIGHT | 6.17 lb (2.8 Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C) |
| STORAGE TEMPERATURE | 14°F ~ 140°F (-10°C ~ 60°C) |
| ESD | Air charge: +/- 8KV Contact charge: +/- 4KV |
| EMC/ SAFETY | CE/FCC Class B/UL |
| POWER SUPPLY | |
| AC/DC ADAPTER | AC 100 ~ 240 V, 50 ~ 60 Hz, Output: 12V/ 3.34A/ 40W DC connector: DINKLE EC381V-03P |
| DC/DC ADAPTER | N/A |
| Name | Type | Version | Release Date | |
| rds-411, datasheet | Datasheet | V1.0 | 20 May 2020 |
