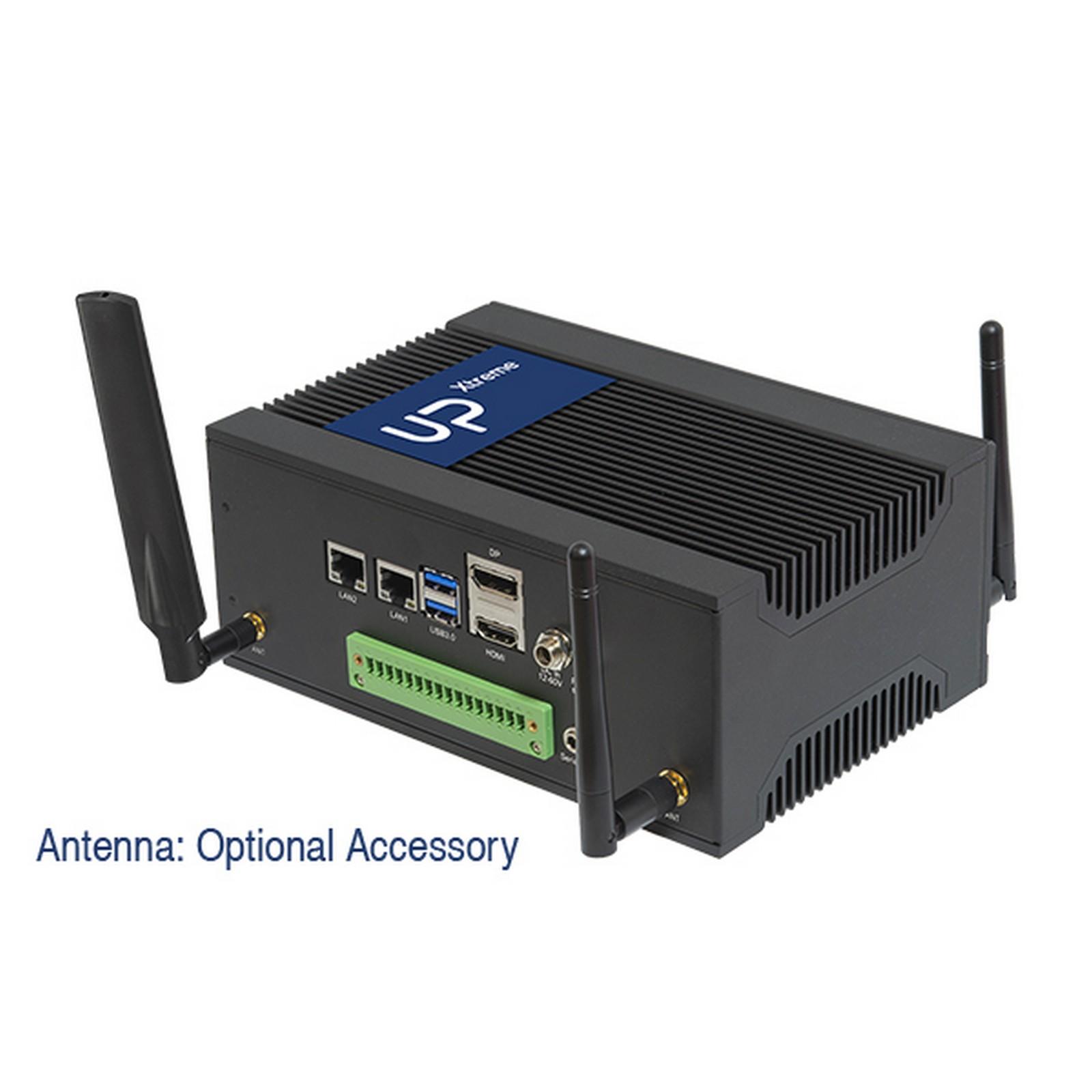

UP Xtreme Edge Computing System

Product Feature

  • Intel® WHL-U Core™ i7/i5/i3/Celeron Processor SoC
  • Onboard DDR4 memory, Max 16GB
  • eMMC 64GB
  • HDMI 2.0 x 1 (Support 4K at 60 Hz)
  • COM ports (RS-232/422/485) x 2
  • 16pin GPIO connectors (1x GPIO for SMT32, 1x GPIO for 40pin HAT)
  • Audio Jack x 1 (line out + Mic)
  • 12-60V DC-in
  • Fanless Chassis design

The UP Xtreme Edge Computing System, or UPX-Edge for short, is a complete embedded system that’s ready to go out of the box. Built on the UP Xtreme board, UPX-Edge is powered by 8th Generation Intel® Core™ and Celeron® processors (formerly Whiskey Lake) with up to 16GB of onboard RAM and 64GB of eMMC memory to power through any application. With the latest Intel® graphics solution, the UPX-Edge is capable of 4K video output, and features a built-in audio jack as standard.

The UPX-Edge is designed with key industrial I/O features for flexibility and easy integration with existing infrastructure. I/O ports include two external GPIO connections, two COM ports, and four USB 3.2 Gen 1 ports. The UPX-Edge can also hold up to extreme conditions, with an operating temperature range of -20°C to 70°C (tested with AI Core XM 2280, 2x Intel® Movidius™ Myriad™ X).

UPX-Edge makes deploying a powerful edge system easy, whether it’s as a factory IoT gateway, AI powered machine controller, or in a smart retail application.

SYSTEM
CPU8th generation Intel Core i7/i5/i3/Celeron Processor SoC
MEMORYOnboard DDR4 memory, Max 16GB
Single Channel: 4GB
Dual Channel: 8GB, 16GB
GRAPHICSIntel® Graphics , GEN 9
STORAGEeMMC 64GB
ETHERNETi7/i5 SKU LAN (i210 AT) x 1, LAN (i219 LM) x 1
i3/Celeron® LAN (i210 AT) x 1, LAN (i219 V) x 1
WIFI/BTOptional
AUDIOLine out + MIC x 1
USBUSB 3.2 Gen 2 x 4
EXPANSION SLOTM.2 2230 E Key x 1
M.2 2280 M Key x 1
mPCIe slot x 1
100pin connector x 1
40 pin HAT x 1
SATA3 connector x 1 (support 2.5” HDD/SSD expansion)
I/O PLACEMENTS
POWERDC-in Jack x 1, Power Button x 1
USBUSB 3.2 Gen 2 STACK Connector for 2 ports (Front) x 1
USB 3.2 Gen 2 STACK Connector for 2 ports (Rear) x 1

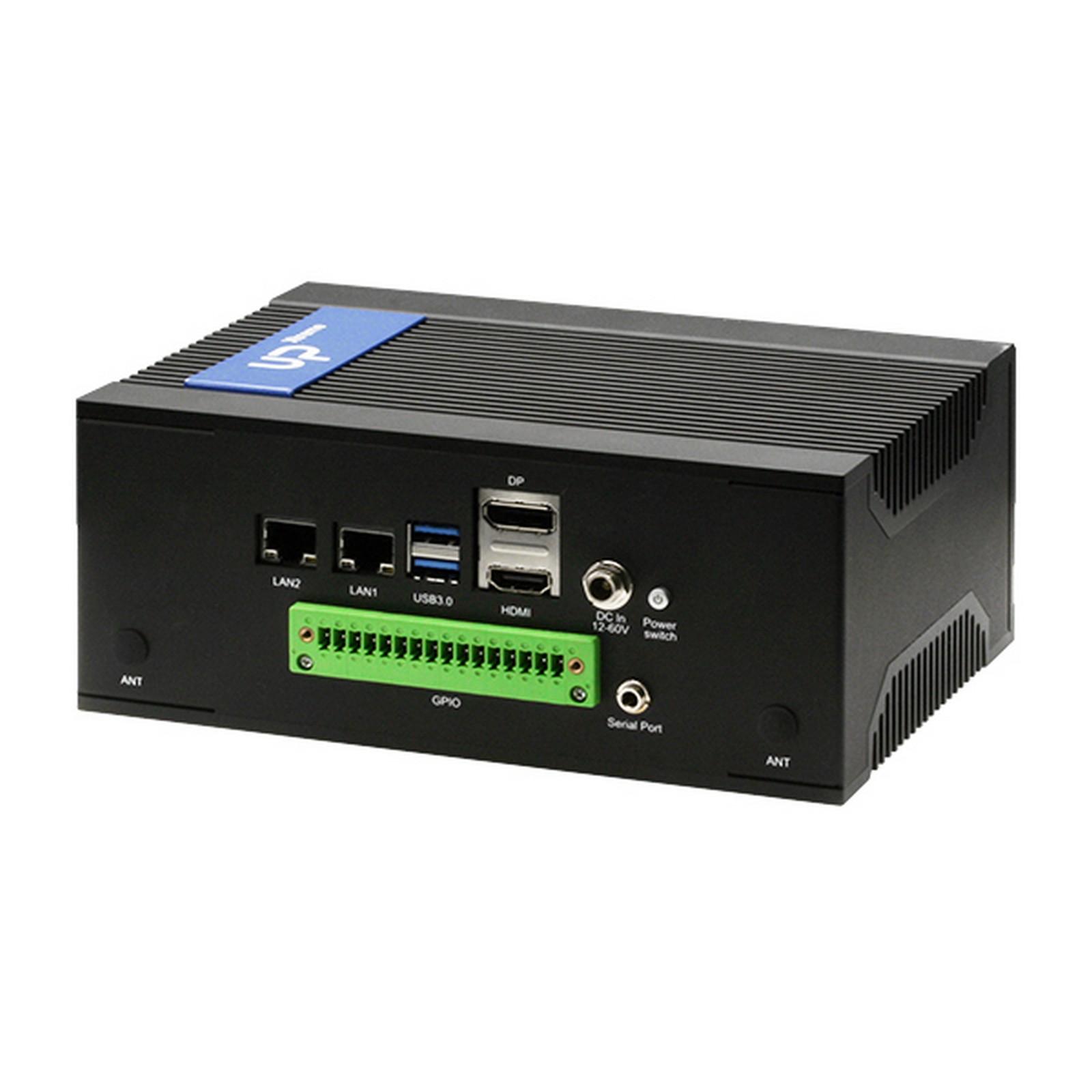

DISPLAYPORTHDMI 2.0 x 1 (Support 4K at 60 Hz), DP 1.2 x 1,
16pin GPIO connectors (1 x GPIO for SMT32, 1 x GPIO for 40pin HAT)
ETHERNETRJ45 connector x 2

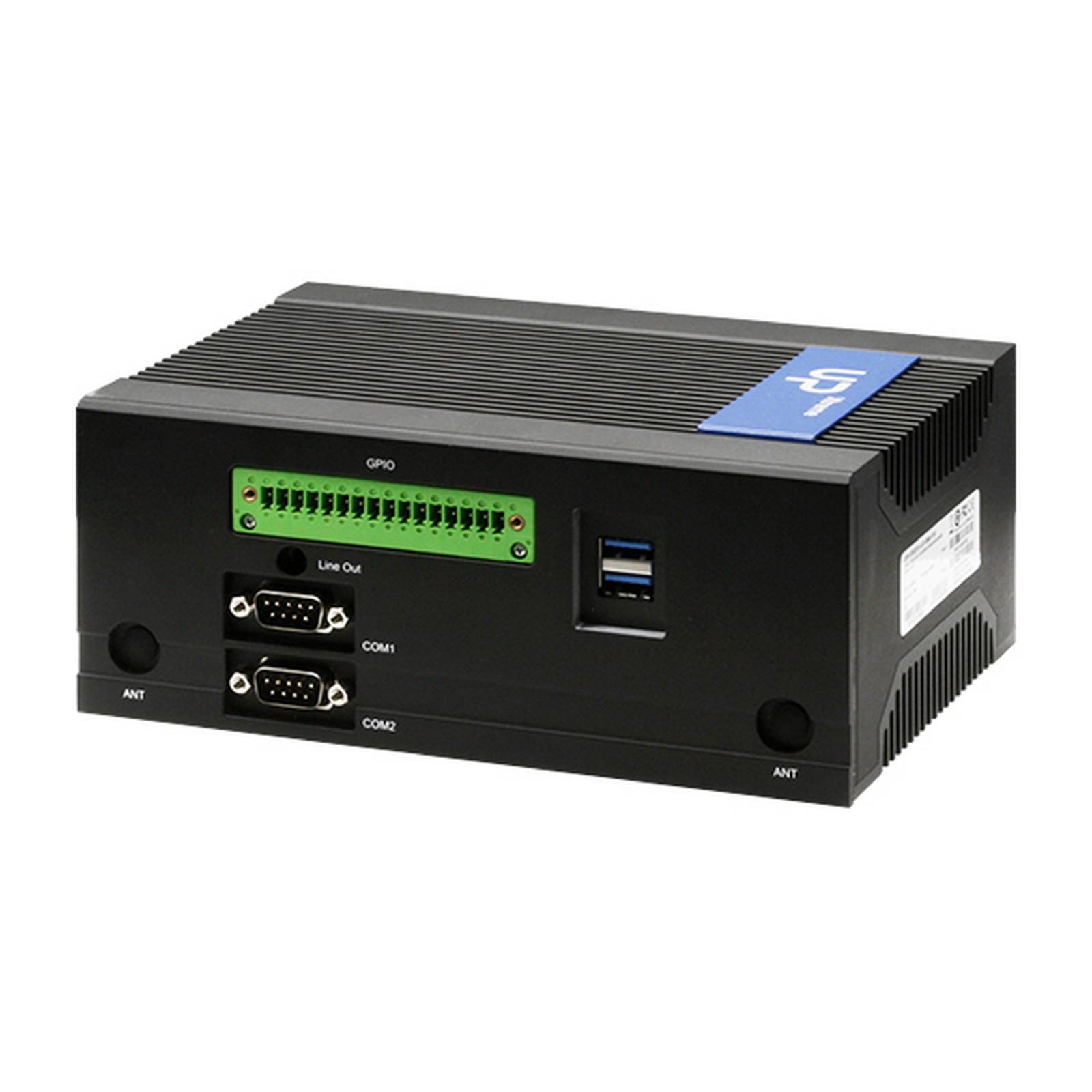

COMRS-232/422/485 x 2
ENVIRONMENT
POWER12V - 60VDC
FORM FACTOR7.48” x 5.12” x 3.1” (190mm x 130mm x 78.6mm)
GROSS WEIGHT6.61lbs (3kg)
OPERATING TEMPERATUREeMMC: -32°F ~ 158°F (0°C ~ 70°C)
SATA: -4°F ~ 158°F (-20°C ~ 70°C)
OPERATING HUMIDITY0% ~ 90% relative humidity, non-condensing
CERTIFICATIONCE/FCC Class A, RoHS Compliant, REACH
OS SUPPORTWin 10, Linux Ubuntu 18.04 with Kernel 5.0, Linux Yocto 2.7 with Kernel 4.19
Name Type Version Release Date
UPX-Edge Datasheet Datasheet V3.0 09 September 2020
