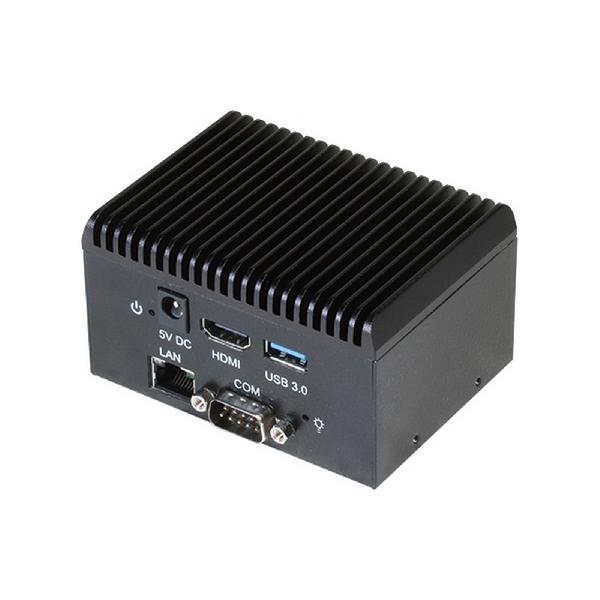

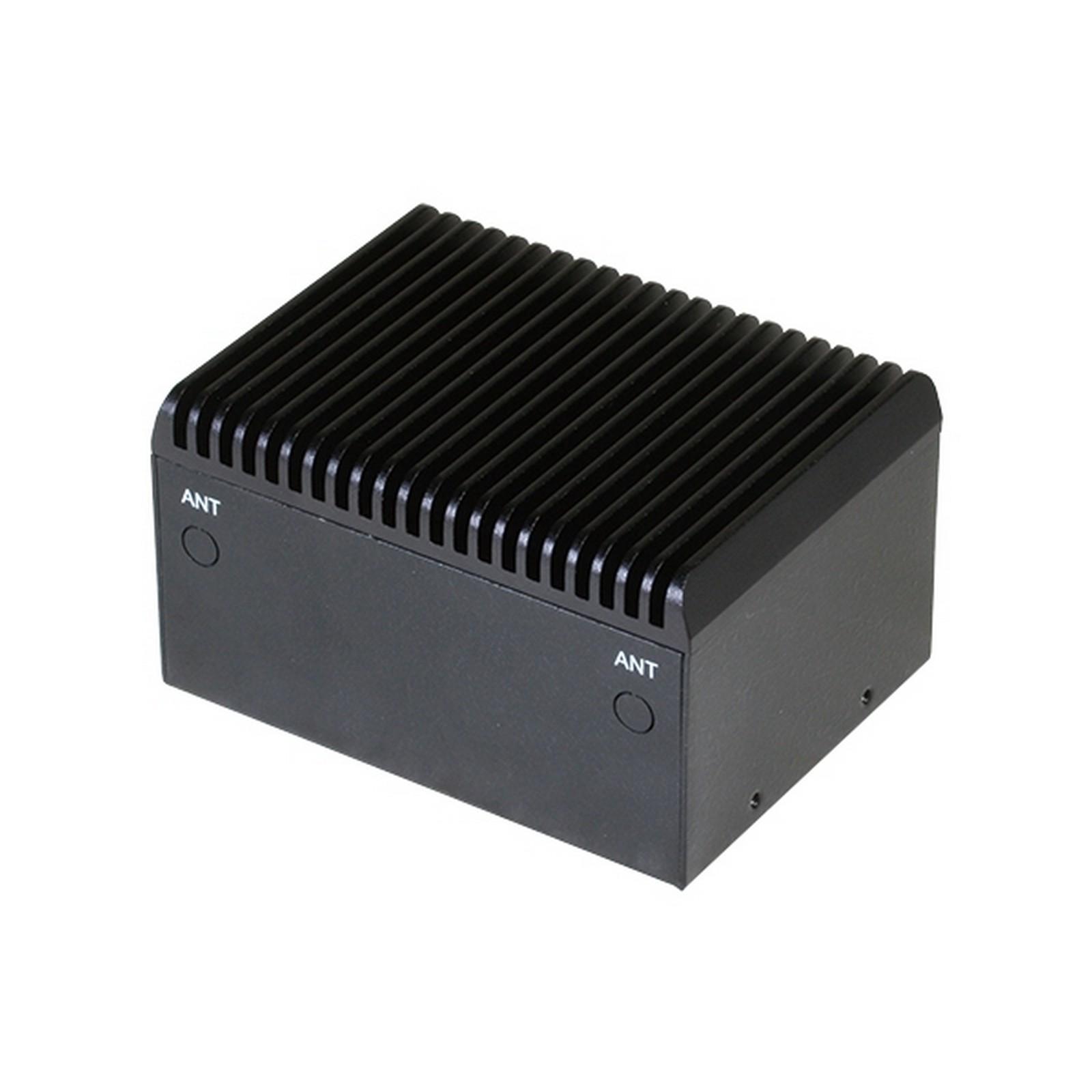

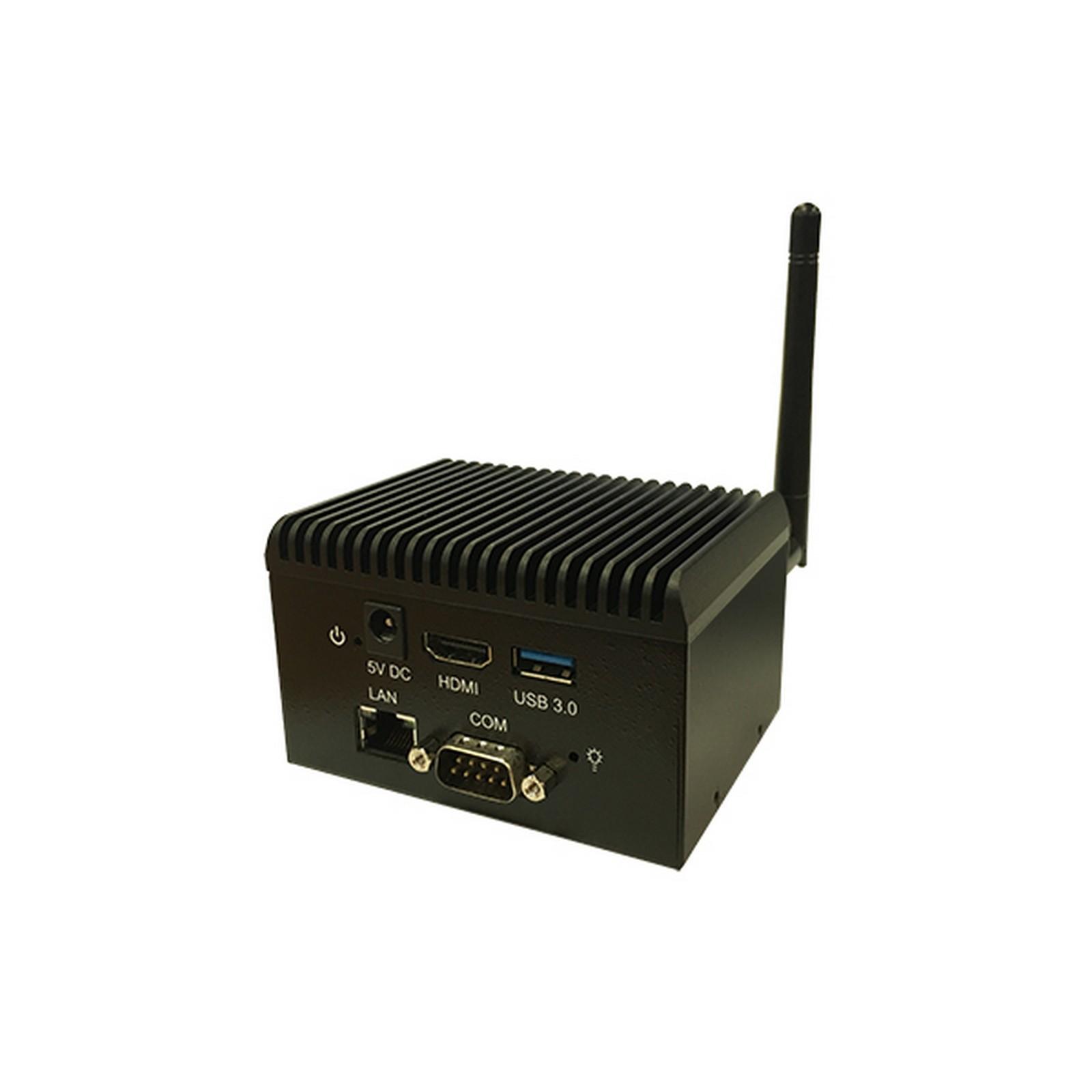

AAEON’s UPC-GWS01 is a compact and cost-effective IoT system for intelligent home and digital signage applications. Despite its small dimensions, it still features onboard WiFi and Bluetooth, and it has an impressive I/O interface including USB, HDMI, COM, and LAN ports.
The system is built around the groundbreaking UP Core board – the smallest quad-core x86 single board computer in the world. The UPC-GWS01 is a user-friendly solution, and both the system chassis and the UP Core’s carrier board can be customized to deliver alternative I/O options and a PCIe interface.
| SYSTEM | |
| CPU | Intel® Atom™ x5-Z8350 Processor |
| MEMORY | 1GB/ 2GB/ 4GB onboard DDR3L-1600 |
| GRAPHICS | Intel® HD 400 Graphics |
| STORAGE | 16GB/32GB/64GB eMMC |
| ETHERNET | Realtek® 8111G x 1 |
| WIFI/BT | WIFI802.11 b/g/n @2.4 GHz, Bluetooth 4.0 |
| AUDIO | HDMI x 1 |
| USB | USB 3.0 Host x 1 |
| EXPANSION SLOT | Minicard (MINI card with SIM) socket x 1 |
| I/O PLACEMENTS | |
| POWER | 5V DC x 1 |
| USB | USB3.0 x 1 |
| DISPLAYPORT | HDMI x 1 |
| ETHERNET | RJ-45 x 1 |
| COM | RS-232/422/485 x 1 |
| ENVIRONMENT | |
| POWER | 5V/4A DC Only |
| FORM FACTOR | 3.58” x 2.63” x 2.17” (91mm x 67mm x 55.2mm) |
| GROSS WEIGHT | 0.77 lb (0.35 kg) |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) |
| OPERATING HUMIDITY | 10% ~ 80% relative humidity, non-condensing |
| CERTIFICATION | CE, FCC Class A |
| OS SUPPORT | Windows® 10, Linux (UbiLinux, Ubuntu, Yocto), Android 6.0, Windows® 10 IoT core |
| Name | Type | Version | Release Date | |
| UPC-GWS01, datasheet | Datasheet | V1.0 | 16 October 2017 |
