BOXER-8410AI

Home  >   AAEON  >   AI Solutions  >
AI@Edge Solutions

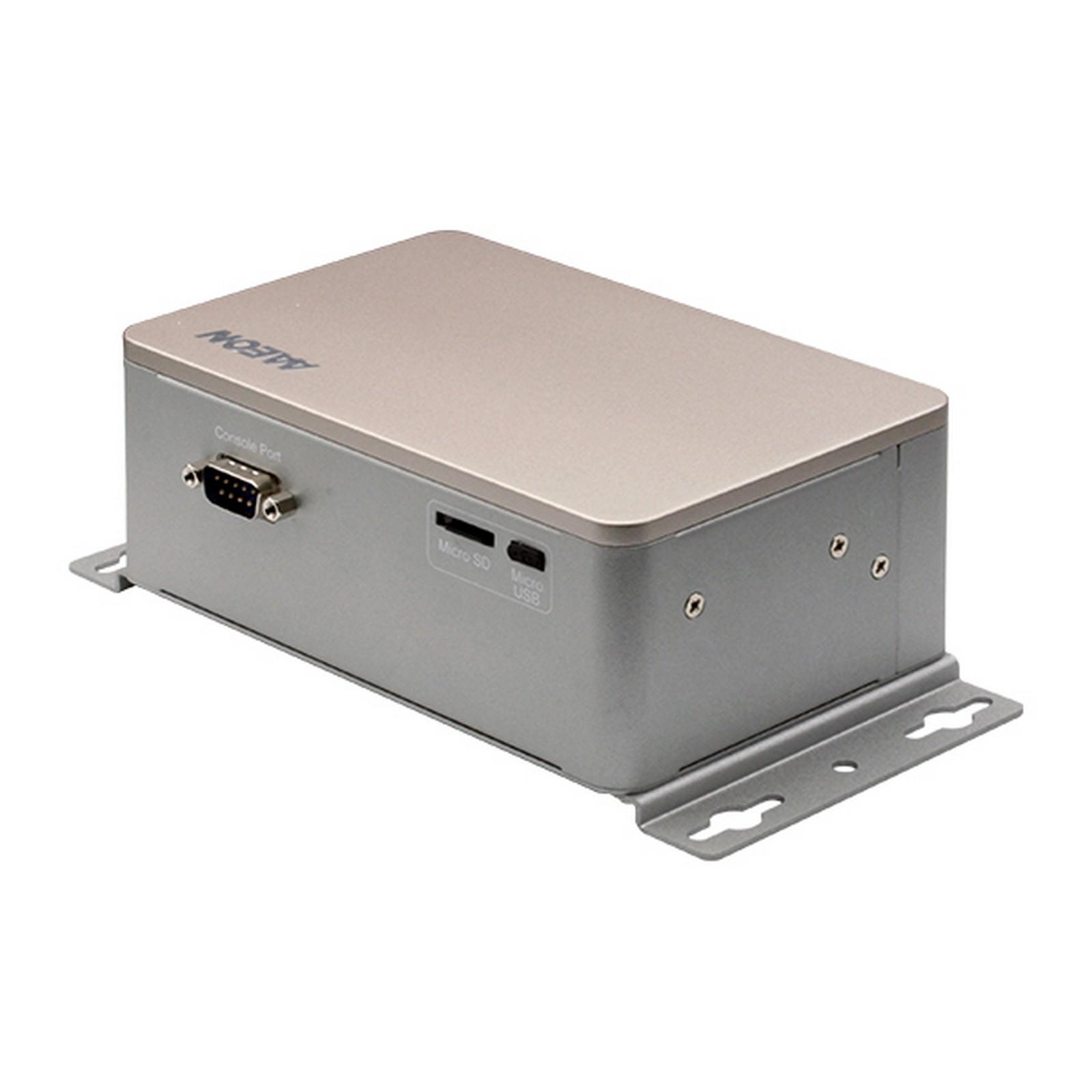

AI@Edge Fanless Embedded Box PC with HiSilicon HI3559A Platform

Product Feature

  • HiSilicon Hi3559A
  • Onboard 4GB/8GB DDR4 & 32GB/64GB eMMC
  • Support GbE LAN x 2
  • Support USB 3.2 Gen 1 Type A x 1
  • Support Audio in/Line out
  • Support 2.5" SATA Storage device

AI@Edge Fanless Embedded Box PC with HiSilicon HI3559A Platform

SYSTEM
AI ACCELERATORHi3559A
CPUDual-core ARM Cortex A73@1.8 GHz
Dual-core ARM Cortex A53@1.2 GHz
Single-core ARM Cortex A53@1 GHz
Neon acceleration and integrated FPU
SYSTEM MEMORY4GB/8GB DDR4
STORAGE DEVICEOnboard 32GB/64GB eMMC
Micro-SD slot x 1
SATA III (6.0 Gbps) Port x 1
DISPLAY INTERFACEHDMI 2.0 x 1
ETHERNET10/100/1000 Base-TX x 2

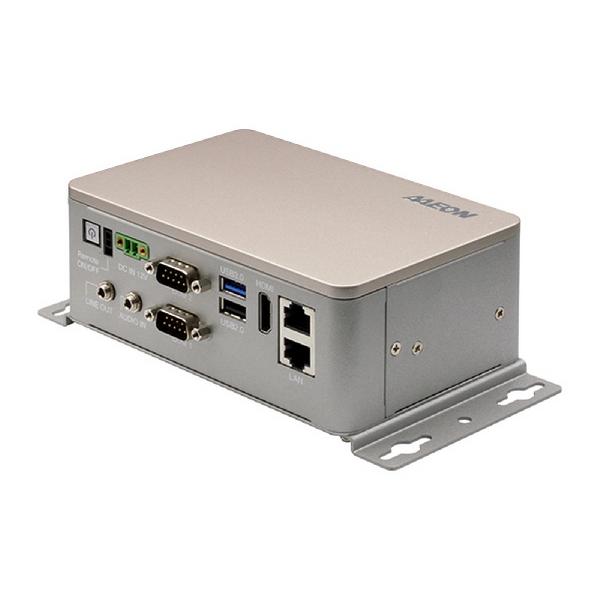

I/OPower Button with LED indicator x 1
USB 3.2 Gen 1 Type A x 1
USB 2.0 Type A x 1
Micro USB Type B (USB 2.0) x 1 (for flash image)
RJ-45 GbE LAN x 2
DB-9 RS-232 x 2
DB-9 Console Port x 1
Audio in x 1
Line out x 1
2-pin terminal block +12V DC-in x 1
MicroSD x 1
Remote Power On/Off
EXPANSION
INDICATORPower LED x 1
OS SUPPORTHiLinux
POWER SUPPLY
POWER REQUIREMENT12VDC-in with 2-pin terminal block
MECHANICAL
MOUNTINGWallmount kit (default)
DIMENSION (W X D X H)150 mm(W) x 96 mm(D) x 56 mm(H)
GROSS WEIGHT2.20 lbs. (1 kg)
NET WEIGHT1.10 lbs. (0.5 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE-4°F ~ 131°F (-20°C ~ 55°C, according to IEC60068-2 with 0.5 m/s AirFlow)
STORAGE TEMPERATURE-4°F ~176 °F (-40°C ~ 80°C)
STORAGE HUMIDITY5 ~ 95% @ 40°C, non-condensing
ANTI-VIBRATIONRandom, 1Grm, 5 ~ 500Hz
CERTIFICATIONCE/FCC class A
Name Type Version Release Date
BOXER-8410AI Datasheet Datasheet V2.0 26 August 2020
