A major developer of Industry 4.0 computing solutions, AAEON launches the BOXER-6616, a low-power embedded PC perfect for applications in digital signage, building control and factory automation. With a wide voltage input of 9-24V, and powered by the newest ApolloLake CPU, the BOXER-6616 is perfect for entry-level rugged industrial uses as it is compact and affords minimal power consumption (with a capped limit of 17 watts) whilst effectively enhancing system performance at an affordable price.

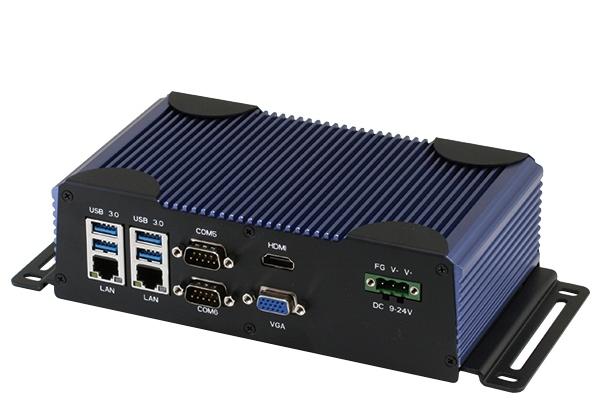

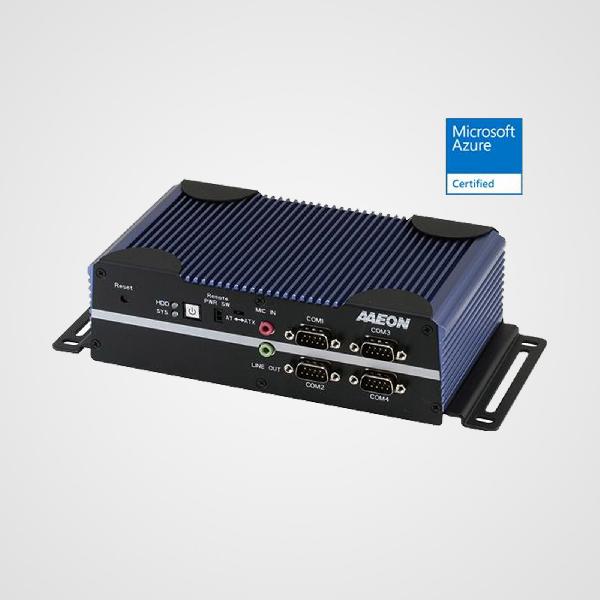

The BOXER-6616 is the first and sole embedded BOX PC on the current market to offer an interchangeable AT/ATX dip switch on the external I/O side, and supports remote control for easier accessibility. As is the case with all of AAEON’s rugged PC products, a customary offering of rich I/O ports for maximum expansion is native to the BOXER-6616, including 4 USB 3.2 Gen 1 ports, 2 RS-232/422/485 slots, 4 RS-232 slots, 2 Intel LAN ports, HDMI, VGA, an 8-bit DIO, and two antenna slots. The BOXER-6616 features AAEON’s trademark outer rugged chassis design, providing the ultimate thermal solution and making it ideal for automation/PLM applications such as factory process controls, energy management, building management systems, barrier speed gates and entrance control turnstiles, as well as safes and vaults.
▲ Anti-vibration Design: 3G (HDD)
▲ Wide Temperature Support: -20°C - 70°C
▲ Wide Range Power Input with Over-current & Surge Protection
▲ Rich I/O: COM x6, USB 3.2 Gen 1 x4, MiniCard, VGA, HDMI
▲ IP40 Design
▲ Remote Power on-off
▲ BIOS Setting: RS-232/485
system | |
| CPU | Intel® Pentium® N4200, 2.5 GHz Intel® Celeron® N3350, 2.4 GHz |
| Chipset | Intel® System on Chip |
| System Memory | DDR3L 1866 SODIMM slot x 1, up to 8GB |
| Display Interface | HDMI (max. 2048 x 1152) VGA (max. 2048 x 1152) |
| Storage Device | mSATA, HDD/SSD |
| Ethernet | Intel® I211, 10/100/1000Base-TX x 2 |
| I/O | RS-232/422/485 x 2 RS-232 x 4 USB 3.2 Gen 1 x 4 VGA x 1 HDMI x 1 LAN x 2 Remote On/Off x 1 Reset Button x 1 AT/ATX DIP Switch Mic-In x 1 Line-Out x 1 Antenna holes x 1 Power button Power input |
| Expansion | Full-size Mini-Card x 1 (PCI-E + USB, w/ SIM slot) Half-size Mini-Card x 1 (A1:PCI-E + USB, A2: mSATA + USB) |
| Indicator | Power LED HDD active LED |
| OS support | Windows® 10 Windows® 10 IOT Linux |
power supply | |
| Power Requirement | 9-24V with 3-pin terminal block |
mechanical | |
| Mounting | Wallmount DIN Rail (Mounting kit is optional) |
| Dimensions (W x H x D) | 7.76" x 2.17" x 4.33" (197mm x 55mm x 110mm) |
| Gross Weight | 6.6 lb (2.8 kg) |
| Net Weight | 4.4 lb (2 kg) |
environmental | |
| Operating Temperature | -4°F ~ 158°F (-20°C ~ 70°C) with W.T. SSD/HDD/mSATA (according to IEC682-14 with 0.5 m/s AirFlow; with industrial devices) |
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| Storage Humidity | 95% @ 40°C, non-condensing |
| Anti-Vibration | 3 Grms/ 5 ~ 500Hz/ operation – mSATA/SSD 1 Grms/ 5~ 500Hz/ operation – HDD |
| Certification | CE/FCC class A |
