FWS-2273

Home  >   AAEON  >   Network Appliance and Video Surveillance  >
Desktop Network Appliance

Desktop 6 LAN Ports Network Appliance with Intel® Celeron® N3350 Processor SoC

Product Feature

  • Intel® Celeron® N3350 Processor SoC
  • 10/100/1000Base-TX x 6 (4 x RJ-45, 2 x SFP connector )
  • Supports up to 2 Pair Bypass
  • CF Socket x 1, SATA 6.0 Gb/s Port x 1 for 2.5” HDD/SSD
  • Mini-Card Slot (with SIM Socket) x 2
  • RJ-45 Console x 1, USB 3.2 Gen 1 x 2

AAEON’s latest desktop network appliance, the FWS-2273, represents a major step forward in the field of affordable, hard-hitting connectivity and network security. Energy efficient and user friendly, this device supports a variety of mass storage solutions and can be expanded to offer WiFi and 4G LTE, making it ideal for wireless gateway and vCPE applications.



1 GbE Fiber/ Copper Ports

With a pair of fiber SFP GbE ports and four copper LAN ports, the FWS-2273 has a rich array of I/O capabilities. The fiber ports provide exceptional speed, while the conventional ports allow the FWS-2273 to support a LAN bypass function for up to two pairs for four LAN ports to ensure network traffic availability.



Customer-Friendly Housing

Thanks to the FWS-2273's innovative housing, which can be removed by undoing a single screw, maintenance has never been easier. Easily accessible SIM and Mini-card covers make system expansion a simple task, and the system's optional 1U rack-mount brackets mean this device can even be installed in server cabinets.



Versatility of Use

Whether the end user is an SMB or home office needing wired connectivity or a cafe or small hotel with customers demanding a powerful WiFi signal, the FWS-2273 can easily carry the software needed to keep multiple computers and devices hooked up and running smoothly.

SYSTEM
FORM FACTORDesktop Network Appliance
PROCESSORIntel® Celeron® N3350 Processor
CHIPSETIntel® Celeron® N3350 Processor
SYSTEM MEMORY204-pin DDR3L SODIMM x 1, up to 8GB
NETWORK
ETHERNETIntel® i211, Gigabit Ethernet x 4 Intel® i210, SFP x 2
BYPASSSupports up to 2 pairs bypass function
DISPLAY
GRAPHICS CONTROLLERIntel® HD Graphics 505 Intergrated
CONNECTORHDMI x 1
STORAGE
HDD2.5” HDD Bay x 1
CF/CFAST/MSATACompactFlash™ socket x 1 (Co-lay for BOM Optional CFast™ socket x 1) SATA 6.0 Gb/s port x 1
INTERNAL/ EXPANSION INTERFACE
PCIE SLOT
MINI-PCIE SLOTMini-Card socket (full-size) with SIM socket x 2
KB MOUSEReserved pin-header
USBUSB 3.2 Gen 1 x 2
MISCELLANEOUS
RTCInternal RTC
WATCHDOG TIMER1~255 steps by software programmable
SOFTWARE BUTTON
TPM(TPM v1.2 9660/TPM2.0 9665 Optional)
GPIOReserve internal pin header 8-bit Digital I/O interface (4-in /4-out)
FANFanless, reserved pin header for system fan
MTBF (HOURS)109725
COLORBlack
PHYSICAL & ENVIRONMENTAL SPEC
POWER REQUIREMENT12V DC Power in connector
OPERATING TEMPERATURE32°F ~ 104°F (0°C ~ 40°C )
STORAGE TEMPERATURE-4°F ~ 140°F (-20°C ~ 60°C)
OPERATING HUMIDITY10%~80% relative humidity, non-condensing
STORAGE HUMIDITY10%~80% @40°C; non-condensing
VIBRATION0.5 Grms/ 5 ~ 500Hz / operation (2.5" HDD)
1.5 Grms/ 5 ~ 500Hz / non operation
SHOCK10 G peak acceleration (11 m sec. duration), operation
20 G peak acceleration (11 m sec. duration), non operation
DIMENSION (W X D X H)8.66” x 4.13” x 1.73” (220mm x 105mm x 44mm)
I/O

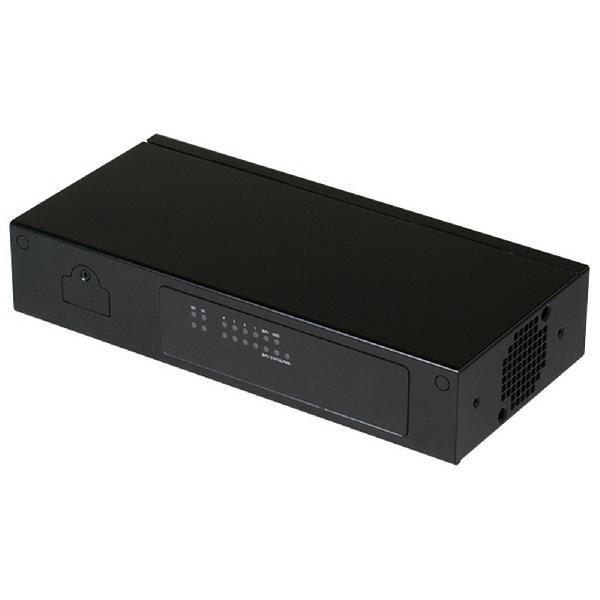

FRONT PANELPower LED x 1
Status LED x 1
Storage Active LED x 1
Bypass LED x 2
LAN LED x 12

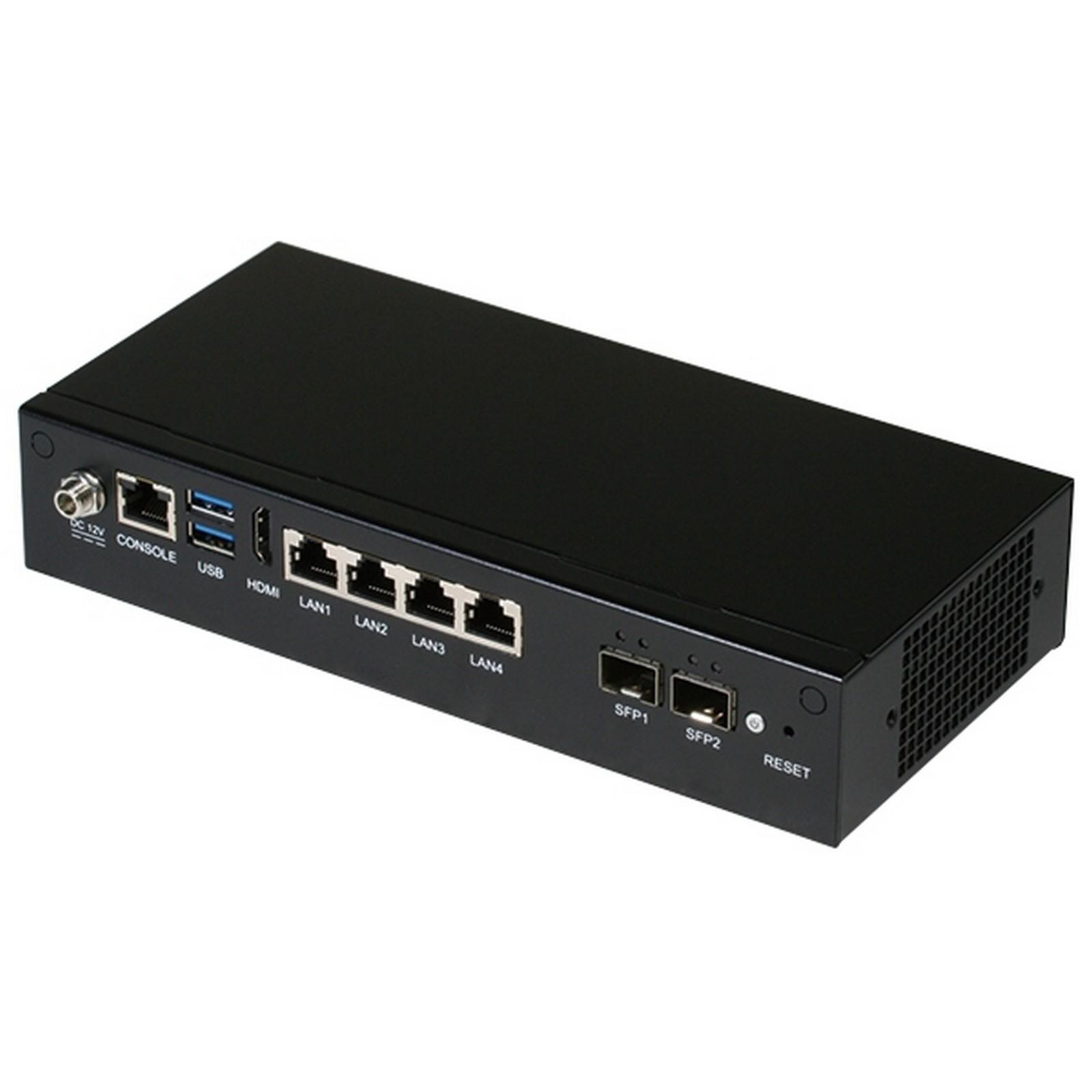

REAR PANELUSB 3.2 Gen 1 Port x 2
RJ-45 Port x 4
SFP x 2
RJ-45 Console x 1
12V DC Power Input x 1
Software Reset Button x 1
Power Button x 1
HDMI x 2
Antenna Hole x 2
Name Type Version Release Date
FWS-2273, datasheet Datasheet V1.0 22 December 2017
