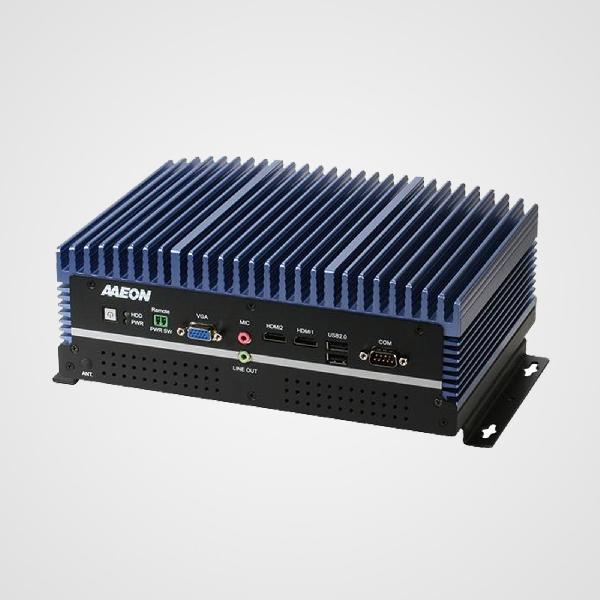

BOXER-6640M (Entry-level Box PC)

Home  >   AAEON  >   Computing Systems  >
Fanless Embedded Box PC  >   Entry-level Box PC

Vision System Fanless Embedded Box PC with 6th/7th Generation Intel® Core™ Desktop Processor and Multi GbE LAN & USB 3.2 Gen 1

Product Feature

  • Extreme Computing Power & Graphic Display Capability
  • Desktop Grade Socket Type Processor with Longevity Support
  • Supports DDR4 1866/2133 SODIMM, Up to 32GB
  • VGA + HDMI x 2 Triple Display, HDMI 4K Display
  • USB 3.2 Gen 1 x 8, USB 2.0 x 2
  • Industrial-grade Intel® GbE LAN x 9
  • Isolated RS-232/422/485 x 1
  • Compact Size and Easy Access Design
  • Wide Range DC 9~36V Input

Vision System Fanless Embedded Box PC with 6th/7th Generation Intel® Core™ Desktop Processor and
Multi GbE LAN & USB 3.2 Gen 1

system

CPU7th Generation Intel® Core™ Pro mily:
Intel® Core™ i7-7700T, 2.9 GHz
Intel® Core™ i5-7500T, 2.8 GHz
Intel® Core™ i3-7101TE, 3.4 GHz
Intel® Pentium® G4560T, 2.9 GHz
6th Generation Intel® Core™ Processor family:
Intel® Core™ i7-6700TE, 2.4 GHz
Intel® Core™ i5-6500TE, 2.3 GHz
Intel® Core™ i3-6100TE, 2.7 GHz
Intel® Pentium® G4500T, 3.0 GHz
Intel® Pentium® G4400TE, 2.9 Ghz
ChipsetIntel® H170
System MemoryDDR4 1866/2133 SODIMM slot x 2, up to 32 GB, ECC or Non-ECC support
Display InterfaceHDMI, VGA
Storage DevicemSATA, HDD/SSD
EthernetIntel®I210, 10/100/1000Base-TX x 9
I/ORS-232/422/485 x 1 isolation

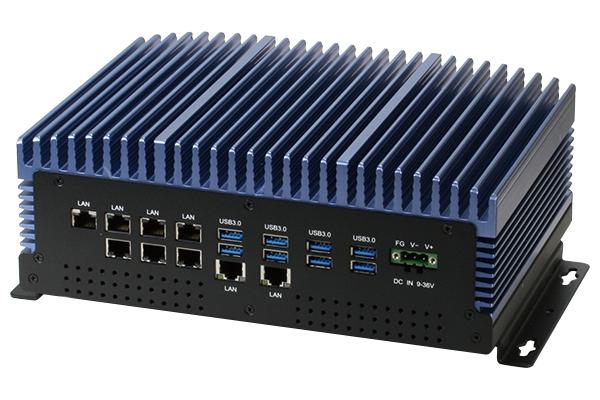

USB Type A x 8 for USB 3.2 Gen 1,
USB Type A x 2 for USB 2.0
RJ-45 x 9 for GbE LAN, Power On/Off Button x 1,
2 pin Remote power on/off
VGA x 1, Mic-in x 1, Line-out x 1,
Antenna opening x 1
SYS LED indicator x 1, HDD LED indicator x 1
DB-15 x 1 for VGA, HDMI v1.3 x 2
DC-in 3-pin terminal block (9~36V)
ExpansionFull-size Mini card x 1 (PCIE + USB, w/ SIM slot)
Full-size Mini card x 1 (PCIE, BOM optional mSATA + USB)
Indicator—
OS support7th Generation Intel® Core™ Processor family:
Windows® 10 IOT (64bit), Ubuntu 16.04 above,
Fedora 25 above, CentOS 7.3 above,
6th Generation Intel® Core™ Processor family:
Windows® 10 IOT (64bit),
Windows® 8.1 (64bit),
Windows® embedded 8 standard (64bit),
Windows® 7 (32bit/64bit),
Windows® embedded standard 7 (32/64bit)
Ubuntu 16.04 above, Fedora 25 above, CentOS 7.3 above

power supply

Power Requirement9 - 36V with 3-pin terminal block

mechanical

MountingWallmount
Dimensions (W x H x D)10.40" x 3.80" x 7.33" (264.2mm x 96.4mm x 186.2mm)
Gross Weight12.8 lb (5.8 kg)
Net Weight9.9 lb (4.5 kg)

environmental

Operating Temperature-4°F ~ 122°F (-20°C ~ 50°C)
(according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices)
Storage Temperature-49°F ~ 158°F (-45°C ~ 70°C)
Storage Humidity5~95% @ 40°C, non-condensing
Anti-Vibration2 Grms/ 5 ~ 500Hz/ operation – SSD
1 Grms/ 5 ~ 500Hz/ operation – HDD
CertificationCE/FCC class A
