FWS-2350

Home > AAEON > Network Appliance and Video Surveillance >
Desktop Network Appliance

Desktop 6 LAN Ports Network Appliance with Intel® Atom™ C2558/C2358 Processor SoC with Intel® QAT Support

Product Feature

Onboard Intel® Atom™ C2358/C2558 Processor SoC
240-pin DDR3 DIMM up to 16 GB ECC or non-ECC SDRAM
Built-in Gigabit Ethernet x 6
Supports QuickAssist Crypto Acceleration
System Cooling Fan x 1
Supports 2 Pairs LAN Bypass Function
Compact Desktop Design
Built-in Intel® i211AT LAN and Intel® SoC Integrated i354 with Marvell 88E1543 PHY

Featuring Intel® Atom™ C2358 Processor SoC with Intel® QAT support, the FWS-2350 is a Network Appliance that supports six LAN ports (LAN bypass function for 2 pairs supported), 240-pin ECC DDR3 DIMM or non-ECC SDRAM of up to 16GB, one MiniCard socket, two USB2.0 ports, and one RJ-45 for console.

Applications

Firewall
IDP/IPS
Load Balancing
Network Access Control
Bandwidth Management
Web Filter
Anti-Spam/Virus

Notice: Undefined variable: rs5 in /opt/lampp/htdocs/productview.php on line 633

Notice: Trying to get property 'tab_ap' of non-object in /opt/lampp/htdocs/productview.php on line 633

Notice: Undefined variable: title_ap in /opt/lampp/htdocs/productview.php on line 638

Notice: Undefined variable: detail_ap in /opt/lampp/htdocs/productview.php on line 639

บริษัท พีที ออโตเมชั่น (ไทยแลนด์) จำกัด

เลขที่ 9 อาคารภคินท์ ชั้น 9 ห้องเลขที่ 901 ถนนรัชดาภิเษก แขวงดินแดง เขตดินแดง กรุงเทพฯ 10400
โทรและแฟกซ์ : +66(0)-2020-3000
อีเมล์ : product@pt-automations.com
Facebook : facebook.com/ptautomations

จันทร์ ถึง ศุกร์ เวลา 9.00 น. – 18.00 น.

SYSTEM
FORM FACTOR	Desktop 6-Port Network Appliance
PROCESSOR	Intel® Atom™ C2358 1.7 GHz (Dual Core) Intel® Atom™ C2558 2.4 GHz (Quad Core)
CHIPSET	—
SYSTEM MEMORY	240-pin DDR3 1333MHz ECC or non-ECC SDDIMM up to 16GB, C2358 single channel, C2558 dual-channel
NETWORK
ETHERNET	Intel® i211, Gigabit Ethernet x 2 (Optional additional Intel® i211, Gigabit Ethernet x 2), Intel® SoC Integrated i354 with Marvell 88E1543 PHY x 1
BYPASS	Supports up to 2 pairs bypass function
DISPLAY
GRAPHICS CONTROLLER	—
CONNECTOR	—
STORAGE
HDD	Internal 2.5” SATA HDD Bay x 1
CF/CFAST/MSATA	CF socket x 1 (Optional CFast™ socket x 1)
INTERNAL/ EXPANSION INTERFACE
PCIE SLOT	—
MINI-PCIE SLOT	Mini-Card slot with SIM socket x 1 (Full size) (Optional Mini-Card slot up to 2)
KB MOUSE	Pin-header
USB	USB 2.0 x 2
MISCELLANEOUS
RTC	Internal RTC
WATCHDOG TIMER	1~255 steps by software programmable
SOFTWARE BUTTON	GPIO Programmable push button x 1
TPM	Optional TPM v1.2/v2.0
GPIO	Reserved internal GPIO Pin header x 1
FAN	System Fan x 1
MTBF (HOURS)	86286
COLOR	Black
PHYSICAL & ENVIRONMENTAL SPEC
POWER REQUIREMENT	12V DC power in connector/ 60W Power adapter x 1 4-pin DC power out connector for HDD x 1
OPERATING TEMPERATURE	32°F ~ 104°F (0°C ~ 40°C)
STORAGE TEMPERATURE	-4°F ~ 140°F (-20°C ~ 60°C)
OPERATING HUMIDITY	10%~80% relative humidity, non-condensing
STORAGE HUMIDITY	10%~80% @40°C, non-condensing
VIBRATION	0.5 Grms/ 5 ~ 500Hz/ operation (2.5” Hard Disk Drive) 1.5 Grms/ 5 ~ 500Hz/ non-operation
SHOCK	10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non-operation
DIMENSION (W X D X H)	10.24” x 7.01” x 1.73” (260mm x 178mm x 44mm)
I/O

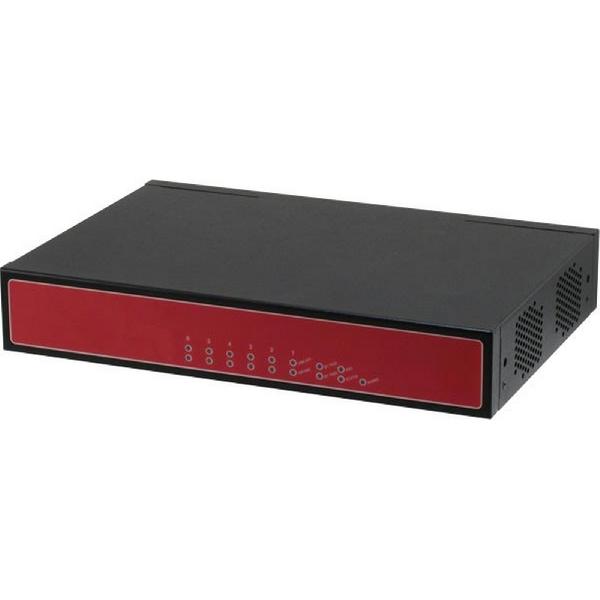

FRONT PANEL	Power LED x 1 Status LED x 1 HDD Active LED x 1 Bypass LED x 2 (Optional) LAN LED x 12 (Supports up to LAN LED x 16)

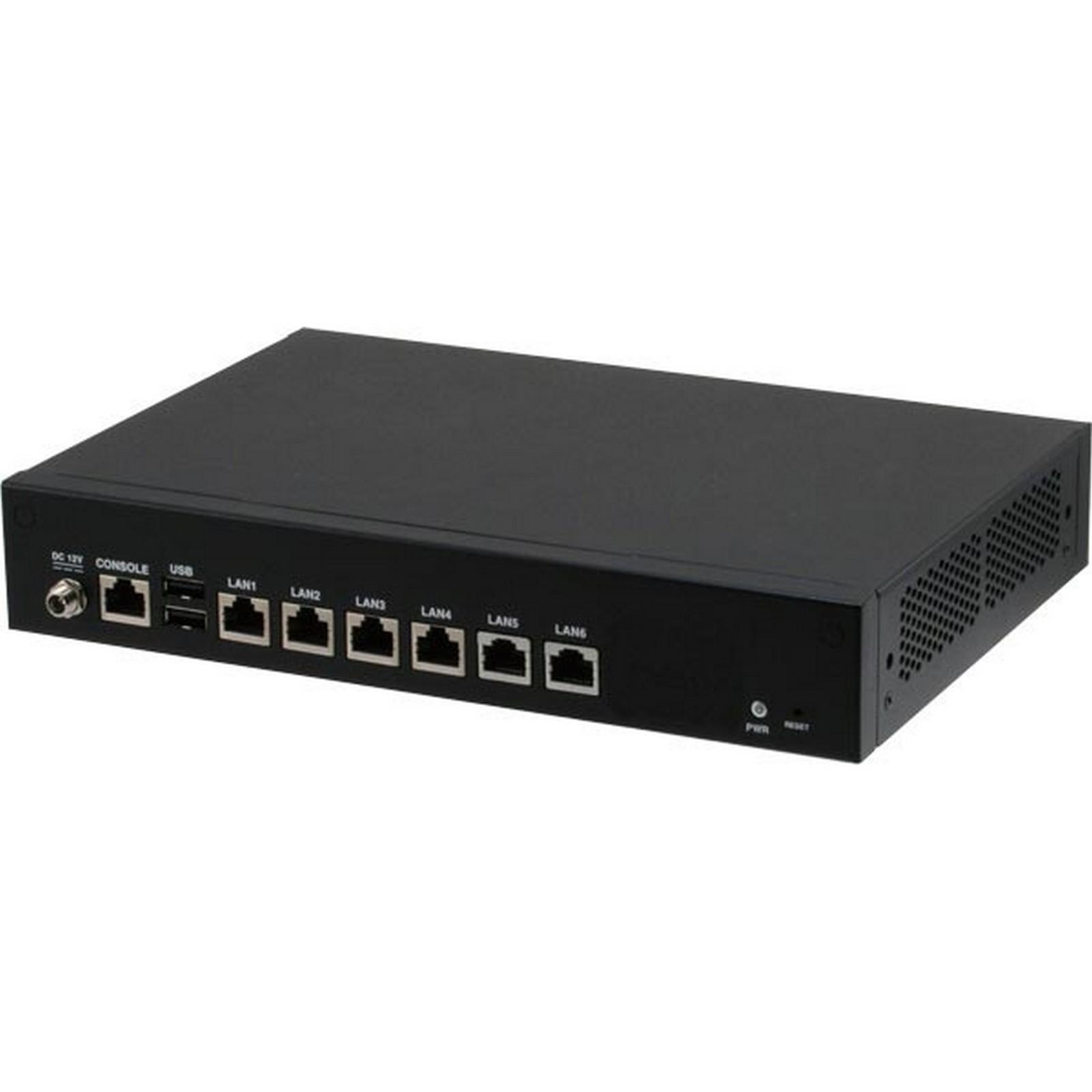

REAR PANEL	12V DC Power Input x 1 Power Button x 1 USB 2.0 x 2 RJ-45 LAN x 6 (Supports up to RJ-45 LAN x 8) RJ-45 Console x 1 Software Programmable Button x 1

Name		Type	Version	Release Date
FWS-2350, datasheet		Datasheet	V1.0	10 Febuary 2015
