The FWS-7830 and FWS-7831 rackmount network appliances provide flexible network solutions with the power of the 8th Generation Intel Core and Xeon processors, formerly Coffee Lake. With a range of processors to choose from, from the dual core i3 up to six-core Xeon E-2 processors, these network appliances are built for UTM, SD-WAN, web monitoring, load balancing, and even Network Virtualization.
With AAEON support, the FWS-7830 and FWS-7831 can be configured to meet your network needs. These systems offer unmatched flexibility in their class, and are designed to be easy to use for small to mid-range network needs.

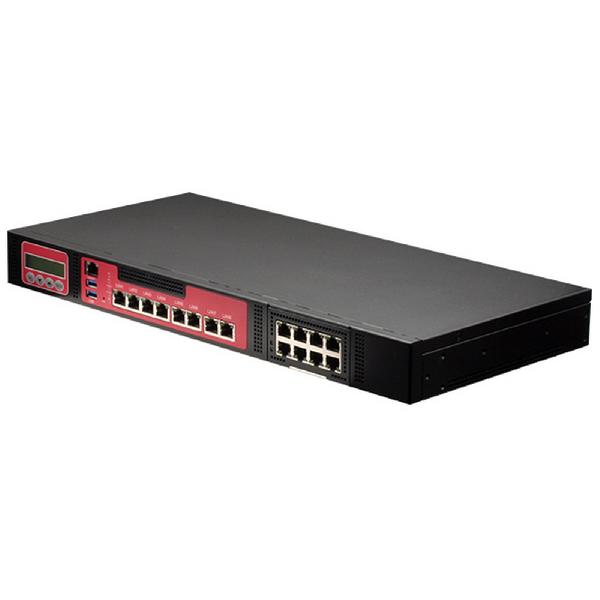

The FWS-7831 is the user friendly and budget friendly solution for small to mid-level network solutions. With a shorter chassis, it can be deployed almost anywhere without need of a dedicated rack, perfect for small businesses or remote offices. The FWS-7831 packs performance with a throughput over 48 Gbps depending on configuration. It features eight built in LAN ports and a NIM slot, supporting up to 16 LAN ports in total.
-Configurable built-in LAN: 8x Gigabit Ethernet or 6x Gigabit Ethernet with 2x SFP
-Smaller size, easy to set up and deploy without need for a rack
-Built for UTM, SD-WAN, Web Monitoring and Load Balancing
| PLATFORM | |
| FORM FACTOR | 1U Rackmount Network Platform |
| PROCESSOR | Intel® Xeon® processor E-2100 family for Intel® C246 Chipset Intel® Core™/ Celeron® processor for Intel® H310 Chipset (Intel® i7-9700 Supported) |
| CHIPSET | Intel®C246/H310 |
| SYSTEM MEMORY | DDR4 SODIMM x 2 /ECC Up to 32GB DDR4 1600/1866/2133 SODIMM/ECC Up to 32GB 260-pin DIMM x 2 |
| NETWORK | |
| ETHERNET | Intel® i211 Gigabit Ethernet x 8 or Intel® i211 Gigabit Ethernet x 6 + SFP Ethernet ports x2 (C246) Intel® i211 Gigabit Ethernet x 6 (H310) |
| BYPASS | 2 Pairs |
| NIM SLOT | Need to configure riser card |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® UHD Graphics 630 |
| CONNECTOR | (HDMI x1 Optional) |
| STORAGE | |
| HDD | Internal 2.5” HDD bay x 2 or ( 3.5” HDD bay x 1 can’t use with NIM Optional ) |
| CF/CFAST/MSATA | mSATA |
| EXPANSION/INTERNAL INTERFACE | |
| PCIE SLOT | NIM Slot x 1 |
| MINI-CARD | Mini-Card x 1 (PCIe[x1]+mSATA) |
| IPMI | — |
| KB MOUSE | NA |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| SOFTWARE BUTTON | GPIO Programmable push button x 1 |
| TPM | (TPM2.0 9665/TPM v1.2 9660 optional) |
| GPIO | 4 bits input, 4 bits output |
| FAN | 2 |
| MTBF (HOURS) | 362,825 Hours |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 220W ATX PSU |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation (2.5” Hard Disk Drive) 1.5 Grms/ 5 ~ 500Hz / non operation |
| SHOCK | TBD |
| DIMENSION (W X D X H) | 16.93” x 7.87” x1.73”(430mm x 200mm x 44mm) |
| I/O INTERFACE | |

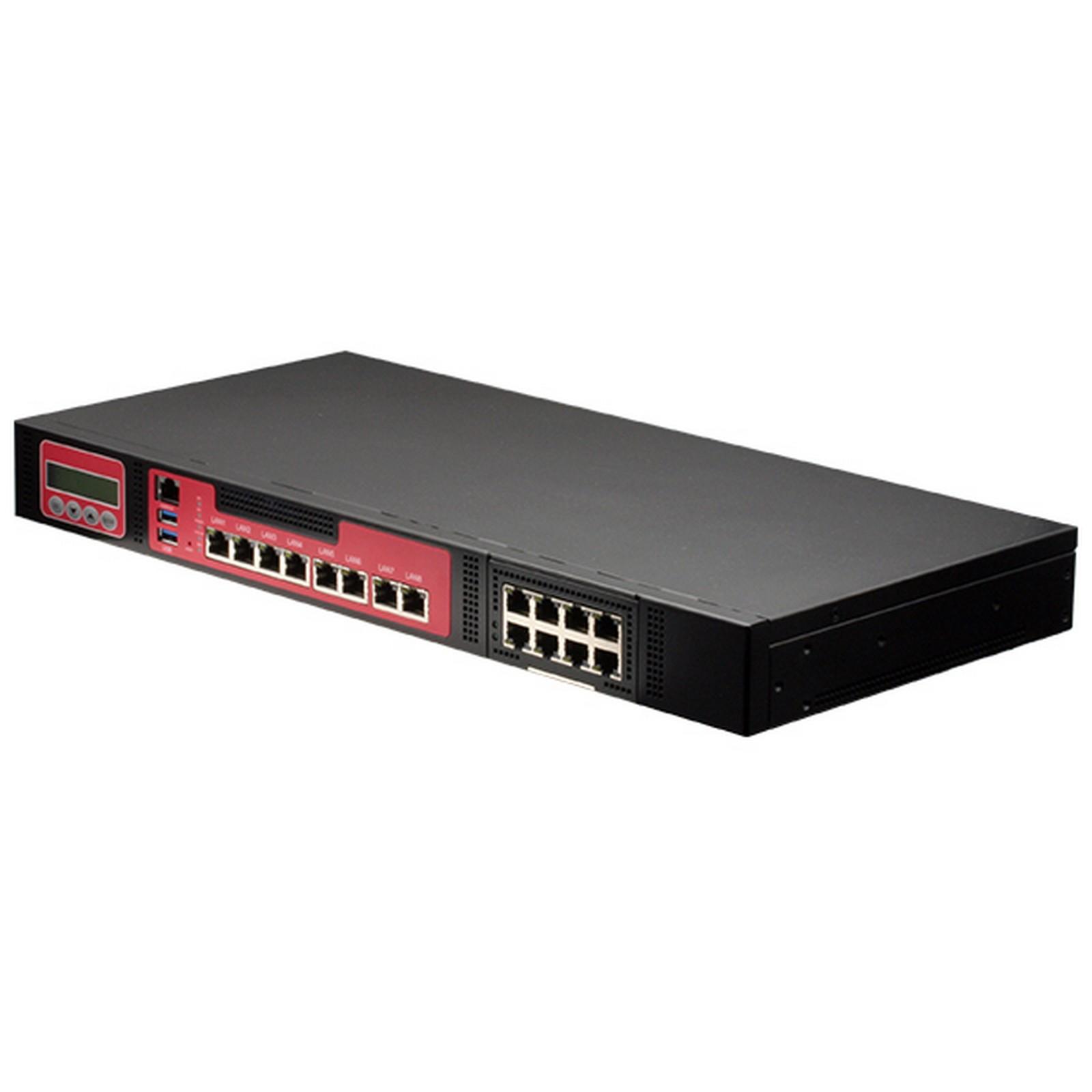

| FRONT PANEL | Power LED x 1 Status LED x 1 HDD Active LED x 1 USB 3.2 Gen 1 Ports x 2 RJ-45 Console x 1 |

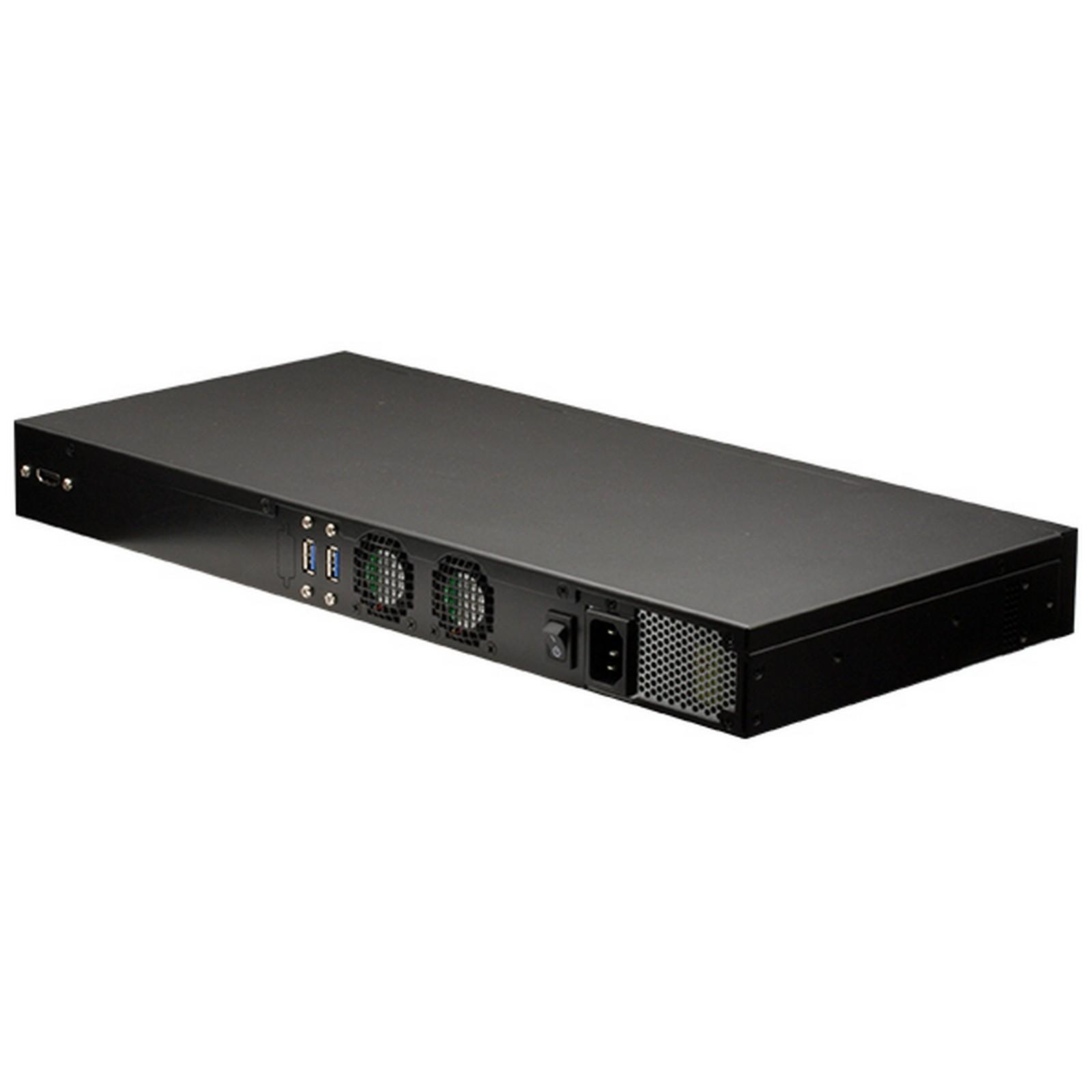

| REAR PANEL | AC Power Input x 1 Power Switch x 1 (Rear Expansion Slot x 1 Optional) |
| Name | Type | Version | Release Date | |
| FWS-7831, datasheet | Datasheet | V1.0 | 27 June 2019 |
