FWS-7250

Featuring Intel® Atom™ E3845/ Celeron® J1900 Processor SoC, the FWS-7250 is a 1U Network Appliance that supports four LAN ports, two 204-pin dual channel DDR3/L 1333MHz SODIMM memory of up to 8GB, one MiniCard socket, two USB2.0 ports, one RJ-45 for console, and four RJ-45 ports.

Applications

Firewall
IDP/IPS
Bandwidth Manager
Load Balancing
Network Access Control
Web Filter
Anti-Spam/Virus

PLATFORM
FORM FACTOR	1U Rackmount Network Platform
PROCESSOR	Intel® Atom™ E3845, up to 1.91 GHz/ Celeron® J1900 up to 2.42 GHz
CHIPSET	Integrated
SYSTEM MEMORY	DDR3(L) 1333 SODIMM Up to 8GB 204 Pin DIMM x 2
NETWORK
ETHERNET	Intel® i210AT, Gigabit Ethernet x 4
BYPASS	2
NIM SLOT	—
DISPLAY
GRAPHICS CONTROLLER	Intel® HD graphics integrated
CONNECTOR	VGA cable (Optional)
STORAGE
HDD	Internal 2.5” SATA HDD x 1 or (2.5” SATA HDD x 2 /3.5” SATA HDD x 1 optional)
CF/CFAST/MSATA	CF socket x 1
EXPANSION/INTERNAL INTERFACE
PCIE SLOT	—
MINI-CARD	1
IPMI	—
KB MOUSE	Pin-header
USB	USB 2.0 x1 Box Header (2.0mm) (optional)
MISCELLANEOUS
RTC	Internal RTC
WATCHDOG TIMER	1~255 steps by software programmable
SOFTWARE BUTTON	GPIO Programmable push button x 1
TPM	—
GPIO	—
FAN	2
MTBF (HOURS)	110000
COLOR	Black
PHYSICAL & ENVIRONMENTAL SPEC
POWER REQUIREMENT	100W ATX PSU
OPERATING TEMPERATURE	32°F ~ 104°F (0°C ~ 40°C)
STORAGE TEMPERATURE	-4°F ~ 140°F (-20°C ~ 60°C)
OPERATING HUMIDITY	10 ~ 80%
STORAGE HUMIDITY	10 ~ 80% @ 40°C, non-condensing
VIBRATION	0.5 Grms/ 5 ~ 500Hz/ operation (3.5” H.D.D) 1.5 Grms/ 5 ~ 500Hz/ no operation
SHOCK	10G peak acceleration (11 m sec. duration), operation 20G peak acceleration (11 m sec. duration), non-operation
DIMENSION (W X D X H)	16.93” x 11.02” x 1.73” (430mm x 280mm x 44mm)
I/O INTERFACE

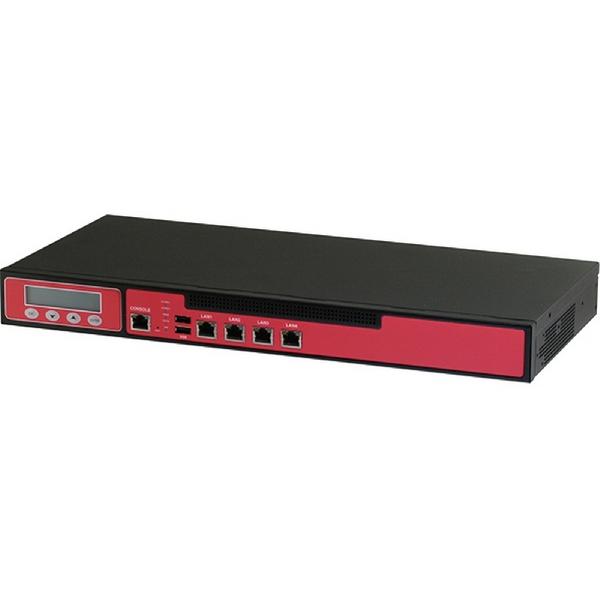

FRONT PANEL	Power LED x 1 Status LED x 1 HDD Active LED x 1 LAN ports Link/Active LED x 4 Bypass LED (Default 2 LEDs) USB 2.0 Ports x 2 RJ-45 Console x 1 Parallel LCM display and 4 keypad x 1 Software Programmable Switch x 1

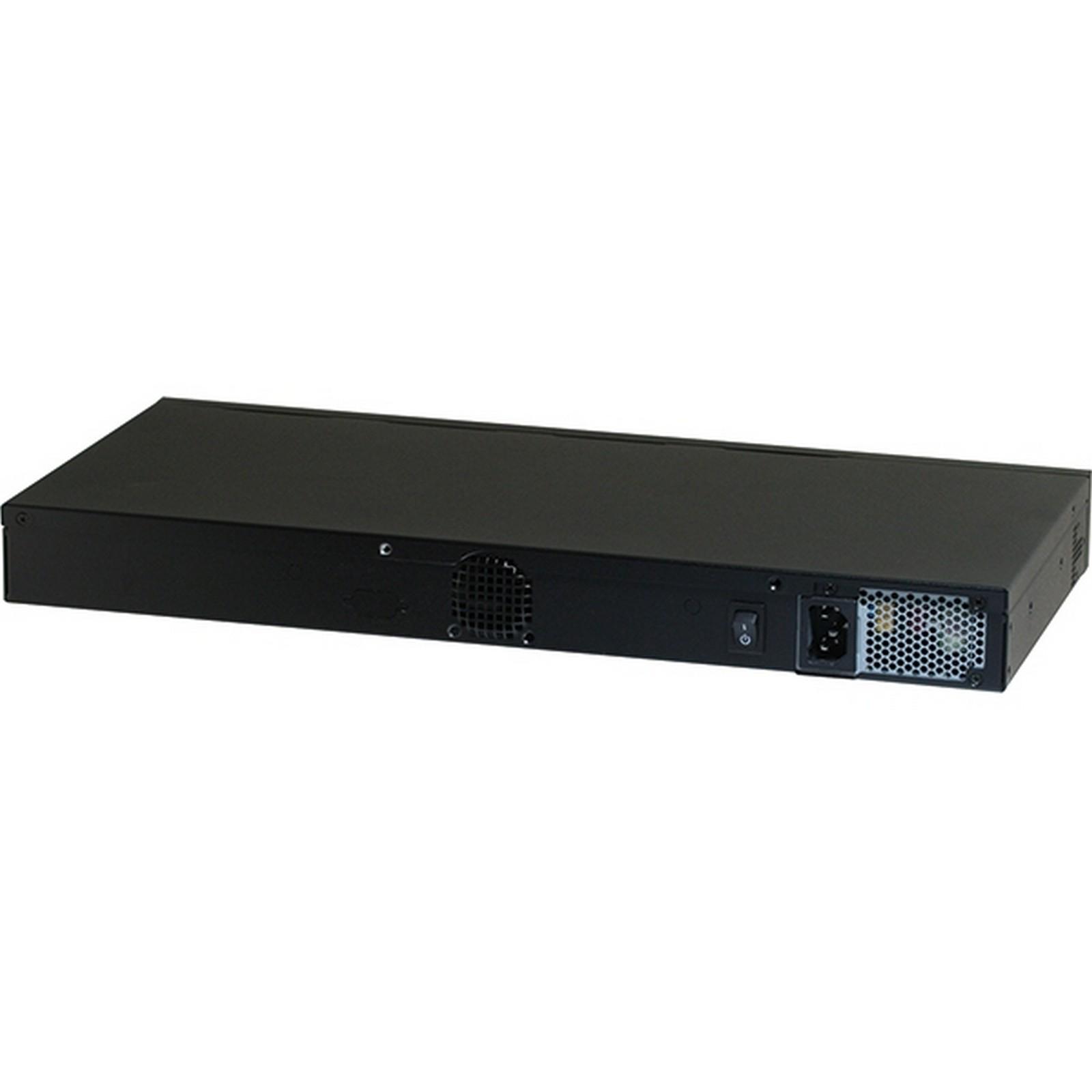

REAR PANEL	AC Power Input x 1 Power Switch x 1 VGA port (Optional)

Name		Type	Version	Release Date
FWS-7250, datasheet		Datasheet	V1.0	10 Febuary 2015
