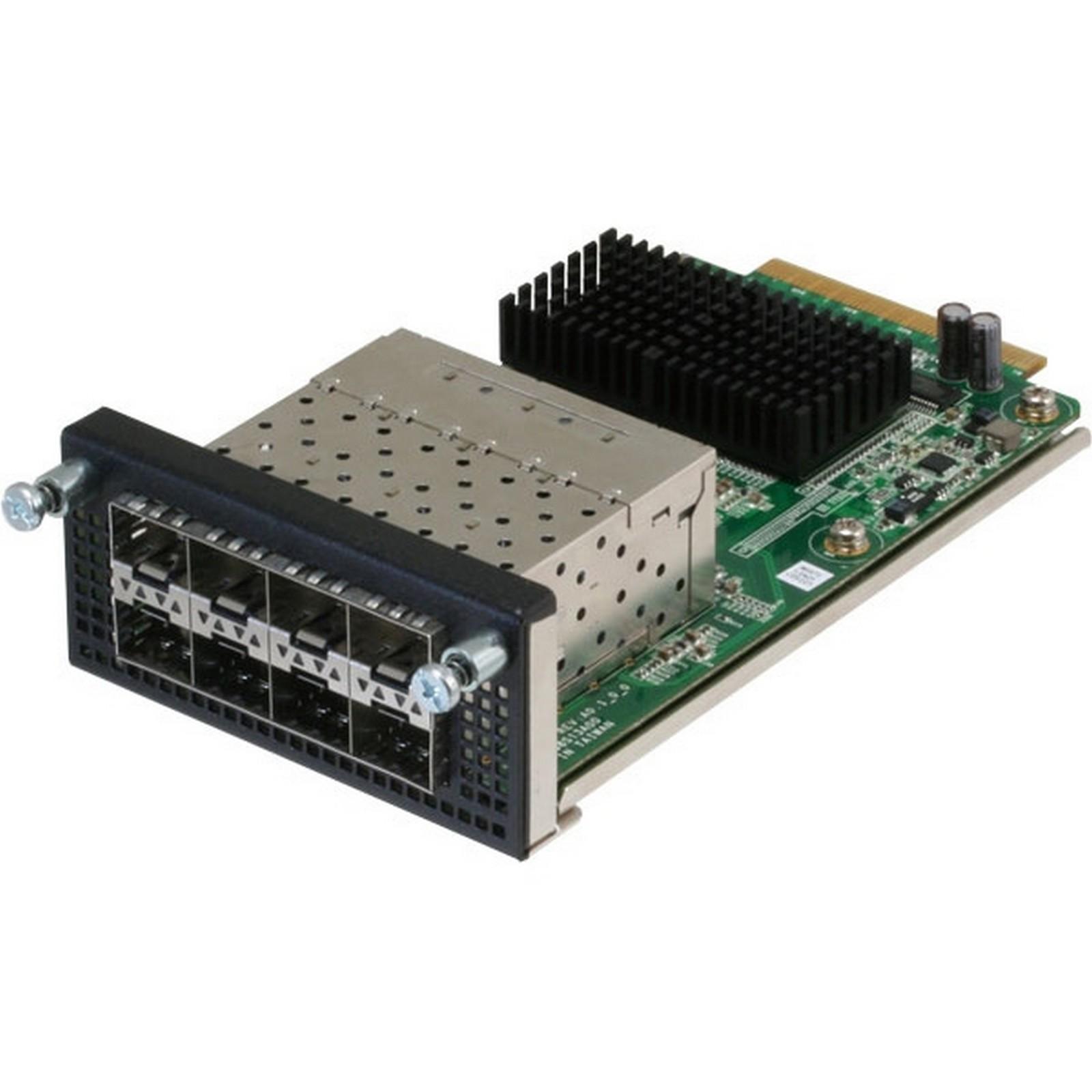

The NIM-S13A is an ethernet module with PCI-Express host interfaces, and eight 10/100/1000Base-TX fiber LAN ports. It is usable with the FWS-8500 network appliance.
| MAIN SPECIFICATION | |
| FORM FACTOR | 1G LAN Module |
| MAIN CHIPSET | Intel® 825080EB Ethernet Controller x 2 |
| BYPASS | — |
| HOST INTERFACE | PCI-Express [x8] (x4 + x4) |
| LAN PORT | SFP 1 GbE Connector x 8 |
| INDICATOR | — |
| QUALIFICATION | CE/FCC Class A |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) |
| DIMENSION | 5.71” x 3.03” (145mm x 77mm) |
| Name | Type | Version | Release Date | |
| NIM-S13A datasheet | Datasheet | V1.0 | 04 January 2021 |
