Powered by 6th Gen Intel® Core™ Desktop Processor with longevity support and a flexible mechanical design to change out the CPU depending upon the customer’s needs, 2 x HDMI with 4K resolution, 3 x industrial GbE LAN with Intel® industrial-grade I210 chipset, the BOXER-6639 aims at delivering superb performance. The rugged chassis design is ideally suited for smart control systems, machine vision inspection, digital signage, surveillance and machine maker.
With features supporting extended operating temperature from -20°C to 55°C and 9 ~ 36V wide range DC input, this BOX PC enhances operation in harsh factory environments.
AAEON’s BOXER-6639, incorporated with a variety of serial I/O connectors, including 6 COM ports, 4 USB 3.2 Gen 1 and 34 channel DIO, offers flexible configuration and expansion capability. Hence, customers can efficiently wire-up multiple systems to the central controller for various automation applications.
system | |
| CPU | Intel® Core™ i7-7700T, 2.9 GHz Intel® Core™ i5-7500T, 2.7 GHz Intel® Core™ i7-6700TE, 2.4 GHz Intel® Core™ i5-6500TE, 2.3 GHz Intel® Core™ i3-6100TE, 2.7 GHz Intel® Pentium® G4400TE, 2.4 GHz Intel® Celeron® G3900TE, 2.3 GHz |
| Chipset | Q170 |
| System Memory | DDR4 1866/2133 SODIMM slot x 2, up to 32 GB, ECC or Non-ECC support |
| Display Interface | VGA, HDMI |
| Storage Device | CFast, SATA HDD/SSD (Optional: x2) |
| Ethernet | Intel® i210, 10/100/1000Base-TX x 3 |

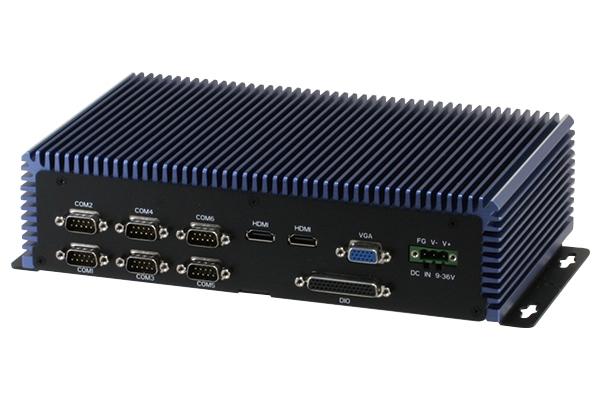

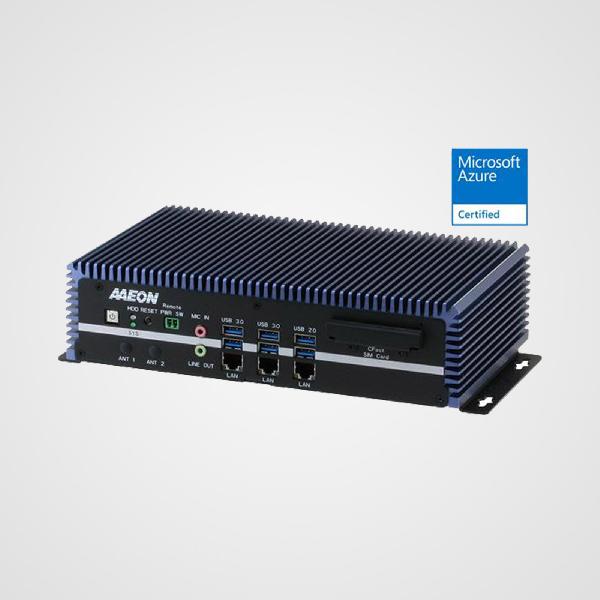

| I/O | RS-232/422/485 x 6 USB 3.2 Gen 1 x 4 USB 2.0 x 2 VGA x 1 HDMI x 2 Line-out x 1 Mic-in x 1 LAN x 3 CFast slot x 1 SIM slot x 1 Antenna holes x 2 34bit DIO x 1(A2 & A4 SKU) Power switch Power input Remote power switch Reset Button |
| Expansion | Full-size Mini-Card x 1 (PCI-E + USB, w/ SIM slot) Full-size Mini-Card x 1 (PCI-E + USB, Optional for mSATA and SIM Slot) |
| Indicator | Power LED HDD active LED |
| OS support | Windows® 7 (32/64-bit), Windows® 8/8.1 (64-bit) , Windows® 10 (64-bit) |
power supply | |
| Power Requirement | 9 - 36V with 3-pin terminal block |
mechanical | |
| Mounting | Wallmount, DIN Rail (Mounting Kit is optional) |
| Dimensions (W x H x D) | 10.4" x 2.6" x 6.1" (264.2mm x 66.5mm x 156.2mm) |
| Gross Weight | 7.7 lb (3.5 kg) |
| Net Weight | 6.6 lb (3 kg) |
environmental | |
| Operating Temperature | -4°F ~ 131°F (-20°C ~ 55°C) (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices) |
| Storage Temperature | -49°F ~ 176°F (-45°C ~ 80°C) |
| Storage Humidity | 5~95% @ 40°C, non-condensing |
| Anti-Vibration | 2 Grms/ 5 ~ 500Hz/ operation –CFast™ card 1 Grms/ 5~ 500Hz/ operation – HDD |
| Certification | CE/FCC class A |
