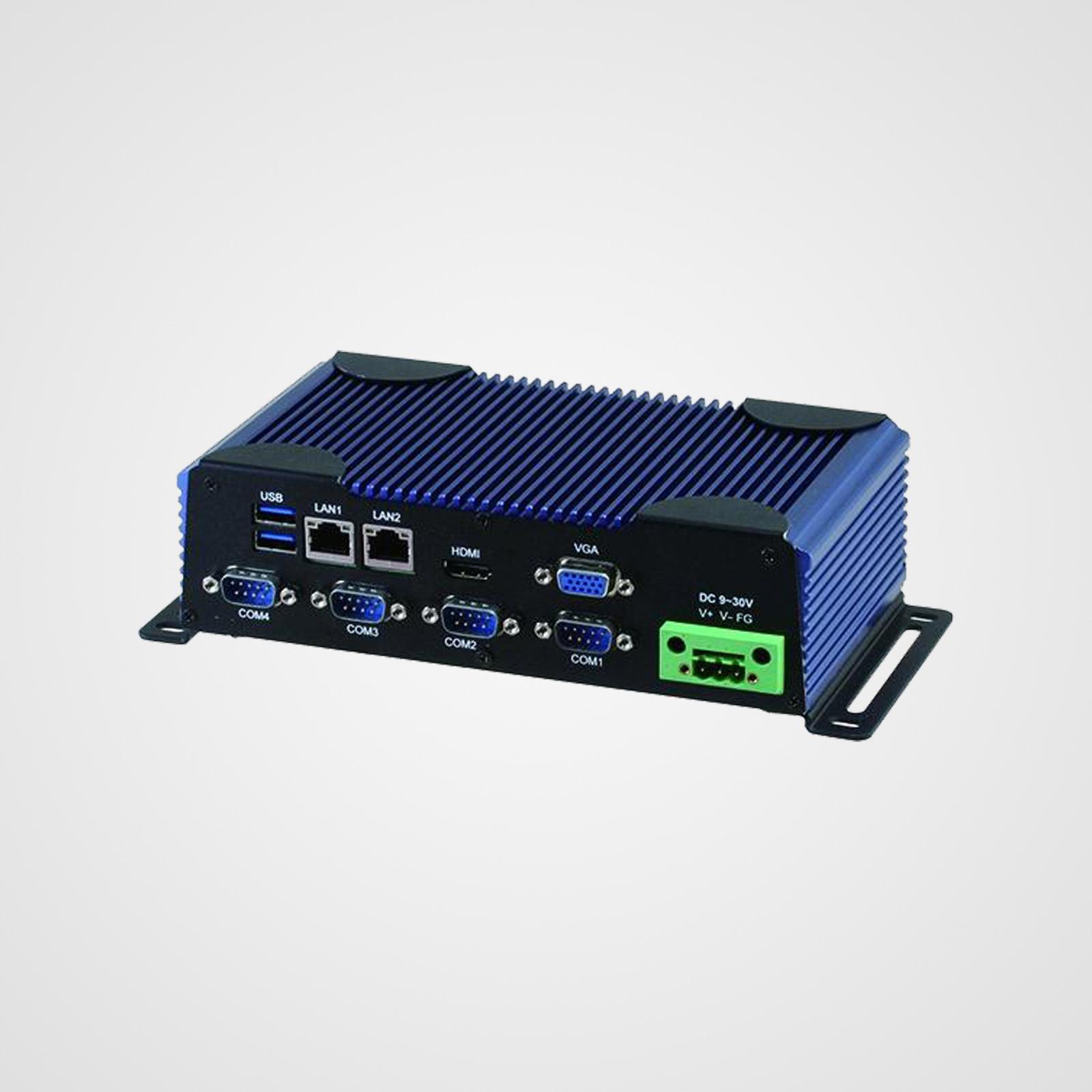

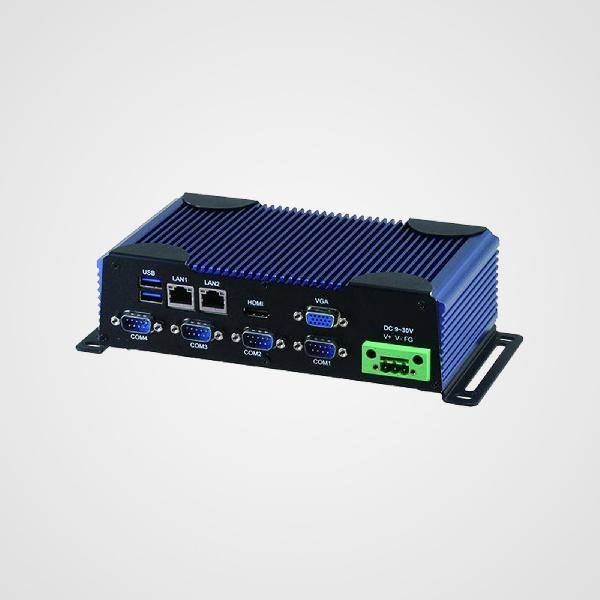

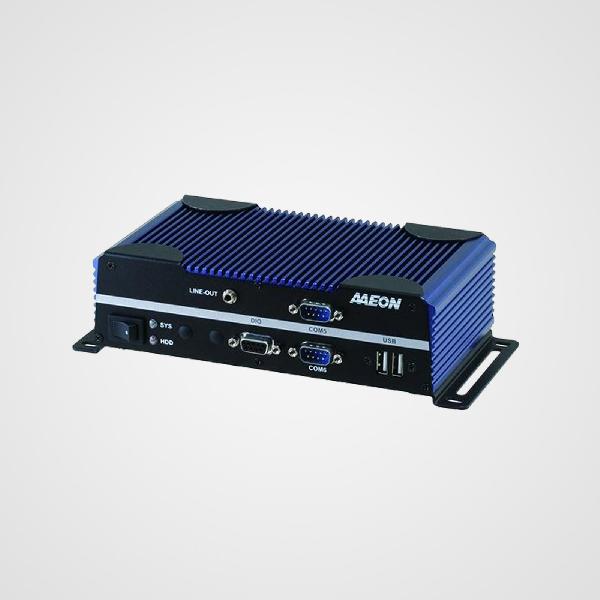

Fanless Embedded Box PC with Intel® Pentium® N3710, 1.6 GHz
system | |
| CPU | Intel® Pentium® N3710 1.6GHz |
| Chipset | Intel® System on Chip |
| System Memory | 204-pin 1600 DDR3L SODIMM x 1, up to 8GB |
| Display Interface | VGA, HDMI |
| Storage Device | mSATA, 2.5" HDD/SSD |
| Ethernet | Realtek® RTL-8111E, 10/100/1000 Base x2 |
| I/O | RS-232/422/485 x 2 RS-232 x 4 USB 3.2 Gen 1 x 2 USB2.0 x 2 VGA x 1 HDMI x 1 DIO x 1 Line-Out x 1 Antenna holes x 2 Power switch Power inpu |
| Expansion | Full-size Mini-Card x 1 (PCI-E + USB, w/ SIM slot) Half-size Mini-Card x 1 (mSATA + USB) |
| Indicator | Power LED HDD active LED |
| OS support | Windows® 10, Windows® 8.1 (32/64-bit), Windows® 7 (32/64-bit), WES7/ WES8, Windows® 10 IOT, Linux |
power supply | |
| Power Requirement | 9 - 30V with 3-pin terminal block (A2M) 12V with lockable DC jack (A2) |
mechanical | |
| Mounting | Wallmount DIN Rail (Mounting kit is optional) |
| Dimensions (W x H x D) | 7.76" x 2.17" x 4.33" (197mm x 55mm x 110mm |
| Gross Weight | 6.6 lb (2.8 kg) |
| Net Weight | 4.4 lb (2 kg) |
environmental | |
| Operating Temperature | -4°F ~ 140°F (-20°C ~ 60°C) with W.T. SSD/HDD/mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices) |
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| Storage Humidity | 95% @ 40°C, non-condensing |
| Anti-Vibration | 5 Grms/ 5 ~ 500Hz/ operation –mSATA/SSD 1 Grms/ 5~ 500Hz/ operation – HDD |
| Certification | CE/FCC class A |
