ADDERLink™ INFINITY 4000

Home  >   Adder  >   Matrix  >
Enterprise IP-based Matrix

A high performance dual-head IP KVM matrix solution with support for 5K video and multigigabit Ethernet connectivity.

Product Feature

  • Dual-head 5K screens over a single link: The ALIF4000 can deliver two 5K screens over a single link.
  • Multigigabit Ethernet support: Multirate (1/2.5/5/10) GbE support enables premium video performance over 5Gb/s copper links using 100m of standard CAT6 cable.
  • Support for 1GbE: Integrated 1GbE ports enable easy delivery of 4K/60 video over ubiquitous 1Gb/s copper links using 100m of standard CAT5e or CAT6 cable.
  • Support for 5K Resolutions: 5K video resolutions supported for high resolution and ultra-wide video applications (5120x1440@60Hz or 5120x2880@30Hz).
  • Backwards compatibility: The ALIF4000 can integrate seamlessly into your existing ADDERLink INFINITY setup, replacing or working in conjunction with your existing ALIF endpoints
  • Digital KVM matrix: By the addition of ADDERLink INFINITY Management system (A.I.M.) you can turn multiple point to point extenders into a matrix system that allows any workstation to connect to any computer connected to the network. See the A.I.M. datasheet for details
  • Audio capability: Multi-channel digital audio, via DisplayPort™, provides a high-quality immersive sound experience.
  • EDID management: The system has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed
  • Plug and Play: The ADDERLink INFINITY range is delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
  • USB True Emulation: USB2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers

The ADDERLink™ INFINITY 4000 Series (ALIF4000) is the world's first dual-head, high performance 5K IP KVM extender over a single fiber.

The ALIF4000 is fully compatible with the existing INFINITY range, and supported by the trusted ADDERLink INFINITY Manager (AIM), the ALIF4000 can be used as a point-to-point extender or easily integrated into a wider matrix system; enabling KVM users to migrate to 5K without the need to rip and replace.

  • Dual-head 5K, video, audio and USB over a single fiber connection
  • Pixel-perfect image quality
  • Multi-channel digital audio via DisplayPort
  • Adder's USB True Emulation for fast switching
  • Backwards compatible with existing ADDERLink INFINITY infrastructure
  • Plug and play
Best of Show winner
tvb




Approvals / Compliance

  • CE
  • FCC

See the compliance section for the full list

Standards

USB: 4 ports of USB2.0 of USB True Emulation to support keyboard, mouse and touch
USB device seen as: 7 or 13 port hub
Ethernet: 2x 10GbE (No 10 / 100 / 1000 support on fiber) via SFP
2x 10,5,2.5 and 1GbE when using SFP-CATX-MR SFP.
2x 1GbE (no 10/100 support) via CATX ports.

Operating/storage conditions

Operating temperature: 0 to 40ºC  / 32 to 104ºF
Storage temperature: 0 to 40ºC / 32 to 140ºF
Storage and operating relative humidity: 10-90% non-condensing
Altitude: < 2000m

Power

External power: 12VDC, 5A
Typical power consumption: 20W

Physical

Dimensions: (L) 210mm /8.3” x (W) 215mm/8.5” x (D) 40mm/1.6”
Weight: 1.8kg /4 lb

Materials

Aluminium and steel construction

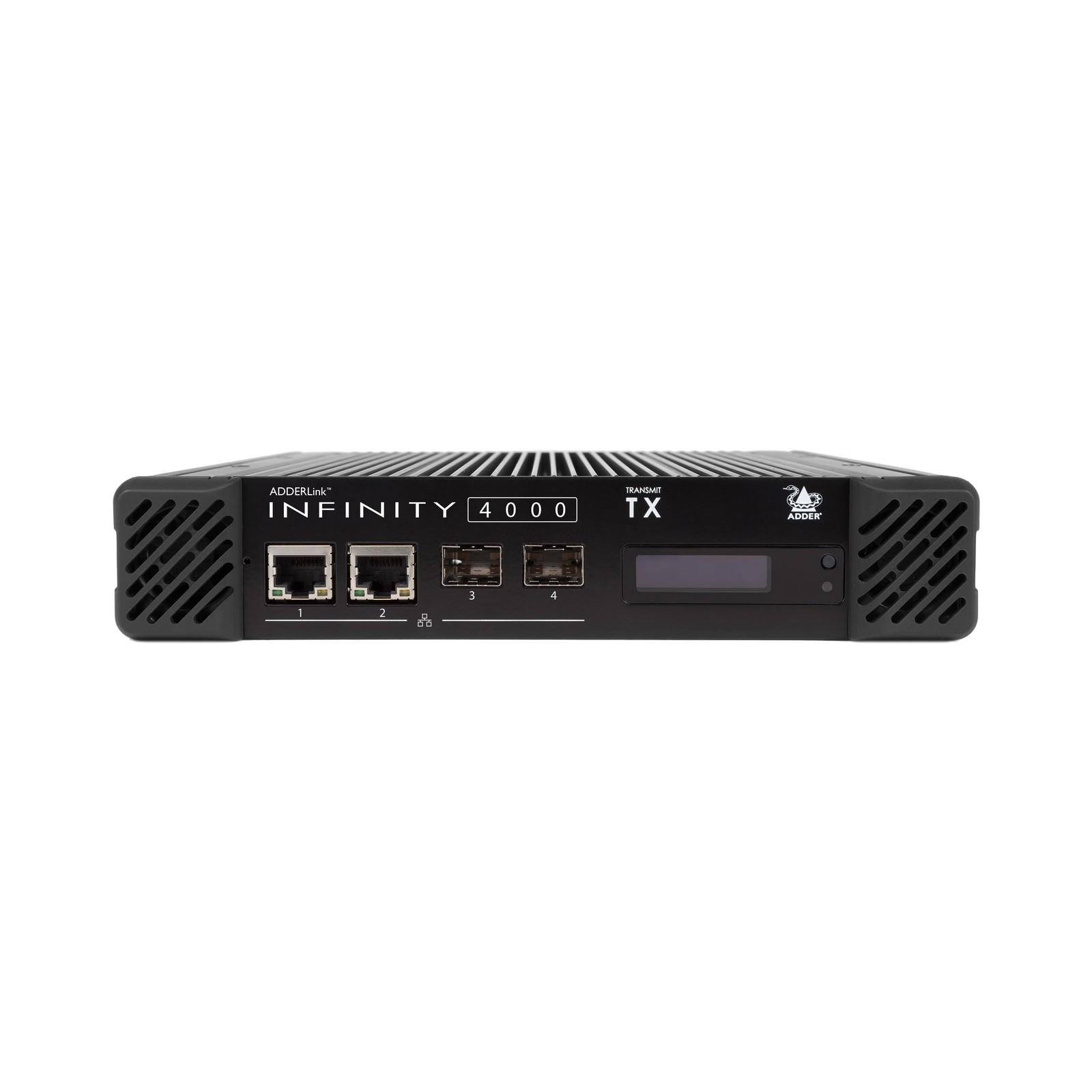

Connectors - Local Unit (TX)

Computer: 2x DisplayPortTM, 2x USB type B, 2x 3.5mm audio jack sockets, 1x DB9 socket.
Ethernet: 2x 8p8c (RJ45), 2x SFP+ cages.
Power: 3 pin Kycon socket.

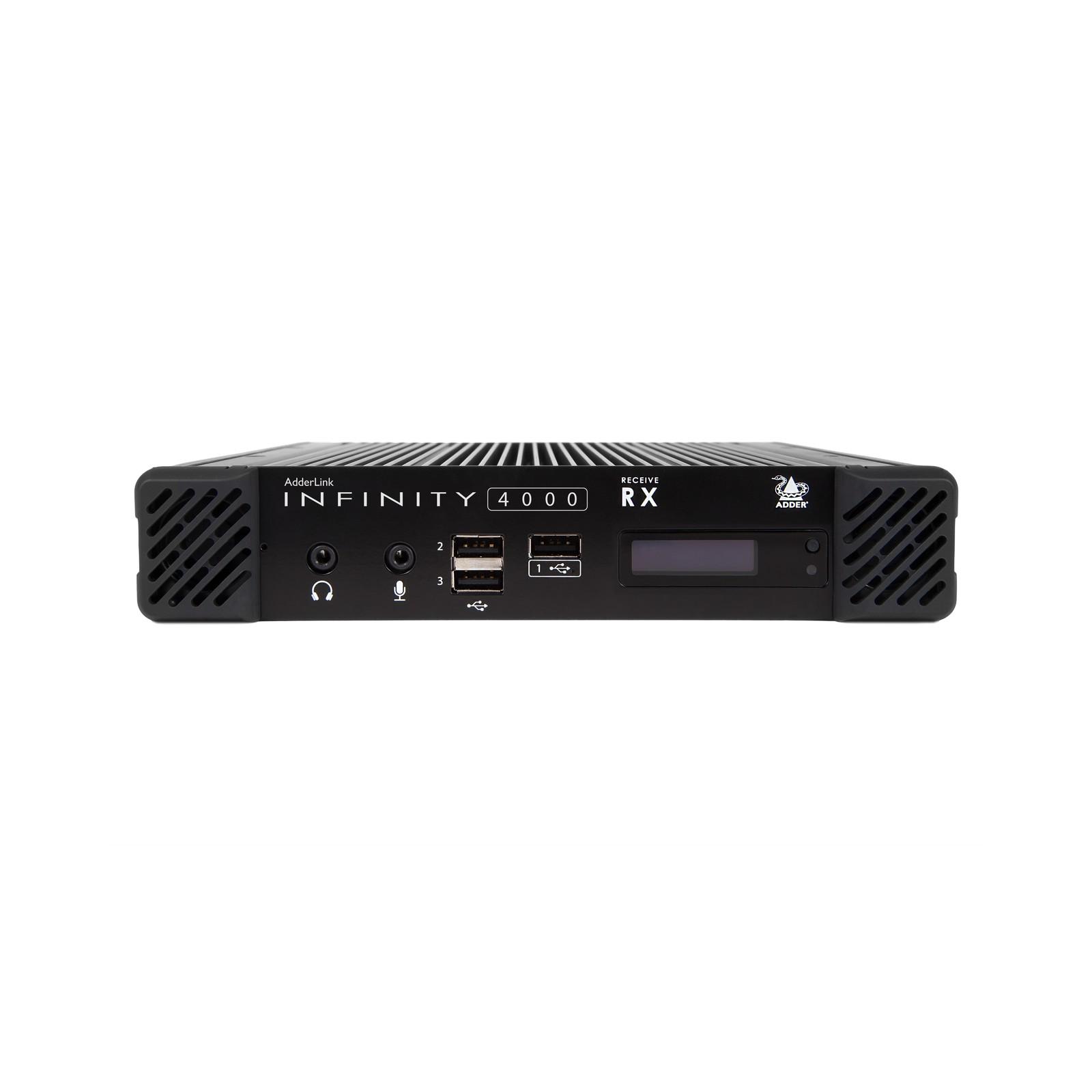

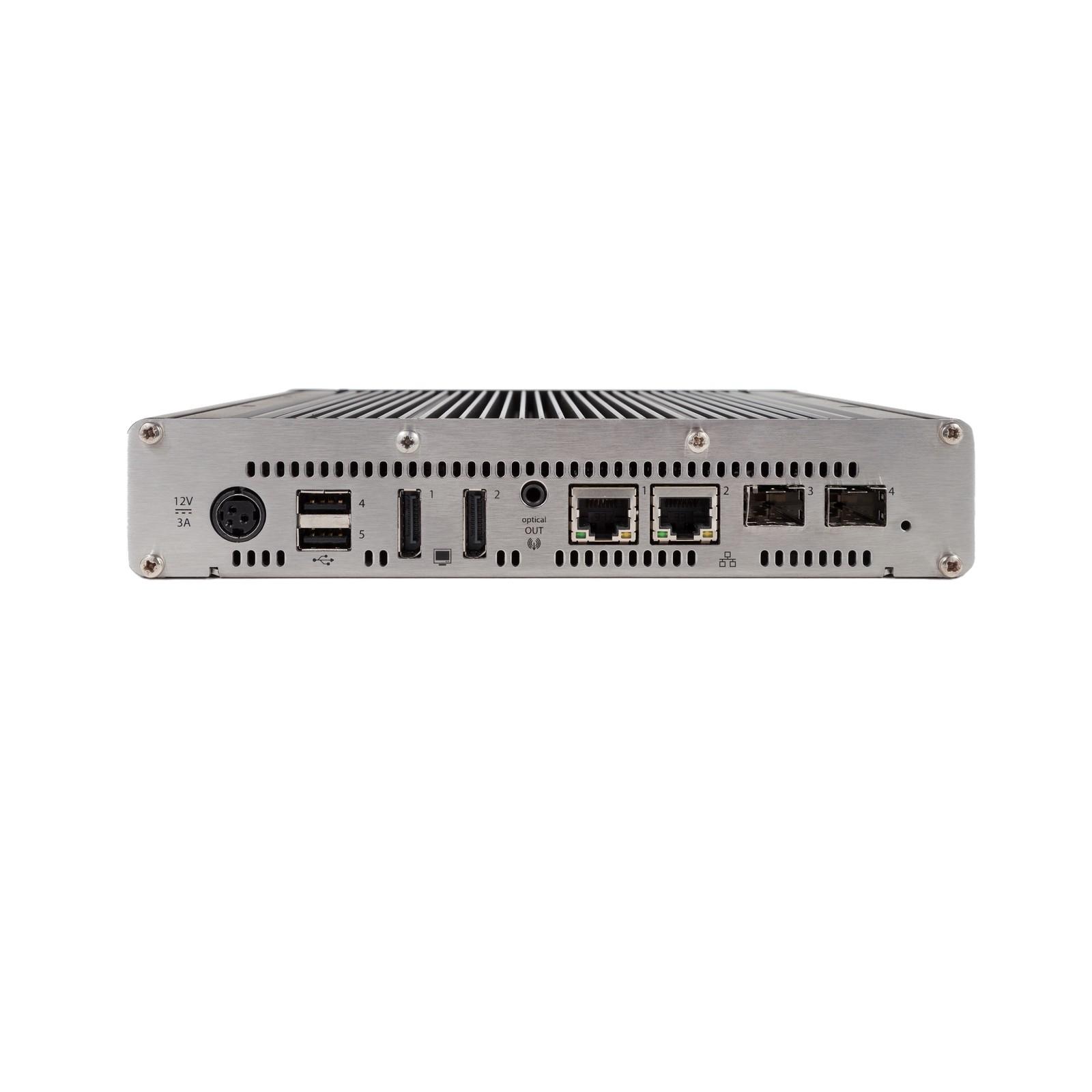

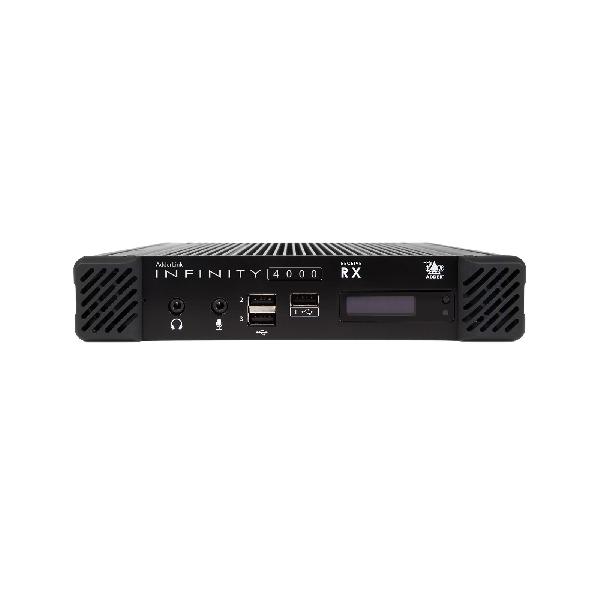

Connectors - Remote Unit (RX)

Desk: 2x DisplayPortTM, 5x USB type A, 2x 3.5mm audio jack sockets, 1x 3.5mm SPDIF socket.
Ethernet: 1 x 8p8c (RJ45), 2 x SFP+ cages
Power: 3 pin Kycon socket

Max video resolution

Supports resolutions up to 5120x2880 including UHD or DCI and refresh rates up to 240Hz

Audio

Analog Line in/out 2 channel 16bit 48KHz 1V RMS in / 1V RMS out
2x DisplayPort Audio in either 2, 6 or 8 channels linear PCM

Packing Box

Dimensions: (L) 285mm / 11.2-inch (W) 245mm / 9.6inch (D) 145mm/5.7inch Weight: 2.5kg / 5.5lb

Name Type Version Release Date
ADDERLink™ INFINITY 4000 Datasheet 1.0 11 January 2021
ADDERLink™ INFINITY 4000 Manual 1.0 11 January 2021
