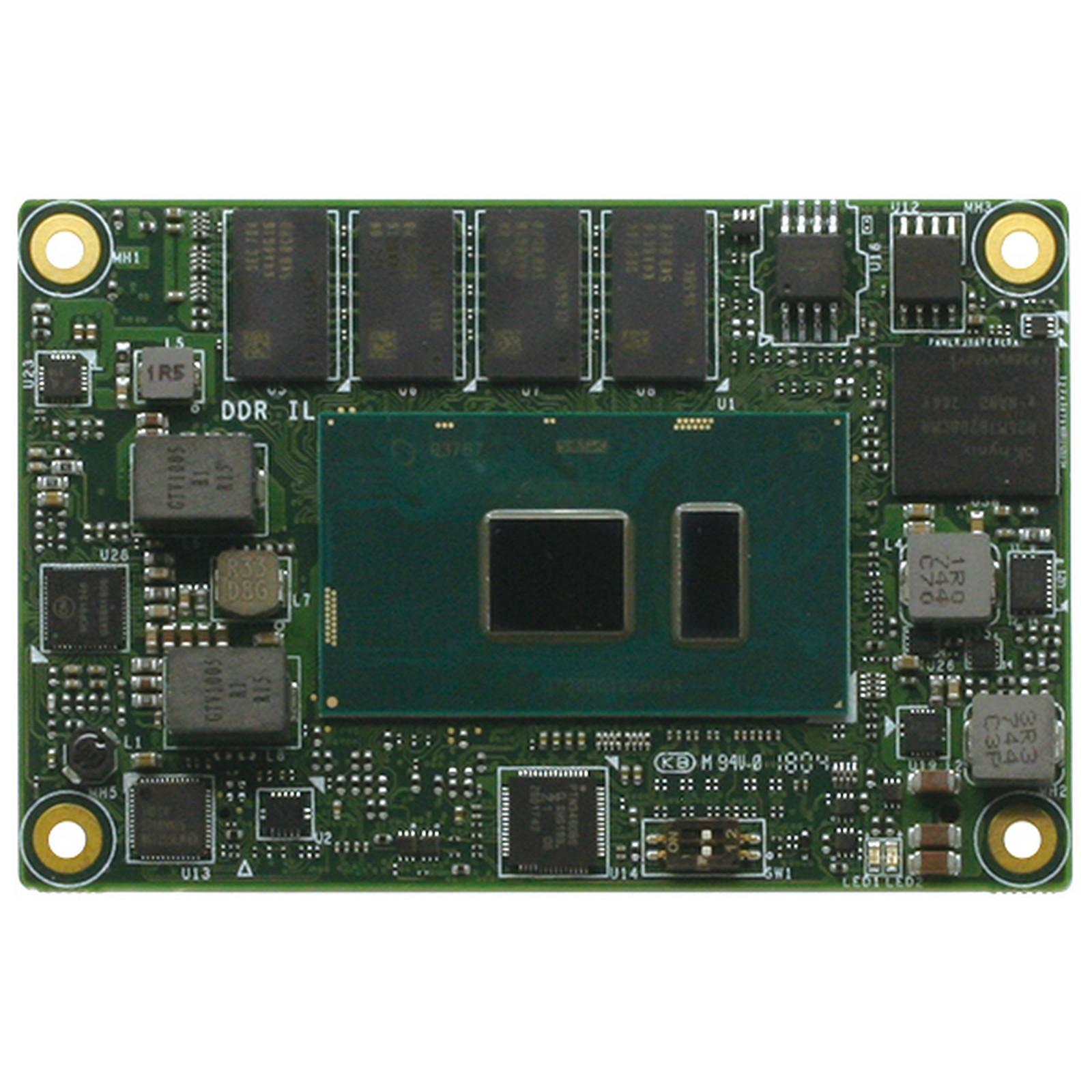

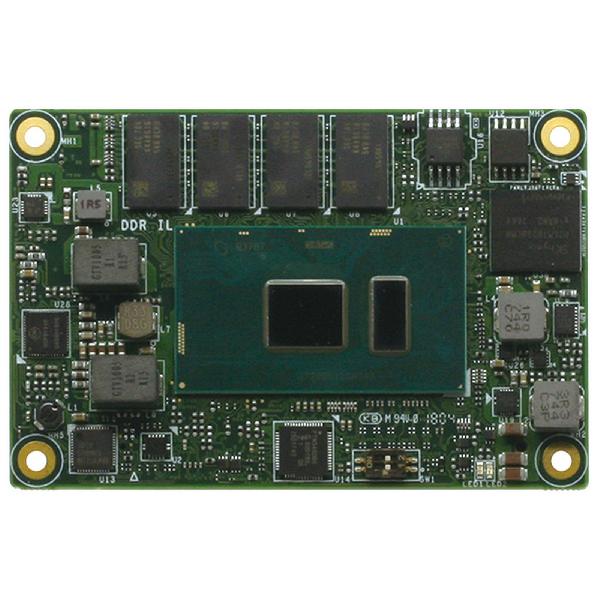

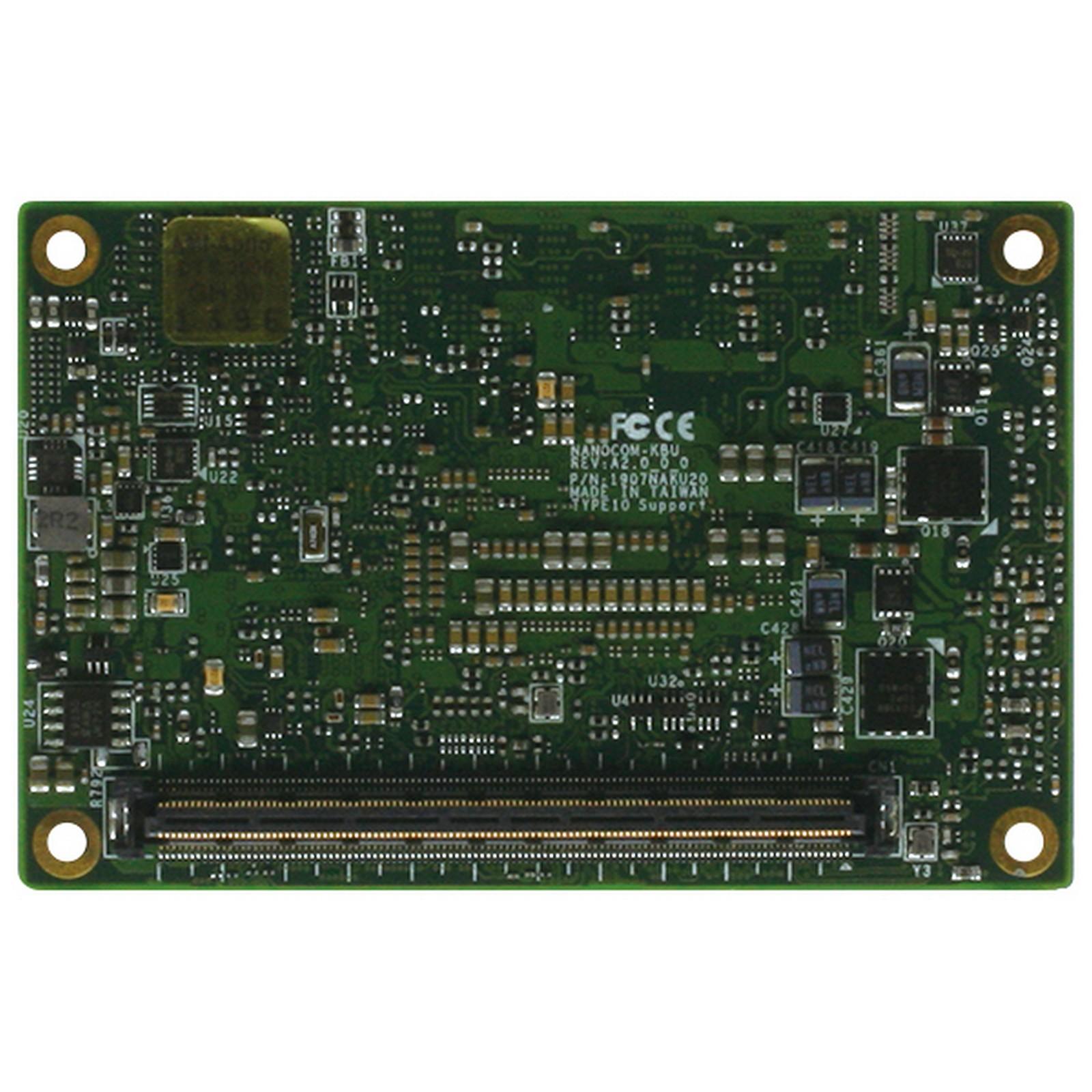

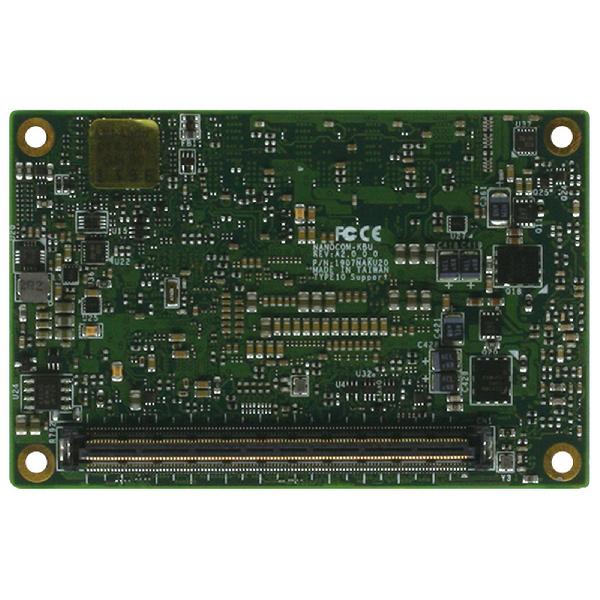

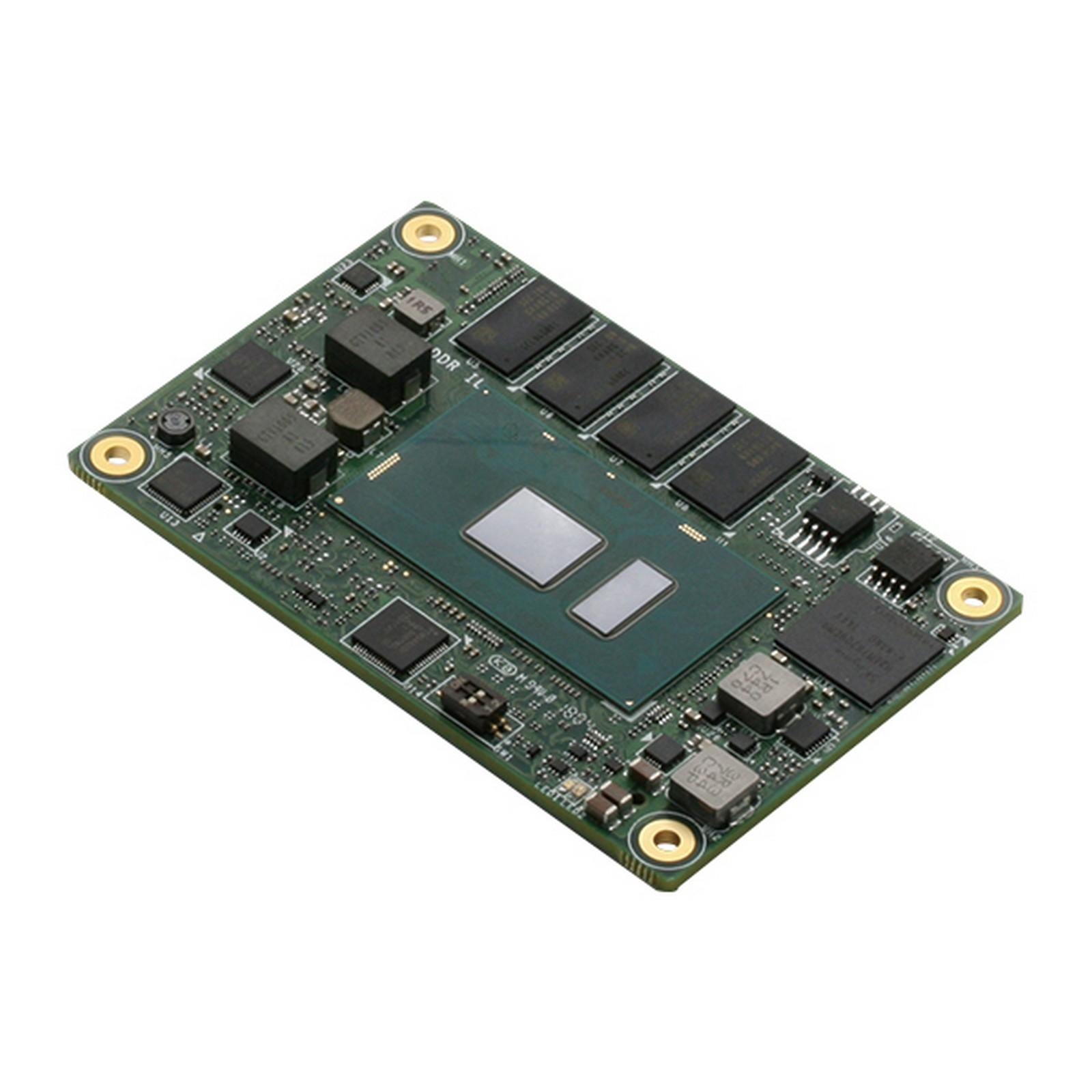

COM Express Type 10 with 7th Generation Intel® Core™ ULT Series Processor
| SYSTEM | |
| FORM FACTOR | COM Express Mini size, Type 10 |
| CPU | 7th generation Intel® Core™ ULT Series Processor |
| CPU FREQUENCY | Up to i7-7600U, 2c/4t, 2.8GHz |
| CHIPSET | Intel® Core™/Celeron® Processor SoC |
| MEMORY TYPE | Non-ECC DDR4-2133 |
| MAX. MEMORY CAPACITY | 8GB DDR4 onboard |
| BIOS | AMI BIOS, Legacy free |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | Standard: +12V |
| POWER SUPPLY TYPE | AT/ATX |
| POWER CONSUMPTION (TYPICAL) | i7-7600U+8GB 12V@1.83A, i3-7100U 12V@1.42A. Under 100% loading. CPU Set to 15W TDP. CPU based frequency may change accordingly. |
| DIMENSION (L X W) | 3.31” x 2.17” (84mm x 55mm) |
| OPERATING TEMPERATURE | 32 °F ~ 140 °F (0 °C ~ 60 °C) -40 °F ~ 185 °F (-40 °C ~ 80 °C) Option for NANOCOM-SKU series |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 80000 |
| CERTIFICATION | CE/FCC Class A |
| DISPLAY | |
| VGA/LCD CONTROLLER | Onboard 7th Gen. Intel® Core™ U-Series Processor, GT2-520/510 |
| VIDEO OUTPUT | LVDS LCD/eDP, DDI x 1 |
| I/O | |
| ETHERNET | Intel® I219 GbE |
| AUDIO | High Definition Audio Interface |
| USB PORT | USB 2.0 x 8, USB 3.2 Gen 1 x 2 |
| SERIAL PORT | TX/RX x 2 |
| HDD INTERFACE | SATA 3 x 2 |
| EXPANSION SLOT | PCIe [x1] x 4 (up to 4 devices) LPC SMBus I2C |
| GPIO | 8-bit |
| ONBOARD STORAGE | eMMC optional |
| TPM | fTPM Supported |
| Name | Type | Version | Release Date | |
| NANOCOM-KBU-A20 Datasheet | Datasheet | V1.0 | 07 March 2019 |
