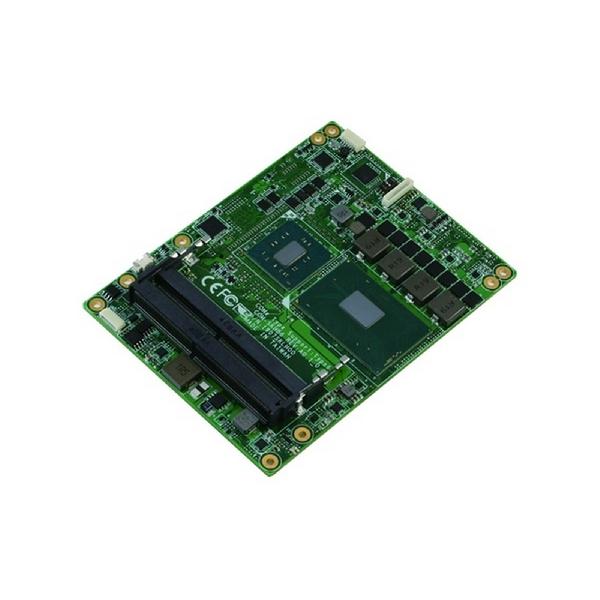

COM Express Type 6 Basic Size with 7th Gen. Intel® Xeon® E3 v6 Series Processors
| SYSTEM | |
| FORM FACTOR | COM Express Basic Size |
| CPU | Onboard 7th Gen. Intel® XEON E3 v6 Series Processors, E3-1505M v6 4c/3.0 GHz |
| CPU FREQUENCY | Up to E3-1505M v6, 4.0 GHz |
| CHIPSET | Onboard 7th Generation Intel® CM238 PCH |
| MEMORY TYPE | DDR4, SO-DIMMx2, ECC support, up to 2400 |
| MAX. MEMORY CAPACITY | 32GB |
| BIOS | AMI BIOS |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | Nominal: +12V |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | E3-1505M v6 3.0 GHz, DDR4 16GB, 3.7A@12V (during full loading mode) |
| DIMENSION (L X W) | 4.92” x 3.75” (125mm x 95mm) |
| OPERATING TEMPERATURE | 32 °F ~ 140 °F (0 °C ~ 60 °C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 80000 |
| CERTIFICATION | CE/FCC Class A |
| DISPLAY | |
| VGA/LCD CONTROLLER | Intel® HD Graphics P630 |
| VIDEO OUTPUT | VGA, LVDS or eDP, DDI x2 |
| I/O | |
| ETHERNET | Intel® 219LM, Gigabit Ethernet |
| AUDIO | High Definition Audio |
| USB PORT | USB 2.0 x 8, USB 3.2 Gen 2 x 4 |
| SERIAL PORT | 2-Wire UART (Tx/Rx) x 2 |
| HDD INTERFACE | SATA 3 x 4 |
| EXPANSION SLOT | PCIe[x16] x 1, PCIe[x1] x 8, I2C, LPC, SMBus |
| GPIO | 8-bit |
| ONBOARD STORAGE | — |
| TPM | Optional |
| Name | Type | Version | Release Date | |
| COM-KBHB6 | Datasheet | V1.0 | 05 October 2017 |
