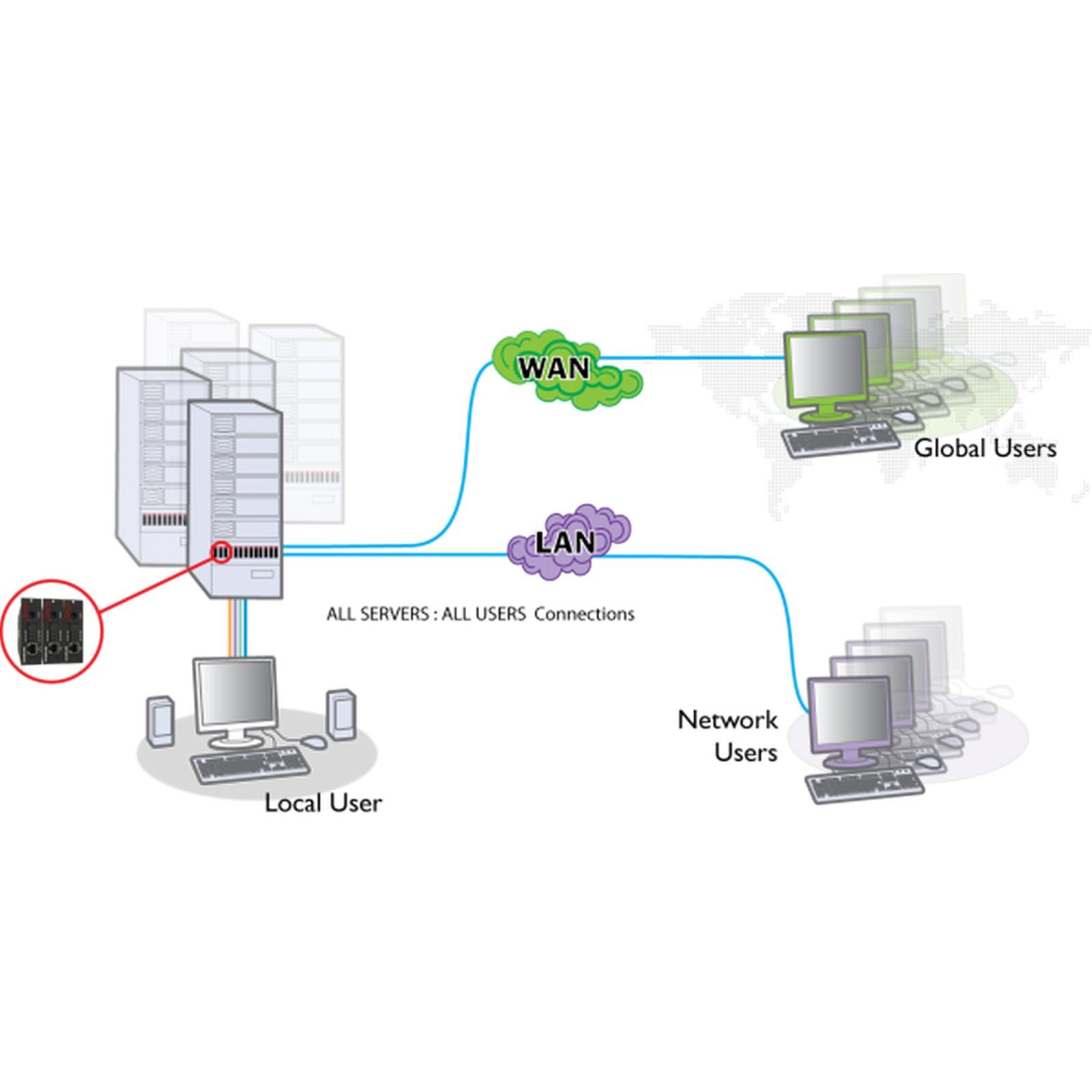

The ADDERLink ipeps Dual Access enables you to remotely access and control your critical computing hardware using your standard IP network. KVM ports are also provided for local console access. KVM connections are VGA and PS/2. Using RealVNC client software, computers outside the network can be remotely and securely accessed.
Video
Supports standard PC, Sun and Mac video modes up to resolutions of 1600 x 1200 with scalable viewer
Approvals / Compliance
Standards
USB1.1 (Low and Full Speed)
Cable Requirements
CATx
Environmental
0 - 40 deg C / 32 to 104 deg F

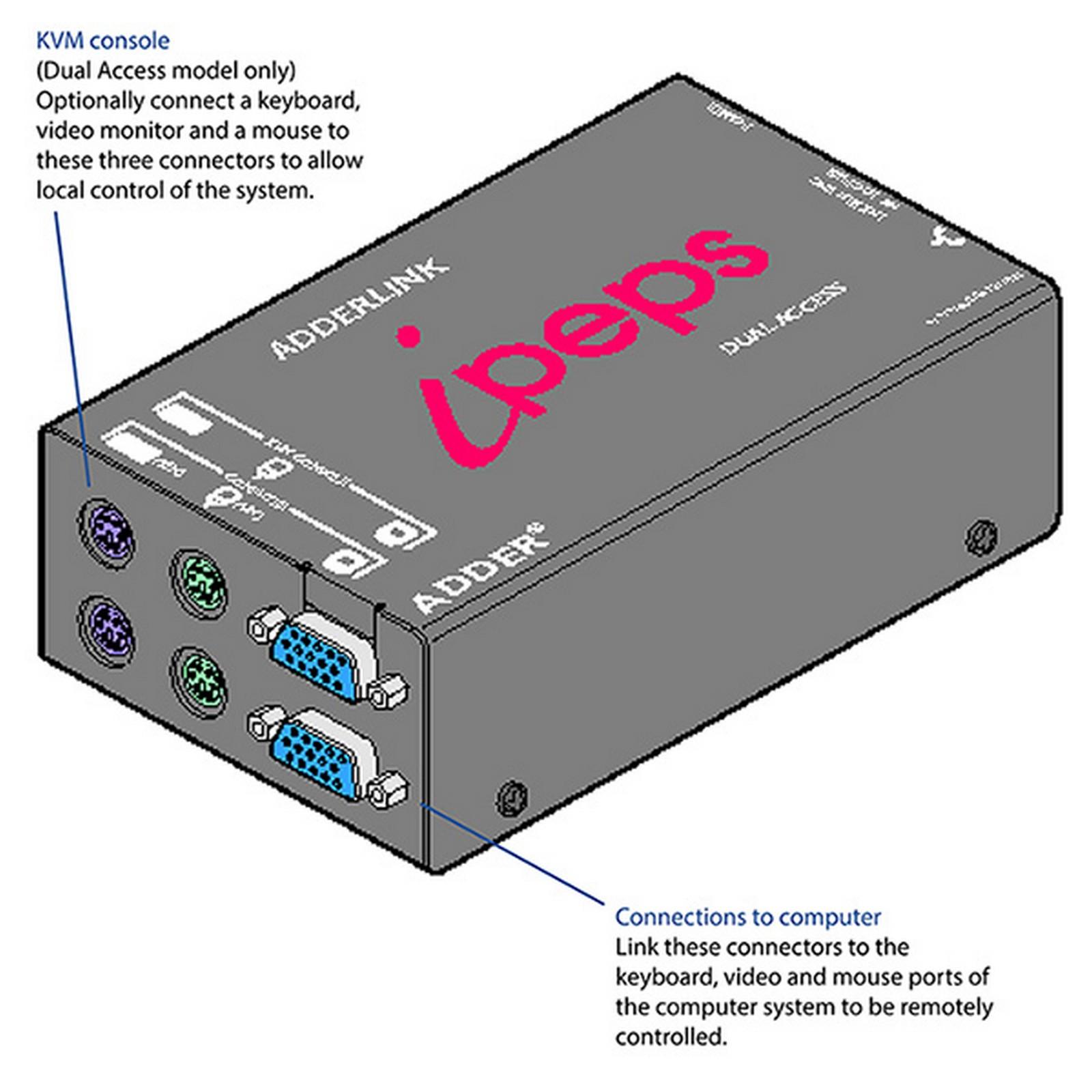

Connectors – Remote Unit
Four PS2 ports
Video: two VGA ports
Ethernet: RJ45 10/100 auto sensing
Mechanical
IPEPS 120mm/4.72 (w), 27mm/1.06 (h), 75mm/2.95 (d), 0.34kg/0.76lbs
Power
Two USB cables or independently from an external 5V power source 100-240 VAC 50 - 60Hz
Software
All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc
Name | Type | Version | Release Date | |
ADDERLink™ ipeps Dual Access | Datasheet | 1.0 | 13 January 2021 | |
ADDERLink™ ipeps Dual Access | Manual | 1.0 | 13 January 2021 |
