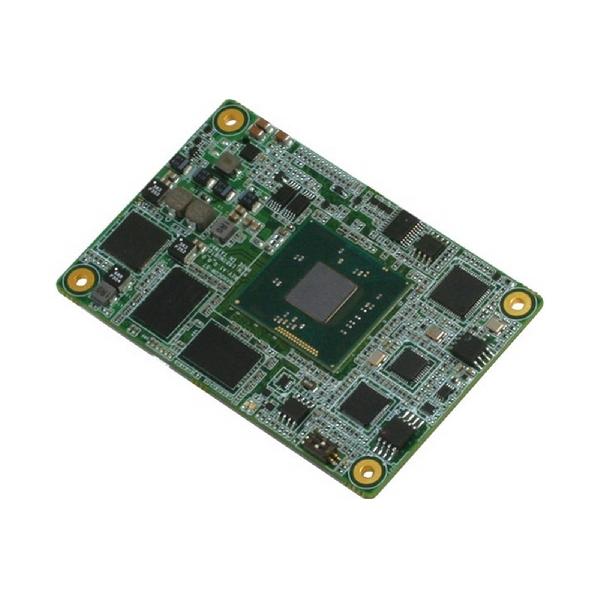

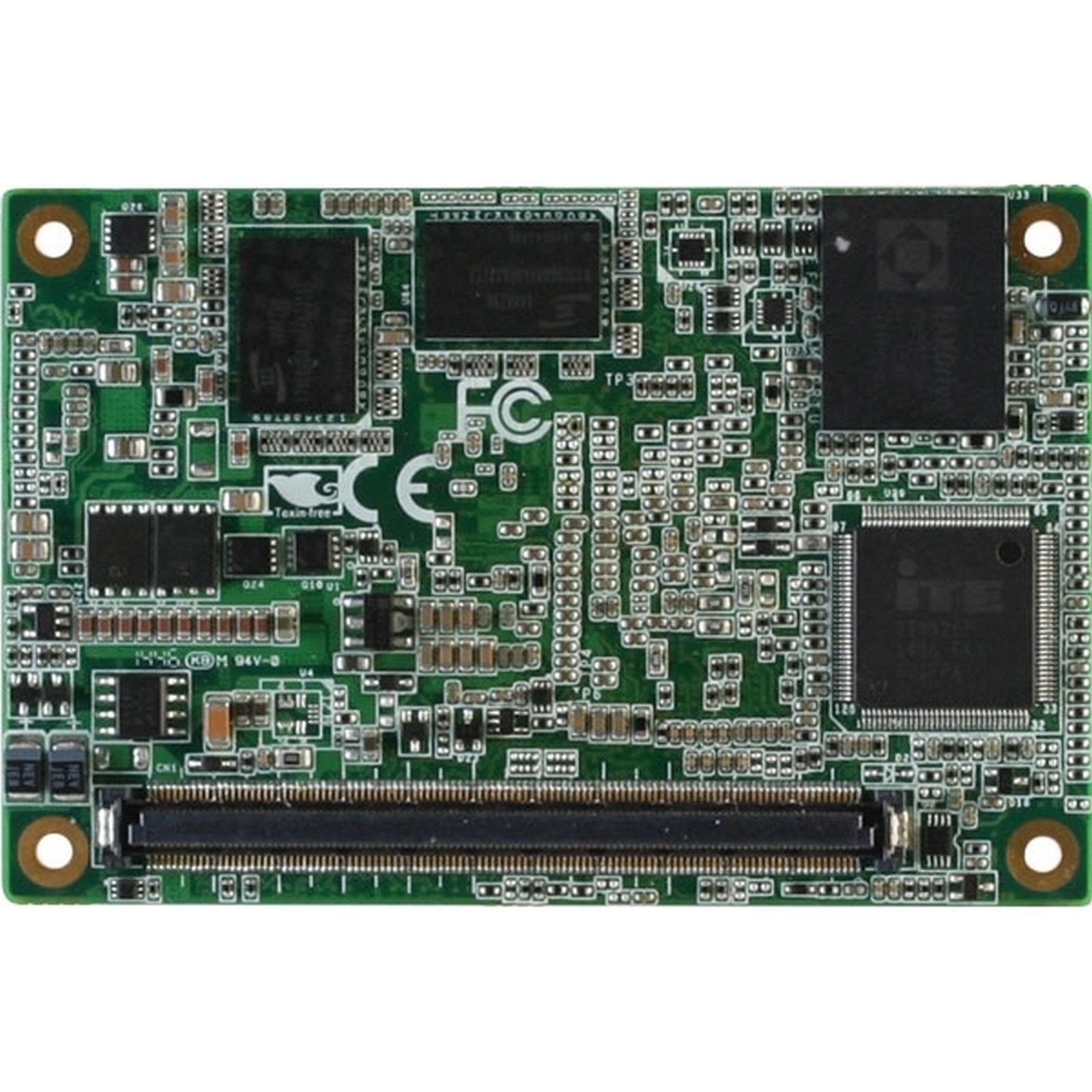

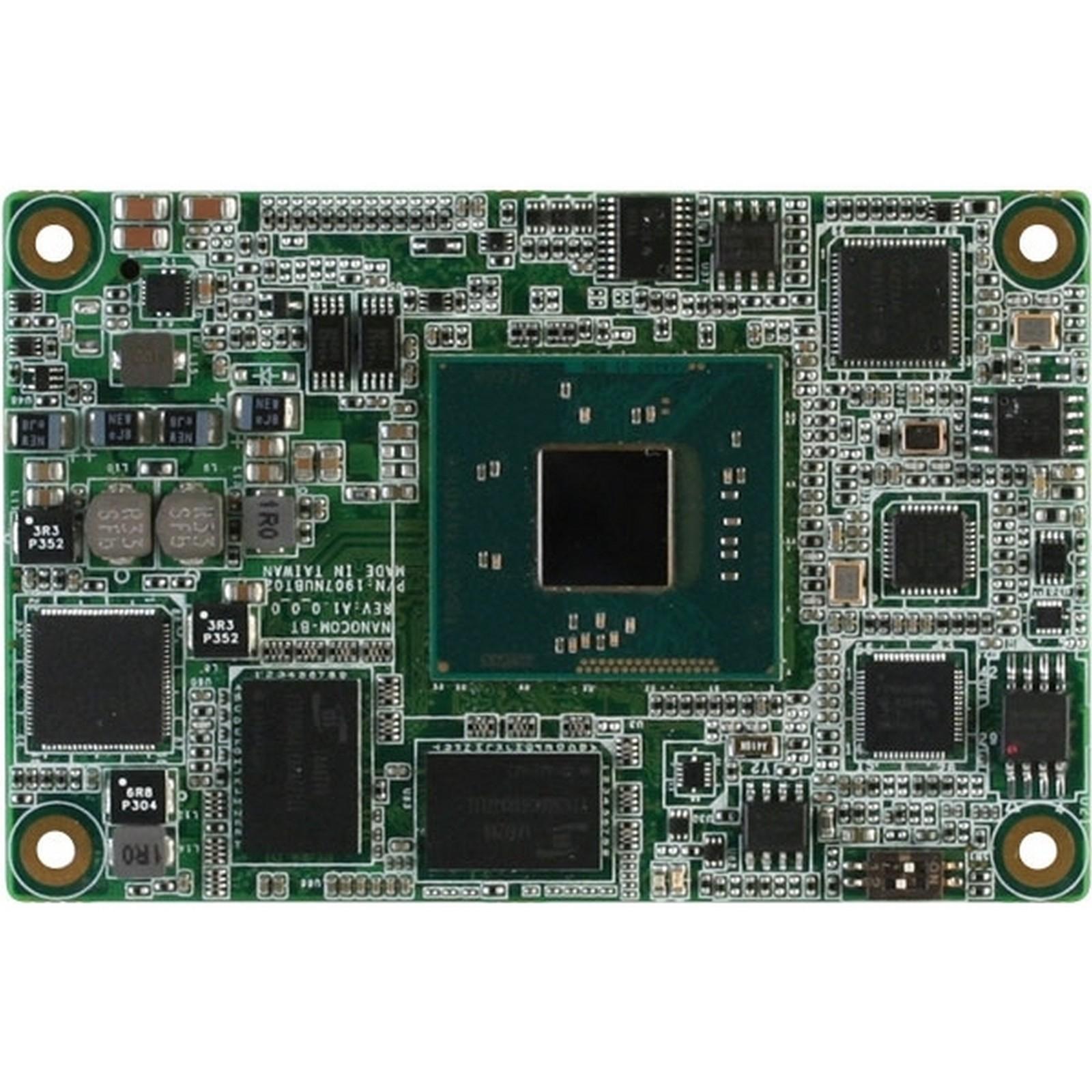

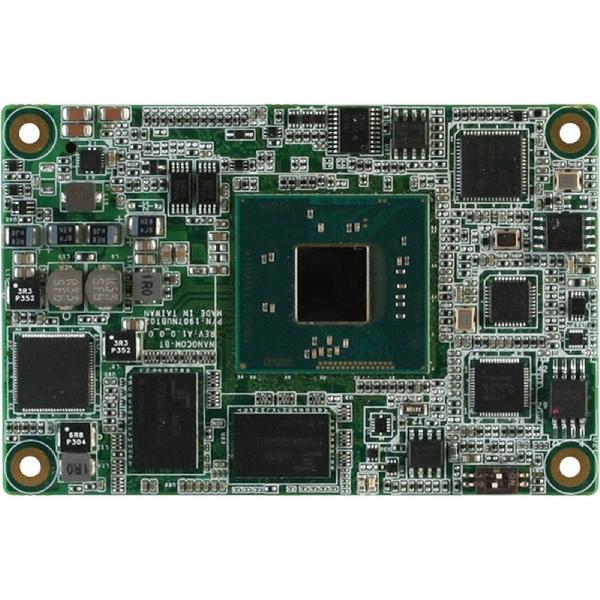

The NanoCOM-BT is a cutting-edge product that provides high performance and low power consumption in the embedded market.
NanoCOM-BT adopts the latest Intel® Atom™ N2000/E3800 processor. The system memory deploys with onboard DDR3L 2 GB memory. In addition, Intel® I211/i210 supports 10/100/1000Base-TX that allows faster network connections. This model applies three PCI-Express〔x1〕, one LPC bus, and one SMBus. Moreover, two SATA 3.0Gb/s are configured on the NanoCOM-BT. NanoCOM-BT also equips six USB2.0 and one USB2.0/3.0 bus for flexible I/O expansions.
The display of NanoCOM-BT supports CRT/LCD simultaneous/ dual view display. This brand new COM Express Module is developed to cater to the requirements of Automation, Medical, ticket machine, transportation, gaming, KIOSK, and POS/POI applications.
| SYSTEM | |
| FORM FACTOR | COM Express Mini size, Type 10 |
| CPU | Intel® Atom™/ Celeron® Processor SoC (M/I) |
| CPU FREQUENCY | Up to E3845, 1.91 GHz |
| CHIPSET | Intel® Atom™/ Celeron® Processor SoC |
| MEMORY TYPE | Non-ECC DDR3L-1333 |
| MAX. MEMORY CAPACITY | 2 GB DDR3L Onboard (up to 4 GB) |
| BIOS | AMI BIOS, Legacy free |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | Standard : +12V, AT/ATX, Optional: +5V, AT/ATX |
| POWER SUPPLY TYPE | AT/ATX |
| POWER CONSUMPTION (TYPICAL) | 0.7A@12V, full load, E3845 |
| DIMENSION (L X W) | 3.31” x 2.17” (84 mm x 55 mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) -40°F ~ 185°F (-40°C ~ 85°C) by E3800, 2GB SKU |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 90,000 |
| CERTIFICATION | CE/FCC Class A |
| DISPLAY | |
| DISPLAY CONTROLLER | Intel® HD Graphic |
| VIDEO OUTPUT | LVDS LCD/eDP, DDI x 1 |
| LVDS INTERFACE | Supports 18-bit and 24-bit Single channel |
| I/O | |
| ETHERNET | Intel® I210IT |
| AUDIO | High Definition Audio Interface |
| USB SUPPORT | USB 2.0 x 7, USB 3.2 Gen 1 x 1 |
| SERIAL PORT | Tx/Rx x 2 |
| HDD INTERFACE | SATA 2 x 2 |
| ONBOARD STORAGE | Optional for 8GB/16GB eMMC |
| EXPANSION SLOT | PCIe [x1] x 3 (up to 3 devices) LPC SMBus I2C |
| GPIO | GPIO 8-bit |
| TPM | — |
| Name | Type | Version | Release Date | |
| NanoCOM-BT, datasheet | Datasheet | V1.0 | 17 December 2014 |
