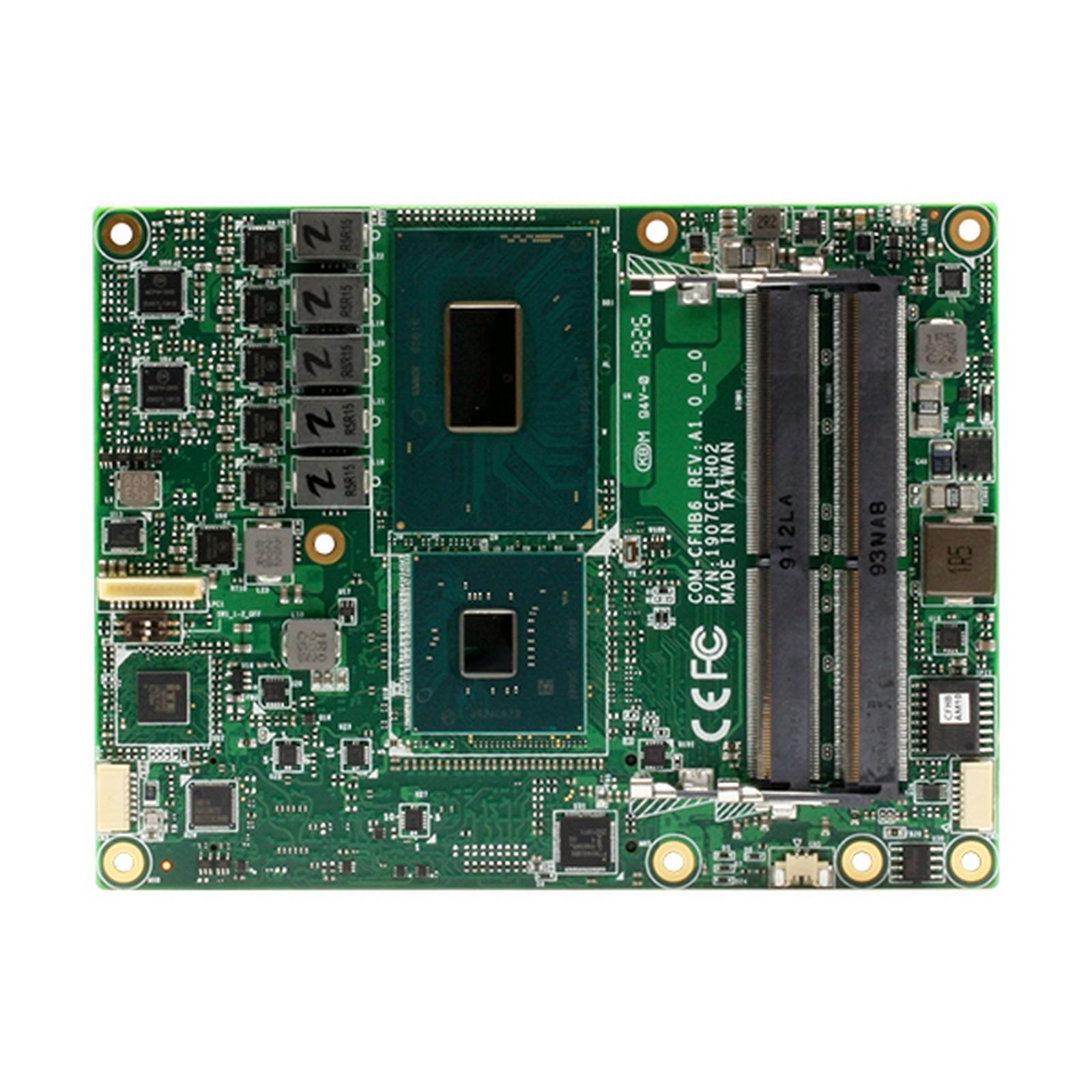

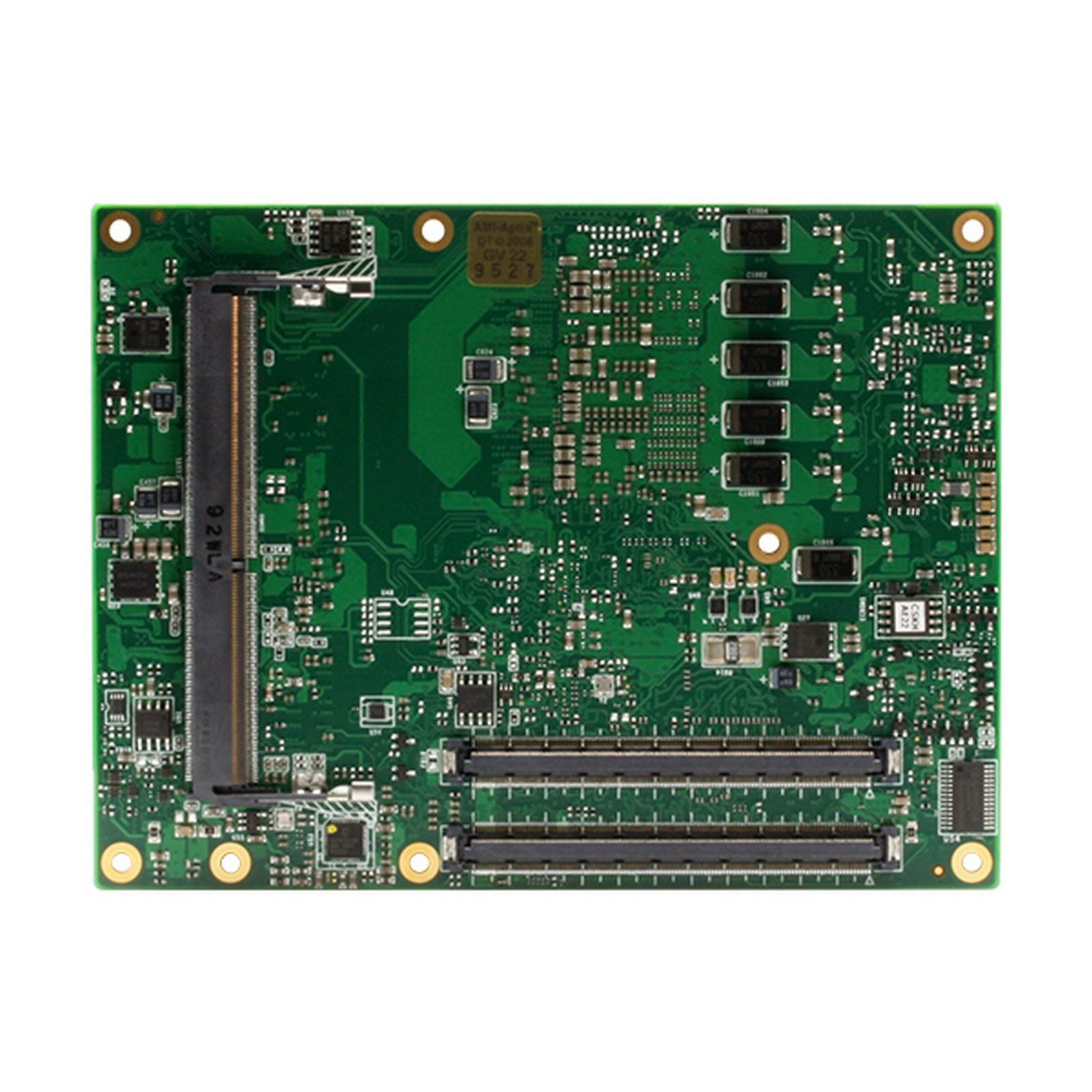

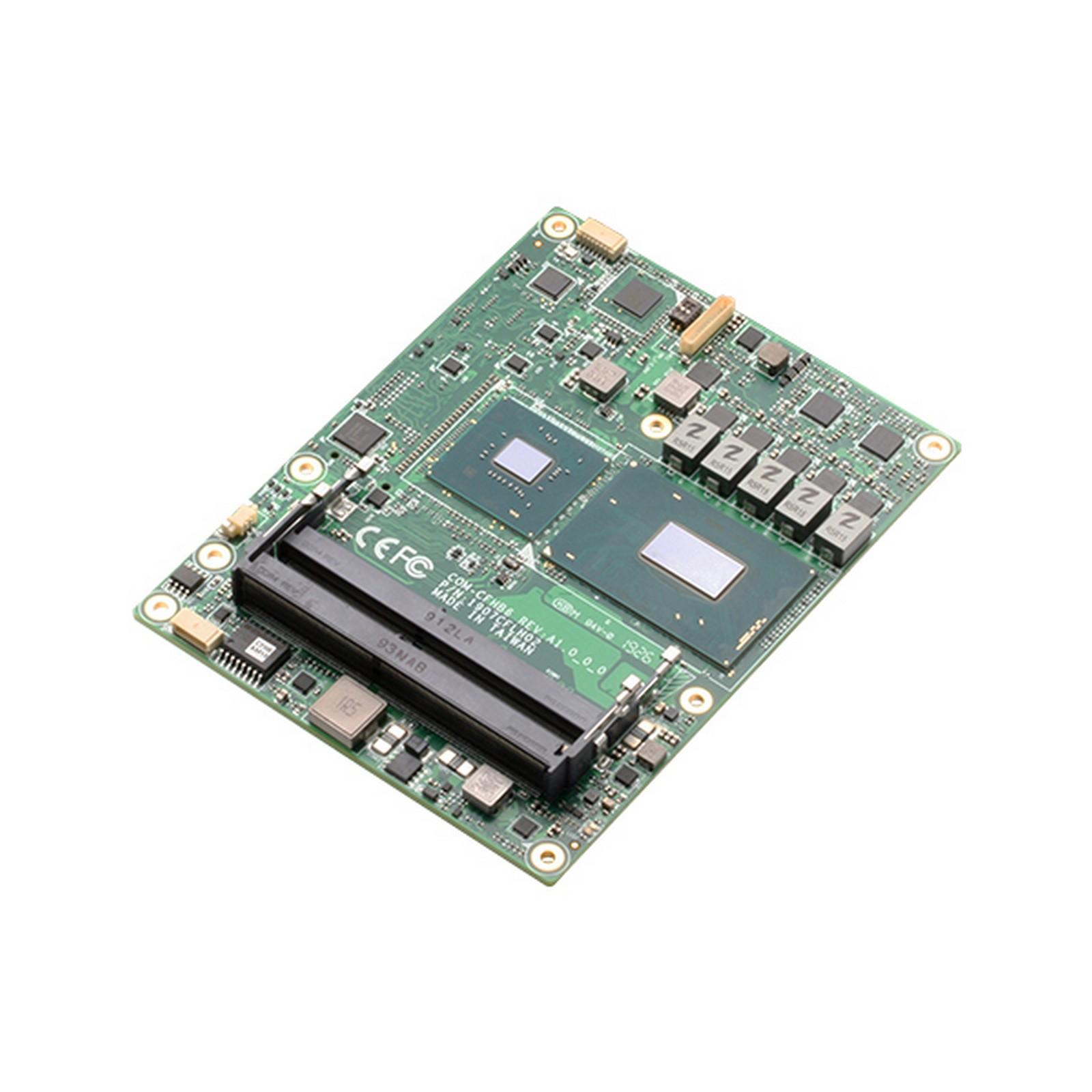

COM-CFHB6

Home  >   AAEON  >   Embedded Boards  >
Computer-on-Modules  >   COM Express Modules

COM Express Type 6 Basic Size with 8th/9th Generation Intel® Core™ H-Series / Xeon™ Processors

Product Feature

  • 8th / 9th Generation Intel® Core™ i3/i5/i7/ Xeon-E Processors
  • 3x SODIMM DDR4 2666 Memory up to 96GB, ECC support (by SKU, with CM246 PCH)
  • Intel I219 Gigabit Ethernet
  • VGA, 18/24-bit 2ch LVDS or 4-lane eDP, DDI up to 3
  • High Definition Audio Interface
  • SATA x 4, USB2.0 x 8, USB 3.2 Gen 2 X 4
  • PCI-Express [x1] x 8, PCI-Express[x16] x1
  • GPIO x 8, SMbus, I2C, LPC
  • COM Express Basic Size, Pin-Out Type 6, 125mmx95mm

The COM-CFHB6 features support for a wide range of processors including the Intel Celeron, Xeon, and the 8th/9th Generation Intel Core Processors (Coffee Lake H/Coffee Lake Refresh). From low power 25W processors to 45W 6-core Xeon processors, and with up to 96 GB DDR4 ECC memory, the COM-CFHB6 is flexible enough to accommodate almost any project. The COM-CFHB6 is perfect for applications such as digital signage, factory automation, and even edge AIOT gateways.

• Intel Power

Featuring 8th/9th Generation Intel Core (Coffee Lake), Xeon and Celeron processors, the COM-CFHB6 is built for any level of computing.

• Flexible, Expandable

The COM-CFHB6 features support for four USB 3.1 Gen 2 ports, three display ports, and up to 24 PCIe 3.0 lanes, perfect for edge applications.

• Q-service Plus

Get the solution you need with Q-Service Plus from AAEON. From board design to BIOS, AAEON can provide customized board solutions.
