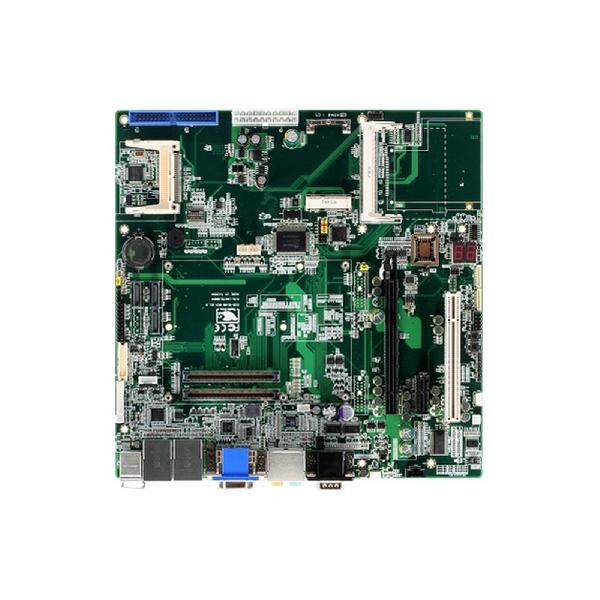

The ECB-916M Rev.B11 is a microATX form factor board supporting Type 1 and Type 2 COM Express Modules. AAEON's standard carrier boards can be used in their default configuration or as a starting point for a custom carrier design reducing the cost and time of development. Common uses of a standard carrier are proof-of-concept and software validation which gives any project a jump start to improve time to market.
The ECB-916M Rev.B11 offers four serial ports, one parallel port, four USB ports, PS2 keyboard/mouse, and 8-bit programmable digital I/O. To take full advantage of today's high speed interfaces, the ECB-916M includes PCI-Express〔x16〕, PCI-Express〔x1〕, ExpressCard, Mini Card, standard PCI, as well as a Mini PCI. Storage needs are met with one PATA channel, four SATA connectors, one Floppy Disk Drive connector, and a CompactFlash Type II slot.
A truly full featured and versatile validation platform, the ECB-916M Rev.B11 supports both AT and ATX power input. With 7.1 channel audio and VGA/ LVDS/ TV-out display interfaces the ECB-916M Rev.B11 delivers a rich multimedia experience, making it the perfect platform for any market.
| SYSTEM | |
| FORM FACTOR | Micro-ATX |
| COM EXPRESS CONNECTOR | x2 |
| I/O CHIPSET | Winbond W83627DHG |
| FRONT PANEL CONTROL | 10-pin (5x2) header |
| ETHERNET | Intel® 82573L, 10/100/1000Base-TX, RJ-45 x 1 10/100 Base-TX or 10/100/1000Base-TX, RJ-45 x 1 (From CPU module) |
| EXPANSION INTERFACE | PCI-Express [x1] slot x 1 ( additional 2 for test only) PCI-Express [x16] slot x 1 ==> Add a 3-pin header for SDVO enabled or disabled PCI slot x 1 Mini-PCI slot x 1 Mini-Card slot x 1 Express Card slot x 1 |
| POWER SUPPLY TYPE | AT/ATX |
| CMOS BATTERY | RTC battery socket x 1 |
| BIOS | SPI x 1 Firmware Hub x 1 (with DIP Switch for BIOS Selection) |
| BOARD SIZE | 9.6” x 9.6”(243.84mm x 243.84mm) |
| GROSS WEIGHT | 1.32 lb (0.6 kg) |
| OPERATING TEMPERATURE | 32˚F ~ 140˚F (0˚C ~ 60˚C) |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 77,000 |
| DISPLAY | |
| DVI/CRT | DVI 29-pin + DB 15-pin stack-type connector |
| LVDS | 30-pin (15 x 2) Dual-Channel LVDS connector x 1 |
| SDVO | 40pin (20 x 2) SDVO connector x 1 |
| DDI | — |
| I/O | |
| STORAGE | 40-pin PATA connectorx1 SATA 3.0 Gb/s x 3 CompactFlash™ Type 2 slot x 1 |
| SERIAL PORT | RS-232 Port x 1 RS-232/422/485 Port x 1 |
| USB | Type-A connector x 4 |
| PS/2 PORT | x 1 |
| DIGITAL I/O | Supports 8-bit (Programmable) |
| AUDIO | Audio jack x 6, Supports 7.1 channel audio Audio Codec: Realtek ALC888 Buzzer x 1 |
| SWITCH/BUTTON | Power button x 1 Reset button x 1 |
| DEBUG LED | — |
| I2C | — |
| Name | Type | Version | Release Date | |
| ECB-916M Rev.B11, datasheet | Datasheet | V1.0 | 25 December 2017 |
