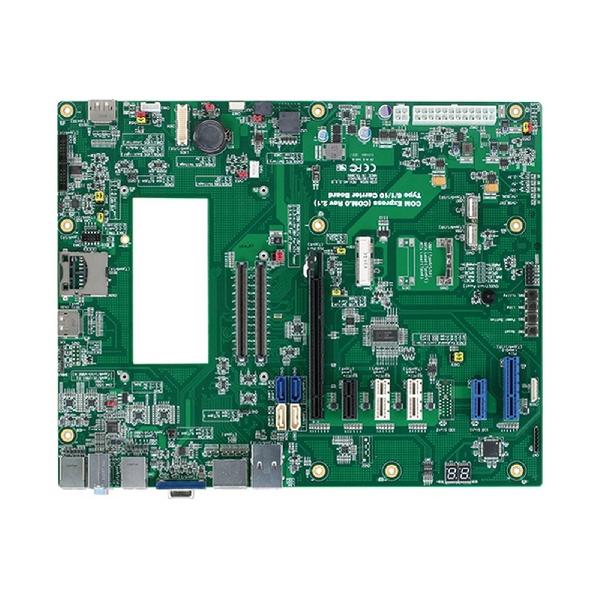

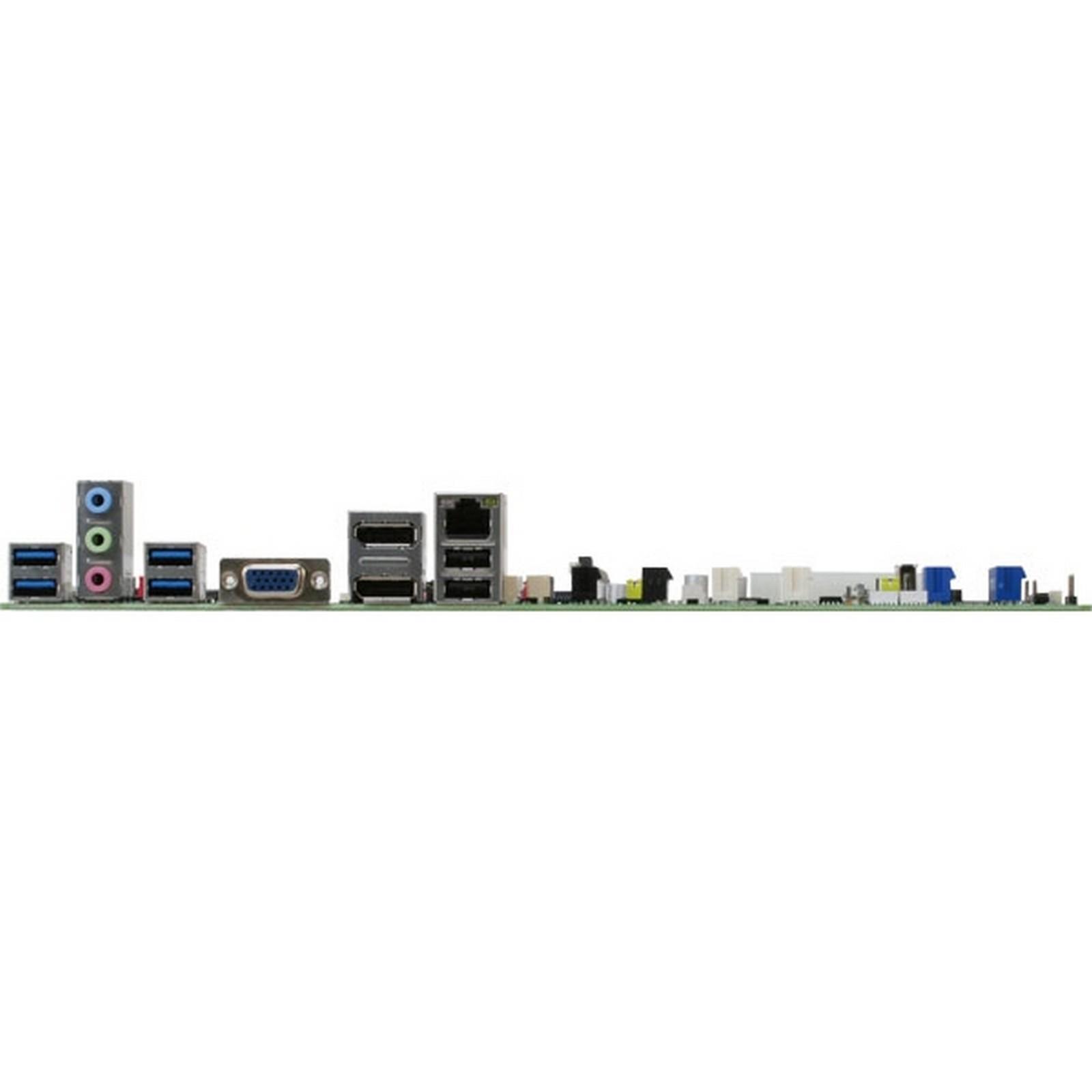

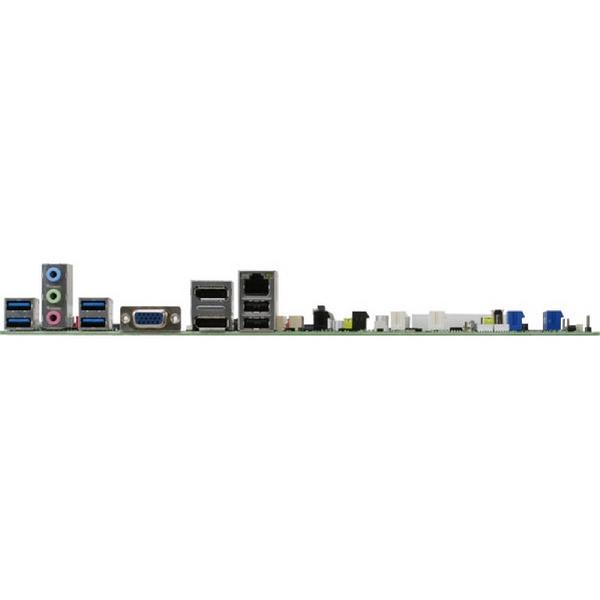

The ECB-920A is a ATX form factor board supporting Type 1, Type 6 and Type 10 COM Express Modules. AAEON's standard carrier boards can be used in their default configuration or as a starting point for a custom carrier design reducing the cost and time of development. Common uses of a standard carrier are proof-of-concept and software validation which gives any project a jump start to improve time to market.ECB-920A offers one GbE port, four SATA ports, eight USB 2.0 ports and four USB3.0 ports for expedited integration.
| SYSTEM | |
| FORM FACTOR | ATX |
| COM EXPRESS CONNECTOR | x 2 |
| I/O CHIPSET | — |
| FRONT PANEL CONTROL | 10-pin (5x2) header |
| ETHERNET | 10/1000/1000Base-TX, RJ-45 x 1 (From CPU module) |
| EXPANSION INTERFACE | PCI-Express [x1] slot x 4 (3 by PCI-E[x1] x 1 pin-out, 1 by SIO pin-out) PCI-Express [x4] slot x 1 PCI-Express [x16] slot x 1 Mini-Card slot x 1 |
| POWER SUPPLY TYPE | ATX |
| CMOS BATTERY | RTC battery socket x 1 |
| BIOS | — |
| BOARD SIZE | 12" x 9.6"(304mm x 244mm) |
| GROSS WEIGHT | 1.32 lb (0.6 kg) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 75,000 |
| DISPLAY | |
| DVI/CRT | DB15 connector x 1 |
| LVDS | 30-pin (15 x 2) Dual-Channel LVDS connector x 1 |
| SDVO | DP connector x 4 (Dual x 1, Single x 2) |
| DDI | — |
| I/O | |
| STORAGE | SATA x 4 |
| SERIAL PORT | 2-wire RS-232 port x 2 (10-pin (5x2) box header x 2) |
| USB | Type A connector x 4 (USB 3.2 Gen 1) for Type 6, USB 2.0 port x 4 |
| PS/2 PORT | — |
| DIGITAL I/O | — |
| AUDIO | Audio Jack, supports Line-in, Line-out, Microphone |
| SWITCH/BUTTON | — |
| DEBUG LED | 80 PORT |
| I2C | 1 |
| Name | Type | Version | Release Date | |
| ECB-920A, datasheet | Datasheet | V1.0 | 29 January 2014 |
