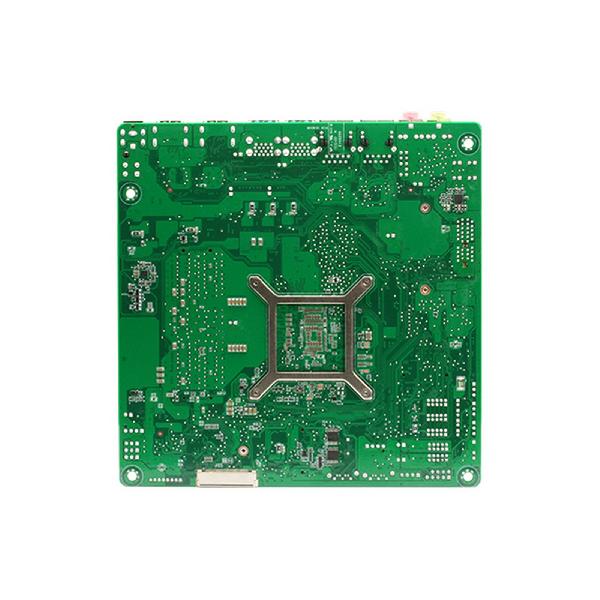

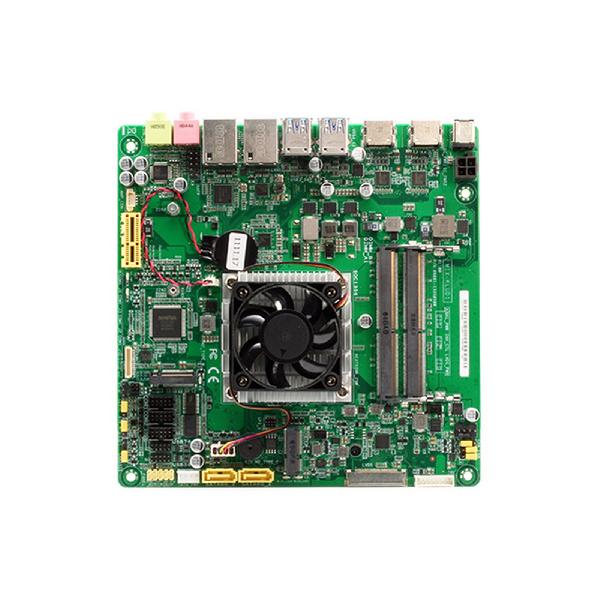

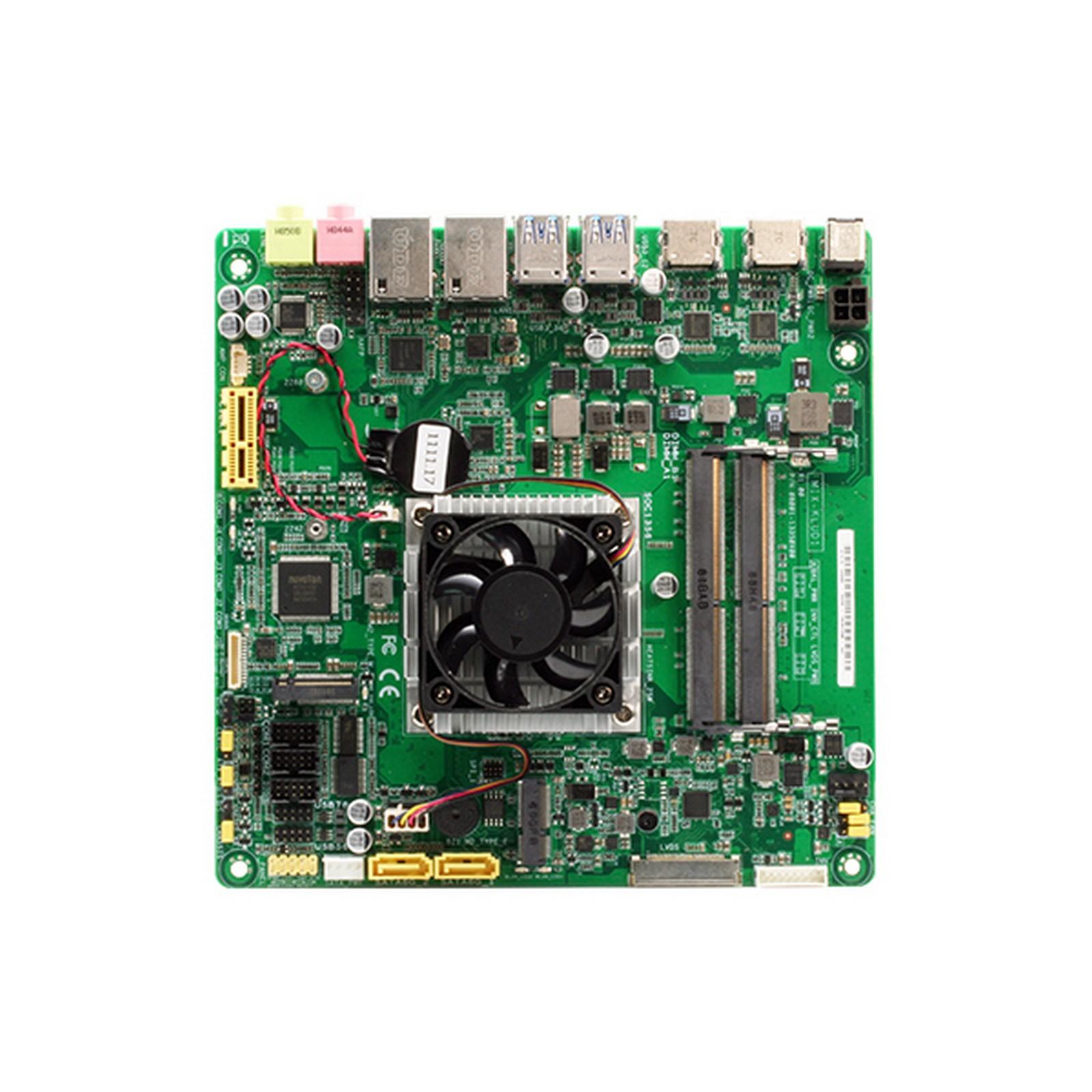

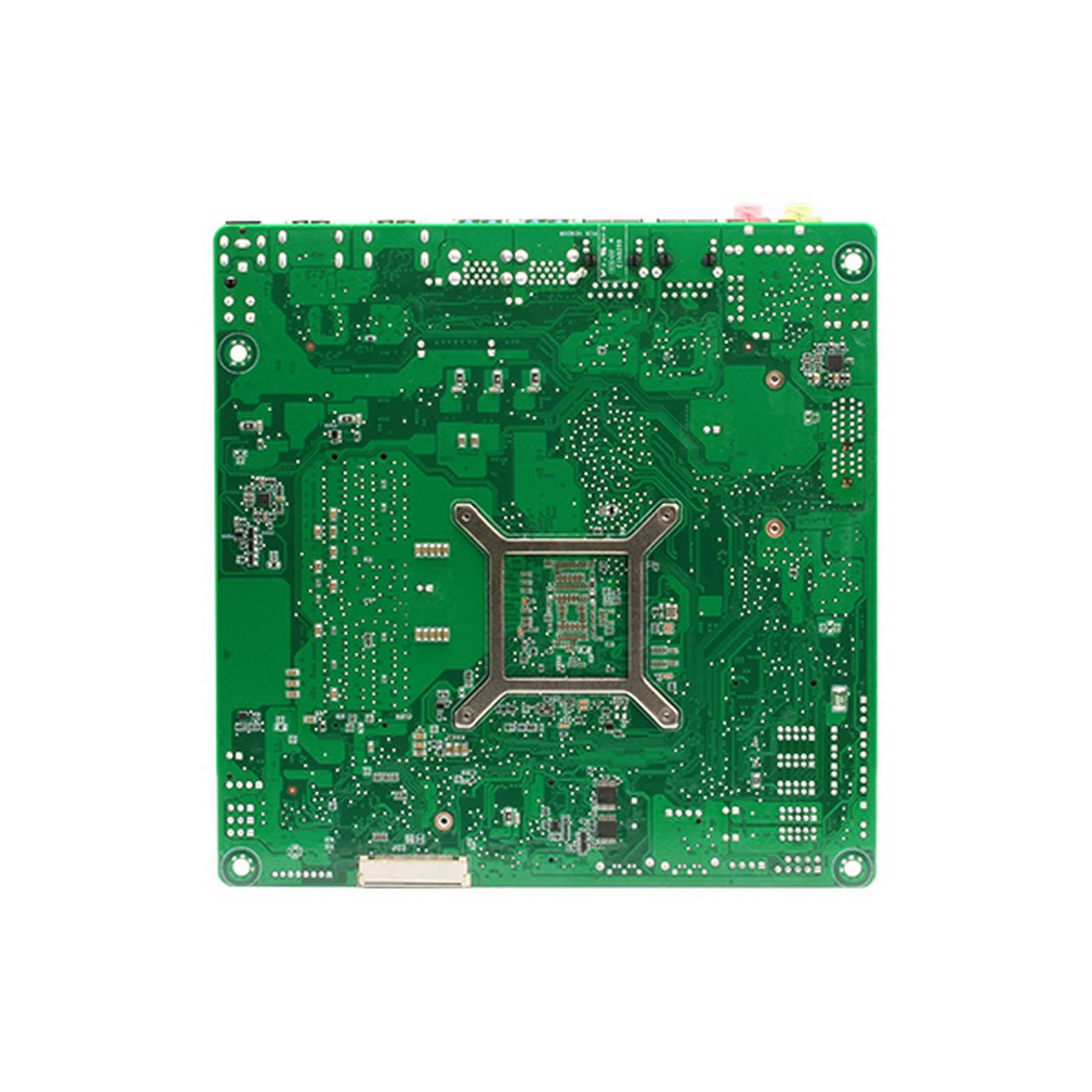

The MIX-KLUD1 from AAEON is a powerful, thin industrial embedded motherboard design for machine controller applications from CNC mills to automated robotics. The MIX-KLUD1 offers a cost competitive design with flexibility and performance, supporting the 7th Generation Intel Core Processors and up to 32 GB of memory.
Powered by Intel
The MIX-KLUD1 supports the 7th Generation Intel Core (U-series) Processors, formerly Kaby Lake, to power high performance computing
Flexible Display Options
The MIX-KLUD1 supports a variety of display options including Dual HDMI and eDP or LVDS display outputs.
Built for the Task
AAEON offers our manufacturer services to provide customization and configuration options to match your specific needs.
| SYSTEM | |
| PROCESSOR | Intel® 7th gen. 14nm KabyLake U, FCBGA1356 Core™ i7-7600U, 2C/4C, 2.8/3.9(turbo)GHz, 4M, 300MHz/1.15GHz (Turbo) GFX,~15W TDP (Optional) Core™ i5-7300U, 2C/4C, 2.6/3.5(turbo)GHz, 3M, 300MHz/1.10GHz (Turbo)GFX, ~15W TDP(Optional) Core™ i3-7100U, 2C/4C, 2.4GHz, 3M, 300MHz/1.00GHz (Turbo) GFX, ~15W TDP Celeron® 3965U, 2C, 2.2GHz, 2M, 300MHz/900MHz (Turbo) GFX, ~15W TDP(Optional) |
| CHIPSET | — |
| MEMORY | SODIMM x 2, max. 32GB, DDR4-2133 non-ECC, un-buffered memory |
| I/O CHIPSET | NCT6793D |
| ETHERNET | Intel® PCIe Gb L AN 219LM for vPro (i7-7600U/i5-7300U) x 1 Intel® PCIe Gb L AN 211AT x 1 |
| AUDIO | Realtek® ALC887 with Amp. |
| TPM | NPCT650ABBYX TPM2.0 onboard (default: No) |
| EXPANSION SLOT | PCIe 3.0 [x1] x 1 M.2 M key (22 x 80mm) x 1, SATA & PCIe [x4] M.2 E key (22 x 30mm) x 1 for Wireless-wifi module (PCIe+USB) |
| BIOS | 128Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 step by software program |
| SMART FAN CONTROL | CPU Fan/Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL/PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® UHD Graphics |
| GRAPHICS MULTI DISPLAY | HDMI x 2, eDP x 1 or LVDS x 1 |
| VGA | — |
| DVI | — |
| HDMI | HDMI 1.4 up to 4096 x 2340 @24Hz |
| DISPLAYPORT | — |
| LVDS | Up to 1920 x 1200 @ 60 Hz, Dual Channel 18/24 bit |
| EDP | UP to 4096 x 2304 @ 60Hz |
| BACKLIGHT CONTROL | Voltage/PWM; Max 1A |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 12V DC |
| OPERATING TEMPERATURE | 32°F ~ 131°F (0°C ~ 55°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0% ~ 90%RH, non-condensing |
| CERTIFICATION | CE & FCC (Class A) |
| FORM FACTOR | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| MTBF (HOURS) | 400,330 |

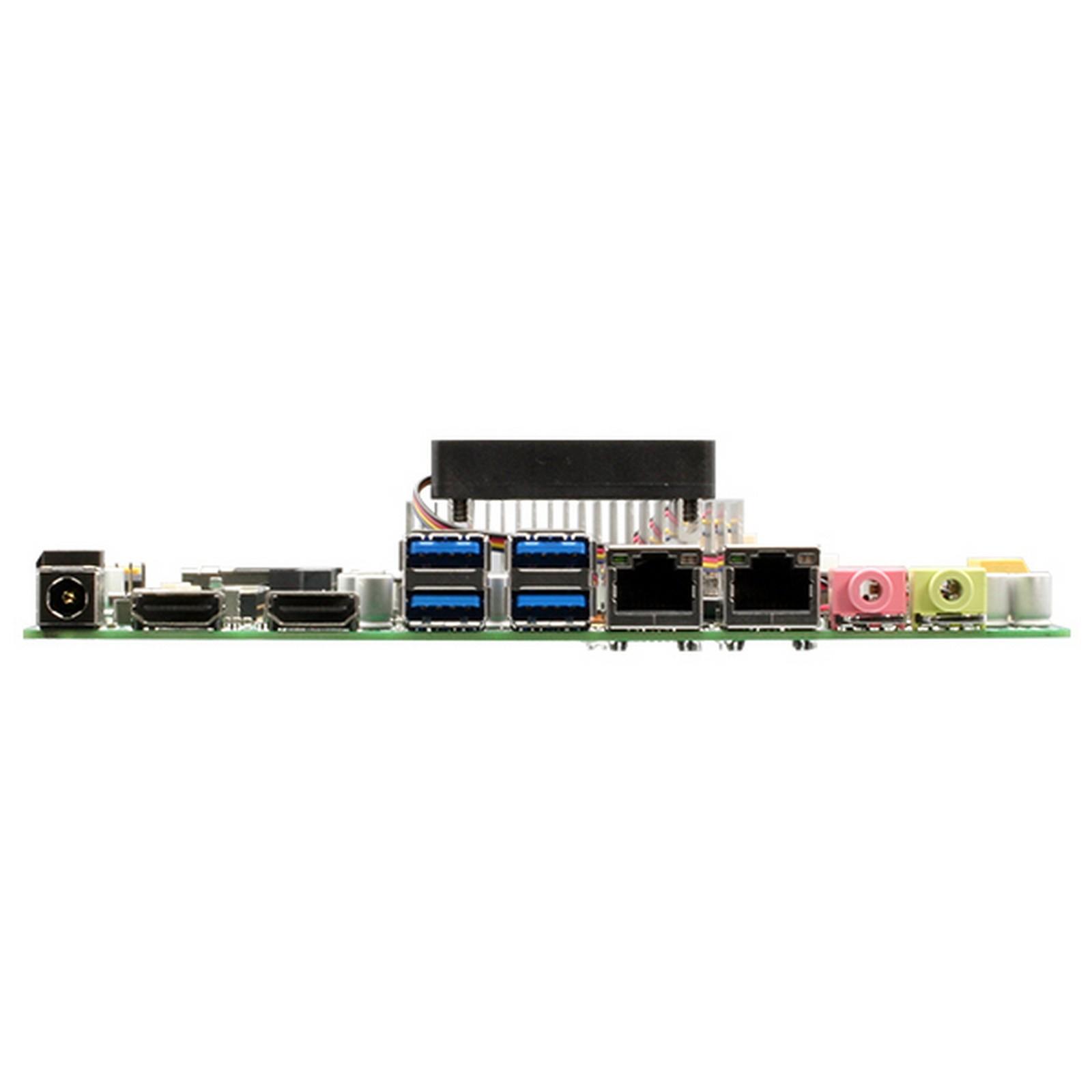

| REAR I/O PORTS | |
| USB | USB 3.2 Gen 1 (5 Gbps) x 4 |
| DISPLAY I/O | HMDI x 2 |
| AUDIO I/O | Mic-in x 1, Line-out x 1 |
| LAN I/O | LAN (RJ-45) port x 2 |
| SERIAL PORT | — |
| PS/2 PORT | — |
| OTHERS | DC Power Jack x 1 |
| INTERNAL I/O CONNECTORS | |
| STORAGE | M.2 M key (22 x 80mm) for PCIe [x4]/SATA storage x 1, SATA 6.0Gb/s x 2, 4-pin SATA power x 1 |
| USB | USB 2.0 pin header x 2 support additional 4 USB ports |
| DISPLAY I/O | 40-pin LVDS connector x 1, 40-pin eDP connector x 1, LCD backlight connector(inverter) x 1 |
| AUDIO I/O | Speaker for 2W@4Ω x 1, AAFP follow ASUS pin out x 1 |
| SERIAL PORT | Boxer header x 2 for COM (COM1: RS-232/422/485 supports 5V/12V/RI) |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | 8-bit programmable (4-in/4-out) x 1 |
| FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| POWER | — |
| OTHERS | Front Panel connector x 1, Chassis Intrusion x 1, Buzzer onboard x 1, CMOS jumper x 1 |
| OS | |
| OS SUPPORT | Windows® 10 64-bit |
| Name | Type | Version | Release Date | |
| MIX-KLUD1 Datasheet | Datasheet | V2.0 | 21 July 2020 |
