| SYSTEM |
| PROCESSOR | 8th/9th Gen. Intel® Core™ LGA 1151 socket Processor (formerly Coffee Lake-S), Max. 65W TDPs |
| CHIPSET | Intel® H310 Express Chipset |
| MEMORY | DDR4 2666 MHz SODIMM x 2, Up to 32GB, Non-ECC, Un-buffered Memory, Dual channel memory architecture |
| I/O CHIPSET | NCT6793D |
| ETHERNET | Realtek ® PCIe Gb LAN RTL8111H |
| AUDIO | Realtek® ALC887 with Amp. |
| TPM | NPCT650ABBYX TPM2.0 (default: No) |
| EXPANSION SLOT | PCIe3.0 [x4] x 1
M.2 E-key(22 x 30 mm) x1 for Wireless-wifi module ( PCIe+USB) |
| BIOS | 128Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL / PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS |
| GRAPHICS CHIPSET | Intel® UHD Graphics |
| GRAPHICS MULTI DISPLAY | HDMI1+HDMI2, HDMI1+DP2, DP1+HDMI2, HDMI1+LVDS, HDMI2+LVDS, HDMI1+eDP, HDMI2+eDP, DP1+DP2, DP1+LVDS, DP2+LVDS, DP1+eDP, DP2+eDP |
| VGA | — |
| DVI | — |
| HDMI | Up to 4096x2304@24Hz(HDMI 1.4b) |
| DISPLAYPORT | Up to 4096x2304@60Hz |
| LVDS | Up to 1920 x 1200 @ 60 Hz, Dual Channel 18/24 bit (via CH 7511) |
| EDP | UP to 4096 x 2304 @ 60Hz |
| BACKLIGHT CONTROL | Voltage/PWM |
| ENVIRONMENTAL & POWER & ME |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 12V DC |
| OPERATING TEMPERATURE | 32°F ~140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0%~90%RH, non-condensing |
| CERTIFICATION | CE & FCC |
| FORM FACTOR | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| MTBF (HOURS) | 246,210 |

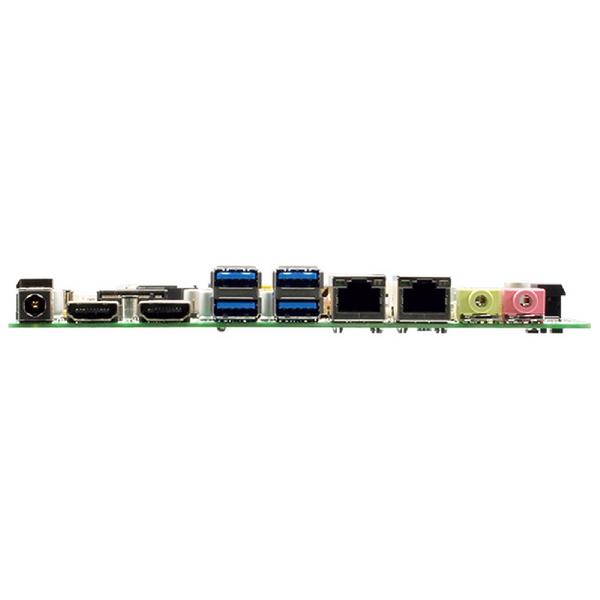

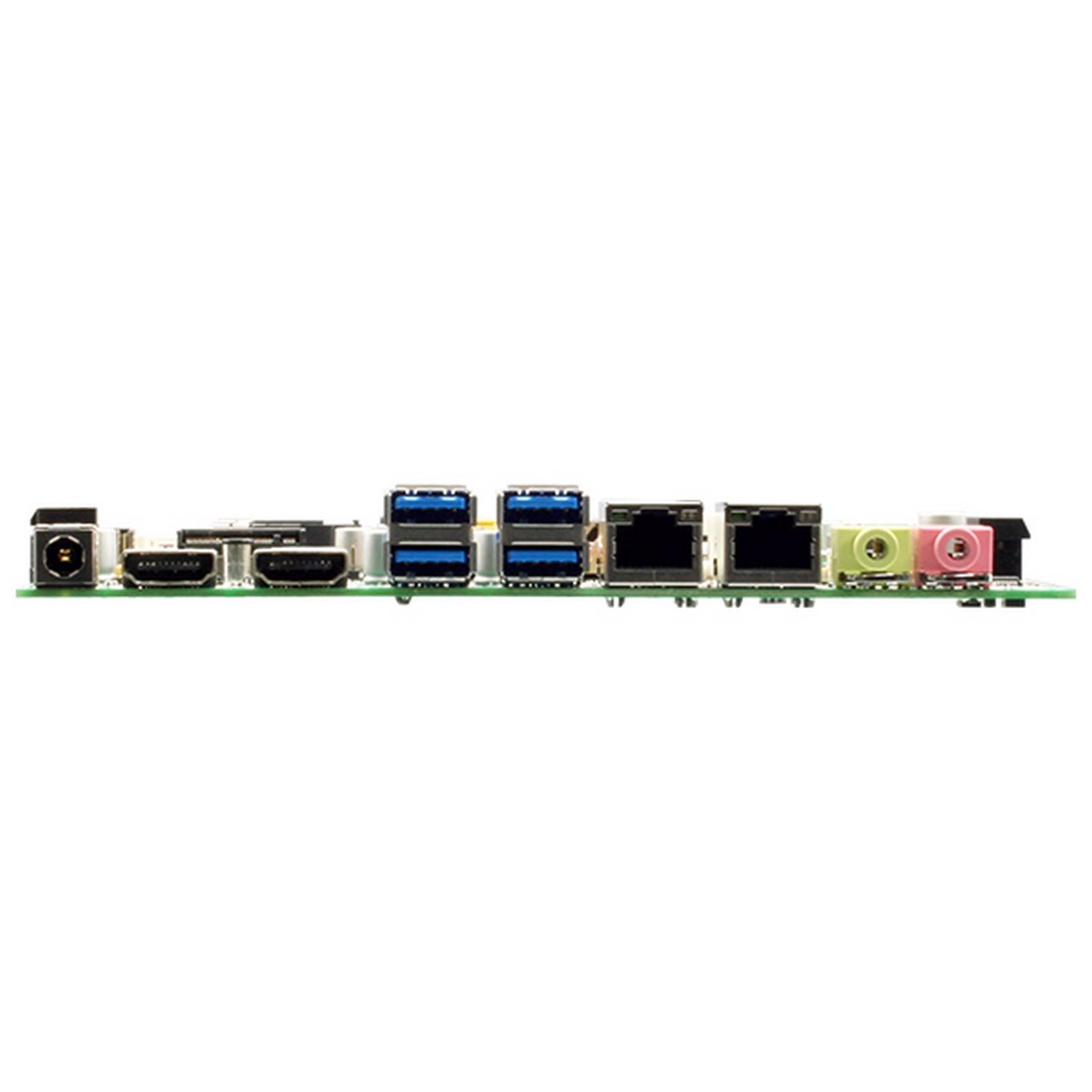

| REAR I/O PORTS |
| USB | USB 3.2 Gen 1 (5 Gbps) x 4 |
| DISPLAY I/O | HDMI x 2, DP x 1+ HDMI x 1(Optional), DP x 2 (Optional) |
| AUDIO I/O | Mic-in x 1, Line-out x 1 |
| LAN I/O | LAN (RJ-45) port x 2 |
| SERIAL PORT | — |
| PS/2 PORT | — |
| OTHERS | DC Jack |
| INTERNAL I/O CONNECTORS |
| STORAGE | SATA3.0 (6.0Gb/s) x 2,
M.2 M-key(SATA) (22 x 42mm) x 1 |
| USB | USB 2.0 (2 x 5-pin, 2.00mm) x 3 ports support additional 5 USB. |
| DISPLAY I/O | — |
| AUDIO I/O | AAFP x 1, Speaker header x 1 |
| SERIAL PORT | Boxer header for COM (RS-232/422/485) x 1, Boxer header for COM (RS-232) x 1 |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | Digital I/O box header x 1 |
| FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| POWER | — |
| OTHERS | Front Panel connector x 1, Chassis Intrusion x 1, Buzzer onboard x 1, CMOS jumper x 1 |
| OS |
| OS SUPPORT | Windows® 10 64-bit
Linux Ubuntu 18.04 LTS |
