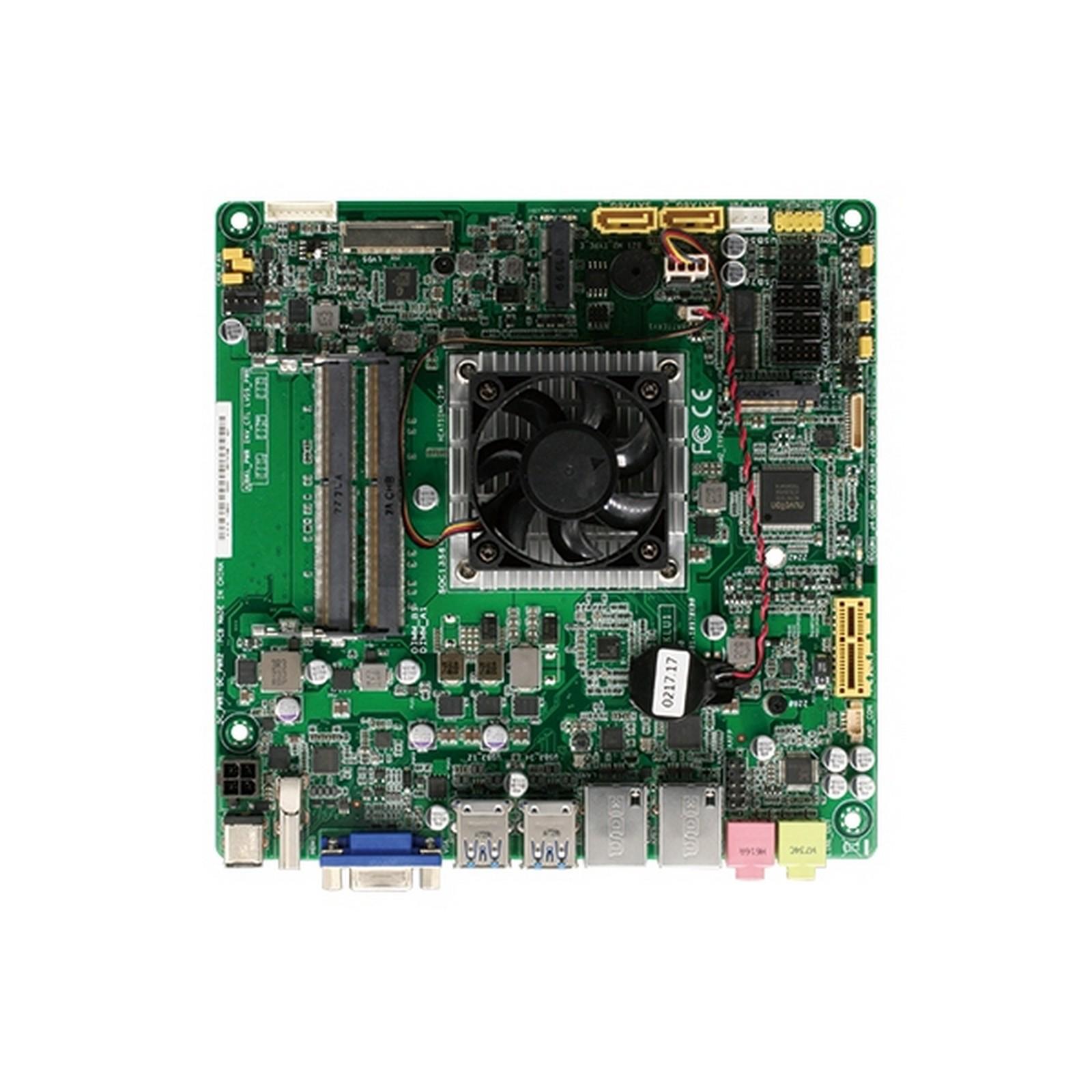

Mini-ITX, Intel® 14nm, FCBGA1356 7th Generation Intel® Core™ i7-7600U/ i5-7300U/ i3-7100U/ Celeron® 3965U/
Core™ i5-7200U, 15~25W TDP
| SYSTEM | |
| PROCESSOR | 14nm 7th Gen. Intel® Core™ (formerly Kaby Lake-U), FCBGA1356 Core i7-7600U, 2C/4C, 2.8/3.9(turbo)GHz, 4M, 300MHz/1.15GHz (Turbo) GFX, ~15W TDP (Optional) Core i5-7300U, 2C/4C, 2.6/3.5(turbo)GHz, 3M, 300MHz/1.10GHz (Turbo) GFX, ~15W TDP (Optional) Core i3-7100U, 2C/4C, 2.4GHz, 3M, 300MHz/1.00GHz (Turbo) GFX, ~15W TDP Celeron 3965U, 2C, 2.2GHz, 2M, 300MHz/900MHz (Turbo) GFX, ~15W TDP |
| CHIPSET | — |
| MEMORY | SODIMM x 2, max. 32GB, DDR4-2133 non-ECC, un-buffered memory |
| I/O CHIPSET | NCT6793D |
| ETHERNET | Intel® PCIe Gb LAN 219LM for vPro (i7-7600U/i5-7300U) x 1 Intel® PCIe Gb LAN 211AT x 1 |
| AUDIO | Realtek® ALC887 |
| TPM | Nuvoton NPCT650ABBYX TPM2.0 onboard (default: No) |
| EXPANSION SLOT | PCIe 3.0 [x1] x 1 M.2 M key (22 x 80mm) x 1, SATA & PCIe [x4] M.2 E key (22 x 30mm) x 1 for Wireless-wifi module (PCIe+USB) |
| BIOS | 128Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL/PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® UHD Graphics |
| GRAPHICS MULTI DISPLAY | Supports three display of LVDS+eDP+VGA or LVDS+eDP+HDMI (by SKU selection) |
| VGA | Up to 1920 x 1200 @60 Hz colay with HDMI (default: VGA) |
| DVI | — |
| HDMI | HDMI 1.4 up to 4096 x 2340 @24Hz colay with VGA (default: VGA) |
| DISPLAYPORT | — |
| LVDS | LVDS Up to 1920 x 1200 @60Hz, Daul Channel 18/24 bit (via CH7511) |
| EDP | eDP UP to 4096 x 2304 @ 60Hz |
| BACKLIGHT CONTROL | Voltage/PWM; Max 1A |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 12(-5%)~19V(+5%) DC |
| OPERATING TEMPERATURE | 32°F ~ 131°F (0°C ~ 55°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% R/H, non-condensing |
| CERTIFICATION | CE & FCC (Class A) |
| FORM FACTOR | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| MTBF (HOURS) | 275,650 |

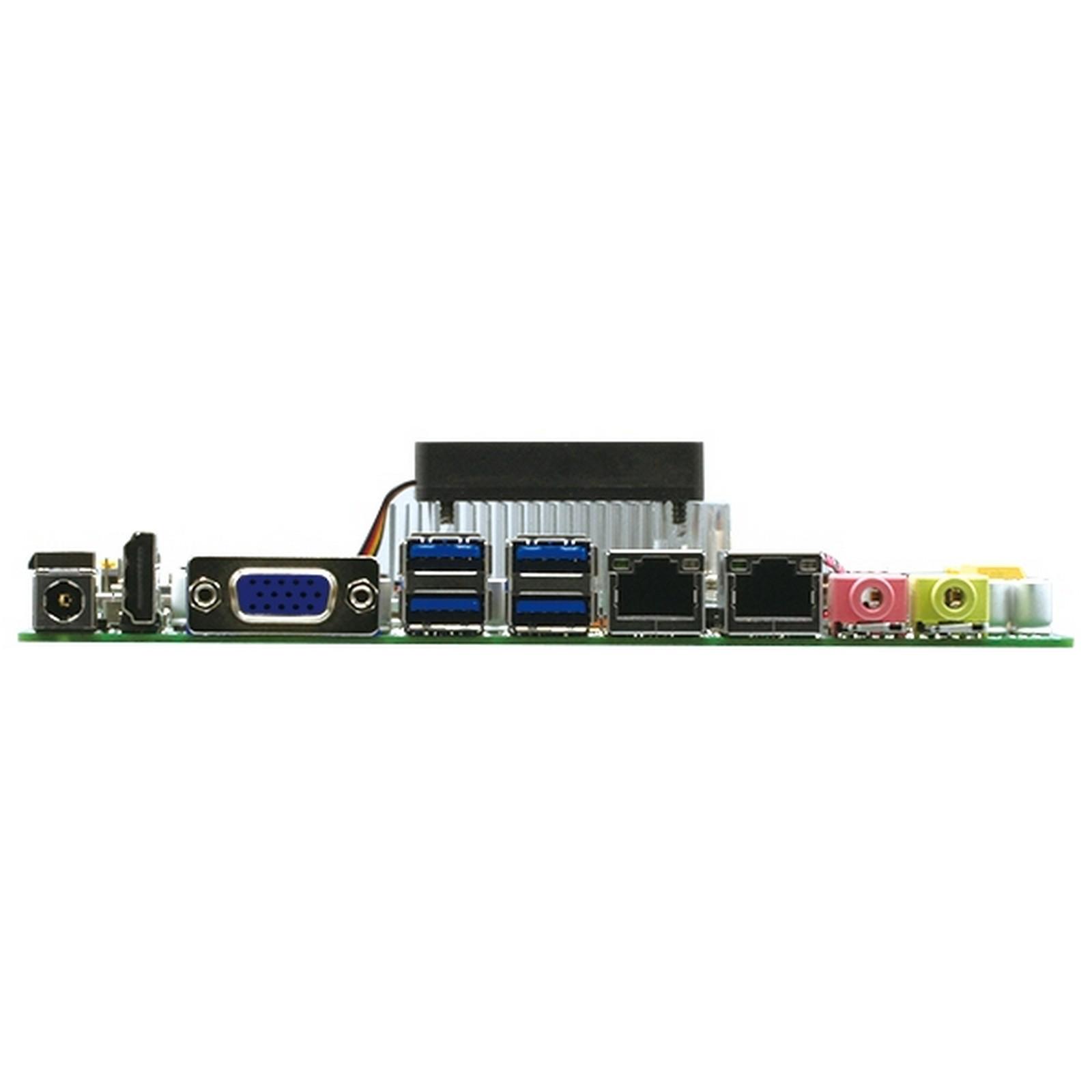

| REAR I/O PORTS | |
| USB | USB 3.2 Gen 1 (5 Gbps) x 4 |
| DISPLAY I/O | VGA x 1, HMDI Colay (default: VGA x 1) |
| AUDIO I/O | Mic-in x 1, Line out x 1 |
| LAN I/O | LAN (RJ45) port x 2 |
| SERIAL PORT | — |
| PS/2 PORT | — |
| OTHERS | DC Power Jack x 1 |
| INTERNAL I/O CONNECTORS | |
| STORAGE | M.2 M key (22 x 80mm) for PCIe [x4]/SATA storage x 1, SATA 6.0Gb/s x 2, 4-pin SATA power x 1 |
| USB | USB 2.0 pin header x 2 support additional 4 USB ports |
| DISPLAY I/O | 40-pin LVDS connector x 1, 40-pin eDP connector x 1, LCD backlight connector(inverter) x 1 |
| AUDIO I/O | Speaker for 2W@4Ω x 1, AAFP follow ASUS pin out x 1 |
| SERIAL PORT | Boxer header x 2 for COM (COM1: RS-232/422/485 supports 5V/12V/RI) |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | 8-bit programmable (4-in/4-out) x 1 |
| FAN | 4-pin Chassis Fan connector x 1, 4-pin CPU Fan connector x 1 |
| POWER | 2 x 2 Pin DC-in 12~19V(-5%~+5%) x 1 |
| OTHERS | Clear CMOS jumper x 1, AT/ATX mode select jumper x 1 |
| OS | |
| OS SUPPORT | Windows 10 64 bit, Ubuntu 16.04.LTS |
| Name | Type | Version | Release Date | |
| MIX-KLUW1 Datasheet | Datasheet | V2.0 | 21 July 2020 |
