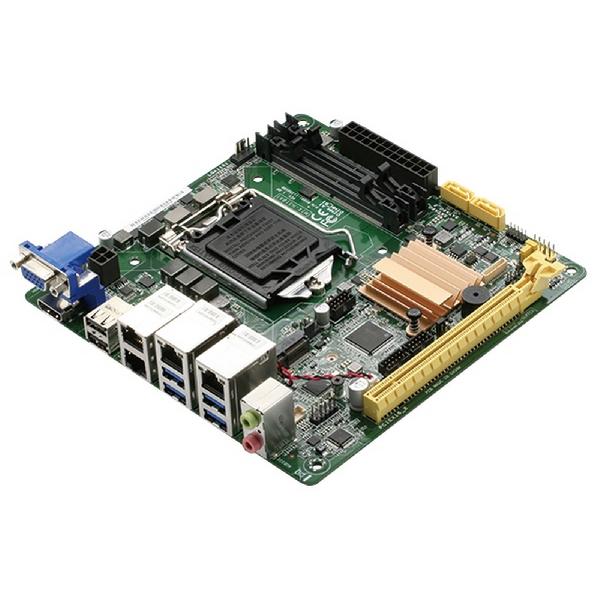

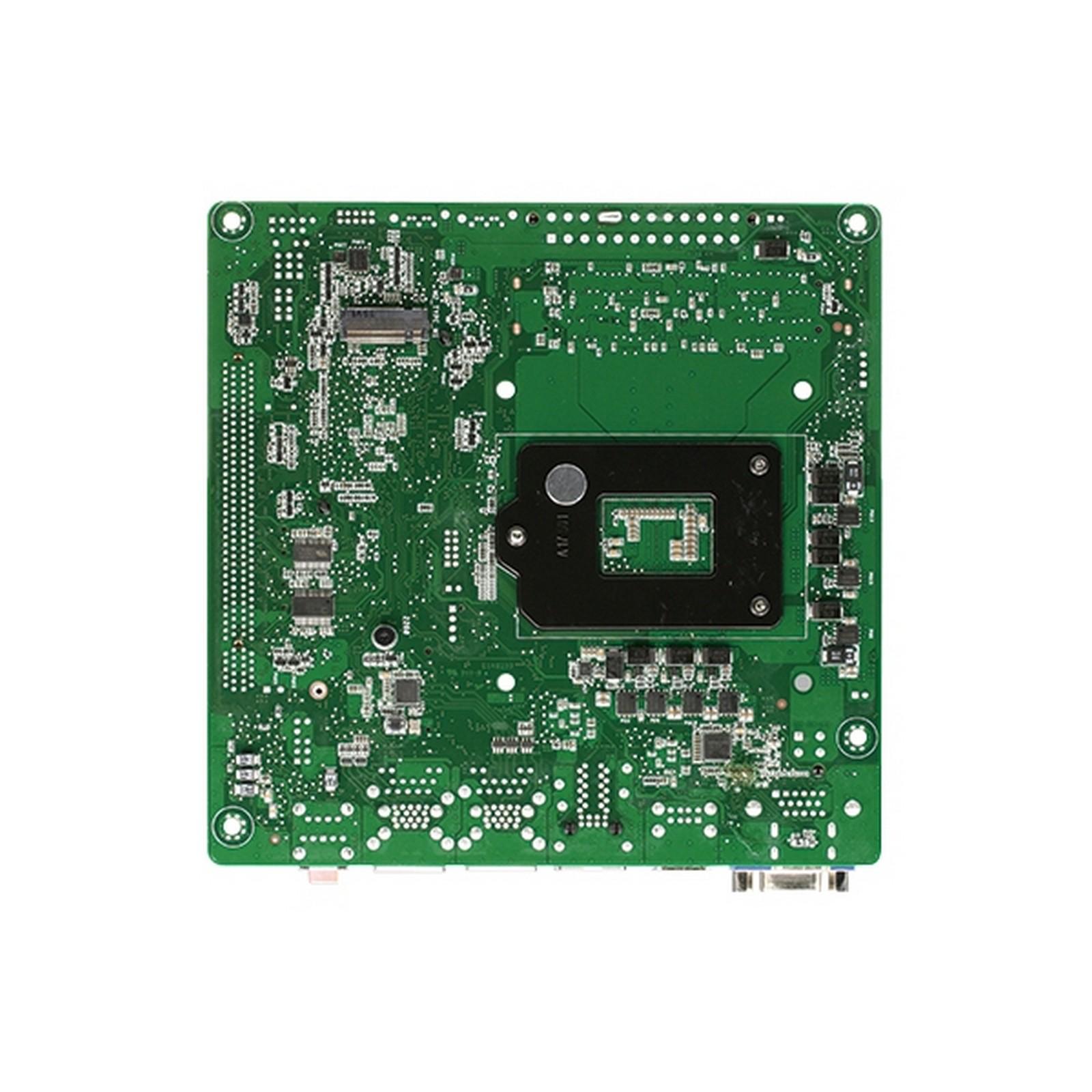

MIX-H310A1 is AAEON’s latest innovation of its Mini-ITX industrial motherboard line, empowered by 8th/9th Generation Intel® Core™ processor family (formerly Coffee Lake). With the optimized performance by increased core count up to 6 cores and the refined graphic engines, MIX-H310A1 offers meets the requirements for graphic-intensive and high-performance computing applications in machine vision, kiosk and robotics. With the integrated graphic engines of 8th/9th Generation Intel® Core™ processor family, MIX-H310A1 supports 4K display, as well as mainstream display functionality including HDMI 1.4 and HDCP. Designed for IoT enhancement, MIX-H310A1 comes with 4 Intel®-powered Gigabit LAN ports for external IP cameras, critical for image processing and recognition applications.
Optimized Performance by 8th/9th Gen. Intel® Core™ CPU
The 8th/9th Generation Intel® Core™ processor family optimizes the processor performance over previous generations by offering up to 6 cores with hyper-threading, which makes MIX-H310A1 the optimal Mini-ITX motherboard for IoT and A.I. applications where multitasking performance is critical.
Four Gigabit LAN Ports
MIX-H310A1 provides 4 Intel®-empowered Gigabit LAN ports to connect with external IP cameras for image-processing/recognition applications including machine vision, robotics and kiosks. The LAN port density can be further expanded with compatible adapter cards.
Enhanced Graphic Engine
Powered by the integrated graphic engines of 8th /9th Generation Intel® Core™ processor family, MIX-H310A1 supports 4K display output, as well as HDCP (optional) protection over HDMI display ports.
| SYSTEM | |
| PROCESSOR | 8th/9th Gen. Intel® Core™ LGA 1151 socket Processor (formerly Coffee Lake-S), Max. 65W TDPs |
| CHIPSET | Intel® H310 Express Chipset |
| MEMORY | DDR4 2666/2400/2133 MHz SODIMM x 2, Up to 32GB, Non-ECC, Un-buffered Memory, Dual channel memory architecture |
| I/O CHIPSET | NCT6793D |
| ETHERNET | Intel® PCIe Gb LAN 219V x 1, Intel® PCIe Gb LAN i211AT x 3 |
| AUDIO | Realtek® ALC887 with Amp. |
| TPM | NPCT650ABBYX TPM2.0 (default: No) |
| EXPANSION SLOT | PCIe3.0 [x16] x 1, M.2 M-key(22x80mm) at bottom side x 1 for SATA, M.2 E-key(22x30mm) |
| BIOS | 128Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 step by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL / PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® HD Graphics |
| GRAPHICS MULTI DISPLAY | HDMI+VGA |
| VGA | Up to 1920 x 1200 @ 60 Hz |
| DVI | — |
| HDMI | Up to 4096 x 2160 @30Hz(HDMI 1.4) |
| DISPLAYPORT | — |
| LVDS | — |
| EDP | — |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | ATX |
| OPERATING TEMPERATURE | 32°F ~140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0%~90%RH, non-condensing |
| CERTIFICATION | CE & FCC |
| FORM FACTOR | Mini-ITX: 6.7" x 6.7" (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| MTBF (HOURS) | 288900 |

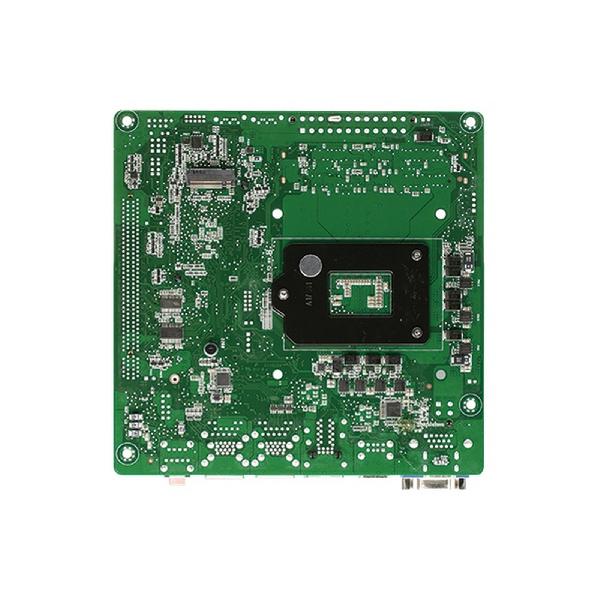

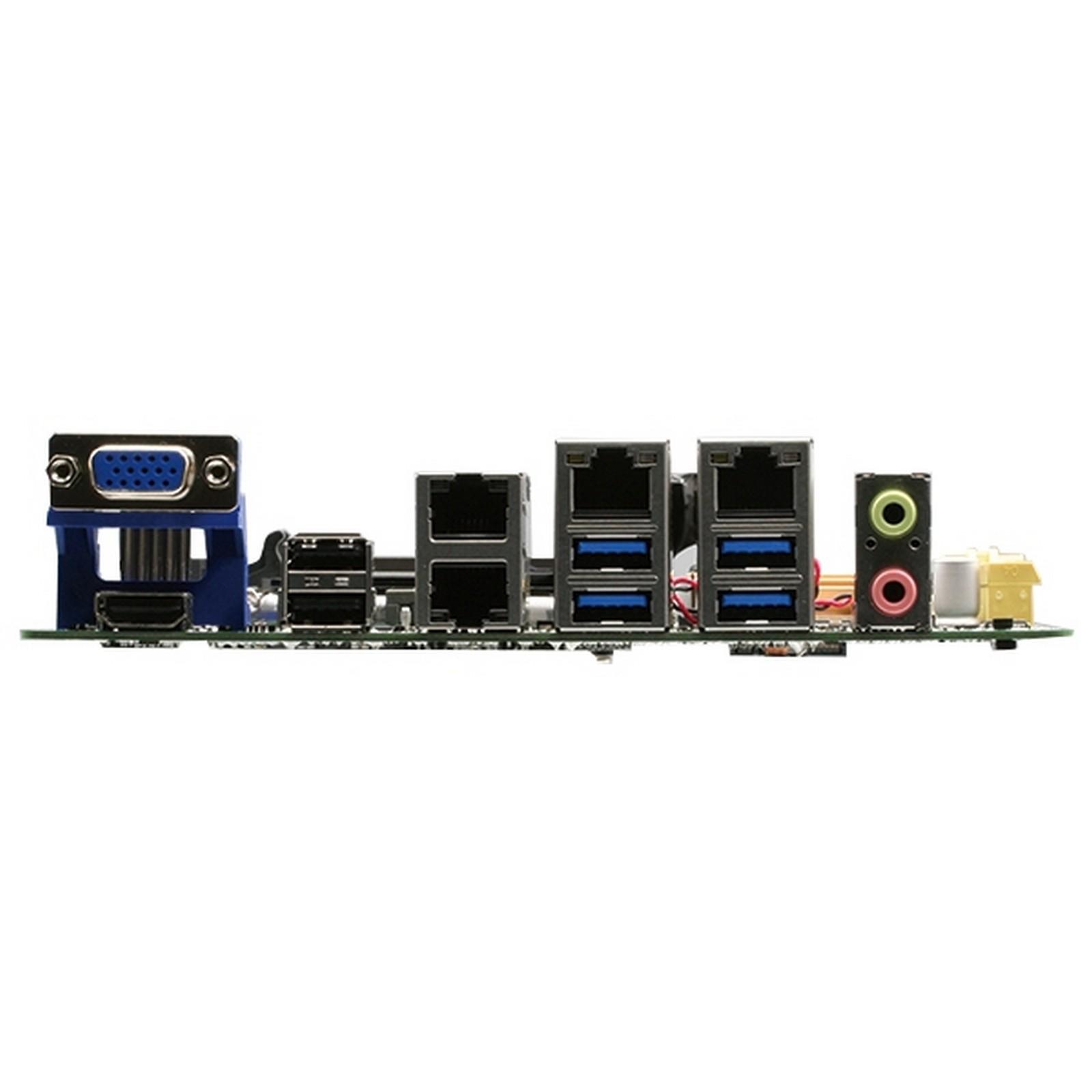

| REAR I/O PORTS | |
| USB | USB 3.2 Gen 1 (5 Gbps) x 4, USB 2.0 x 2 |
| DISPLAY I/O | VGA x 1, HDMI x 1 |
| AUDIO I/O | Mic-in x 1, Line-out x 1 |
| LAN I/O | LAN (RJ-45) port x 4 |
| SERIAL PORT | — |
| PS/2 PORT | — |
| OTHERS | — |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA3.0 (6.0Gb/s) x 2, M.2 M-key (22 x 80mm) at bottom side x 1 (SATA only) |
| USB | USB 2.0 (2 x 5-pin, 2.00mm) x 1 ports support additional 2 USB. |
| DISPLAY I/O | — |
| AUDIO I/O | AAFP x 1, Speaker x 1 |
| SERIAL PORT | Boxer header for COM (RS-232/422/485) x 1, Boxer header for COM (RS-232) x 1 |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | Digital I/O box header x 1 |
| FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| POWER | — |
| OTHERS | Front Panel connector x 1, Chassis Intrusion x 1, Buzzer onboard x 1, CMOS jumper x 1 |
| OS | |
| OS SUPPORT | Windows® 10 64-bit, ,Linux Ubuntu 18.04 LTS |
| Name | Type | Version | Release Date | |
| MIX-H310A1 Datasheet | Datasheet | V2.0 | 21 July 2020 |
