| SYSTEM |
| PROCESSOR | Intel® Celeron® J1900 Processor (4C @ 2.00 GHz CPU, 688/854 MHz GFX, 10W TDP)
Intel® Celeron® N2807 Processor (2C @ 1.58 GHz CPU, 313/750 MHz GFX, 4.3W TDP)
Intel® Atom™ E3845 Processor (4C @ 1.91 GHz CPU, 542/792 MHz GFX, 10W TDP)
Intel® Atom™ E3825 Proc |
| CHIPSET | — |
| MEMORY | DDR3L 1333 MHz SODIMM x 2 up to 8 GB (for J1900 / E3845),
DDR3L 1333 MHz SODIMM x 1 up to 4 GB (for N2807),
DDR3L 1067 MHz SODIMM x 1 up to 4 GB (for E3825),
Non-ECC, un-buffered memory,
Dual-channel memory architecture flat type |
| I/O CHIPSET | Fintech 81866D |
| ETHERNET | Realtek® PCIe Gb LAN 8111G x 2 |
| AUDIO | Realtek® ALC887 |
| TPM | Infineon SLB9635 TT 1.2 (default : No) |
| EXPANSION SLOT | Full-size Mini-Card (mSATA default) (PCIe+USB optional) + SIM Card (default: No) x 1,
Half-size Mini-Card (PCIe+USB) x 1, PCIe [x1] x 1 |
| BIOS | 64 M bit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/System,
Voltage Monitor on Vcore/5V/3.3V/12V,
Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | Chassis Fan (fanless) |
| WAKE ON LAN/ PXE | Yes (WOL/PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS |
| GRAPHICS CHIPSET | Intel® HD Graphics |
| GRAPHICS MULTI DISPLAY | VGA+LVDS, VGA+HDMI, LVDS+HDMI |
| VGA | Up to 1920 x 1200 @60 Hz |
| DVI | — |
| HDMI | Up to 1920 x 1200 @60 Hz |
| DISPLAYPORT | — |
| LVDS | Up to 1920 x 1080 @60Hz,
Dual Channel 18/24-bit (via CH7511) |
| EDP | — |
| BACKLIGHT CONTROL | Voltage/PWM |
| ENVIRONMENTAL & POWER & ME |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 12VDC |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0% ~ 90% R/H, non-condensing |
| CERTIFICATION | CE & FCC |

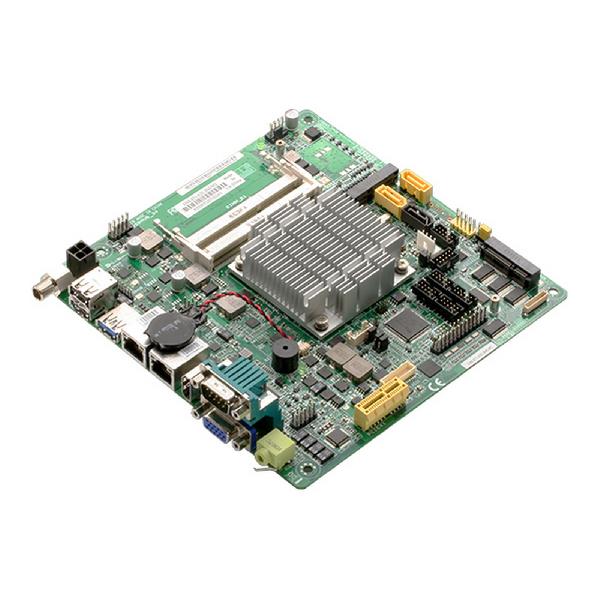

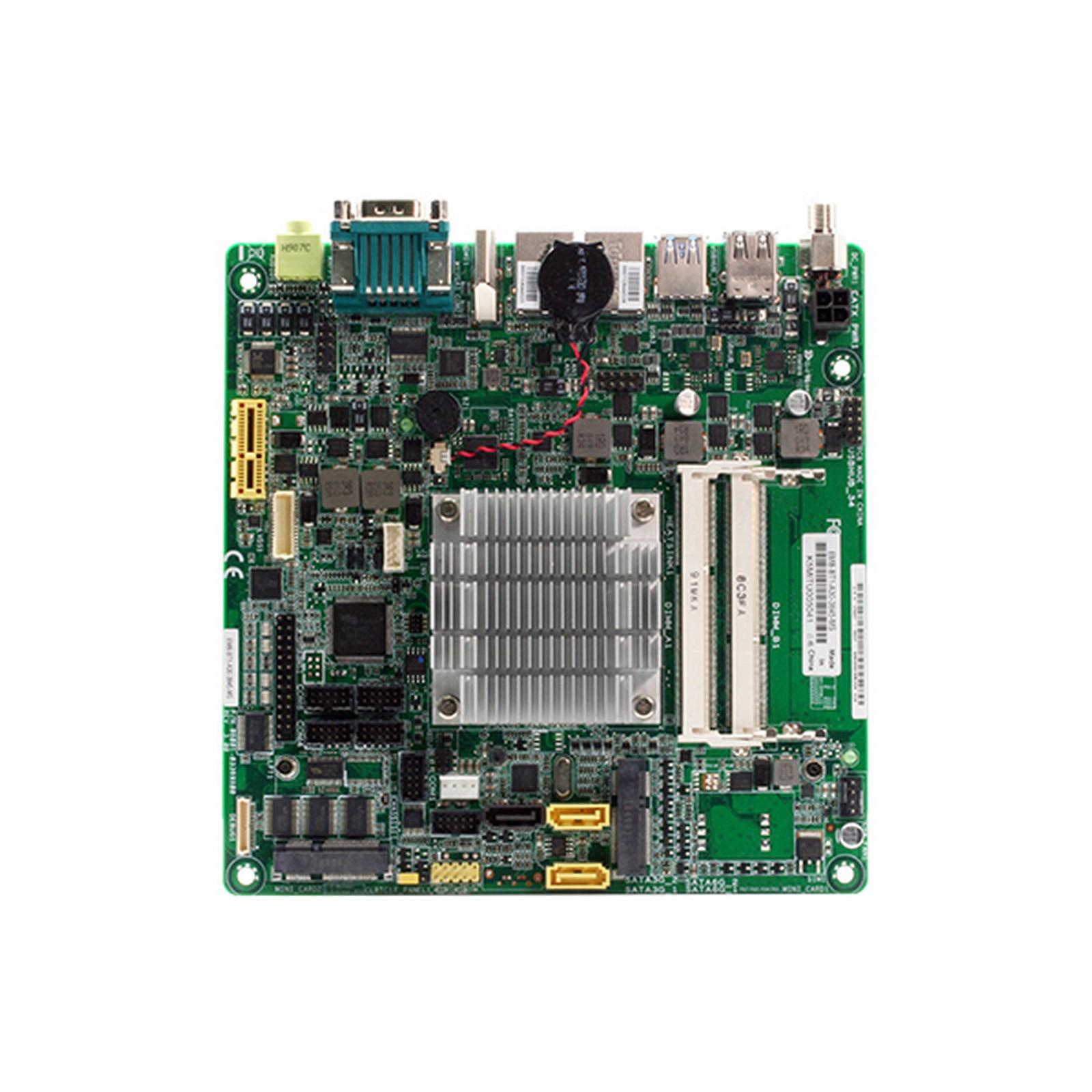

| FORM FACTOR | Mini-ITX 6.7" x 6.7" (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| MTBF (HOURS) | 111131 |

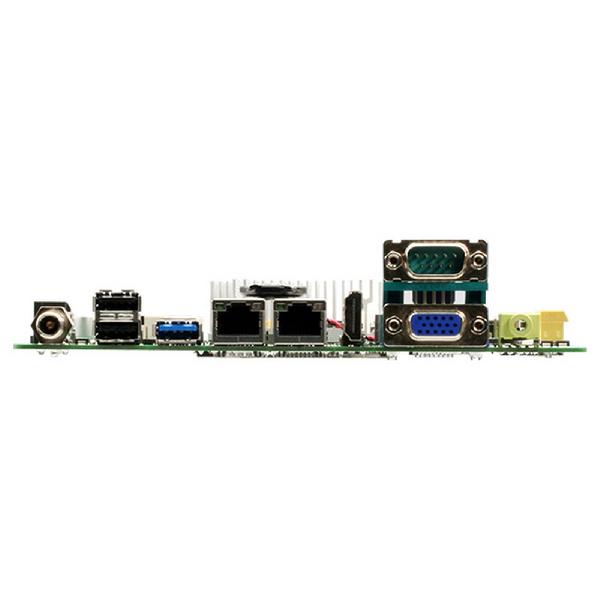

| REAR I/O PORTS |
| USB | USB 3.2 Gen 1 (5 Gbps)/2.0 x 1, USB 2.0 x 2 |
| DISPLAY I/O | VGA x 1, HDMI x 1 |
| AUDIO I/O | Line-out x 1 |
| LAN I/O | LAN (RJ-45) port x 2 |
| SERIAL PORT | COM (RS-232)(optional) x 1 |
| PS/2 PORT | — |
| OTHERS | DC port (12V) Screw type x 1 |
| INTERNAL I/O CONNECTORS |
| STORAGE | SATA3 (6.0Gb/s) x 2,
SATA2 (3.0Gb/s) x 2 (1 colay with mSATA),
SATA power connector x 1,
Ful Size Mini-Card slot (mSATA) x 1 |
| USB | USB 2.0 (2 x 5-pin, 2.54mm) x 2 ports support additional 4 USB,
USB 2.0 (1x 5-pin, 2.0mm) x 1 port supports additional 1 USB |
| DISPLAY I/O | LVDS connector x 1, LVDS 3V /5V jumper x 1,
LCD DC / PWM mode jumper x 1,
LCD backlight connector (inverter) x 1,
LCD backlight 12V /5V jumper x 1 |
| AUDIO I/O | AAFP x 1 |
| SERIAL PORT | Boxer header for COM (RS-232) x 4,
Boxer header for COM (RS-232/422/485) x 1 |
| PS/2 PORT | PS/2 Keyboard Mouse 6 PIN Connector x 1 |
| PARALLEL PORT | SPP/EPP Mode |
| DIO | DIO (4in/4out) x 1 |
| FAN | Chassis Fan connector x 1 |
| POWER | 12V AUX Power Connector x 1, AT/ATX mode select jumper (default : No) x 1 |
| OTHERS | Half-size Mini-Card (PCIe + USB) x 1,
PCIe [x1] x 1, SIM Card Socket(default : No) x 1,
LPT PIN header x 1, Front Panel connector x 1,
CMOS jumper x 1 |
| OS |
| OS SUPPORT | Windows® 10 64-bit
Windows® 7 32/64-bit
Windows® 8.1 32/64-bit
Linux Fedora |
