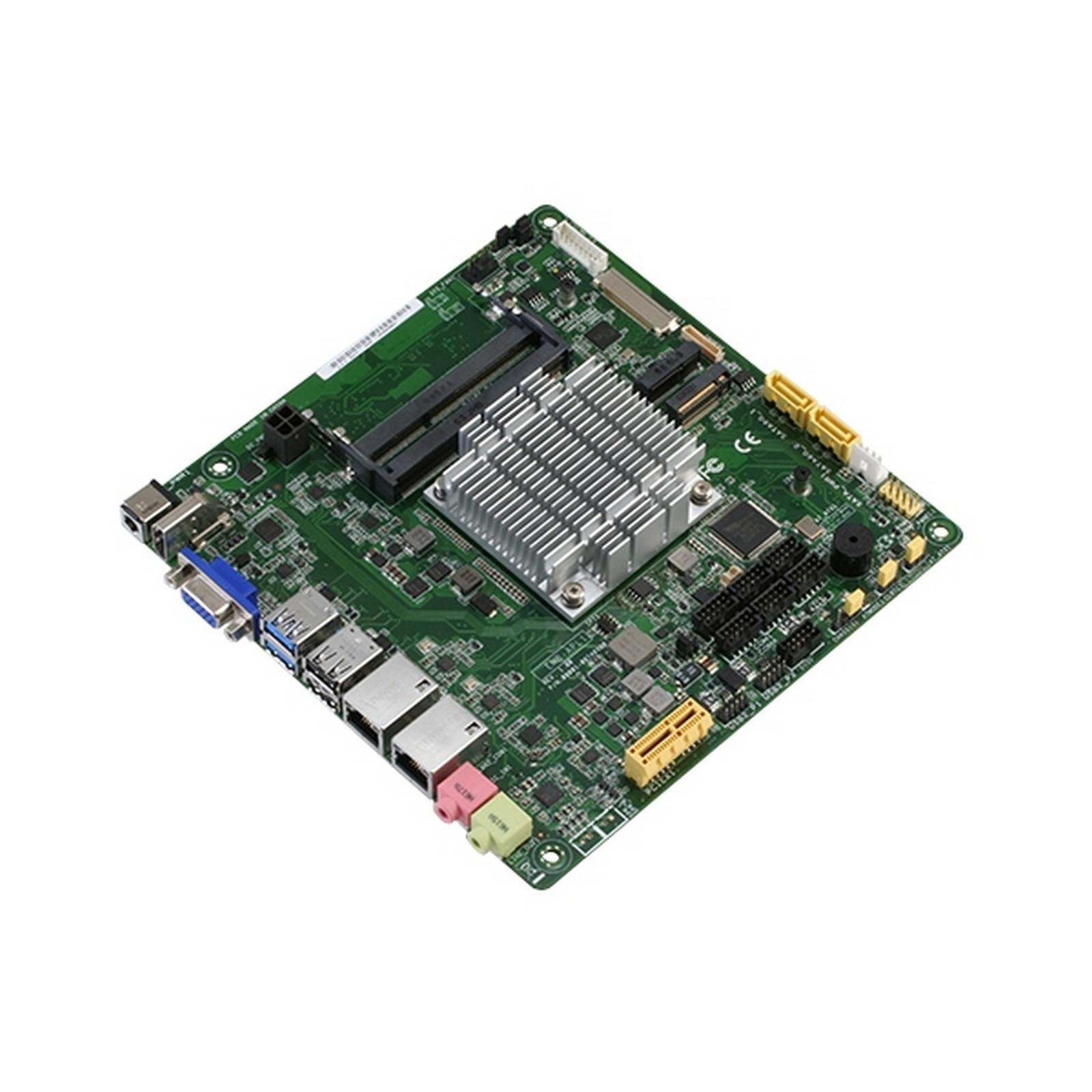

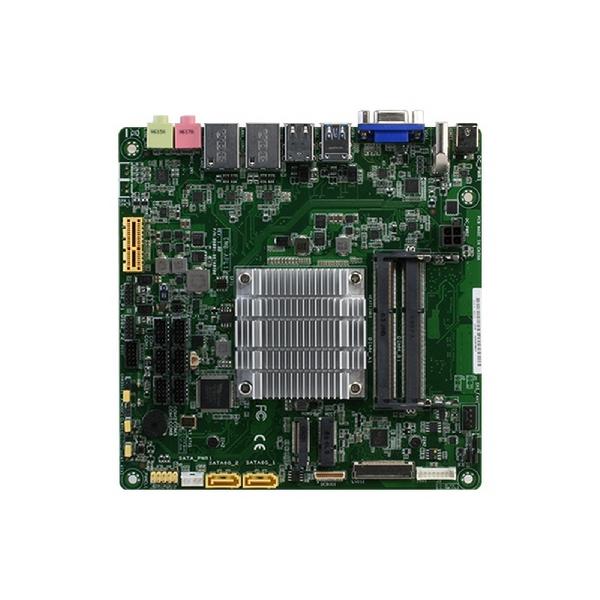

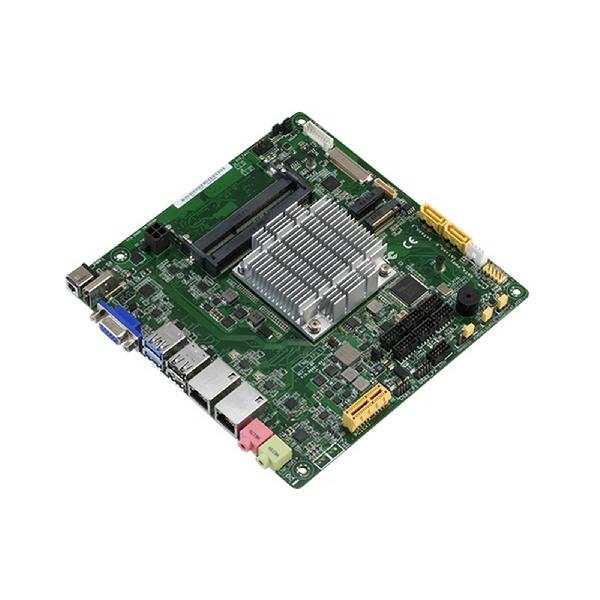

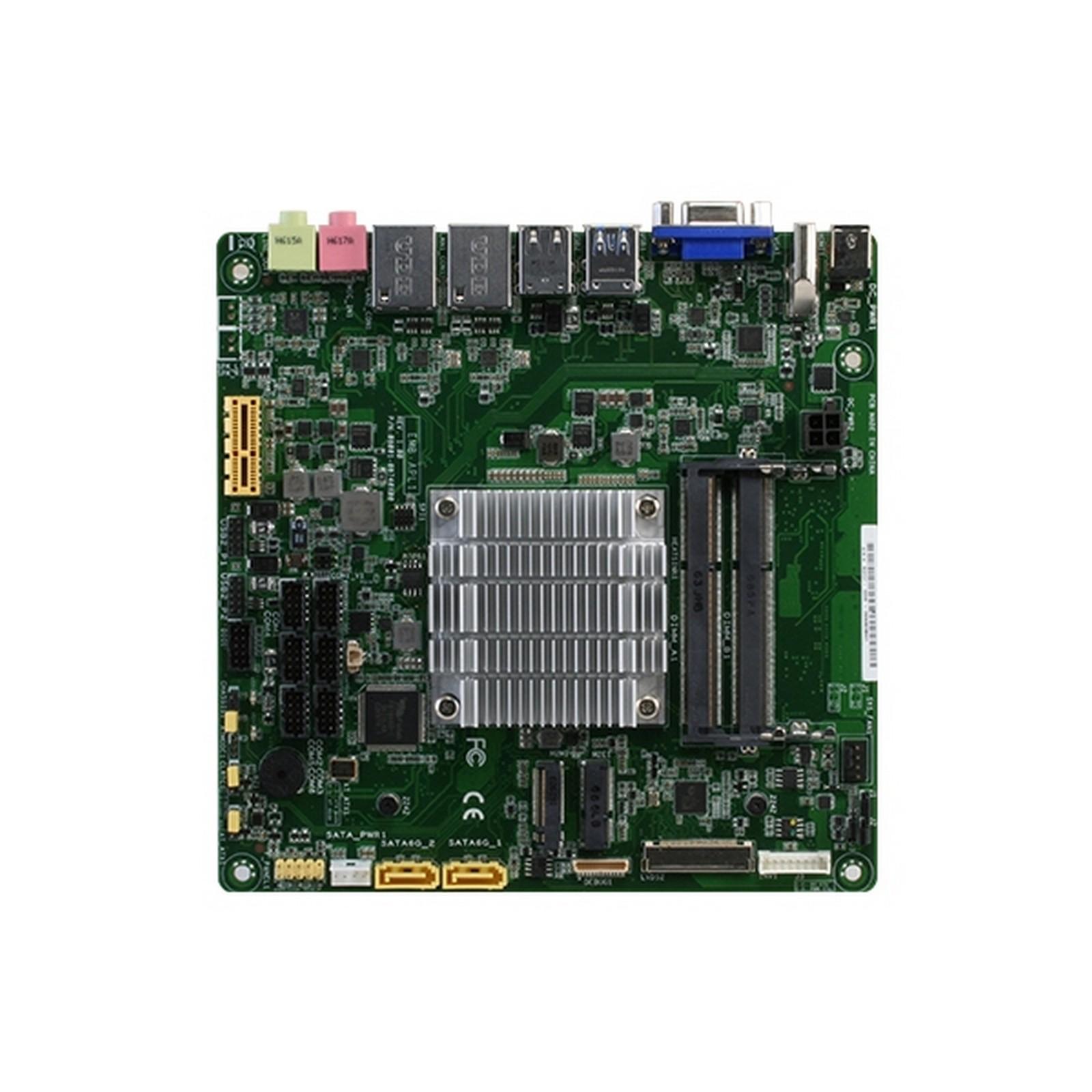

Mini-ITX Embedded Motherboard with Intel® N3350(DC)/N4200(QC) Processor
| SYSTEM | |
| PROCESSOR | N4200, (4C @ 2.50GHz CPU [Burst Mode] 750MHz GFX [Turbo], ~6W TDP) N3350, (2C @ 2.40GHz CPU [Burst Mode], 650MHz GFX [Turbo], ~6W TDP) |
| CHIPSET | Intergrated into SoC |
| MEMORY | DDR3L 1333/1600/1867MHz SODIMM x 2, max. 8GB, non-ECC, un-buffered memory |
| I/O CHIPSET | NCT6116D |
| ETHERNET | Realtek PCIe Gb LAN 8111G x 2 |
| AUDIO | Realtek® ALC3236-CG |
| TPM | Nuvoton NPCT652ABCYX TPM2.0 (default: No) |
| EXPANSION SLOT | PCIe2.0 [x1] x 1 M.2 M key (22 x 42mm) x 1, for SATA M.2 E Key (22 x 30mm) x 1, for PCIe |
| BIOS | 128Mbit Flash ROM x 1, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | Chassis Fan (Fanless) |
| WAKE ON LAN/ PXE | Yes (WOL/PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® HD Graphics |
| GRAPHICS MULTI DISPLAY | Three Independent Display |
| VGA | Up to 1920 x 1200 @60Hz |
| DVI | — |
| HDMI | Up to 3840 x 2160 @ 30Hz |
| DISPLAYPORT | — |
| LVDS | Up to 1920 x 1200 @60Hz, Daul Channel 18/24 bit (via PS8625) (colay with eDP) |
| EDP | Up to 4096 x 2160 @60Hz |
| BACKLIGHT CONTROL | Voltage/PWM |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 12V~24V wide-range voltage input back panel DC jack x 1; 4-pin ATX Power connector x 1 |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% RH, non-condensing |
| CERTIFICATION | CE & FCC Class A |
| FORM FACTOR | Mini-ITX: 6.7" x 6.7" (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| MTBF (HOURS) | 263,080 |

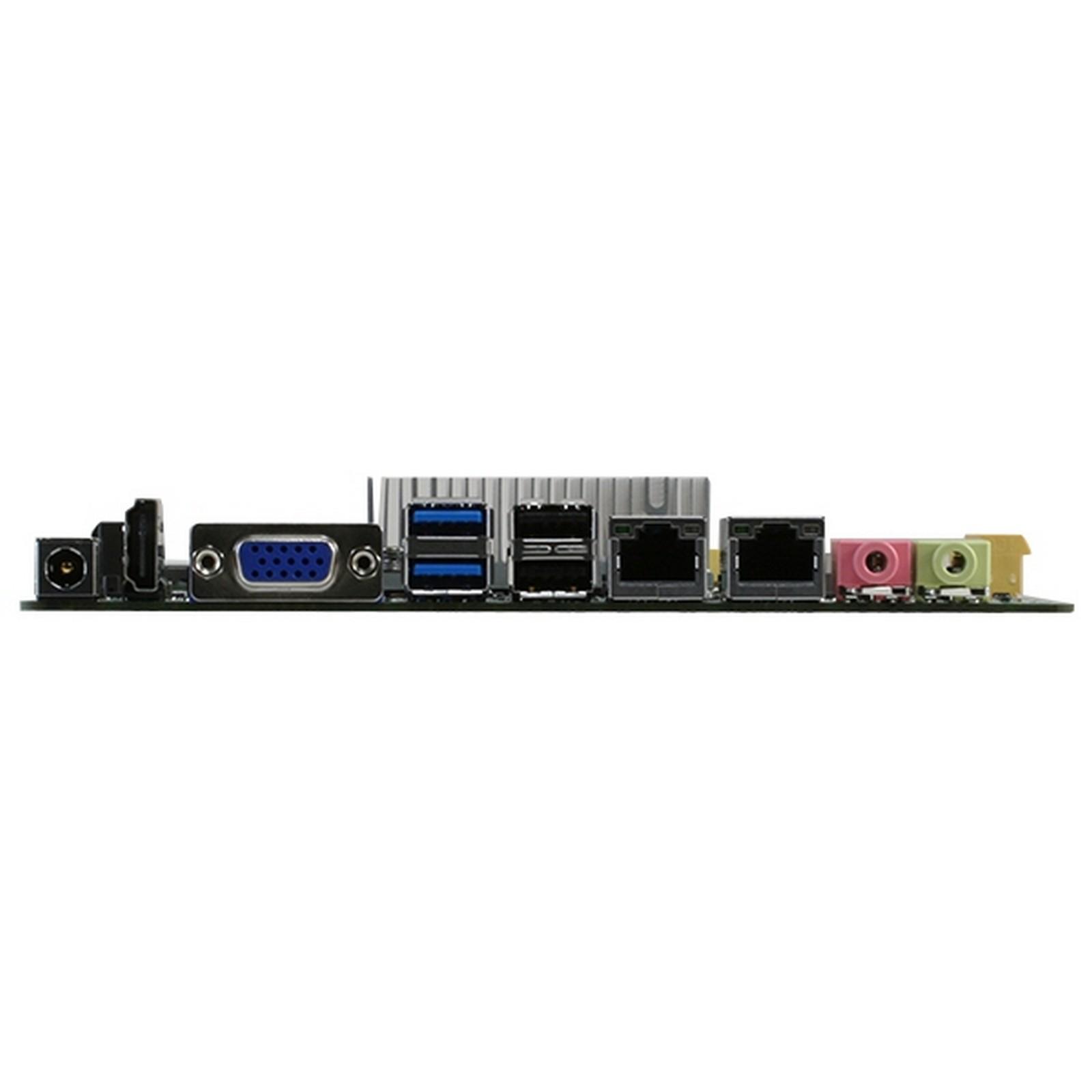

| REAR I/O PORTS | |
| USB | USB 3.2 Gen 1 (5 Gbps) x 2, USB 2.0 x 2 |
| DISPLAY I/O | HDMI x 1, VGA x 1 |
| AUDIO I/O | Mic-in, Line-out |
| LAN I/O | RJ-45 x 2 |
| SERIAL PORT | — |
| PS/2 PORT | — |
| OTHERS | DC power jack x 1 |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA 6.0Gb/s x 2(1 colay with M.2 M-key), M.2 M-key (22 x 42mm) x 1 |
| USB | USB 2.0 headers support additional 3 USB ports (2*5-pin, p=2.00mm) x 2 |
| DISPLAY I/O | 40-pin LVDS/eDP connector x 1(default LVDS) |
| AUDIO I/O | — |
| SERIAL PORT | RS-232/422/485 x 1, RS-232 x 5 |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | 8-bit x 1 (In/Out programmable) |
| FAN | 4-pin Chassis Fan x 1 |
| POWER | — |
| OTHERS | Front panel header x 1, Clear CMOS jumper x 1, AT/ATX mode select jumper (optional) x 1, SATA power connector x 1, M.2 E key (22 x 30mm) for PCIe x 1 |
| OS | |
| OS SUPPORT | WIndows® 10 64bit Ubuntu16.04.02/Kernel4.8.0 |
| Name | Type | Version | Release Date | |
| EMB-APL1 Datasheet | Datasheet | V2.0 | 20 July 2020 |
