ADDERView RDX 1000IP

Home  >   Adder  >   Remote  >
Remote Access to Multiple Computers

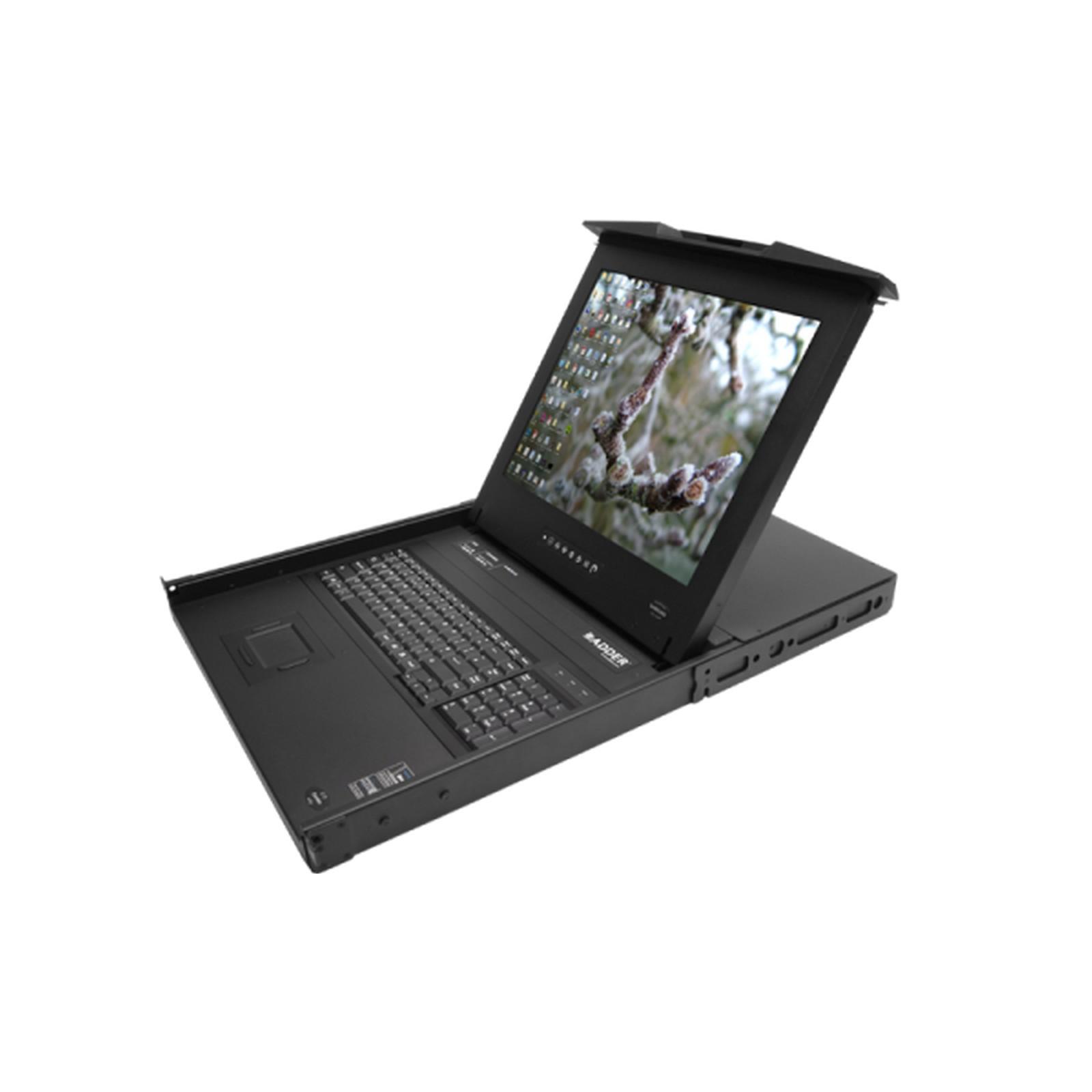

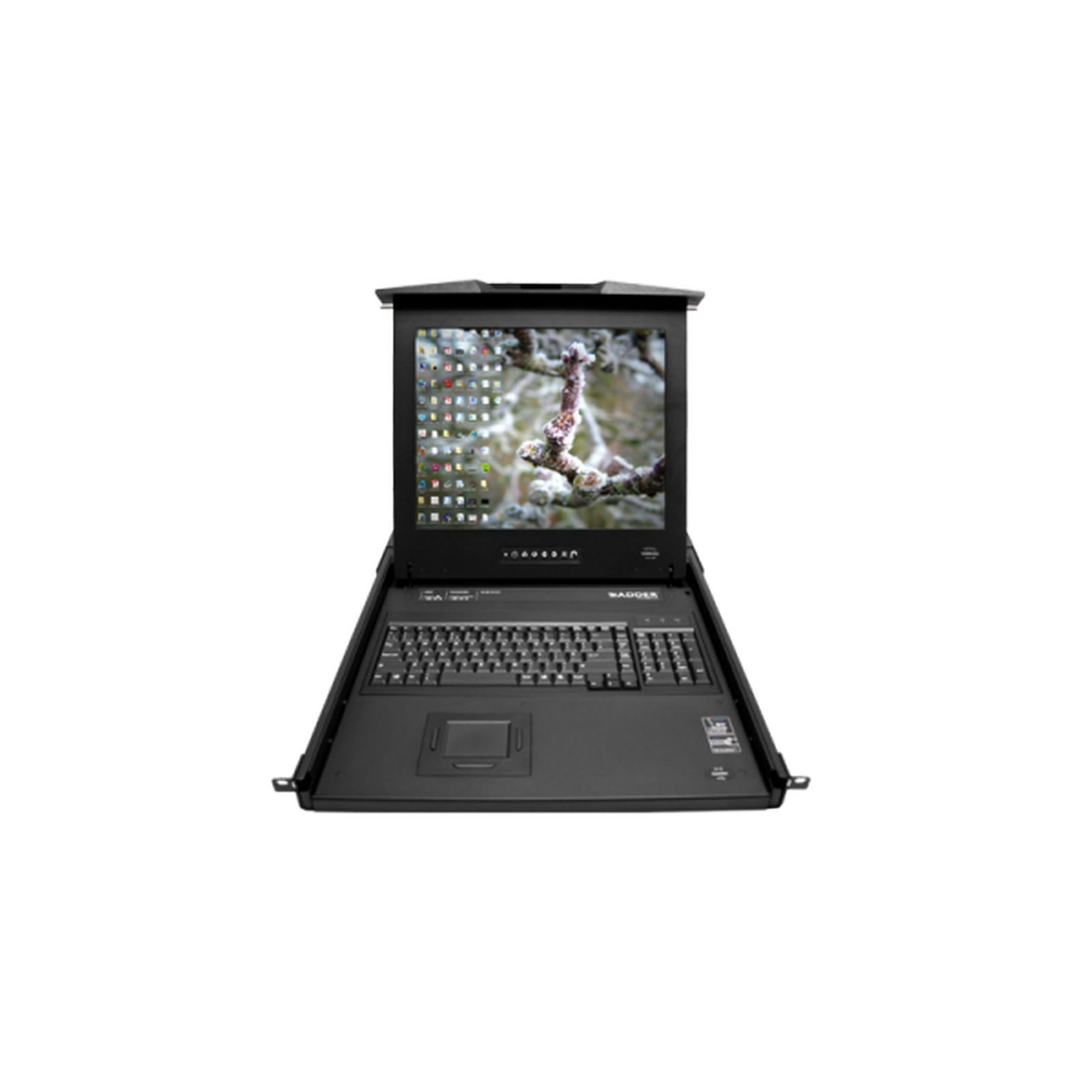

High density rack tray with fully featured USB, PS/2, Sun and Video control for critical environments.

Product Feature

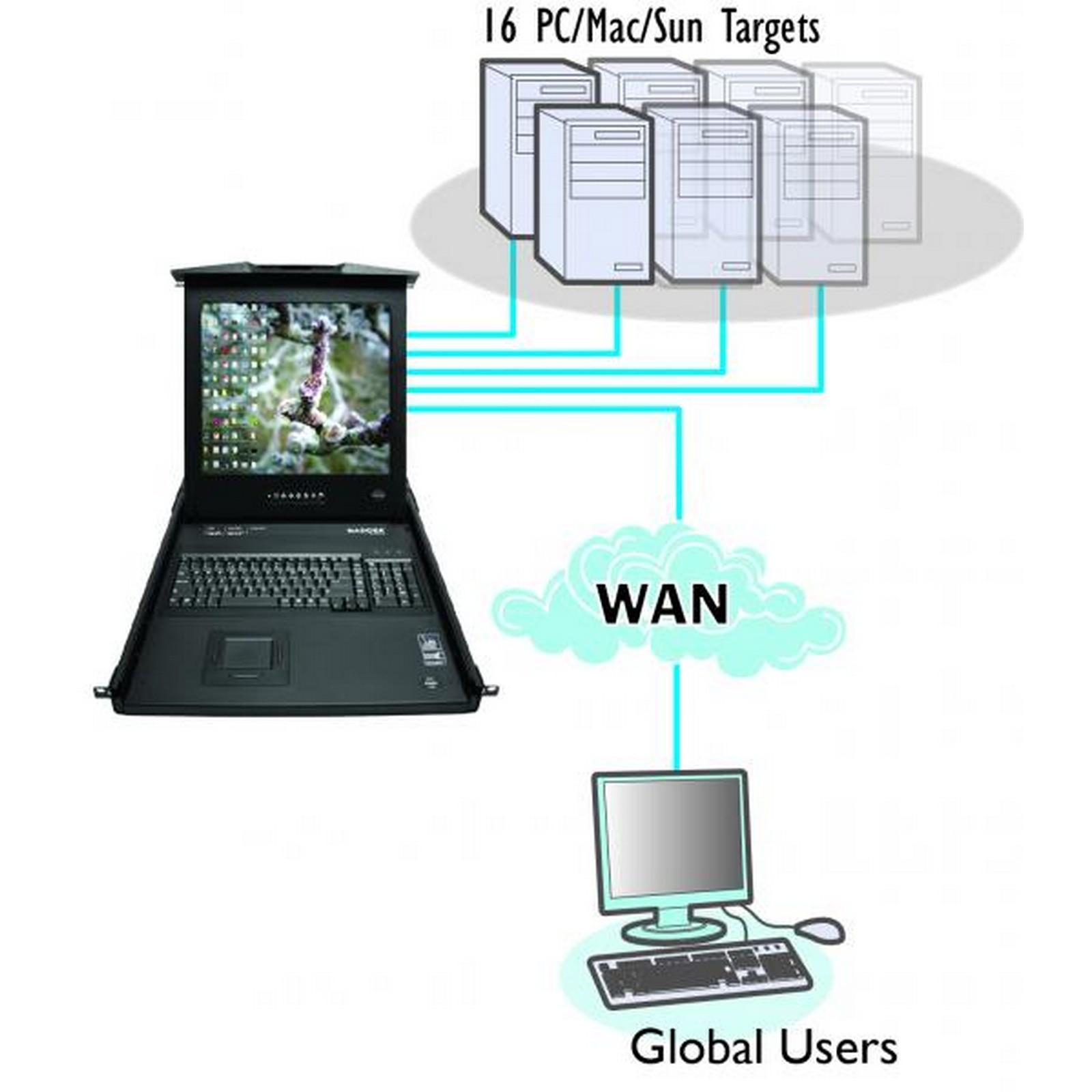

One local and one IP user

Enables a global user to connect via IP and share access to any of the 16 connected computers.

Global user (IP)

Use Java web browsers or Real VNC client software that, unlike HTTPS web browsers, is designed specifically for secure, high performance KVM over IP applications. Up to 1600 x 1200 resolutions with scalable windows.

True multi-platform capability and connectivity

The RDX 1000 supports any computer platforms with PS/2, USB or Sun keyboard and mouse interfaces.

LDAP integration plus ADDER.Net management software

Automating the task of managing your network hardware and authenticating users against your existing LDAP infrastructure.

RS232 port

Integrated RS232 gives you the ability to control other external devices such as power management devices.

Configuration and extension

The RDX allows you to configure 16 separate users internally with unique access privileges all of which are stored within the switch. Cascading a single CATx 1000 from the unit will enable control of 31 computers from one remote. Expand further simply by using just CATx cable to more units. Cascade connections are automatically detected to support up to 256 computers.

Encryption and authentication

The enterprise grade integrated KVM over IP switch employs AES128 bit encryption and RSA2048 authentication ensuring your control system remains secure at all times.

Intelligent video thresholding

ADDER's innovative active de-artifacting technology automatically calculates the ideal threshold for any computer or KVM switch so that video displays are refreshed with optimum immediacy - while "screen junk" is kept to an absolute minimum.

Flexible IP screen scaling

ADDER solutions provide point-and-click screen scaling, so that users can quickly accommodate target devices running any size display with any aspect ratio. ADDER solutions also allow users to easily override scaling if and when they require unscaled pixel-to-pixel mapping.

Available with the following connectivity options:

DisplayPort CAM - NEW CATX-DP-USBA: DisplayPort CAM with USB and Audio CATX-MDP-USBA: Mini DisplayPort CAM with USB and Audio

Serial CAM - NEW  CATX-CONSOLE: Serial connectivity to your target machines (only works from RDX5000 & AVX5016IP)

PS/2 CAMs CATX-PS2 - PS/2 only  CATX-PS2-A - PS/2 plus audio

USB CAMs CATX-USB - USB only CATX-USB-A USB plus audio

Sun CAM CATX-SUNA - Sun plus audio
