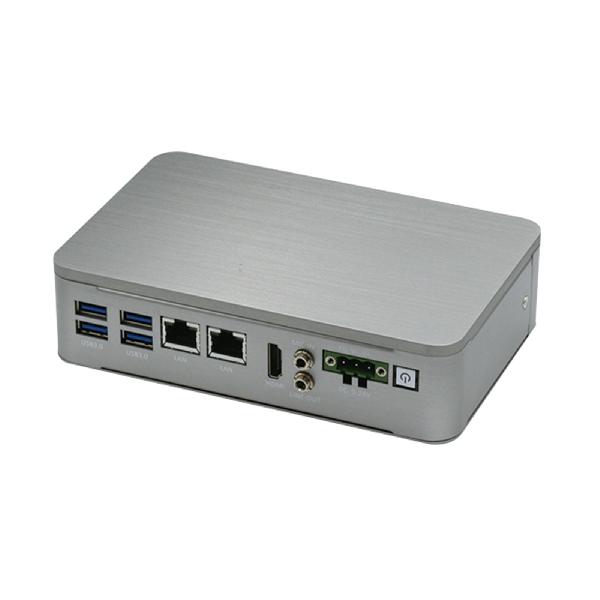

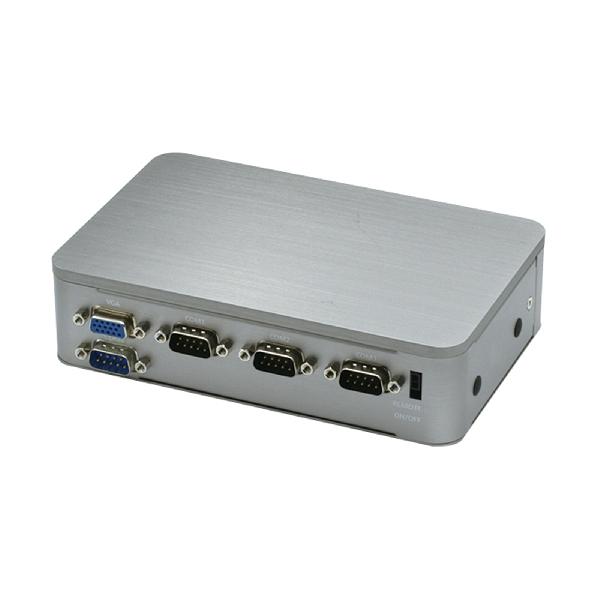

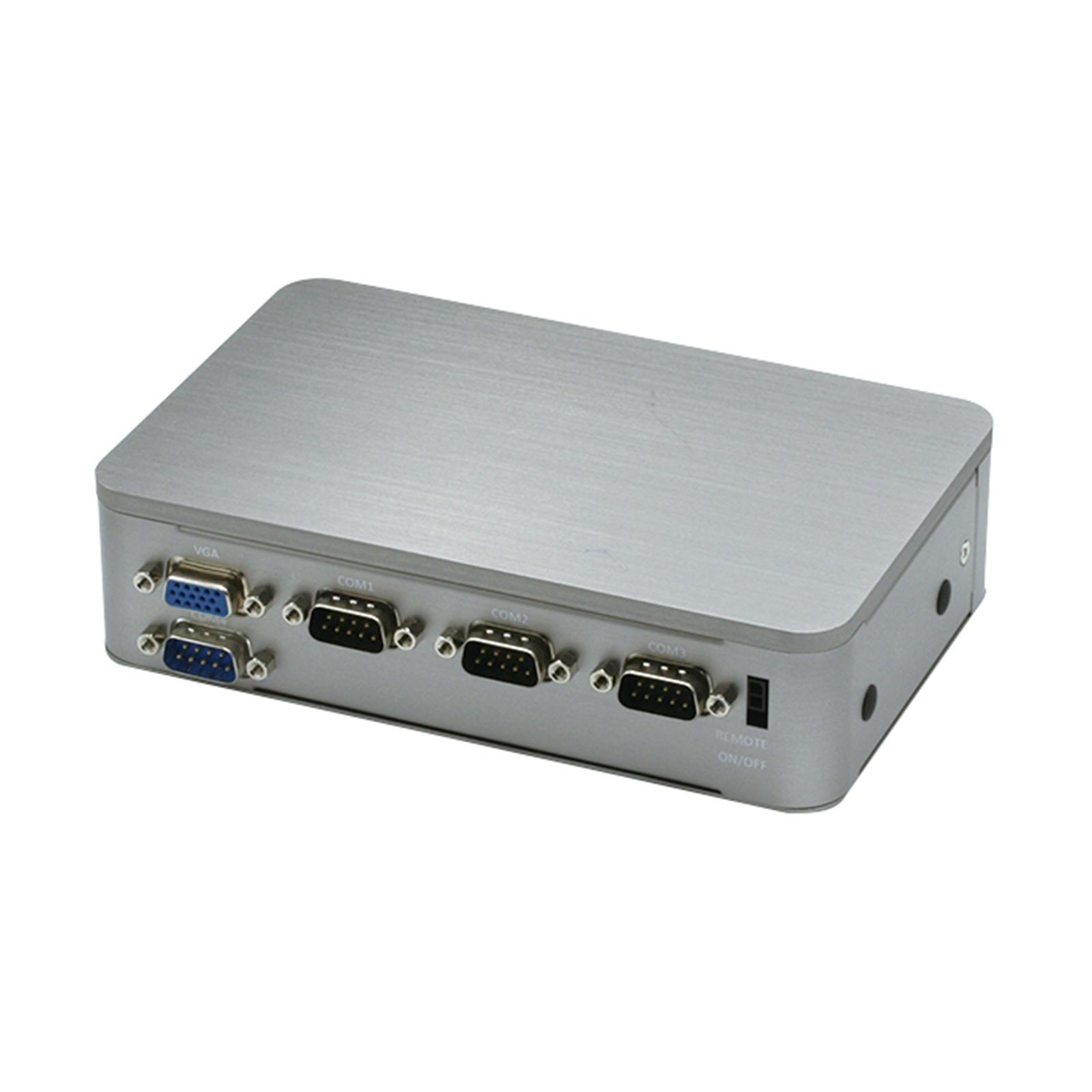

BOXER-6405M (Ultra-slim Box PC)

The BOXER-6405M is an embedded box computer designed for many different industrial applications. Powered by an Intel Pentium or Celeron processor, and support for up to 8GB of DDR3L SODIMM memory, it features a full sized and a half-sized mini-PCIe slot supporting expansion options including mSATA, SIM Card, and PCIe.

system
CPU	Intel® Celeron/Pentium™ processor
Chipset	Intel® System on Chip
System Memory	DDR3L SODIMM slot x 1 Supports 1867MHz and up to 8GB
Display Interface	HDMI type A x 1 for HDMI v1.4b VGA x 1
Storage Device	HDD/SSD, (mSATA BOM option)
Ethernet	Intel® i211-AT x 2
I/O	Power Button x 1 USB Type A x 4 for USB 3.2 Gen 1 HDMI type A x 1 for HDMI v1.4b RJ-45 x 2 for GbE LAN with LED indicator ( i211-AT x 2) Power input x 1 3-pin terminal block in default (+, - , GND) Co-layout 3-pin terminal block & lockable DC-in jack,) Co-layout internal DC Mic-in x 1, Line-out x 1 RS-232/422/485 x 4 with automatic flow control (switch by BIOS) VGA x 1 Remote On/Off Antenna opening x 2
Expansion	Full-size Mini PCIe slot x 1 (PCIe/USB/SIM slot), one screw Half-size Minicard slot x 1 (optional for mSATA,PCIE/mSATA)
Indicator	Power LED x 1, HDD active LED x 1
OS support	Windows® 10, Windows® 10 IoT, Linux
power supply
Power Requirement	3-pin Phoenix DC Input 9~24V without power protection
mechanical
Mounting	Wallmount
Dimensions (W x H x D)	6.54" x 4.2" x 1.65" (166mm x 106.6mm x 42mm)
Gross Weight	3.6 lb (1.6kg)
Net Weight	1.7 lb (0.8 kg)
environmental
Operating Temperature	-22°F ~ 140°F (-30°C ~ 60°C) with W.T. mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial decives)
Storage Temperature	-22°F ~ 140°F (-30°C ~ 60°C)
Storage Humidity	95% @ 40°C, non-condensing
Anti-Vibration	3 Grms/ 5 ~ 500Hz/ operation – mSATA 1 Grms /5 ~ 500Hz/ operation - HDD
Certification	CE/FCC class A
