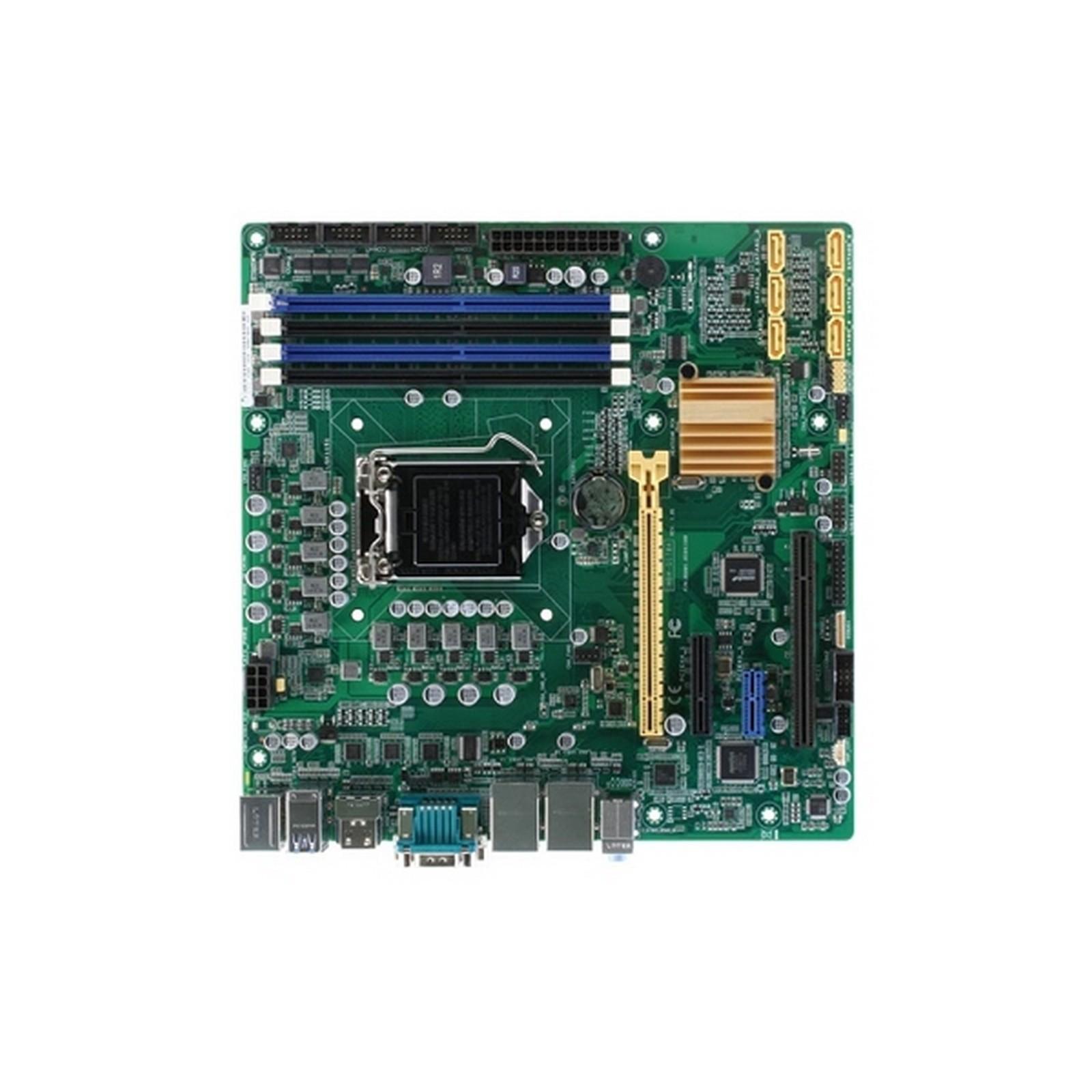

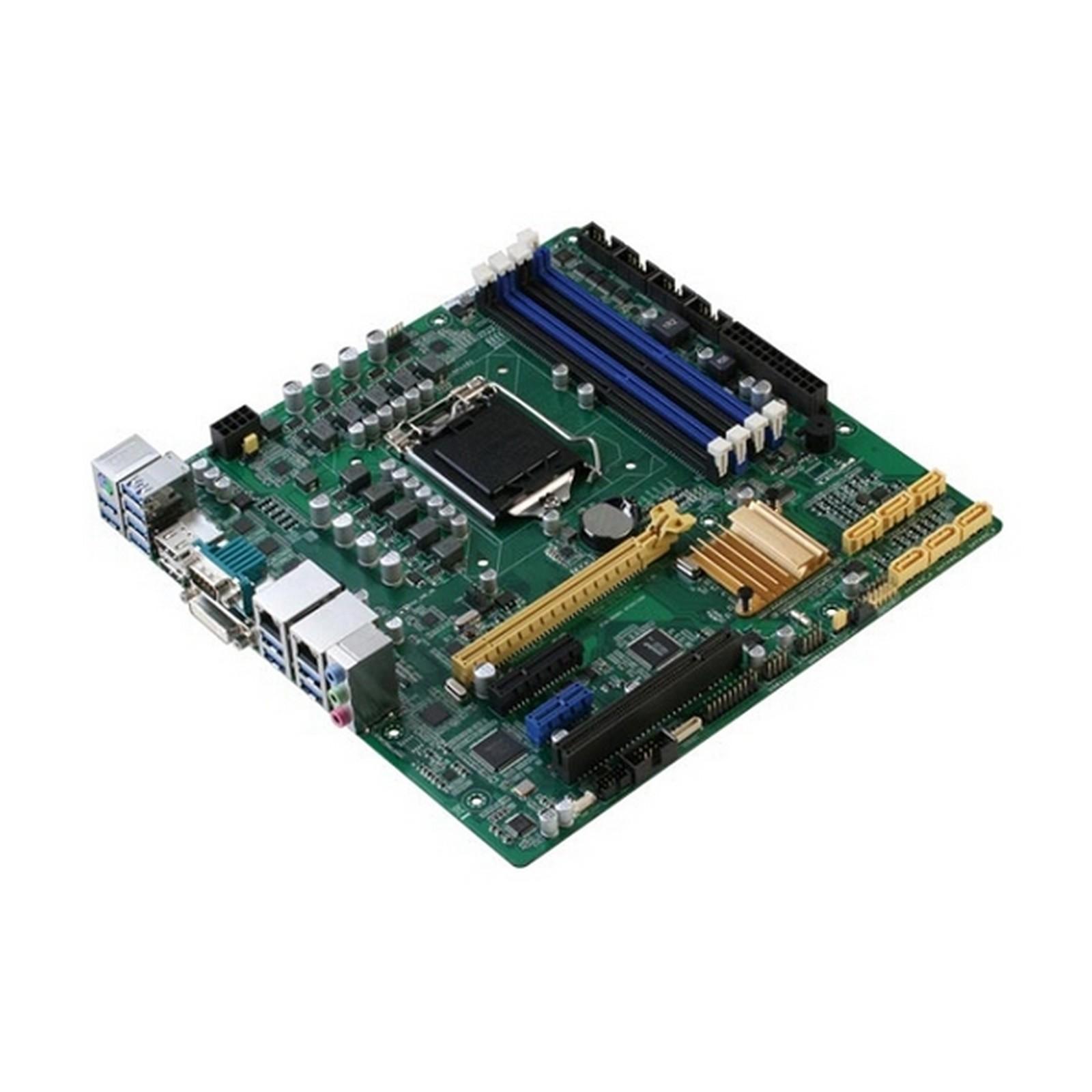

The IMBM-Q170A features the 6th Generation Intel® Core™ processor, Intel® Q170 chipset with maximum memory of up to 64 GB. With a broad assortment of I/Os and expansion interface, from PCIe 3.0/2.0 slots to COM ports as well as an operating temperature range of 0 ~ 60°C, the device is poised to provide the most comprehensive support for any industrial or embedded computing applications.
| SYSTEM | |
| PROCESSOR | 7th/6th Generation Intel® Core™ i7/i5/i3/Pentium®/ Celeron® 14nm LGA1151 Socket Processor |
| CHIPSET | Intel® Q170 Express Chipset |
| MEMORY | 288-pin DIMM x 4, max. 64GB, DDR4 2133/1867 MHz, non-ECC, un-buffered memory, Dual-channel memory architecture |
| I/O CHIPSET | NCT6791D, F81216HD |
| ETHERNET | LAN 1: Intel® PHY i219LM Gb LAN (supports iAMT 11.0) x 1 LAN 2: Intel® i211AT Gb LAN x 1, RJ-45 x 2 |
| AUDIO | Realtek® ALC887 (Colay with ALC886) |
| TPM | 20-1 PIN header for TPM1.2/FW3.19 |
| EXPANSION SLOT | PCIe 3.0/2.0[x16] Slot x 1, PCIe 3.0/2.0[x4] Slot (open edge) x 1, PCIe 3.0/2.0[x1] Slot (open edge) x 1, PCI x 1 |
| BIOS | 128M bit Flash ROM x 1, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan x 2 |
| WAKE ON LAN/ PXE | Yes (WOL/PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® HD Graphics |
| GRAPHICS MULTI DISPLAY | DVI-I+HDMI, HDMI+HDMI |
| VGA | Up to 1920 x 1200 @60Hz |
| DVI | Up to 1920 x 1200 @60Hz |
| HDMI | HDMI 1.4 up to 4096 x 2304 @30Hz |
| DISPLAYPORT | — |
| LVDS | — |
| EDP | — |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 24-pin ATX connector x 1, 8-pin ATX 12V Power connector x 1 |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% RH, non-condensing |
| CERTIFICATION | CE & FCC Class A |
| FORM FACTOR | Micro-ATX Form Factor, 9.6” x 9.6” (244mm x 244mm) |
| WEIGHT | 1.76 lb (0.8 Kg) |
| MTBF (HOURS) | 193,470 |

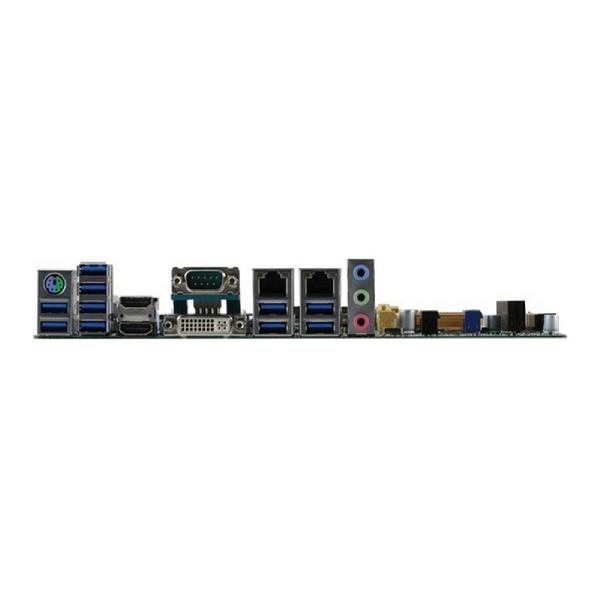

| REAR PANEL I/O PORTS | |
| USB | USB 3.2 Gen 1 port x 10 |
| DISPLAY I/O | DVI-I x 1, HDMI x 2 |
| AUDIO I/O | Audio Jack x 3: Line-in, Mic-in, Line-out |
| LAN I/O | LAN (RJ-45) port x 2 |
| SERIAL PORT | RS-232/422/485 DB-9 connector x 1 (COM1, supports 5/12V on RI pin) |
| PS/2 PORT | PS/2 Combo Port (Keyboard & Mouse) x 1 |
| OTHERS | — |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA3 (6.0Gb/s) port x 6, supports RAID 0/1/5/10 |
| USB | USB 2.0 header supports additional 2 USB ports x 2 |
| DISPLAY I/O | — |
| AUDIO I/O | Speaker header x 1 (Line-out) |
| SERIAL PORT | RS-232 header x 5 |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | 8-bit Digital I/O interface x 1 (In/Out programmable) |
| FAN | CPU Fan connector(s) (4-pin) x 1, Chassis Fan connector(s) (4-pin) x 2 |
| OTHERS | Front panel header x 1, Clear CMOS jumper x 1, TPM header x 1, BIOS flash header (2[x4]P p=1.27mm) x 1, Chassis Intrusion x 1 |
| OS | |
| OS SUPPORT | Windows® 7 32/64-bit Windows® 8.1 64-bit Windows® 10 64-bit Linux Fedora 64bit |
| Name | Type | Version | Release Date | |
| IMBM-Q170A, datasheet | Datasheet | V2.0 | 01 September 2020 |
