ADDER DDC Ghost

A dual link, dual head digital video and USB (VM) fanless KVM extender that runs over a single cable on your standard IP network. Equipped with RealVNC, computers outside the network can be remotely and securely accessed

Product Feature

True DDC Emulation

Unless an extender actively supports DDC, some high performance video cards cannot be used at high resolutions. The DDC Ghost supports dual page DDC ensuring compatible resolutions are supported.

Interface Powered

The DDC Ghost takes its power directly from VGA pin 9. This reduces clutter, and makes installation as simple as possible. In situations where no pin 9 power is available, DDC Ghost can be powered directly via the optional 5V power supply.

Full EDID Cloning

The DDC Ghost will clone a full dual page EDID (Extended Display Identification Data). This makes the DDC Ghost compatible with the latest ranges of display devices. The first page is the standard EDID data, and the second covers the extended data block.

Standard EDID Data

Our expertise with DDC EDID data has allowed us to put together an extended profile which is designed to cover most display devices. As such, the DDC Ghost may be used in connections where no data is otherwise available. You can choose whether to use this data or the original screen EDID attached.

Push and Go Setup

The DDC Ghost interface is secure and simple. Setting up the device is a single button process directed by the in built LED indicator. This makes changing display devices a fast and simple process.

The ADDER® DDC Ghost is the most cost effective way to extend the life of your existing infrastructure. EDID data is a very important part of video extension and distribution, it allows the display drivers of the devices you attach (graphics cards for example) to match perfectly with the screen. The DDC (Display Data Channel) carries information about the physical characteristics of the screen, such as resolution or colour depth, back to the display adapter (graphics gard) to ensure the resulting picture is correct, every time.

What is DDC EDID?

DDC EDID is the data that describes the characteristics of the display device (monitor) to the display adapter (graphics card). This data is what enables plug and play connection with monitors. Characteristics included in the EDID data include: supported resolutions, manufacturer, phosphor/filter type, display size, luninance data and in the case of digital panels - pixel mapping.

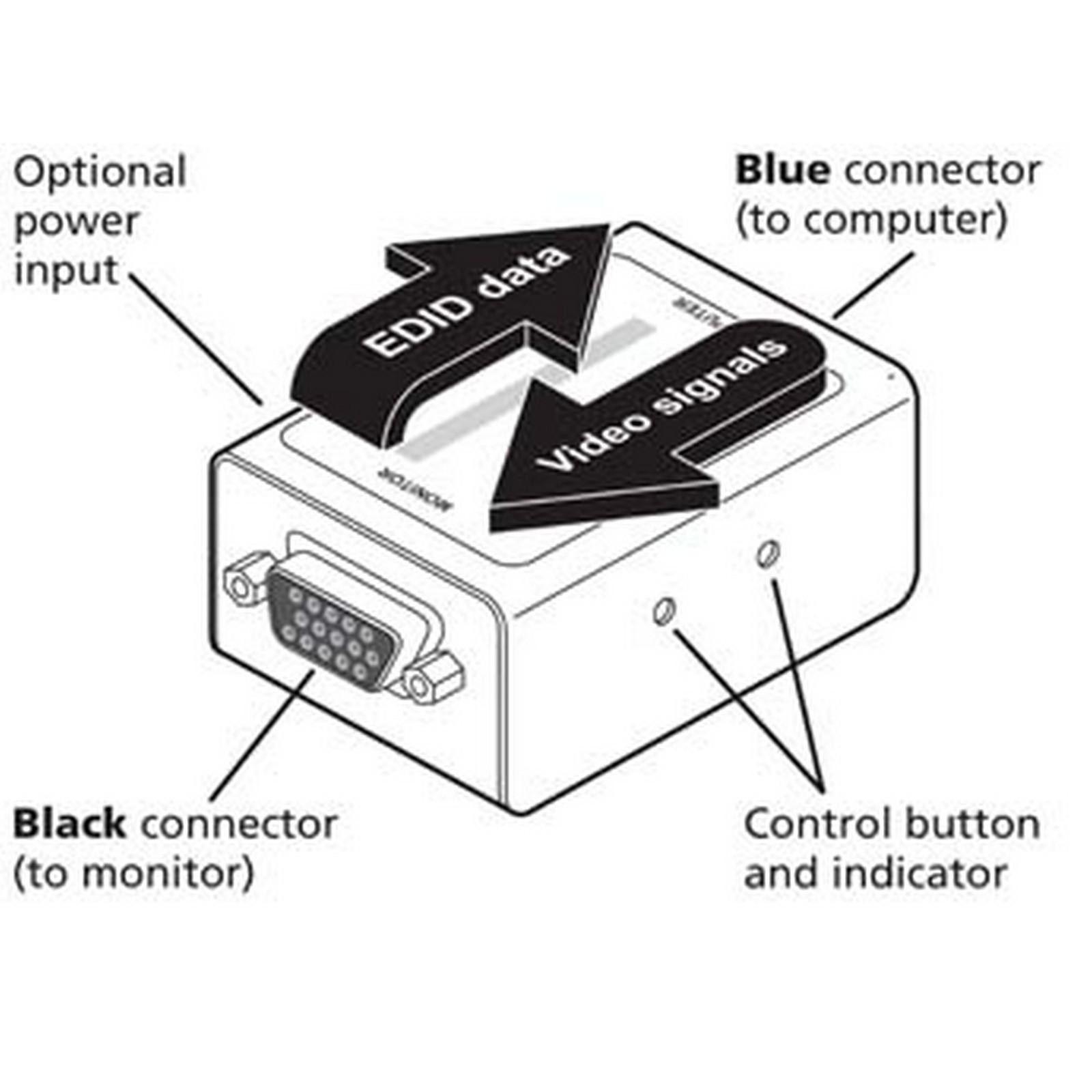

The DDC EDID is stored in the monitor, and requested by the graphics card. When you put a device in between the two, you need to ensure the DDC EDID is still passed through. In cases where the DDC EDID is not passed, DDC Ghost sits inline and provides the data directly to the graphics card. Essentially, the monitor is no longer asked for DDC EDID.

Video Resolution

Limited only by your selection of display device and display adapter

Connectors (local / remote)

Display Adapter Side: Standard VGA - HDD15 (Female - Blue)
Display Device Side: Standard VGA - HDD15 (Female - Black)

Physical

All metal case, 68mm/2.67" (w) x 36mm/1.41" (d) x 21mm/0.82" (h)

Weight: 56g/0.12 lb.

Power

Inline Power: 5V
External Supply (optonal): 5V

Operating temperature

0 - 40 deg C (32 to 104 deg F)

Approvals

CE, FCC

Name		Type	Version	Release Date
ADDER DDC Ghost		Datasheet	1.0	21 January 2021
