The ADDERView Prism is a compact 'reverse KVM switch' that enables you to connect multiple KVM (Keyboard, Video monitor and Mouse) consoles to a single computer or KVM Switch. Connecting the Prism to a computer expands the number of KVM console connections, allowing you to control your computer from up to four different locations. The Prism is also ideal for connecting to the front end of KVM switches to increase the number of consoles that can share access to the switch.
The ADDERView Prism is available with either two or four ports. Both models use standard connectors throughout so you can connect your equipment easily using common inexpensive cabling. For maximum convenience, the Prism may be powered using the supplied power supply or, for many applications, may draw its power from the attached computer via the keyboard interface. Coupled together with the small and compact size, the interface powering feature ensures a neat installation.
The ADDERView Prism supports a high 280MHz video bandwidth and incorporates a user-selectable video boost function which provides video amplification to compensate for losses introduced by long video cables. High video resolutions up to 1600 x 1200 are supported and super high resolutions exceeding 1900 x 1440 may be achieved when short cables are used. To ensure maximum future compatibility, the Prism's firmware is flash upgradeable via the keyboard port.

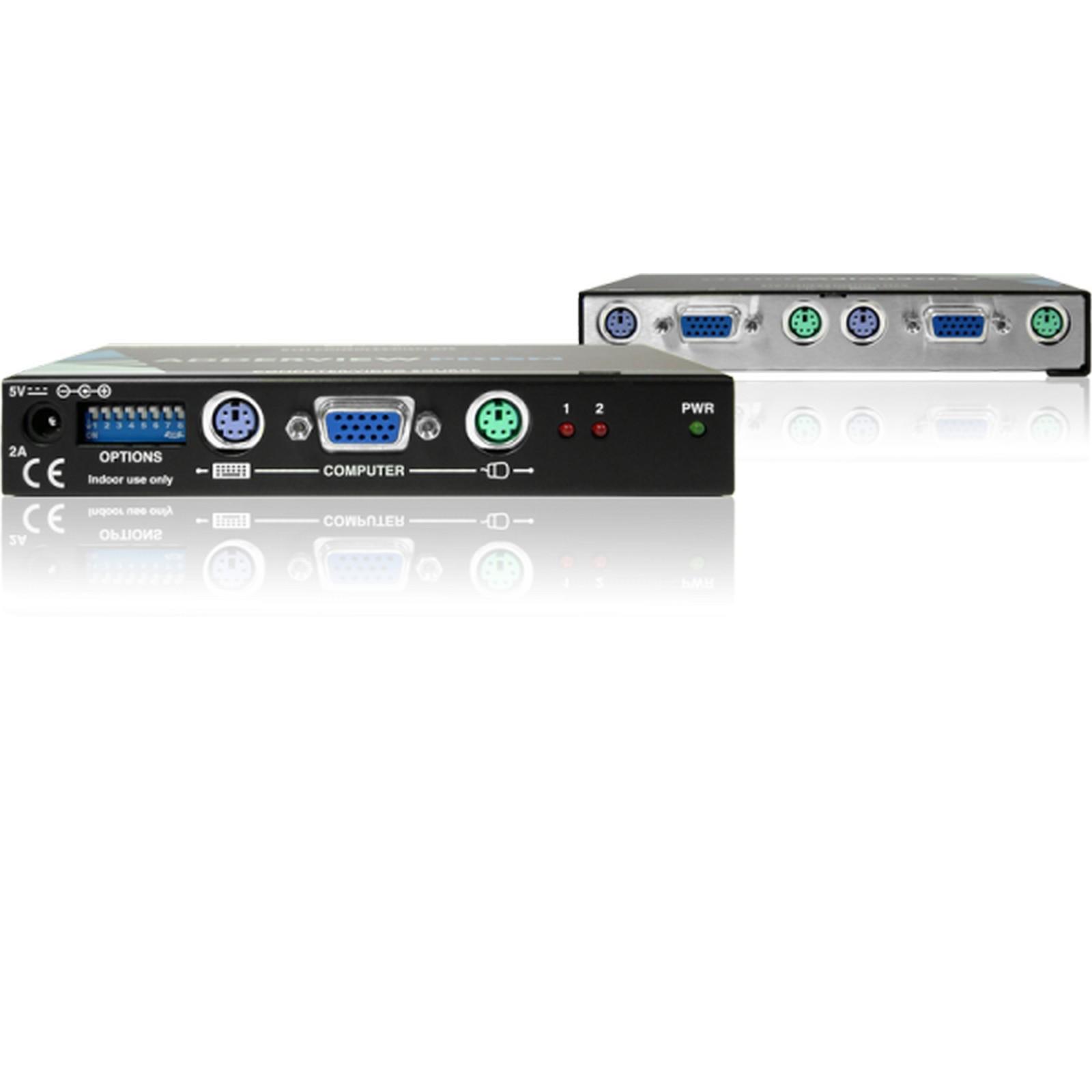

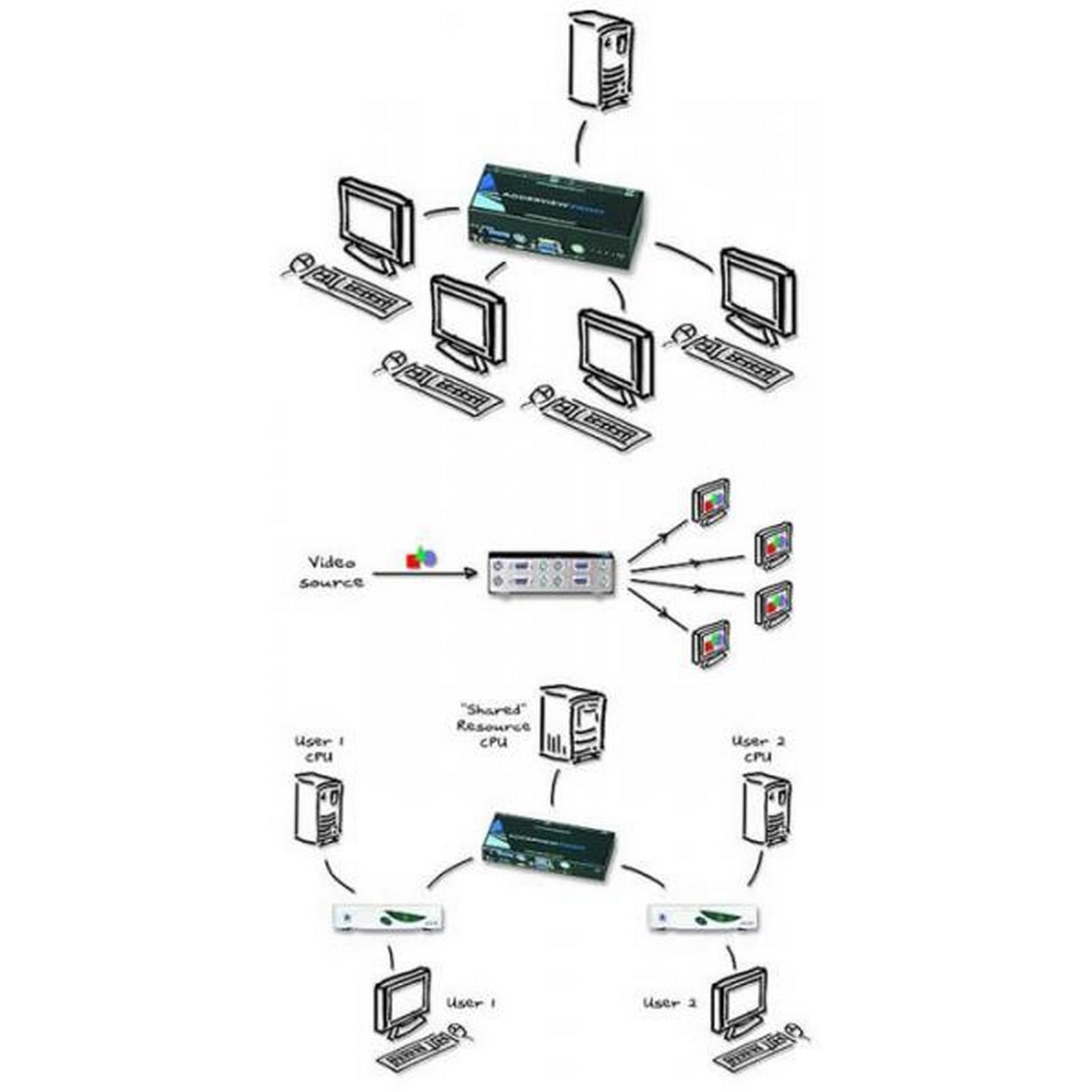

The Prism automatically manages access to the computer or KVM switch on a timeout basis by only allowing one KVM console to be 'active' at any one time. The video signal is distributed to all the consoles and the 'inactive' state is indicated to the user by the rhythmic flashing of the keyboard's num, caps and scroll lights. Once the Prism has detected there has been no keyboard or mouse activity from the 'active' console for the timeout period, access to the computer is made available to the other consoles.
AVP2 - 2 shared keyboard, monitor and mouse to 1 CPU
AVP4 - 4 shared keyboard, monitor and mouse to 1 CPU
Connectors

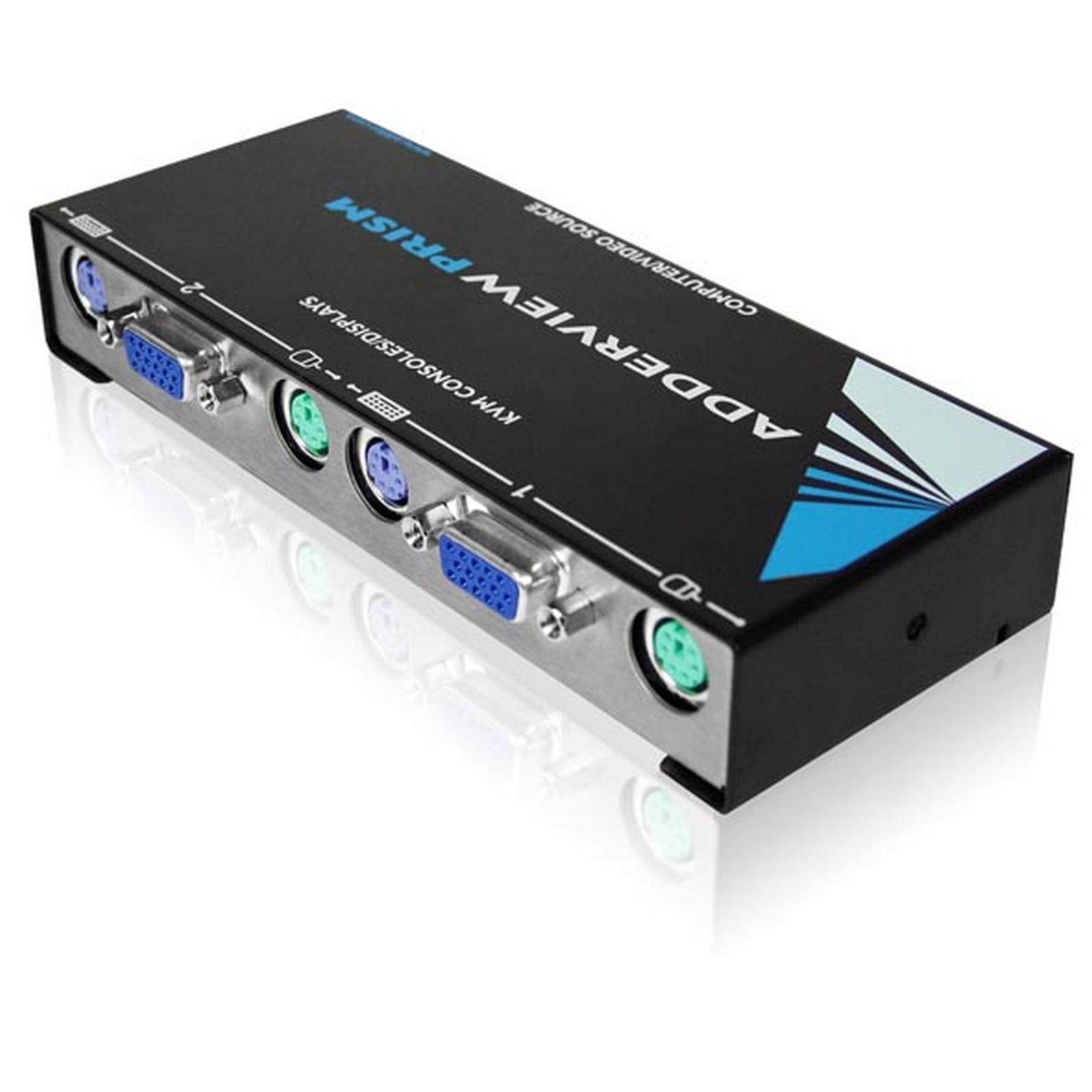

AVP2 KVM Console connections
2 x 15 way HD D Female for CPU video (DDC/Blue)
2 x 6 way mini DIN Female for CPU keyboard (Violet)
2 x 6 way mini DIN Female for CPU mouse (Green)
AVP4 KVM Console connections
4 x 15 way HD D Female for CPU video (DDC/Blue)
4 x 6 way mini DIN Female for CPU keyboard (Violet)
4 x 6 way mini DIN Female for CPU mouse (Green)

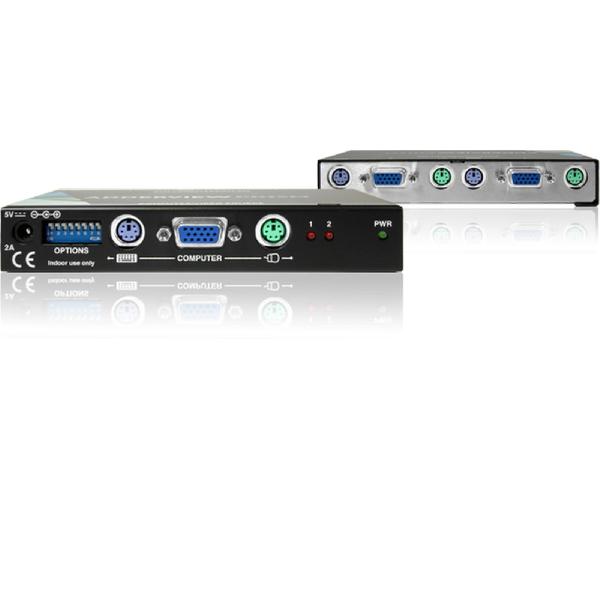

AVP2, AVP4 Computer connections
1 x 6 way mini DIN Female for shared keyboard (Violet)
1 x 6 way mini DIN Female for shared mouse (Green)
1 x 15 way HD D Female for shared monitor (DDC/Blue)
Other connections
1 x 5V DC power inlet for optional 500mA external PSU
1 x Option switches

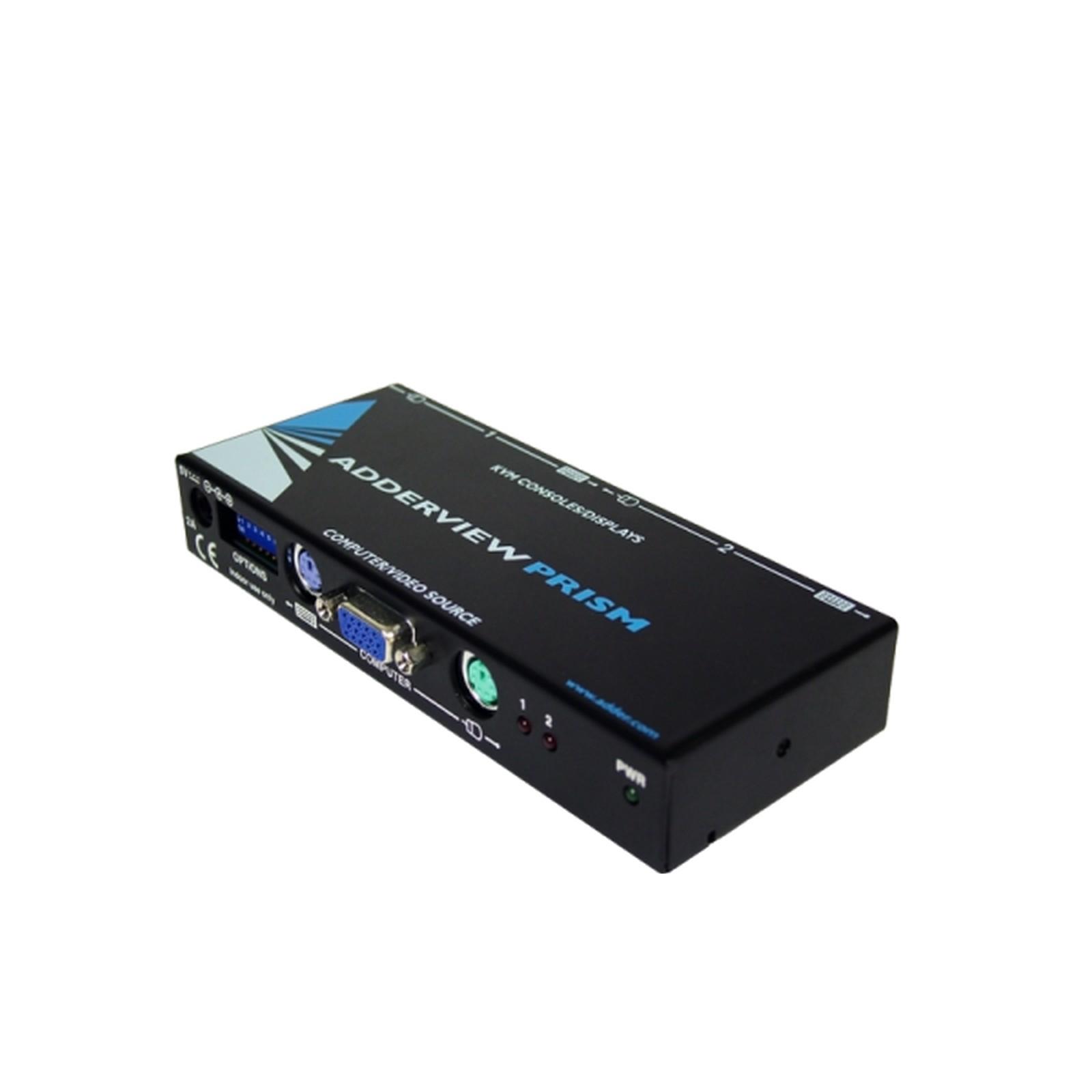

LED Indicators
The front of the Prism has red LED indicators to show which console is in use and a green LED to show that a PSU is connected.
CPU video/monitor ports
Supports VGA/SVGA/XGA/XGA-2/SXGA/UXGA video.
VESA DDC1 and DDC2 signalling supported.
Screen resolution of up to 1900 x 1440.
Keyboard ports
Supports PS/2 keyboards automatically. When PS/2 keyboards plug in, automatic mode emulation ensures that the keyboard is correctly programmed to the state expected by the CPU. Type 1, 2 and 3 keyboards are supported.
Mouse ports
A PS/2 type Logitech or Microsoft compatible mouse and many Internet wheel/scroll mice including Scrollpoint and Explorer are supported. Prompt and stream modes supported for maximum portable and desktop mouse compatibility.
Maximum distance
Prism to console distance is limited to 2m if power supply not used or 10m if it is.
Prism to CPU distance is limited to 2m if power supply is not used or 20m if it is.
Upgradeability
User Flash upgradeable firmware by downloading from a PC.
Physical
AVP2 Metal case 23 x 148 x 68 mm
AVP4 Metal case 43 x 148 x 68 mm
Power
5VDC, 2A PSU supplied
EMC
Complies with European EMC directive 89/336/EEC. CE marked and FCC class A compliant.
Rack mount options
RMK-PRISM 19” rackmount 4U kit for ADDERView Prism. Can house up to 16 AVP2 and 8 AVP4 units
Prism to CPU Cables
VKKVM-0.5M 0.5m "3-in-1" cable for PS/2
VKVM-1M 1m "3-in-1" cable for PS/2
VKVM-2M 2m "3-in-1" cable for PS/2
VKVM-5M 5m "3-in-1" cable for PS/2
VKVM-10M 10m "3-in-1" cable for PS/2
CCUSB 2m “3-in-1” cable for USB
CCUSB-5M 5m “3-in-1” cable for USB
CCUSB-10M 10m “3-in-1” cable for USB
CCSUN 2m “3-in-1” cable for SUN
CCSUN-5M 5m “3-in-1” cable for SUN
CCSUN-10M 10m “3-in-1” cable for USB
Additional accessories
KVM cables (one set per connected computer): VKVM-xM (where x is the cable length in metres: 1, 2, 5 or 10)
Extension cables (one set per connected KVM console when they are placed some distance from the AdderView Prism: VEXT-xM (where x is the cable length in metres: 2, 5 or 10)
CCUSB converter (required to connect with computers that use a USB port to connect their keyboard and mouse: CCUSB-xM (where x is the cable length in metres: 2, 5 or 10)
CCSUN converter (required to connect Sun computers that use a mini-DIN port to connect their keyboard and mouse: CCSUN-xM (where x is the cable length in metres: 2, 5 or 10)
PS/2 to AT-style keyboard converter: VSA3
Rack mount unit: Rack mount options are available to fit up to sixteen 2-port Prisms or up to eight 4-port units in a 19 inch rack - please contact Adder Technology for details
