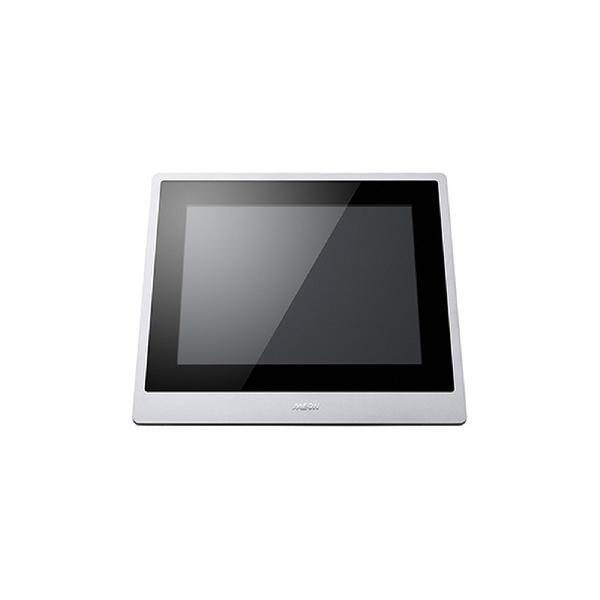

The OMNI Display Series includes panels in seven different sizes- 10.4”, 12.1", 15", 17", 19", 15.6", and 21.5”, and customers can choose between PCAP and resistive touchscreen models. Stylish and robust, the panels are finished with an IP65 aluminum front bezel and feature a variety of power protections. They offer a 12V~30V DC power input range, OVP, UVP, OCP, and reverse power protection, and customers can also choose between terminal block and power jack connections. The panels’ rugged versatility is increased by their -10°C~55°C operating temperature range.

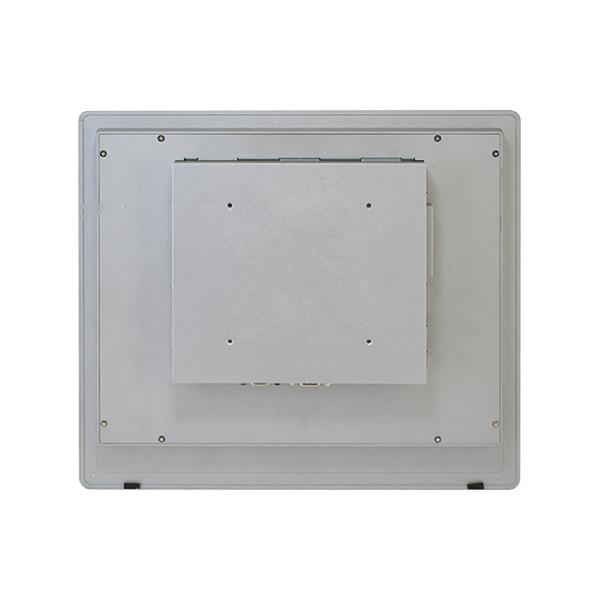

AAEON’s commitment to user-friendly design means the new Display Box Kit only takes minutes to install, as just three screws are used to fasten the kit – or the alternative CPU Box Kit – to the display panel. The new product gives users access to both VGA and HDMI video interfaces, and built in speakers are available as an option.
| SYSTEM | |
| INPUT SIGNAL | VGA / HDMI |
| ON SCREEN DISPLAY CONTROL | 5 keys OSD keypad (Up, Down, Menu, Auto, Power) |

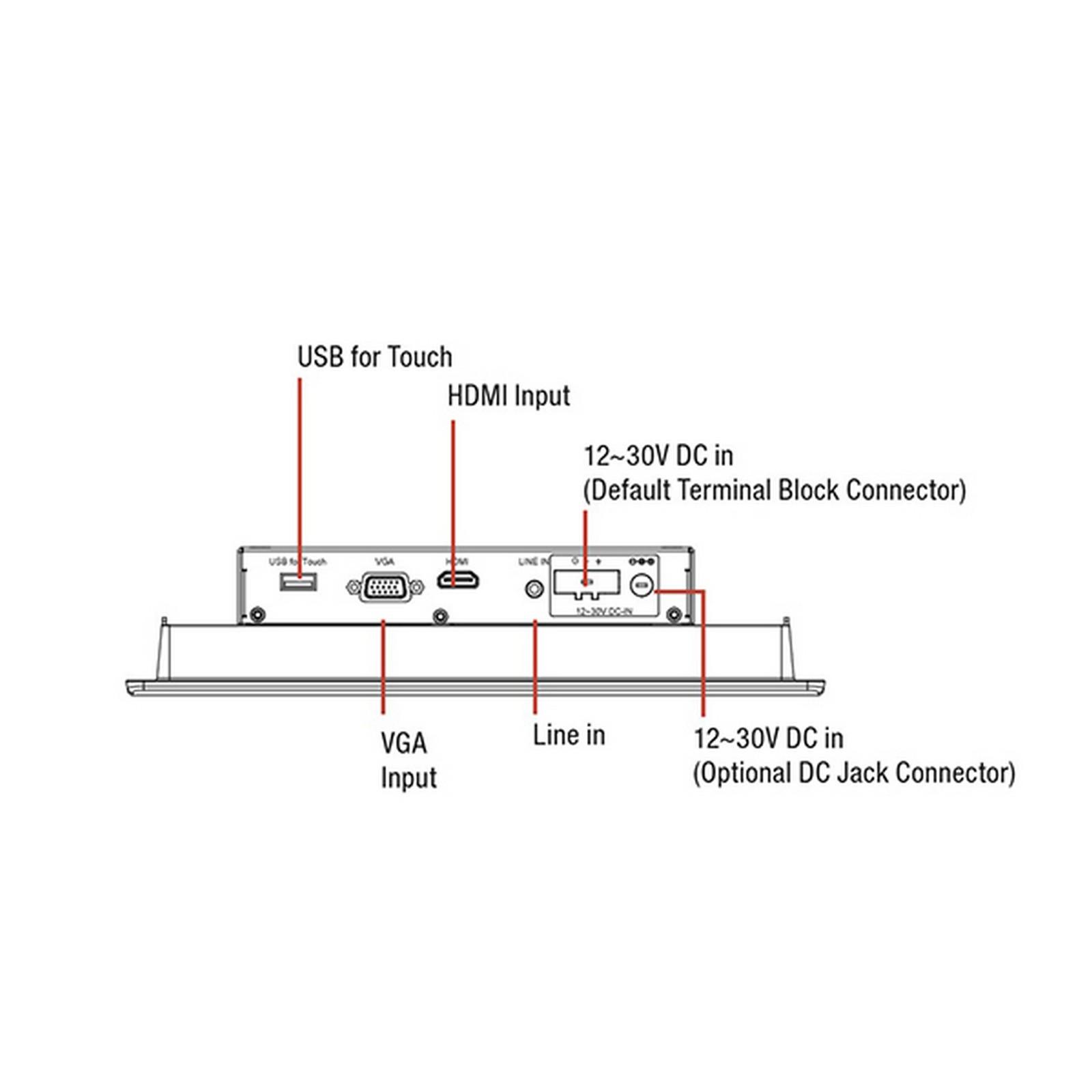

| I/O PORT | DB-15 VGA x 1 HDMI x 1 USB x 1 (For Enable T/S Function) Line in x 1 (For optional internal Speaker) Power Input x 1(Terminal Block 3pin) |
| OS SUPPORT | Windows® 7 32/64-bit, Windows® 8 32/64-bit, Windows® 10 64-bit, Linux Ubuntu 16.04 |
| MECHANICAL | |
| CONSTRUCTION | IP65 aluminum front bezel & SGCC chassis |
| MOUNTING | Panel Mount / VESA 100x100 / Stand |
| DIMENSION | 12.9" x 11.3" x 2.2" (328.5mm x 288.1mm x 55.9mm) |
| CARTON DIMENSION | 20.9" x 17.5" x 7.9" (530mm x 445mm x 200mm) |
| GROSS WEIGHT | 10.4 lbs (4.7 kg) |
| NET WEIGHT | 7.7 lbs (3.5 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 14°F ~ 131°F (-10°C ~ 55°C) With 0.5m/s Airflow |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| STORAGE HUMIDITY | 10%~90% @104°F (40°C); non-condensing |
| VIBRATION | 1 Grms / 5~500Hz/random Operation |
| SHOCK | — |
| EMC | CE/FCC, Class A |
| POWER SUPPLY | |
| DC INPUT | DC 12~30V Power Input with 3 Pin Terminal Block |
| LCD | |
| DISPLAY TYPE | 12.1" TFT-LCD |
| MAX. RESOLUTION | 1024 x 768 |
| MAX. COLORS | 16.2M |
| LUMINANCE | 500 cd/m² |
| VIEWING ANGLE | 160°(H), 160°( V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | 50000 |
| TOUCHSCREEN | |
| TYPE | Projective Capacitive Multi Touch or 5 Wire Resistive Touch Screen (By Model) |
| LIGHT TRANSMISSION | P-CAP (90% ± 3%), 5-wire Resistive (80% ± 3%) |
| LIFE TIME | — |
| Name | Type | Version | Release Date | |
| OMNI-312M, datasheet | Datasheet | V1.0 | 29 July 2017 |
