OMNI-310M

Home  >   AAEON  >   Computing Systems  >
Panel PC  >   Modular HMI Panel PC/ Display

10.4” Touch Display, DC 12~30V

Product Feature

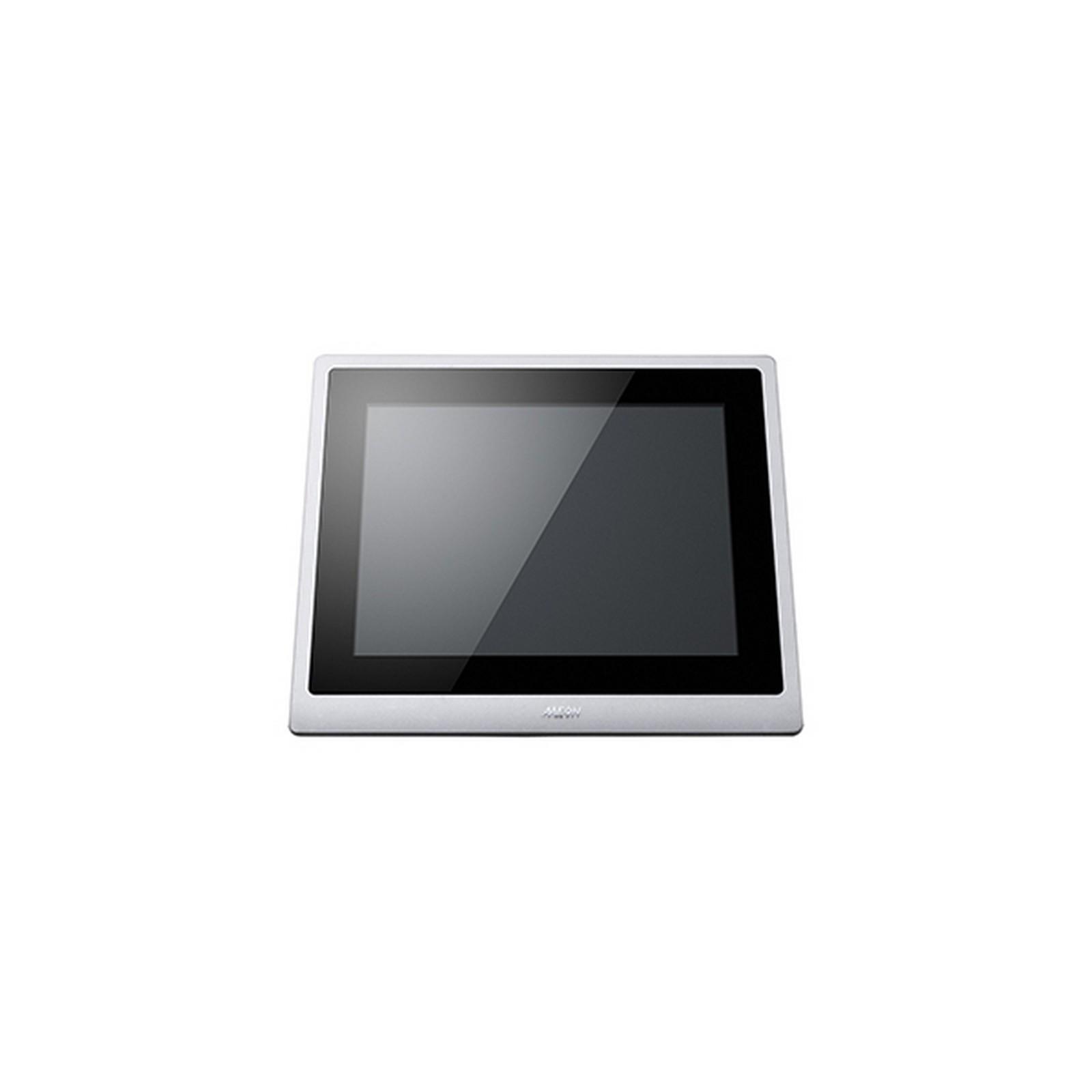

  • 10.4” SVGA (800 x 600) TFT LCD Display
  • Provide Projective Capacitive Touch or Resistive Touch Screen
  • IP65 Aluminum Front Bezel
  • DC 12~30V with Over Voltage/Current, Under Voltage Protection
  • Optional Built-in Speakers

The OMNI Display Series includes panels in seven different sizes- 10.4”, 12.1", 15", 17", 19", 15.6", and 21.5”, and customers can choose between PCAP and resistive touchscreen models. Stylish and robust, the panels are finished with an IP65 aluminum front bezel and feature a variety of power protections. They offer a 12V~30V DC power input range, OVP, UVP, OCP, and reverse power protection, and customers can also choose between terminal block and power jack connections. The panels’ rugged versatility is increased by their -10°C~55°C operating temperature range.

AAEON’s commitment to user-friendly design means the new Display Box Kit only takes minutes to install, as just three screws are used to fasten the kit – or the alternative CPU Box Kit – to the display panel. The new product gives users access to both VGA and HDMI video interfaces, and built in speakers are available as an option.

SYSTEM
INPUT SIGNALVGA / HDMI
ON SCREEN DISPLAY CONTROL5 keys OSD keypad (Up, Down, Menu, Auto, Power)

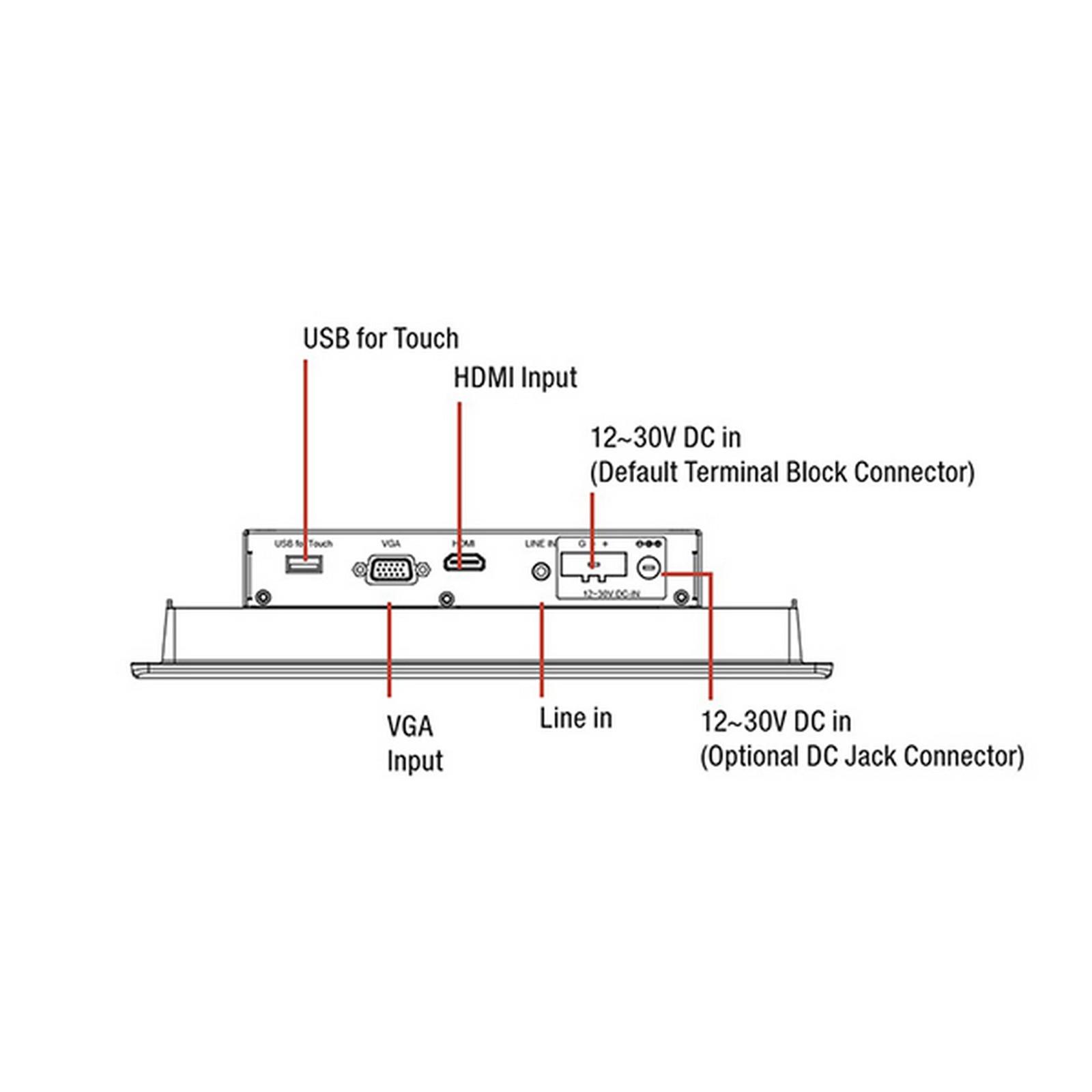

I/O PORTDB-15 VGA x 1
HDMI x 1
USB x 1 (For Enable T/S Function)
Line in x 1 (For optional internal Speaker)
Power Input x 1(Terminal Block 3pin)
OS SUPPORTWindows® 7 32/64-bit, Windows® 8 32/64-bit, Windows® 10 64-bit, Linux Ubuntu 16.04
MECHANICAL
CONSTRUCTIONIP65 aluminum front bezel & SGCC chassis
MOUNTINGPanel Mount / VESA 100x100 / Stand
DIMENSION11.0" x 9.4" x 2.33" (280mm x 239.3mm x 59.1mm)
CARTON DIMENSION16.3" x 15.4" x 7.04" (415mm x 391mm x 179mm)
GROSS WEIGHT7.9 lbs (3.6 kg)
NET WEIGHT1.1 lbs (2.4 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE14°F ~ 131°F (-10°C ~ 55°C) With 0.5m/s Airflow
STORAGE TEMPERATURE-4°F ~ 140°F (-20°C ~ 60°C)
STORAGE HUMIDITY10%~90% @104°F (40°C); non-condensing
VIBRATION1 Grms / 5~500Hz/random Operation
SHOCK
EMCCE/FCC, Class A
POWER SUPPLY
DC INPUTDC 12~30V Power Input with 3 Pin Terminal Block
LCD
DISPLAY TYPE10.4" TFT-LCD
MAX. RESOLUTION800 x 600
MAX. COLORS16.2M
LUMINANCE230 cd/m²
VIEWING ANGLE160°(H), 130°(V)
BACK LIGHTLED
BACK LIGHT MTBF (HOURS)30000
TOUCHSCREEN
TYPEProjective Capacitive Multi Touch or 5 Wire Resistive Touch Screen (By Model)
LIGHT TRANSMISSIONP-CAP (90% ± 3%), 5-wire Resistive (80% ± 3%)
LIFE TIME
Name Type Version Release Date
OMNI-310M, datasheet Datasheet V1.0 29 July 2019
