OMNI Series Modules- CPU BOX Kit

Product Feature

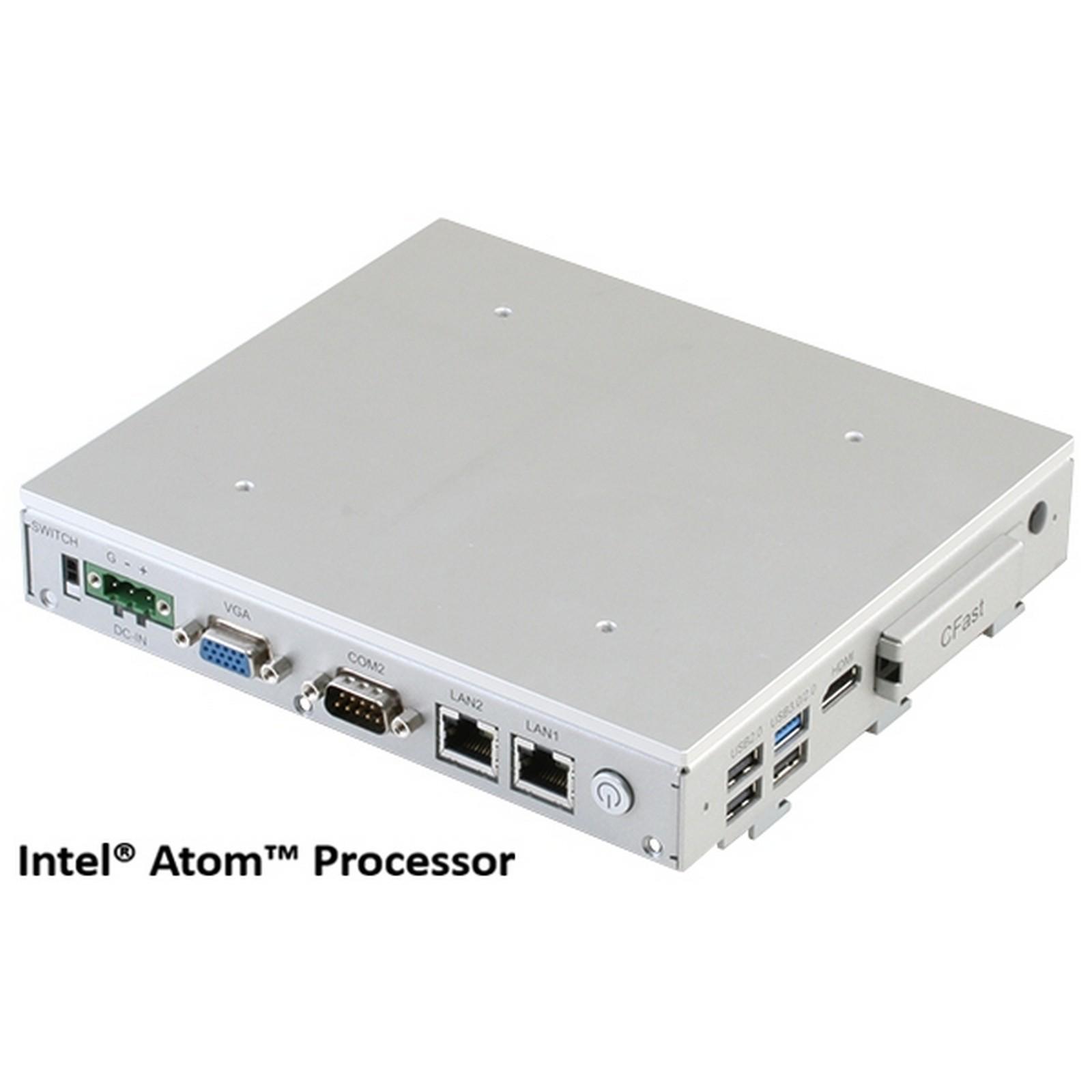

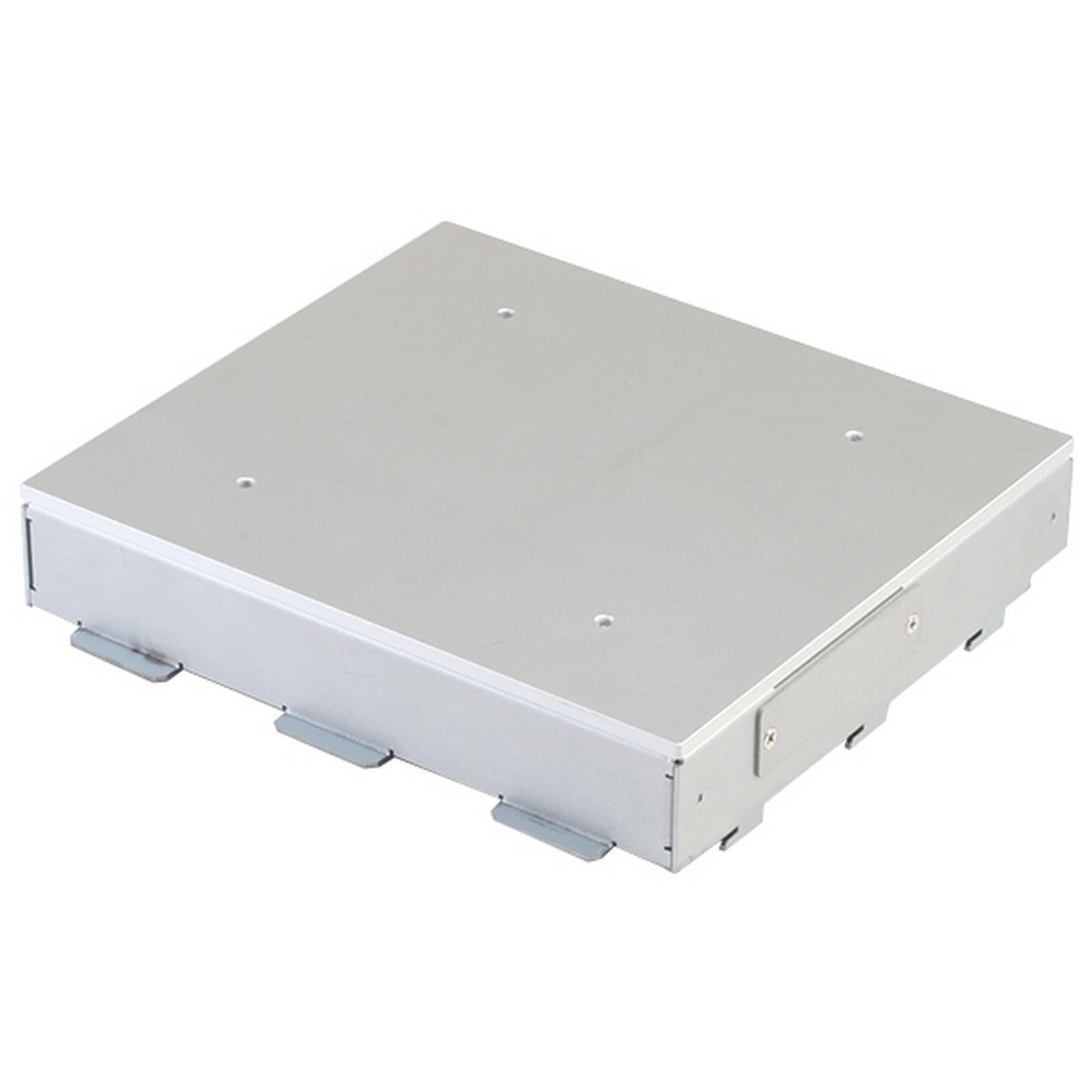

OMNI-BT

  • Intel® N2807/J1900 Processor
  • Aluminum Design
  • Fanless Operation
  • Easily Expandable I/O by AAEON OMNI I/O Modules

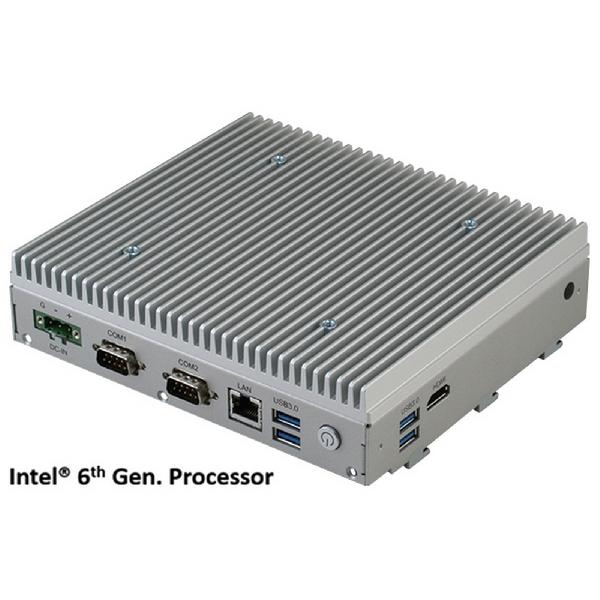

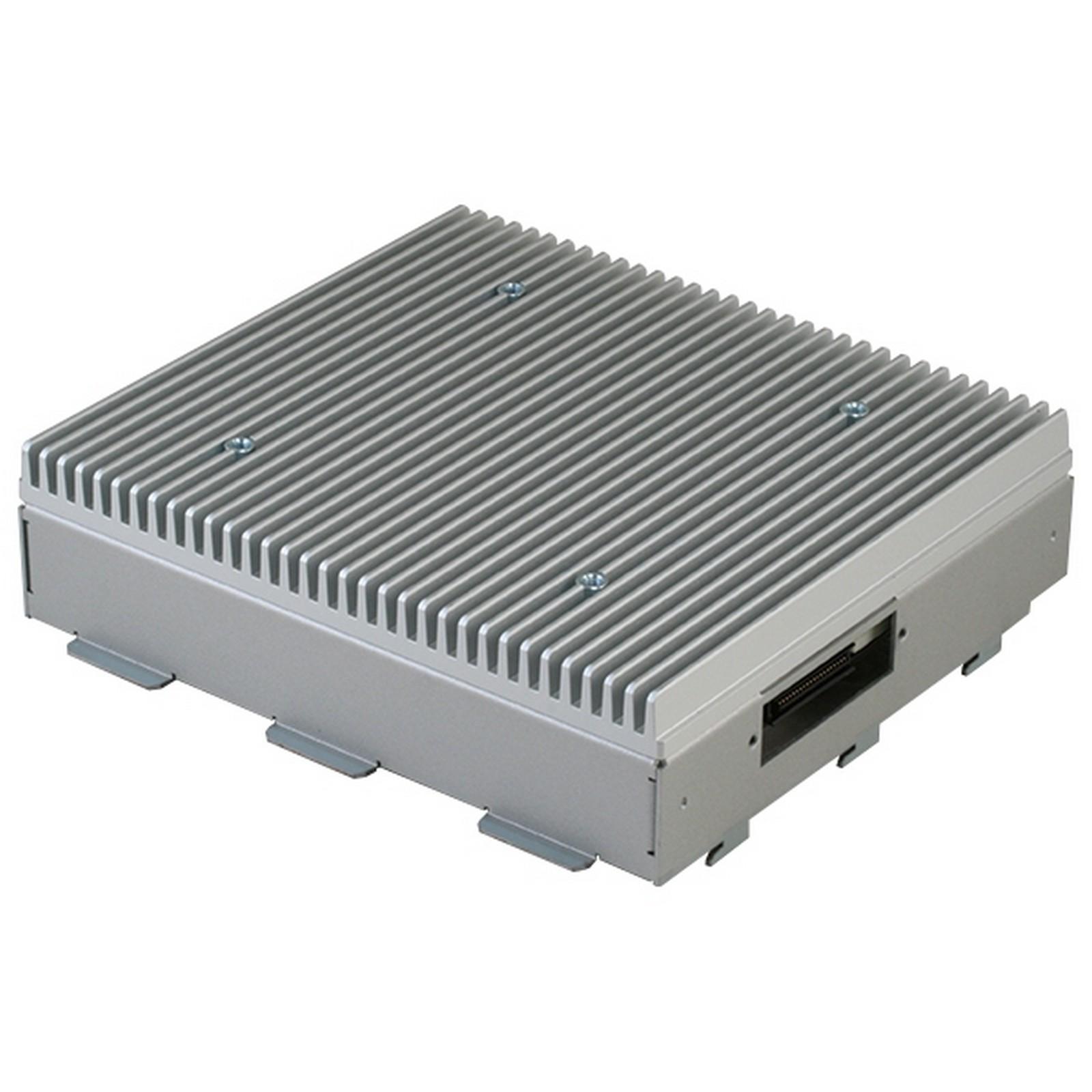

OMNI-SKU

  • Intel® Core™ i7-6600U, i5-6300U, i3-6100U, Celeron® 3995 Processor
  • 10/100/1000 Base-TX RJ-45 Port x 1
  • RS-232/422/485 x 2
  • USB 3.2 Gen 1 x 4
  • Aluminum Design
  • Fanless Operation
  • DC 9~30V

OMNI Series Modules- CPU BOX Kit

SPECIFICATIONS
PROCESSOROMNI-BT:
Intel® N2807 processor, 1.58 GHz/ Intel® Celeron® J1900 processor, 2 GHz

OMNI-SKU:
Intel® Core™ i7-6600U, i5-6300U, i3-6100U, Celeron® 3995 Processor
SYSTEM MEMORYOMNI-BT:
204-pin DDR3L 1333MHz SODIMM x 1, up to 8 GB, (J1900)
204-pin DDR3L 1333MHz SODIMM x 1, up to 4 GB, (N2807)

OMNI-SKU:
260-pin DDR4 SODIMM x 1, Max. 16GB
LCD/CRT CONTROLLERIntegrated in processor
ETHERNETOMNI-BT:
Intel® I211, 10/100/1000Base-TX x 2

OMNI-SKU:
Gigabit Ethernet, RJ-45 x 1
I/O PORTOMNI-BT:
USB 2.0 Type A x 3
USB 3.2 Gen 1 Type A x 1
SMA Antenna hole x 1
HDMI x 1
CFast™ x 1
DB-9 x 1 for RS-232/422/485
RJ-45 x 2 for 10/100/1000 Base-TX
DB-15 x 1 for VGA
3-pin terminal block x 1 for 9~30 Vdc power input
LED Power on/off switch x 1 (Power on = Orange, Power off =N/A)

OMNI-SKU:
USB Type A x 4 for USB 3.2 Gen 1
RJ-45 x1 for GbE LAN
DB-9 x 2 for RS-232,
DB-9 x 1 for RS-232/422/485
Power input connector, Power ON/OFF Switch x 1, antenna hole
HDMI x 1
3-pin terminal Power input x 1
STORAGE DISK DRIVEOMNI-BT:
CFast™ x 1, 2.5" SATA HDD bay x 1

OMNI-SKU:
2.5” SATA HDD bay x 1
EXPANSION SLOTOMNI-BT:
Mini card x 2 (Full size x 2)
SIM card x 1
OMNI I/O connector x 1

OMNI-SKU:
Full size mini card x 1
SIM card x 1
OMNI I/O connector x 1
OS SUPPORTOMNI-BT:
Windows® 7, Windows® 8, Windows® 10, Linux Kernal 2.6.x or higher

OMNI-SKU:
Windows® 10 (64-bit), Linux kernal 2.6.3 or above
CONSTRUCTIONAluminum design
MOUNTINGOMNI-BT:
Wallmount

OMNI-SKU:
Wallmount (with optional Bottom cover: M0421550A0)/ with OMNI-Panel Kits
DIMENSIONOMNI-BT:
7.2” x 6.38” x 1.1” (183mm x 162mm x 28mm)

OMNI-SKU:
7.2” x 6.38” x 1.77” (183mm x 162mm x 45mm)
GROSS WEIGHT3.96 lb (1.8 kg)
OPERATING TEMPERATUREOMNI-BT:
14°F ~ 131°F (-10°C ~ 55°C) (J1900)
14°F ~ 140°F (-10°C ~ 60°C) (N2807) with 0.5 m/s airflow ( CF & HDD )

OMNI-SKU:
-4°F ~ 131°F (-20°C ~ 55°C)
STORAGE TEMPERATURE-4°F ~ 158°F (-20°C ~ 70°C)
STORAGE HUMIDITY90% @40°C; non-condensing
ANTI-VIBRATION1 Grms/ 5~ 500Hz/ operation – with HDD
CERTIFICATIONCE/FCC class A
DC INPUTDC 9 (min.) ~ 30 (max.) V w/ 3-pin terminal block, ATX Power function
DISPLAY TYPEOMNI-BT:
HDMI x 1, VGA

OMNI-SKU:
HDMI x 1
OTHERSBox Bottom Chassis Cover (optional): M0421550A0
Name Type Version Release Date
OMNI Series Modules- CPU BOX Kit, datasheet Datasheet V1.0 02 July 2018
