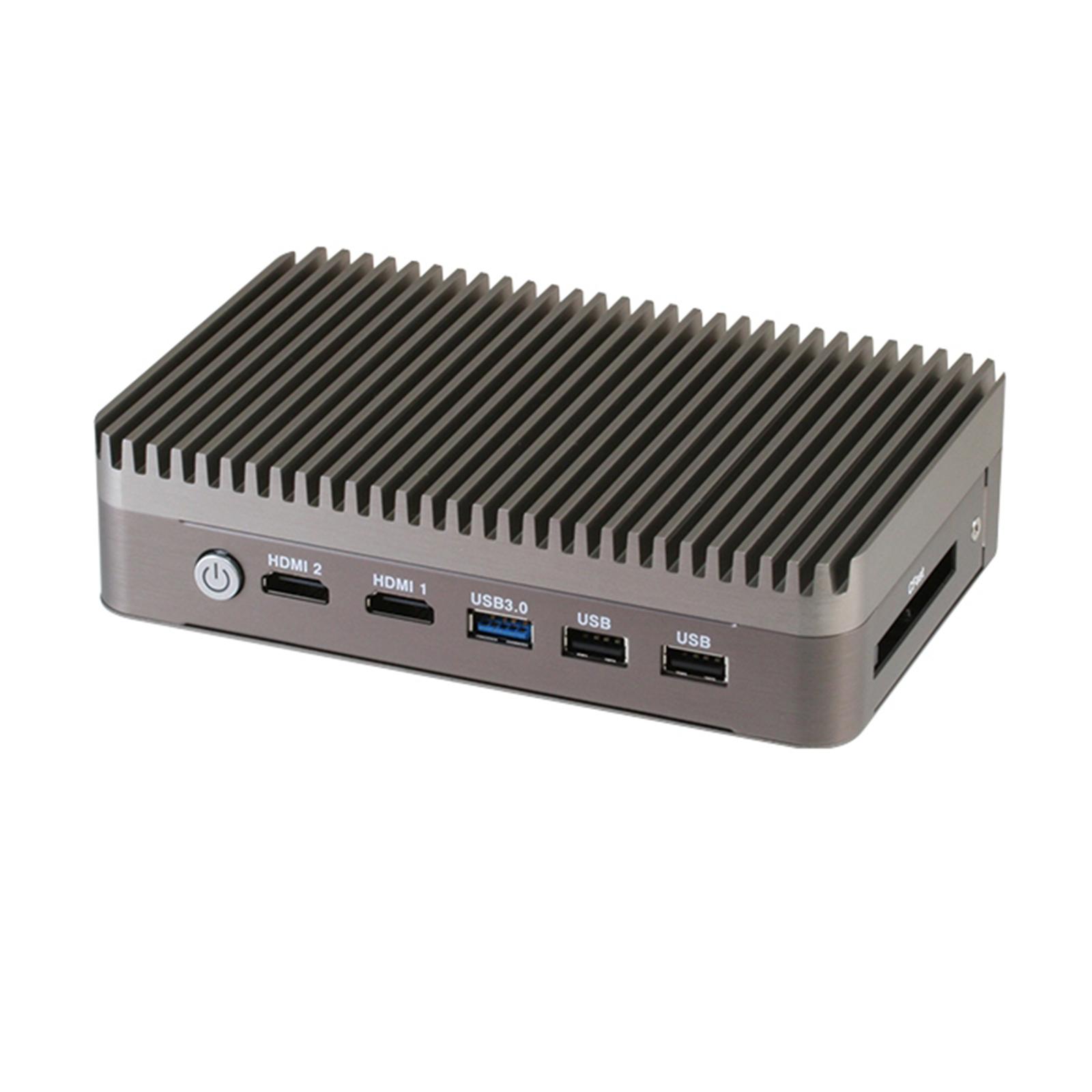

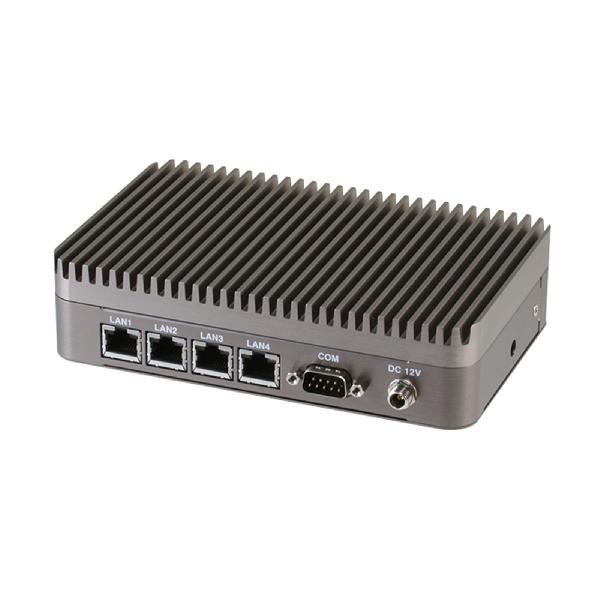

BOXER-6404WT (Ultra-slim Box PC)

Home  >   AAEON  >   Computing Systems  >
Fanless Embedded Box PC  >   Ultra-slim Box PC

Wide Temperature Compact Embedded Box PC with Intel® Celeron® J1900/ N2807 Processor SoC

Product Feature

  • Quad GbE LAN Port for Industrial Network Appliance
  • Dual HDMI Port
  • USB 3.2 Gen 1 Port Connectivity
  • Easy Access Storage Bay
  • Operating in -22°F ~ 167°F (-30°C ~ 75°C) Environment

An upgraded version of the BOXER-6404 Embedded Box PC, the BOXER-6404WT combines the tried-and-true merits of the previous iteration with support for an enlarged operating temperature range, -30°C to 75°C to be exact. With a simple, compact design that aims keep temperature and power usage to a minimum, the BOXER-6404WT is an ideal device for any machine makers and high heat applications.

system

CPUIntel® Celeron™ J1900, 2.0 GHz
Intel® Celeron™ N2807, 1.58 GHz
ChipsetIntel® System on Chip
System MemoryDDR3L 1333 SODIMM slot x 1, up to 8 GB (J1900) or 4 GB (N2807)
Display InterfaceHDMI
Storage DeviceCFast™
EthernetIntel® I211, 10/100/1000Base-TX x 4
I/ORS-232 x 1
USB 2.0 x 2
USB 3.2 Gen 1 x 1
HDMI x 2
LAN x 4
CFast™ slot x 1
Antenna holes x 1
Power button
Power input
ExpansionFull-size Mini-Card (USB interface only) x 1
IndicatorPower LED on power button
OS supportWindows® 10, Windows® 8.1, Windows® 7,
Windows® Embedded 8, Windows® Embedded 7,
Linux Fedora

power supply

Power Requirement12V - 24V with lockable DC jack

mechanical

MountingVESA (Mounting kit is optional) DIN rail (Mounting kit is optional)
Dimensions (W x H x D)6.53" x 4.20" x 1.59" (166mm x 106.6mm x 40.5mm)
Gross Weight3.59 lb (1.63 kg)
Net Weight2.6 lb (1.17 kg)

environmental

Operating Temperature-22°F ~ 167°F (-30°C ~ 75°C)
with wide temperature CFast™ card (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices)
Storage Temperature-22°F ~ 176°F (-30°C ~ 80°C)
Storage Humidity95% @ 40°C, non-condensing
Anti-Vibration5 Grms/ 5 ~ 500Hz/ operation –CFast™ card
CertificationCE/FCC class A
