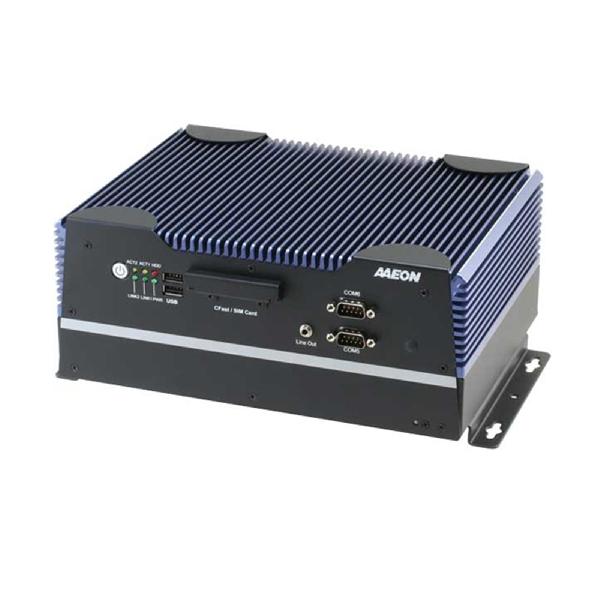

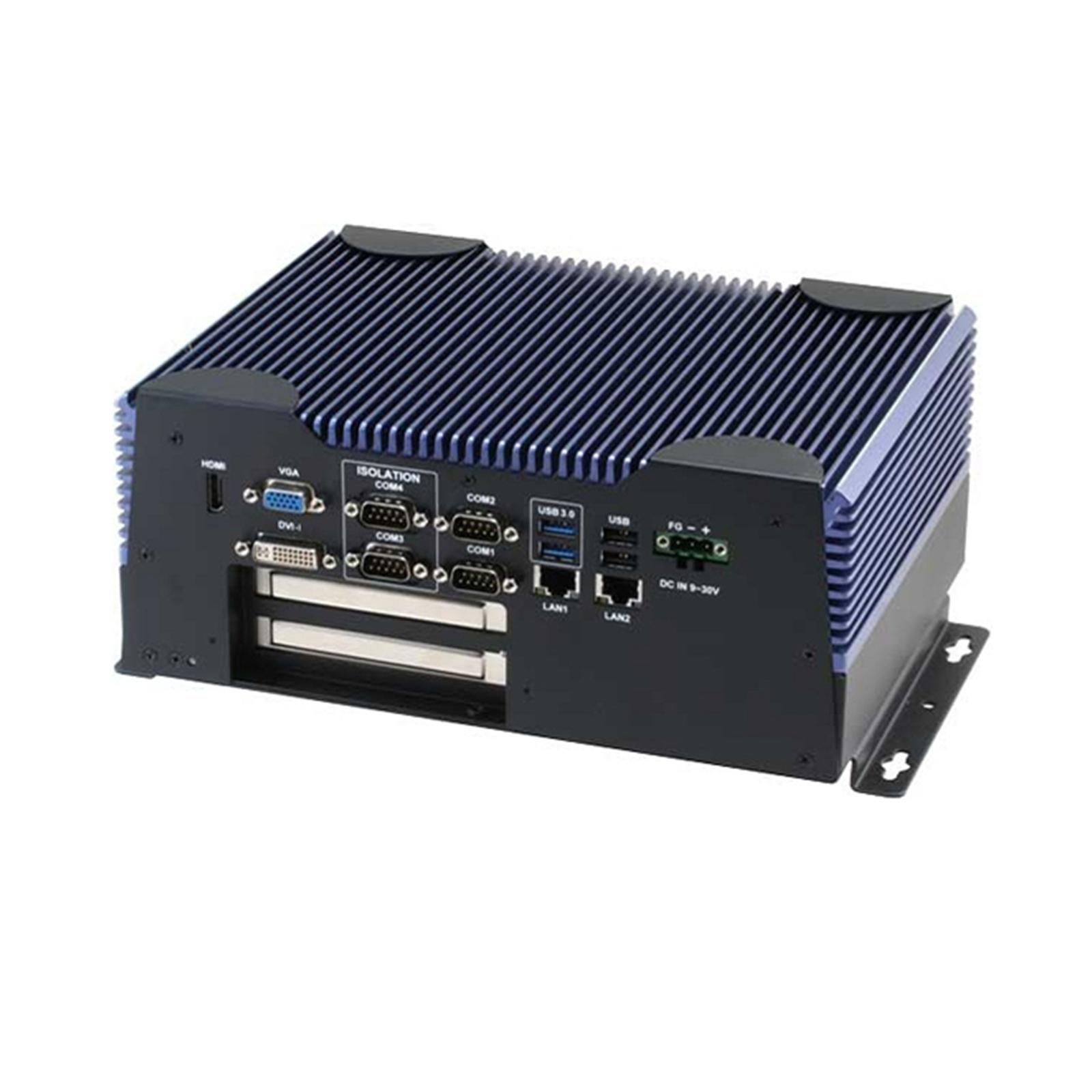

BOXER-6852 (Expansion Box PC)

Home  >   AAEON  >   Computing Systems  >
Fanless Embedded Box PC  >   Expansion Box PC

Expandable Fanless Embedded Box PC with Intel® QM87 Chipset and PCIe Expansion

Product Feature

  • Reliable System with Cable-less Design
  • Intel® Core™ i5-4402E (2.7 GHz)
  • Mini-Card Slot x 2 (USB & PCIe Signal) & PCIe [x1] x 2
  • Rich I/O with Protection
  • Isolated RS-232/422/485 x 2

The BOXER-6852 is made for the factory floors with its array of electrical protection, which includes over-voltage, low-voltage, surge, reverse polarity and short circuit protection, and inclusion of isolated COMs ports. Its operating temperatures stretches from -20°C to 60°C, a range wider than similar products on the market, and adopts a cable-free design to enhance reliability. In addition, with two additional PCI/ PCIe expansion slots, creating a well-rounded system with modules and peripheral cards is never easier.

System

CPUIntel® Core™ i5-4402E, 2.7 GHz
ChipsetIntel® QM87
System MemoryDDR3L 1333/1600 SODIMM slot x 1, up to 8 GB
Display InterfaceVGA, HDMI, DVI-D
Storage DeviceCFast™, HDD/SSD
EthernetIntel® I211, 10/100/1000Base-TX x 1 Intel® I217LM, 10/100/1000Base-TX x 1
I/OIsolated RS-232/422/485 x 2
RS-232 x 4
USB 2.0 x 4
USB 3.2 Gen 1 x 2
VGA x 1
HDMI x 1
DVI x 1
Line-out x 1
LAN x 2
CFast slot x 1
PCI/PCIe slot x 2
Antenna holes x 2
Power switch
Power input
ExpansionFull-size Mini-Card x 1 Half-size Mini-Card x 1 PCI/PCIe slot x 2
IndicatorPower LED HDD active LED LAN LED
OS supportWindows® 7, Windows® 8/8.1, Windows® 10, Linux Fedora

Power Supply

Power Requirement9 - 30V with 3-pin terminal block

Mechanical

MountingWallmount
Dimensions (W x H x D)10.4" x 4.3" x 7.62" (264.16mm x 109.3mm x 193.5mm)
Gross Weight12.1 lb (5.5 kg)
Net Weight8.8 lb (4 kg)

Environmental

Operating Temperature-4°F ~ 140°F (-20°C ~ 60°C) with wide temperature HDD
(according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices)
Storage Temperature-4°F ~ 158°F (-20°C ~ 70°C)
Storage Humidity95% @ 40°C, non-condensing
Anti-Vibration5 Grms/ 5 ~ 500Hz/ operation –mSATA / SSD 1 Grms/ 5~ 500Hz/ operation – HDD
CertificationCE/FCC class A
