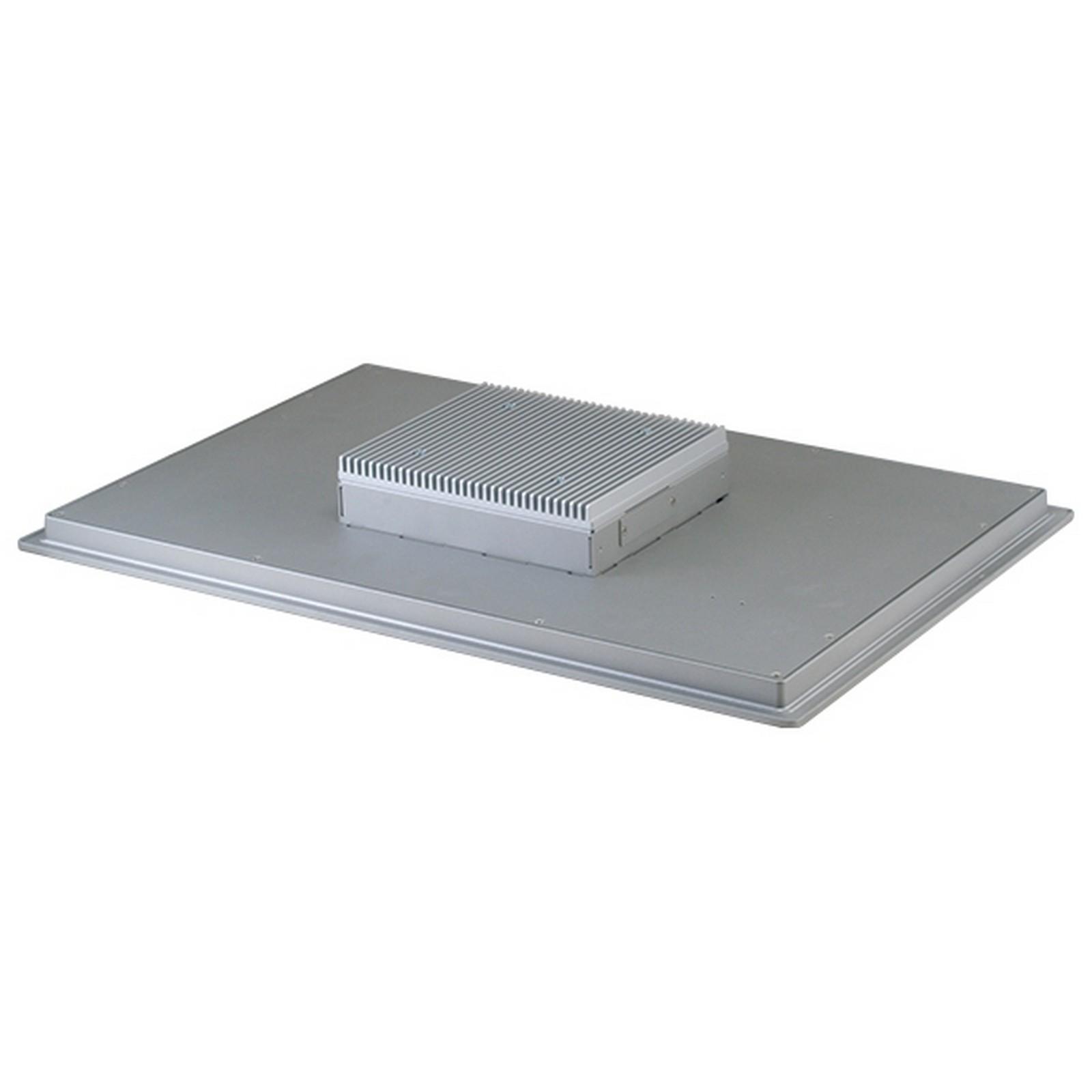

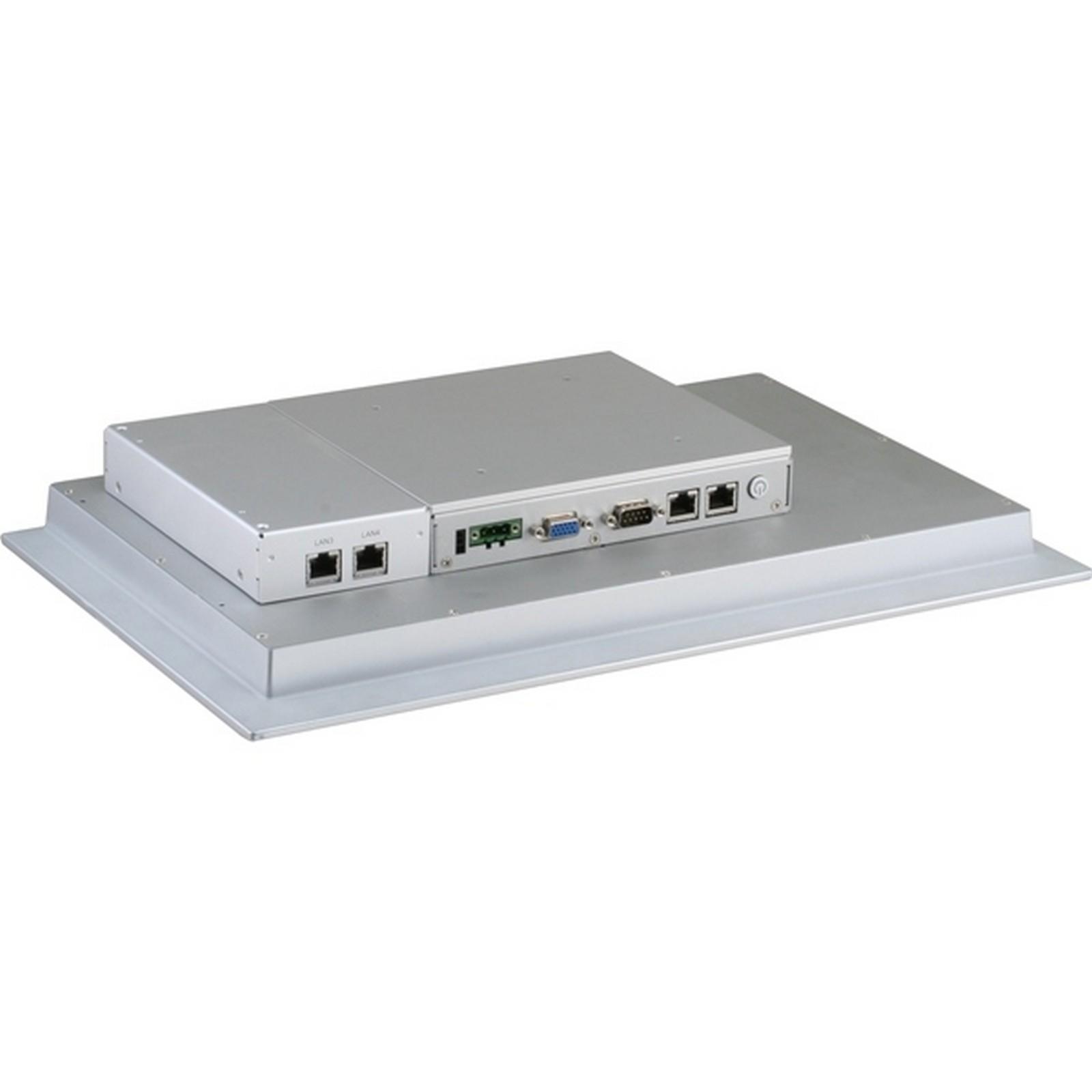

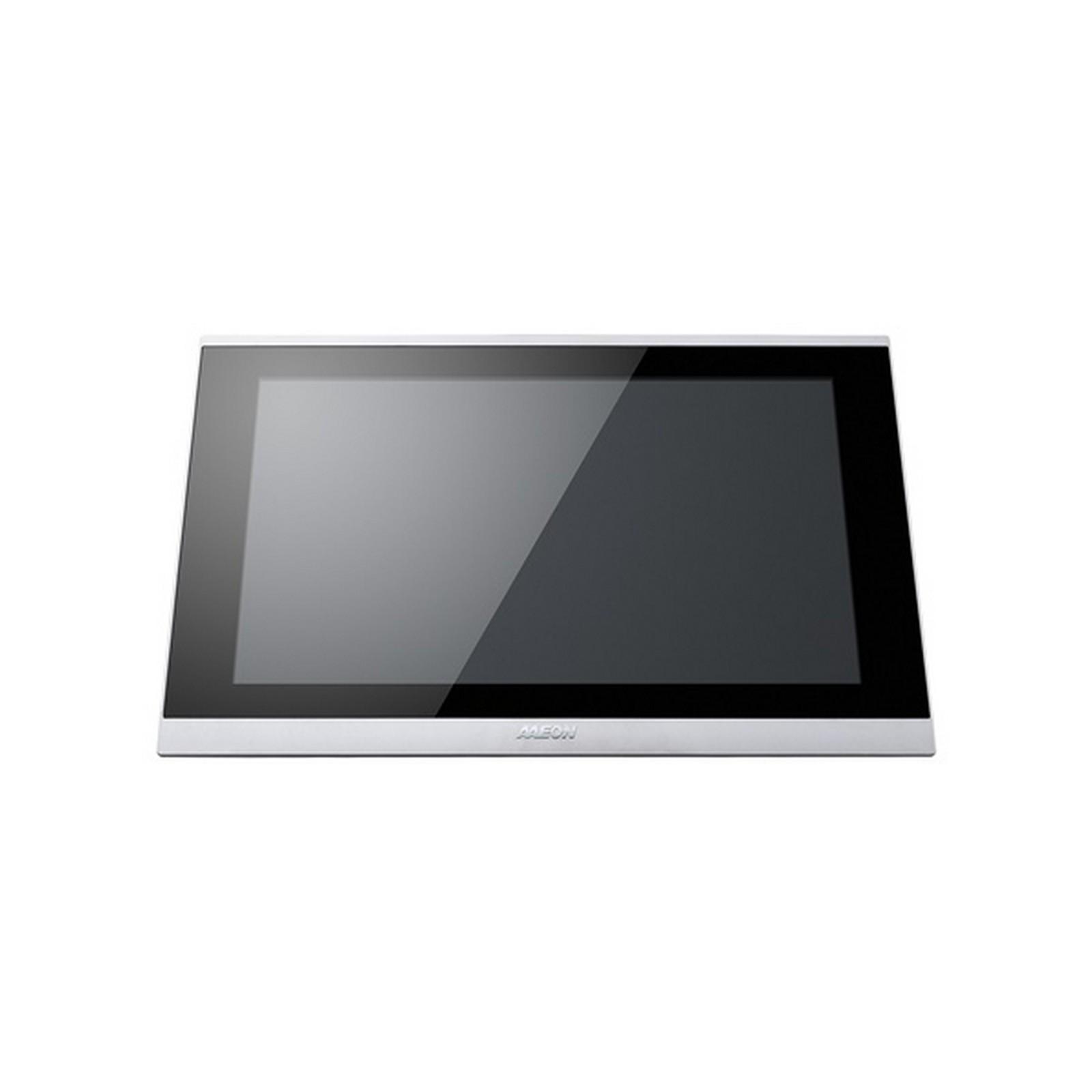

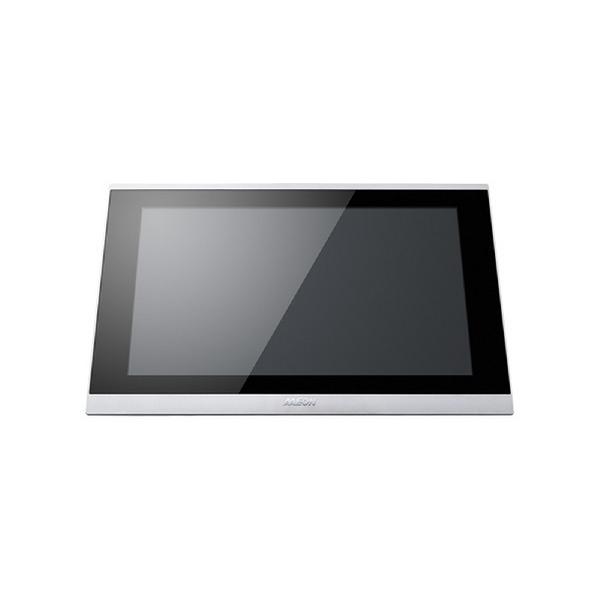

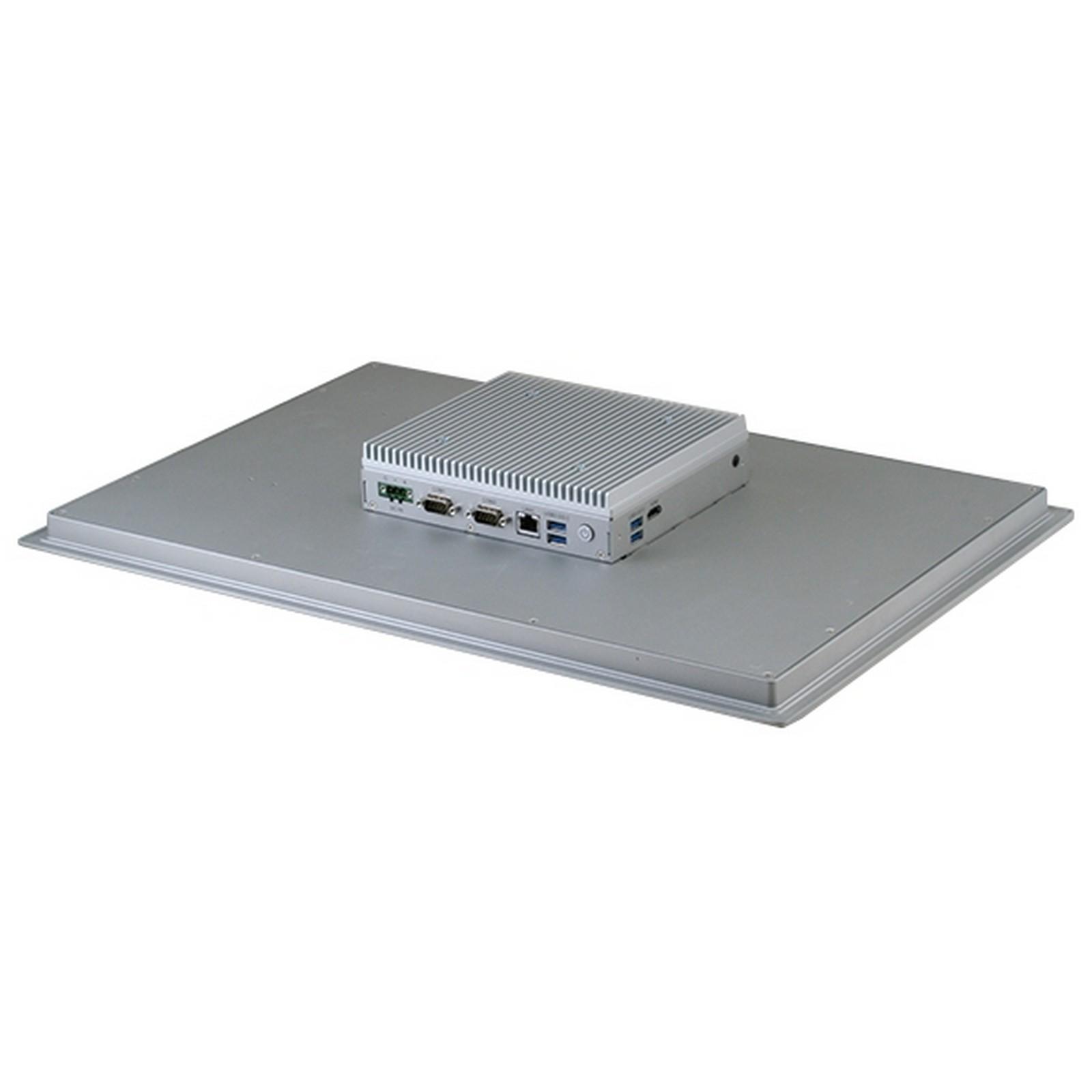

21.5” Modular HMI Panel PC with 6th Generation Intel® Core™ i5-6300U/C-3955U Processor

Product Feature

  • 21.5” (1920 x 1080) TFT LCD Display
  • Intel® 6th Generation Core™ i5-6300U/C-3955U Processor
  • P-CAP or Resistive Touch Screen Support
  • Aluminum Design
  • IP65 Compliant Front Bezel
  • Fanless Operation
  • Easily Expandable I/O by AAEON OMNI I/O Modules

21.5” Modular HMI Panel PC with Intel® 6th Generation i5-6300U/C-3955U Processor

SYSTEM
PROCESSORIntel® Core™ i5-6300U processor, 2.4 GHz Intel® Celeron® 3955U processor, 2.0 GHz
SYSTEM MEMORY260-pin DDR4 SODIMM x 1, up to 16 GB
LCD/CRT CONTROLLERIntegrated in processor
ETHERNETIntel® I211, 10/100/1000Base-TX x 1
I/O PORTUSB 3.2 Gen 1 Type A x 4
SMA Antenna hole x 1
HDMI x 1
DB-9 Type RS-232/422/485 x 2
RJ-45 Type 10/100/1000 Base-TX x 1
3-pin terminal block x1 for 9~30 Vdc power input
LED Power on/off switch x1 (Power on = Orange, Power off =N/A)
STORAGE DISK DRIVE2.5" SATA HDD bay x 1
EXPANSION SLOTFull Size Mini card x 1 SIM card x 1
OMNI I/O connector x 1
OS SUPPORTWindows® 8.1
Windows® 10 (64 bit) Linux Kernal 2.6.x or higher
MECHANICAL
CONSTRUCTIONAluminum design (IP65 Front Frame)
MOUNTINGVESA 100/ Panel Mount
DIMENSION21.7” x 14.7” x 2.6” ( 550mm x 373mm x 66mm)
GROSS WEIGHT20.02 lb (9.1 Kg)
ENVIRONMENTAL
OPERATING TEMPERATURE-4°F ~ 131°F (-20°C ~ 55°C) with 0.5 m/s airflow (Industrial Grade HDD)
STORAGE TEMPERATURE-4°F ~ 158°F (-20°C ~ 70°C)
STORAGE HUMIDITY90% @40°C; non-condensing
ANTI-VIBRATION1 Grms/ 5~ 500Hz/ operation – with HDD
ANTI-SHOCK15 G peak acceleration (11 msec. duration) – with HDD
CERTIFICATIONCE/FCC class A
POWER SUPPLY
DC INPUTDC 9 (min.) ~ 30 (max.) V w/3-pin terminal block, ATX Power function
LCD
DISPLAY TYPE21.5" TFT-LCD, LED
MAX. RESOLUTION1920(H) x 1080(V)
MAX. COLORS16.7M colors
LUMINANCE250 cd/m²
VIEWING ANGLE178 (H), 178 ( V)
BACK LIGHTLED
BACK LIGHT MTBF (HOURS)50000
TOUCHSCREEN
TYPEP-CAP/ 5-wire resistive
LIGHT TRANSMISSIONP-CAP (≥85%), 5-wire Resistive (80% ± 5%)
Name Type Version Release Date
OMNI-2215-SKU, datasheet Datasheet V2.0 18 March 2019
