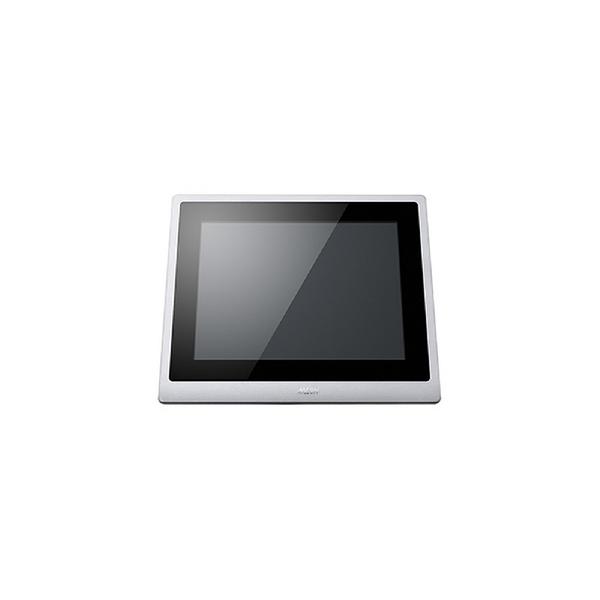

10.4” Modular HMI Panel PC with Intel® Celeron® J1900/ N2807 Processor
| SYSTEM | |
| PROCESSOR | Intel® N2807 processor, 1.58 GHz, Intel® Celeron® J1900 processor, 2 GHz |
| SYSTEM MEMORY | 204-pin DDR3L 1333MHz SODIMM x 1, up to 8 GB, (J1900) 204-pin DDR3L 1333MHz SODIMM x 1, up to 4 GB, (N2807) |
| LCD/CRT CONTROLLER | Integrated in processor |
| ETHERNET | Intel® I211, 10/100/1000Base-TX x 2 |

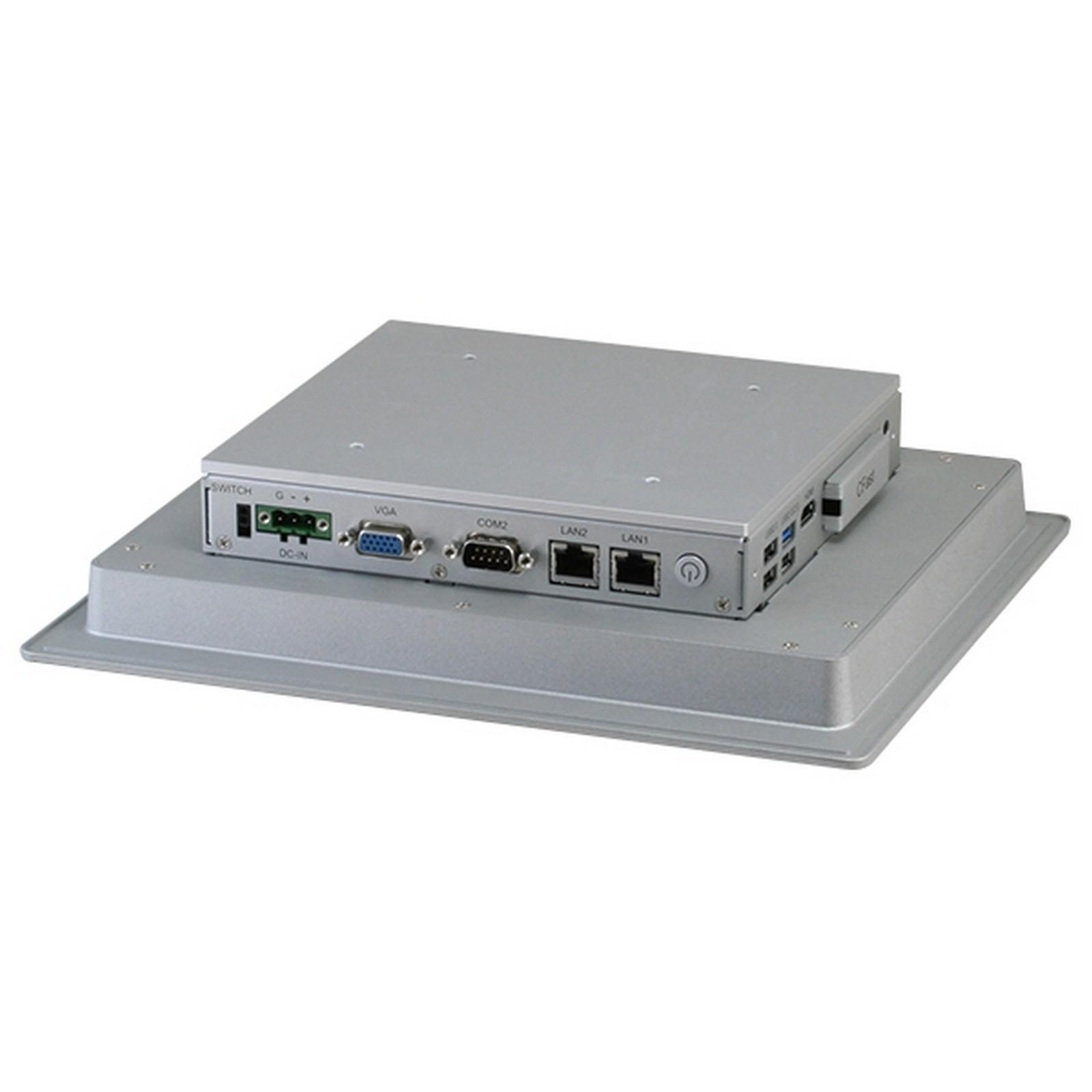

| I/O PORT | USB 2.0 Type A x 3 USB 3.2 Gen 1 Type A x 1 SMA Antenna hole x 1 HDMI x 1 CFast™ x 1 DB-9 x 1 for RS-232/422/485 RJ-45 x 2 for GbE LAN DB-15 x 1 for VGA 3-pin terminal block x1 for 9~30 Vdc power input LED Power on/off switch x 1 (Power on = Orange, Power off =N/A) |
| STORAGE DISK DRIVE | CFast™ x 1, 2.5" SATA HDD bay x 1 |
| EXPANSION SLOT | Full Size Mini card x 2, SIM card x 1, OMNI I/O connector x 1 |
| OS SUPPORT | Windows® 7, Windows® 8, Windows® 10, Linux Kernal 2.6.x or higher |
| MECHANICAL | |

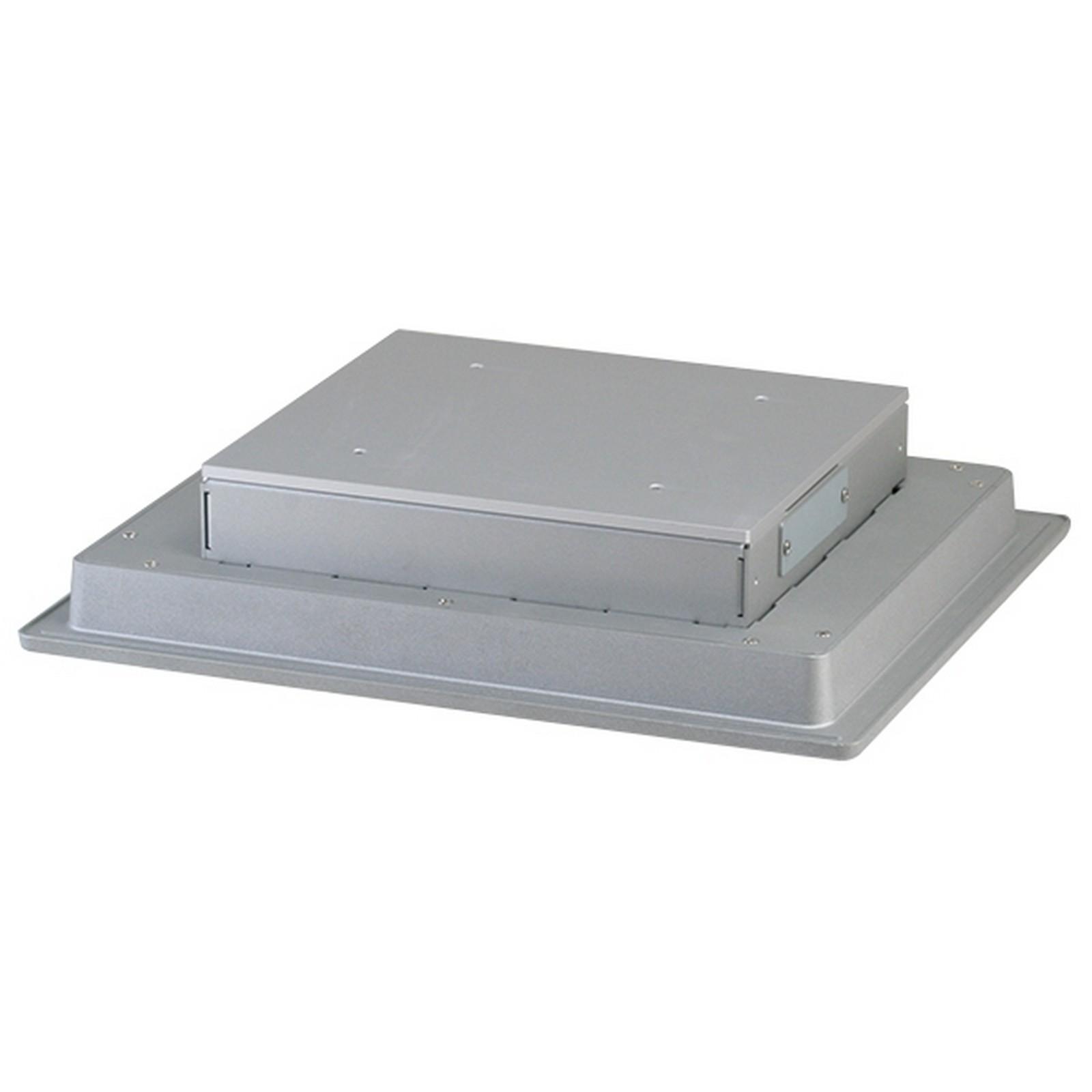

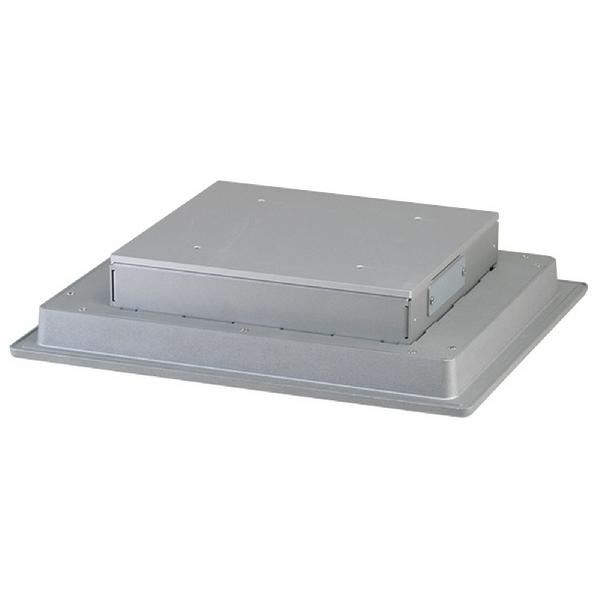

| CONSTRUCTION | Aluminum design (IP65 Front Frame) |
| MOUNTING | VESA 100 / Panel Mount |
| DIMENSION | 11.02” x 9.41” x 2.32” (280 mm x 239 mm x 59 mm) |
| GROSS WEIGHT | 7.92 lb (3.6 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 14°F ~ 131°F (-10°C ~ 55°C) (J1900), 14°F ~ 140°F (-10°C ~ 60°C) (N2807) with 0.5 m/s airflow ( CF & HDD ) |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 90% @40°C; non-condensing |
| ANTI-VIBRATION | 1 Grms/ 5~ 500Hz/ operation – with HDD |
| ANTI-SHOCK | 15 G peak acceleration (11 msec. duration) – with HDD |
| CERTIFICATION | CE/FCC class A |
| POWER SUPPLY | |
| DC INPUT | DC 9 (min.) ~ 30 (max.) V w/ 3-pin terminal block, ATX Power function |
| LCD | |
| DISPLAY TYPE | 10.4" TFT-LCD, LED |
| MAX. RESOLUTION | 800 (H) x 600 ( V) |
| MAX. COLORS | 16.2M colors |
| LUMINANCE | 230 cd/m² |
| VIEWING ANGLE | 120° (H), 100° ( V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | 50000 |
| TOUCHSCREEN | |
| TYPE | P-CAP/ 5-wire resistive |
| LIGHT TRANSMISSION | P-CAP (90% ± 3%), 5-wire Resistive (80% ± 3%) |
| Name | Type | Version | Release Date | |
| OMNI-3105-BT, Datasheet | Datasheet | V1.0 | 14 September 2016 |
