BOXER-8222AI

Home  >   AAEON  >   AI Solutions  >
AI@Edge Solutions

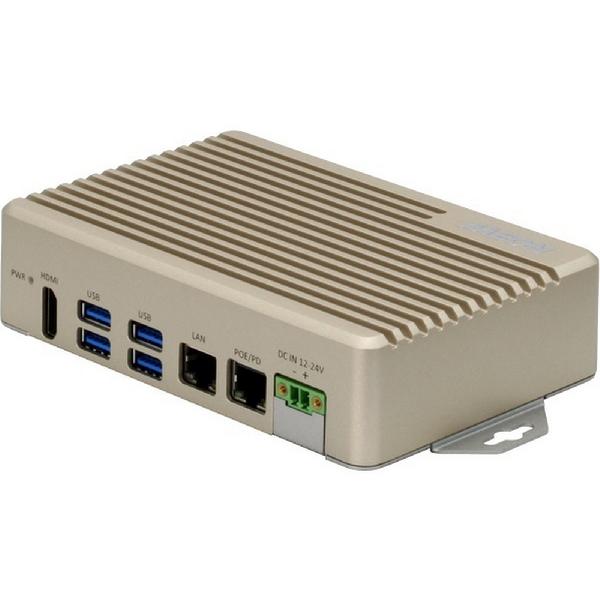

AI@Edge Fanless Embedded Box PC with NVIDIA Jetson Nano, PD Port

Product Feature

  • NVIDIA Jetson Nano
  • PoE/PD x 1
  • 4GB LPDDR4 + 32GB SD card slot
  • USB 3.2 Gen 1 x 4
  • M.2 E-key slot x 1 for WiFi function expansion
  • DC 12 ~ 24V wide voltage power input
  • Wide working temperature -10°C ~ 70°C

The BOXER-8222AI is powered by the innovative and energy efficient NVIDIA® Jetson Nano™ SoC. Specialized for AI edge computing, the Jetson Nano utilizes the quad-core ARM® Cortex®-A57 MPCore processor with NVIDIA Maxwell™ GPU architecture featuring 128 NVIDIA CUDA® cores. This innovative design allows processing speeds up to 472 GFLOPs and is capable of operating multiple neural networks or processing several high-resolution images at the same time. The NVIDIA Jetson Nano also features onboard 4GB RAM and MicroSD card slot supporting up to 32GB of storage.

The BOXER-8222AI features a PoE PD (Powered Device) LAN port, allowing for deployment without a dedicated power supply when connected to a PSE Gateway (Power Supply Equipment). The BOXER-8222AI utilizes the 802.3at standard, supporting power input of 25.6W, more than enough to power the system and connected devices such as USB cameras and sensors.

The BOXER-8222AI is designed with a flexible I/O loadout including a 40-pin I/O connector designed to support a wide range of sensors and controllers. It also features four USB3.2 Gen 2 ports, RS-232 COM port, as well as LAN and HDMI ports. The BOXER-8222AI also supports Wi-Fi expansion with an onboard M.2 2230 slot.

The BOXER-8222AI is designed to operate in a range of rugged environments, featuring a fan-less design to ensure reliable operation. It can operate in temperatures from -10°C up to 70°C without a loss in performance. Its compact size also makes it easy to deploy in tight spaces, putting it closer to where it’s needed.

SYSTEM
AI ACCELERATORNVidia® Jetson Nano™
CPUQuad Core ARM® Cortex®-A57 MPCore Processor
SYSTEM MEMORY4GB LPDDR4
STORAGE DEVICE32 GB MicroSD Card (Jetson Nano version B)
Mini-Card (Full Size) x 1 (PCIE+SATA+USB)
DISPLAY INTERFACEHDMI 2.0 x 1
ETHERNET10/100/1000Base-TX x 2

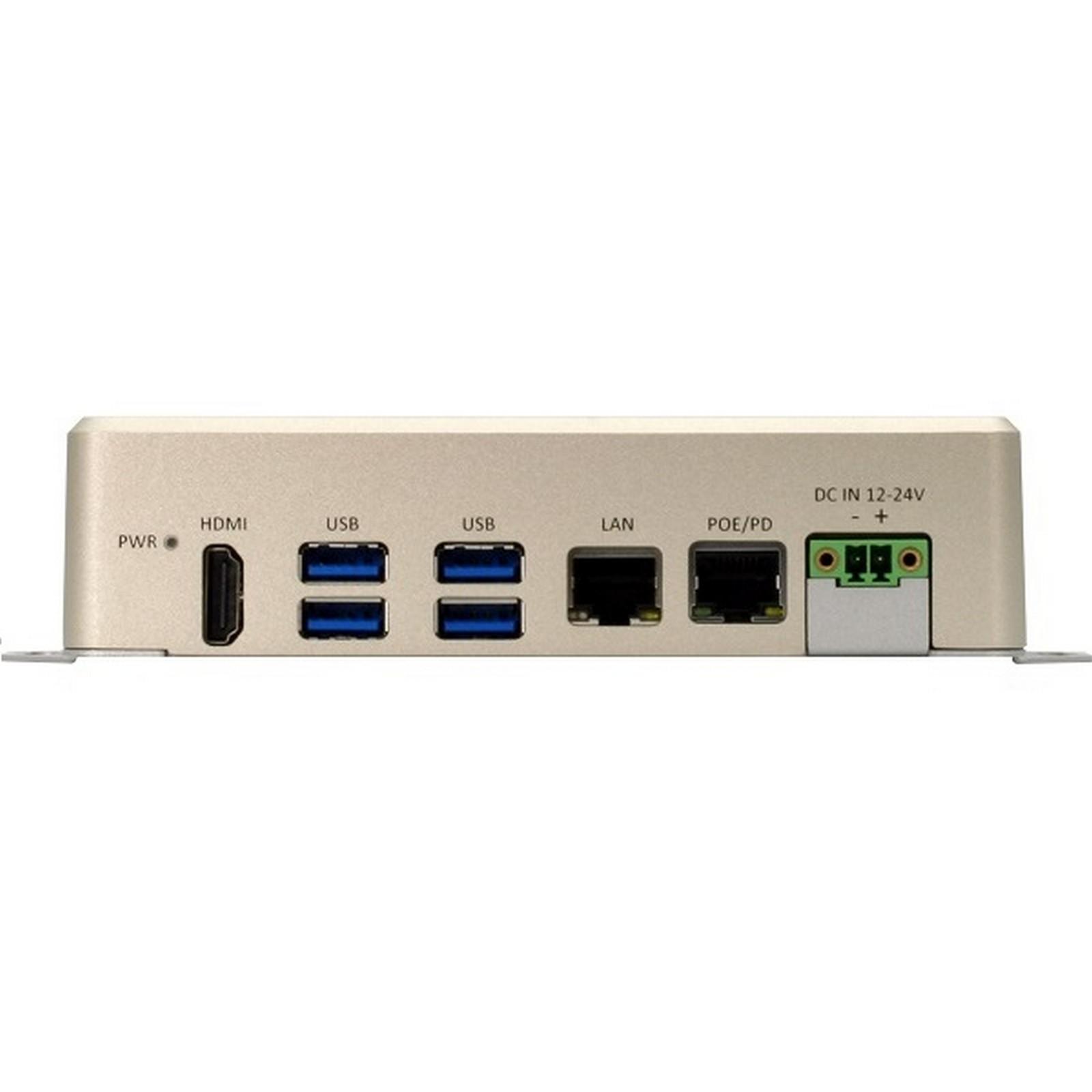

I/OUSB3.2 Gen 1 x 4 (USB Type A)
GbE LAN x 2 (GbE PD x 1 + GbE LAN x 1)

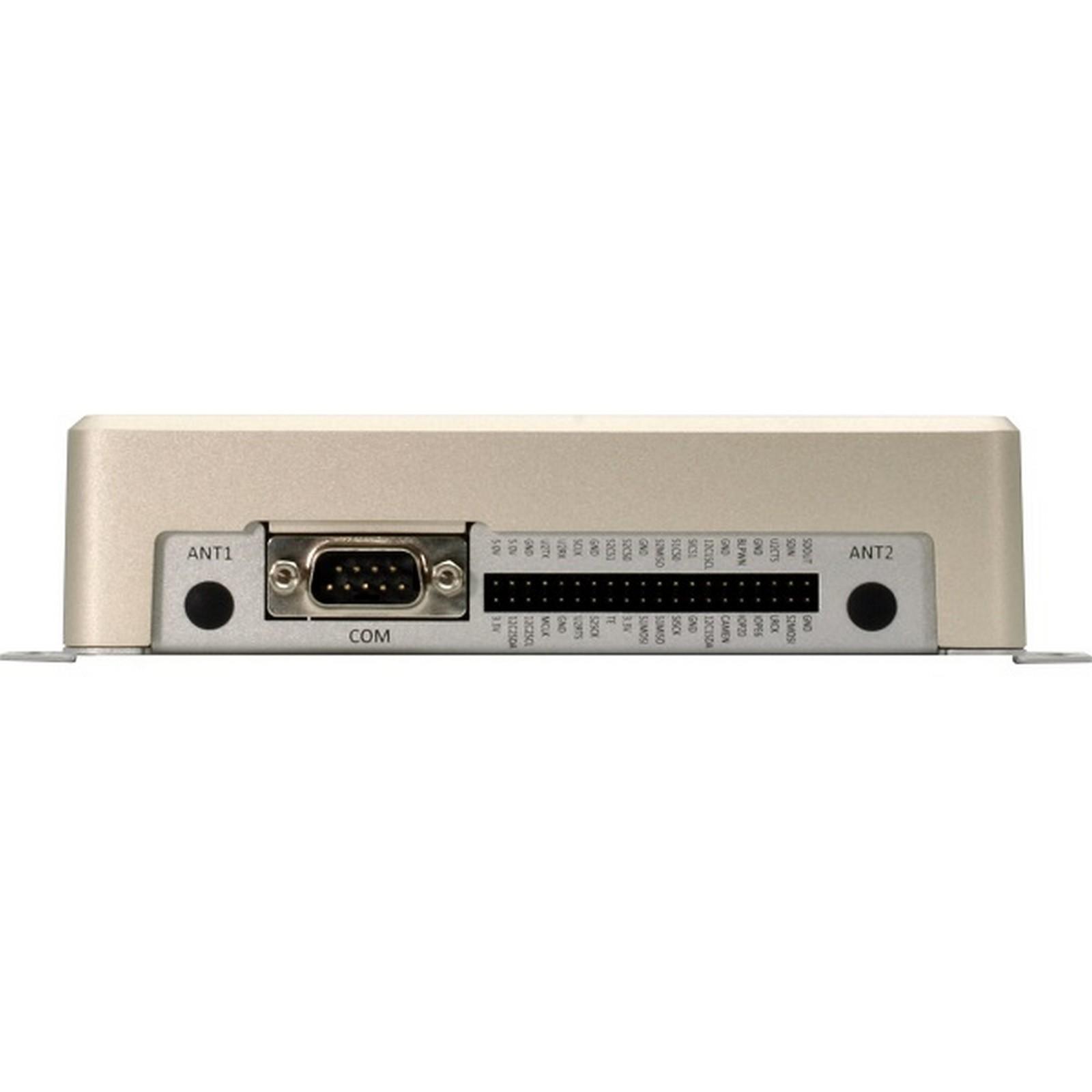

40-pin I/O x 1 (GPIO/I2S/I2C/Audio/SPI/UART)
DB-9 (RS-232) x 1
HDMI 2.0 a/b x 1 (HDMI Type A)
OS Flash port x 1 (Micro USB)
Recovery port x 1
Antenna opening x 2
EXPANSIONAntenna x 2
M.2 2230 E Key x 1 (for Wi-Fi)
INDICATORPower LED x 1
OS SUPPORTACLinux 4.9 or above (Compatible with Ubuntu 18.04)
POWER SUPPLY
POWER REQUIREMENTDC 12V~24V 2-pin terminal
MECHANICAL
MOUNTINGWallmount
DIMENSION6.92” x 3.94” x 1.54” (175.8 mm x 100.0 mm x 39.0 mm)
GROSS WEIGHT2.31 lbs (1.05 kg)
NET WEIGHT1.28 lbs (0.58 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE14°F ~ 158°F (-10°C ~ 70°C, according to IEC60068-2 with 0.5 m/s AirFlow)
STORAGE TEMPERATURE-40 °F ~ 176°F(-40°C ~ 80°C)
STORAGE HUMIDITY95% @ 40C, non-condensing
ANTI-VIBRATIONRandom, 3.5Grm, 5~500Hz
CERTIFICATIONCE/FCC class A
Name Type Version Release Date
BOXER-8222AI, datasheet Datasheet V1.0 22 September 2020
