BOXER-8130AI

Home  >   AAEON  >   AI Solutions  >
AI@Edge Solutions

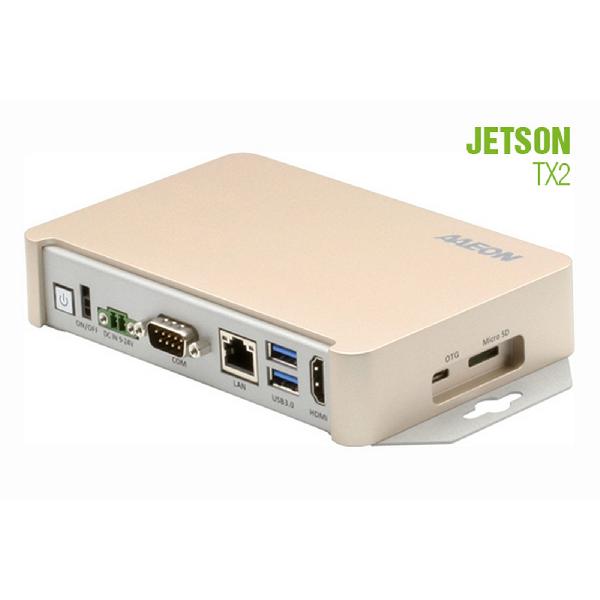

AI@Edge Fanless Embedded Box PC with NVIDIA Jetson TX2, MIPI-CSI2 interface

Product Feature

  • Nvidia TX2 Module
  • HMP Dual Denver 2 + Quad ARM A57
  • 8GB LPDDR4
  • 32GB eMMC 5.1
  • HDMI 2.0
  • USB 3.2 Gen 1 x 2
  • GbE LAN x 1
  • RS-232 x1
  • MIPI-CSI2 connector x1
  • Compact Size chassis

The BOXER-8130AI features the powerful NVidia Jetson TX2 CPU paired with 8GB LPDDR4 memory and 32GB eMMC storage onboard. With two processors onboard, the Dual Denver 2 and Quad ARM 57 processors, the NVidia Jetson TX2 is capable of supporting up to 256 CUDA cores and supports AI frameworks such as TensorFlow and Caffe. The BOXER-8130AI can even be configured to support a customer’s own AI interface software.

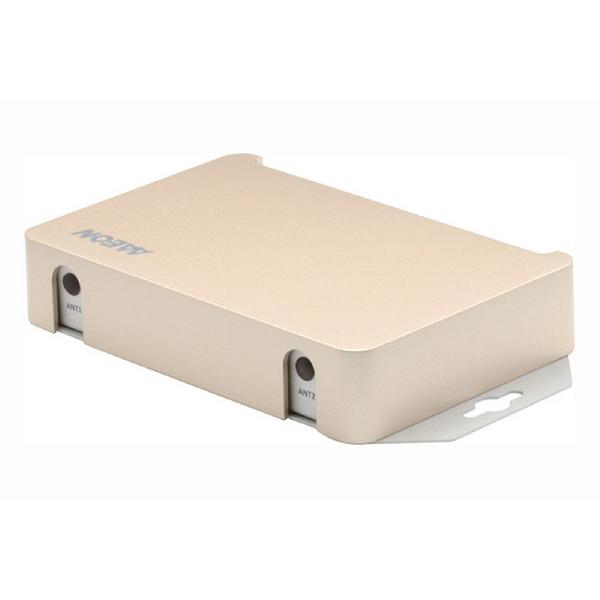

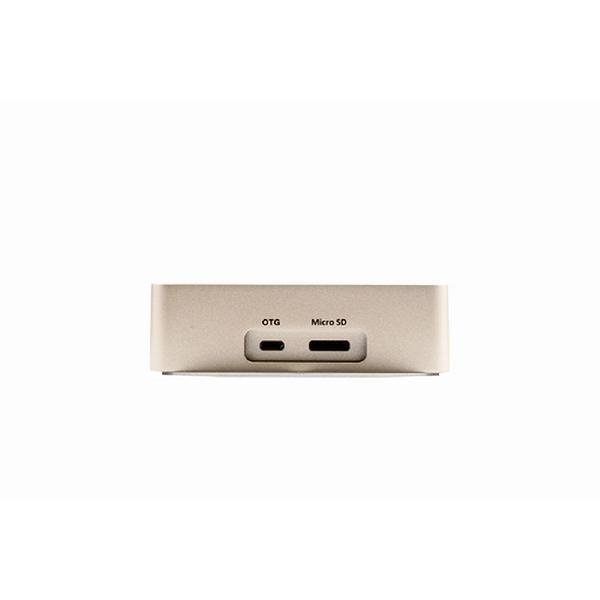

The BOXER-8130AI is built to easily integrate into any environment. Featuring six MIPI CSI-2 interfaces, the BOXER-8130AI can support up to six MIPI cameras. The BOXER-8130AI is also built for easy maintenance, with an SD Card slot, USB OTG, remote ON/OFF and almost all of its I/O ports together on one side. The BOXER-8130AI also features two antenna ports, perfect for mobile or AIoT gateway applications.

The BOXER-8130AI keeps the built tough design that the AAEON BOXER family is built on. It is capable of operating in temperature ranges from -20°C to 55°C and features a wide input voltage range of 9~24 VDC. Its fanless design also keeps dust and other contaminants from affecting operation, perfect for the harsh requirements of industrial embedded applications.

SYSTEM
AI ACCELERATORNvidia Jetson TX2
CPUHMP Dual Denver 2 + Quad ARM A57
SYSTEM MEMORY8GB LPDDR4
STORAGE DEVICE32GB eMMC 5.1
MicroSD
DISPLAY INTERFACEHDMI 2.0 x 1
ETHERNET10/100/1000 Base-TX x 1
I/OUSB Type A x 2 for USB 3.2 Gen 1
RJ-45 x 1 for GbE LAN Ethernet
DB-9 x 1 for RS-232
Remote on/off switch x 1
Antenna Holes x 2
MicroSD x 1
OTG x 1
EXPANSIONSATA x1 (optional)
USB 2 x 3 (optional)

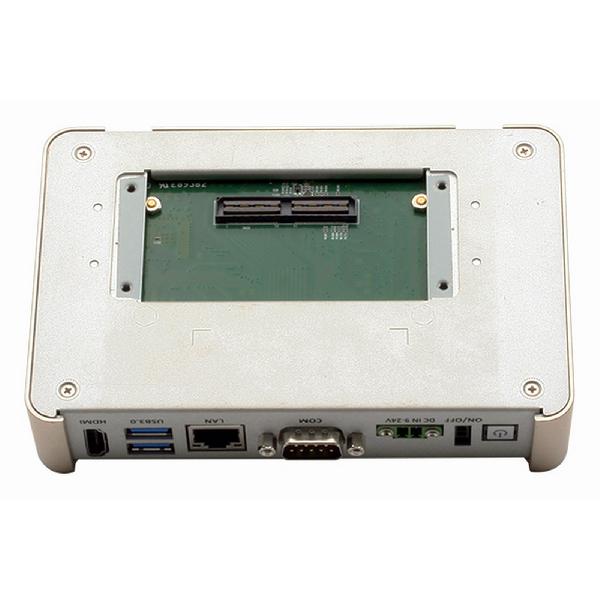

MIPI-CSI2 board to board connector x1 (The connector used on the carrier board is a Samtec QSH-060-01-H-D-A. The mating connector is a Samtec QTH-060-01-H-D-A.)
INDICATORPower LED
OS SUPPORTAAEON ACLinux 4.9, Compliance with Ubantu 18.04
POWER SUPPLY
POWER REQUIREMENT10~24V with 2-pin terminal block
MECHANICAL
MOUNTINGWallmount
DIMENSION6.02" x 1.18" x 3.98" (153mm x 30mm x 101mm)
GROSS WEIGHT4.40 lb (2 Kg)
NET WEIGHT2.20 lb (1 Kg)
ENVIRONMENTAL
OPERATING TEMPERATURE-4°F ~ 122°F(-20°C ~ 50°C,with 0.5 m/s AirFlow)
STORAGE TEMPERATURE-13°F ~176 °F (-25°C ~ 80°C)
STORAGE HUMIDITY95% @ 40°C, non-condensing
ANTI-VIBRATIONRandom, 5 Grm, 5~500Hz
CERTIFICATIONCE/FCC class A
Name Type Version Release Date
BOXER-8130AI, datasheet Datasheet V2.0 26 August 2020
