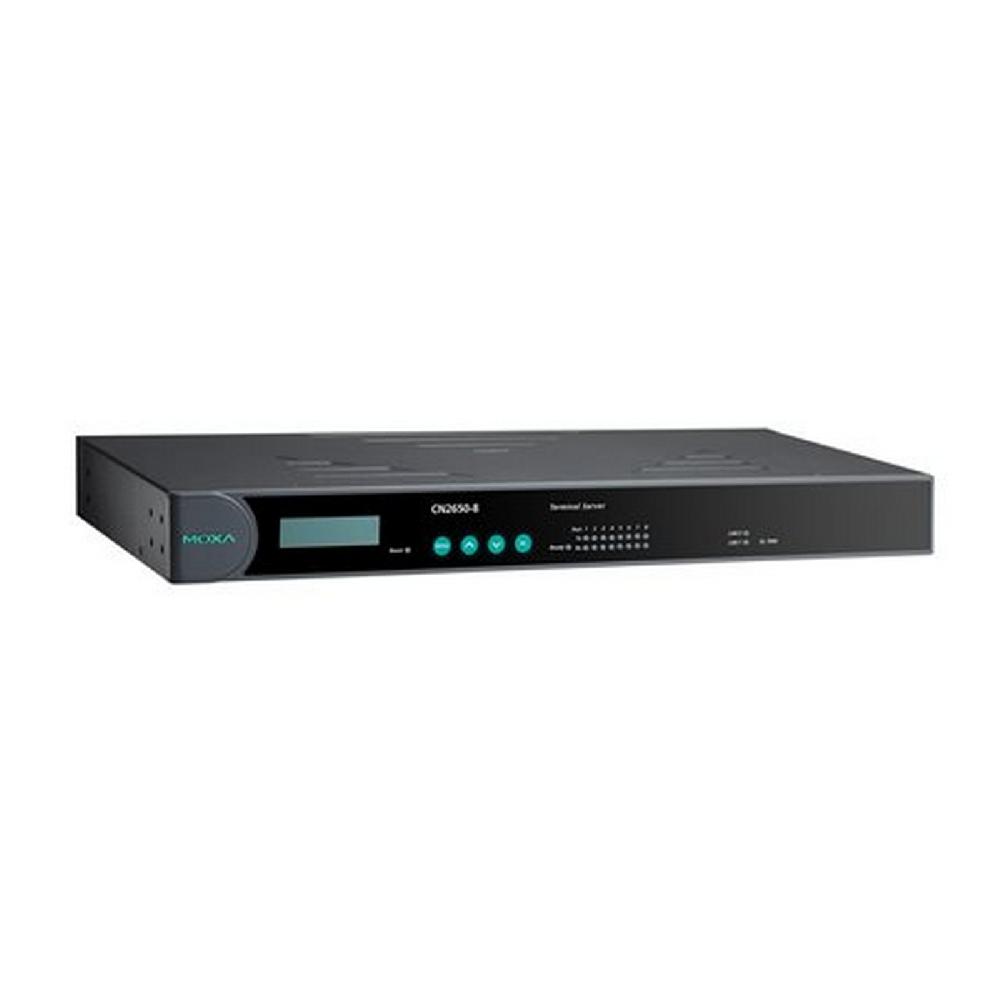

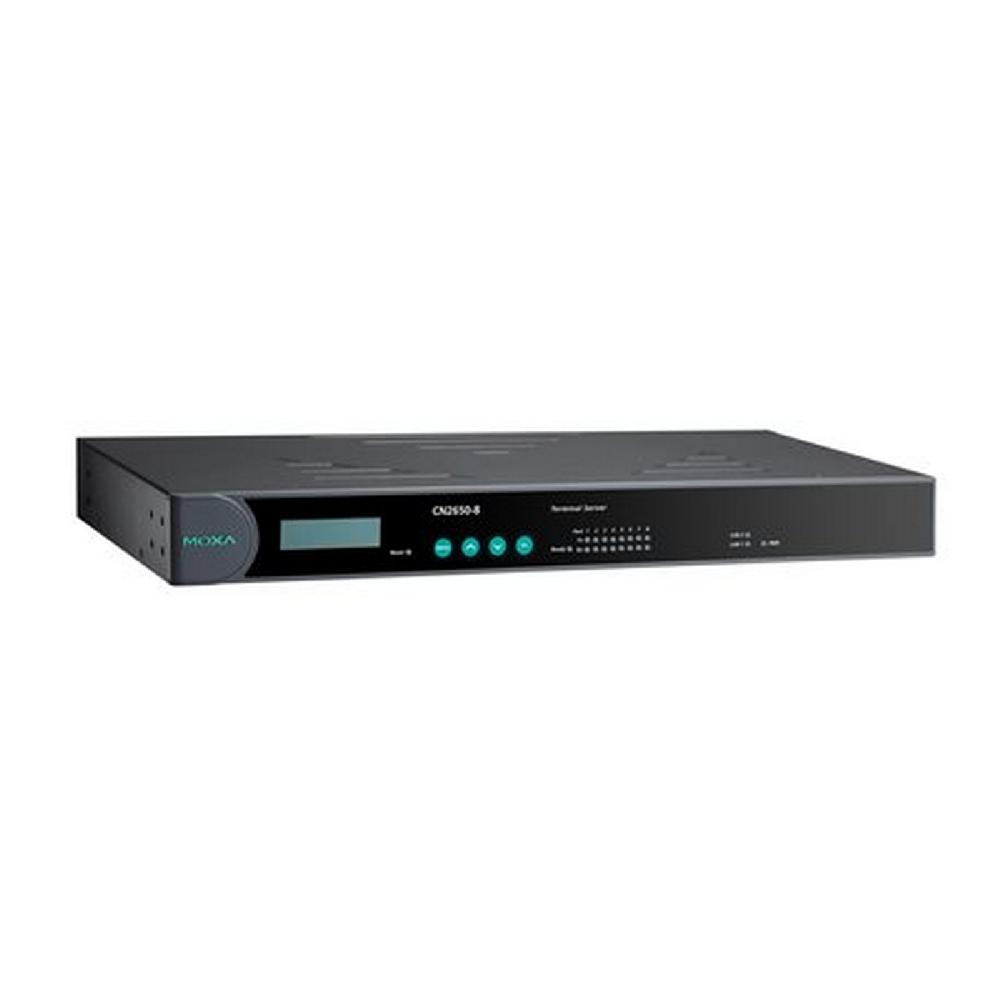

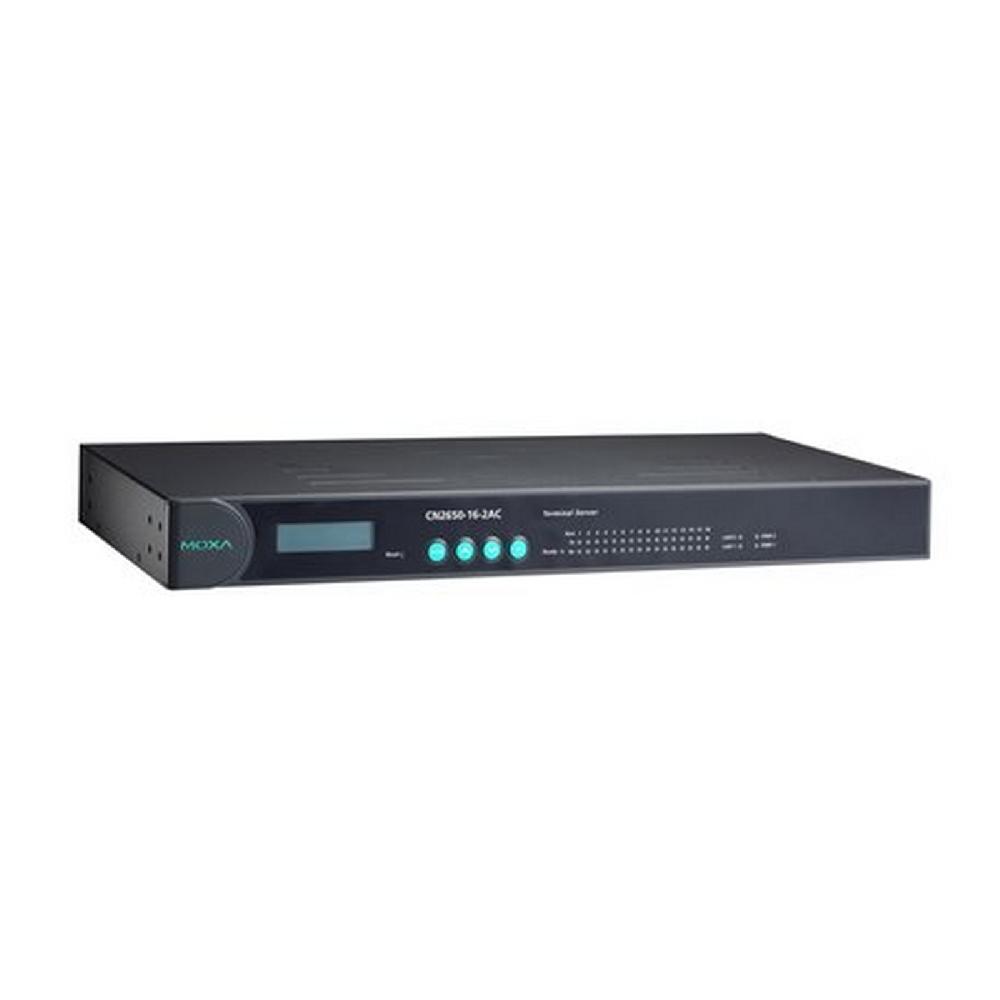

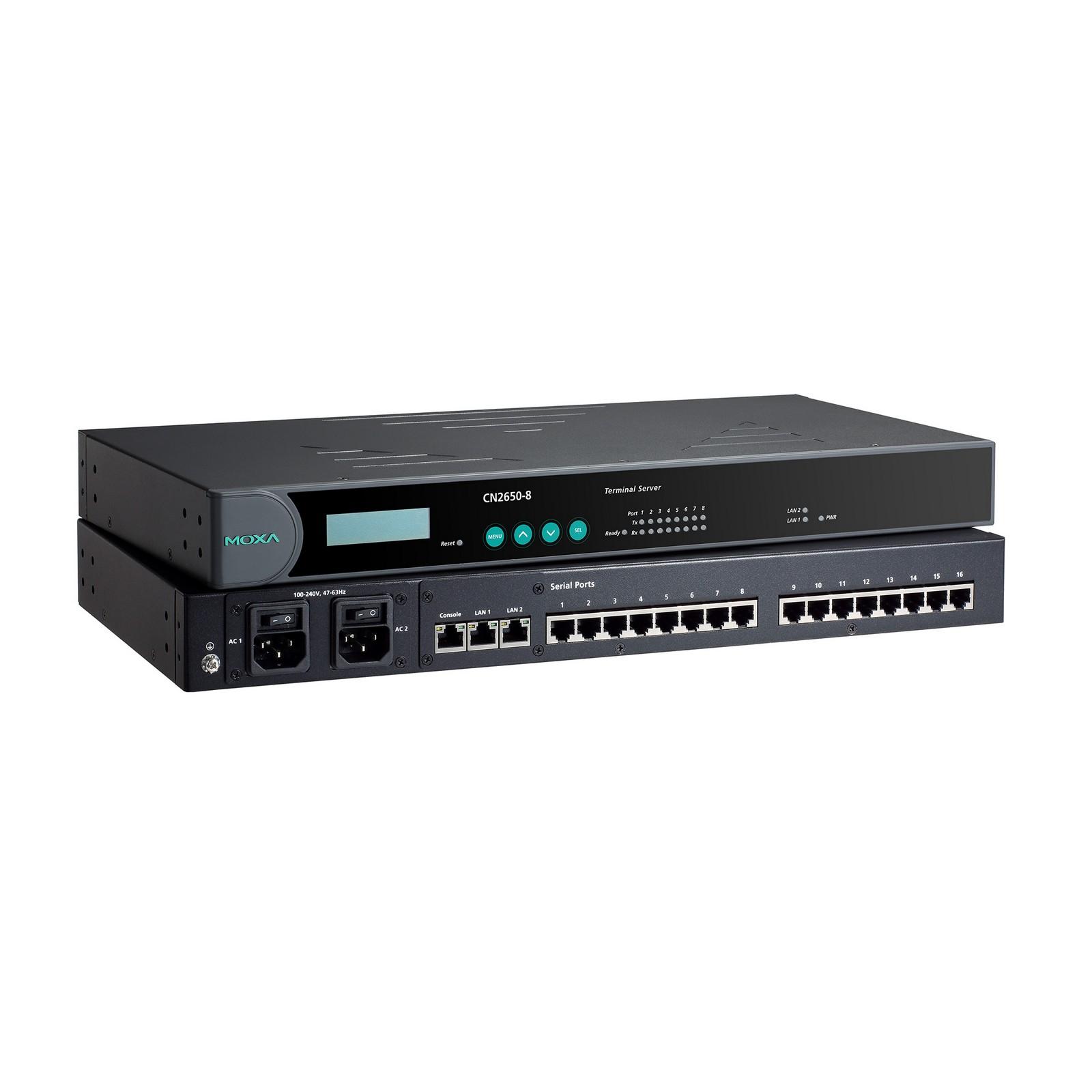

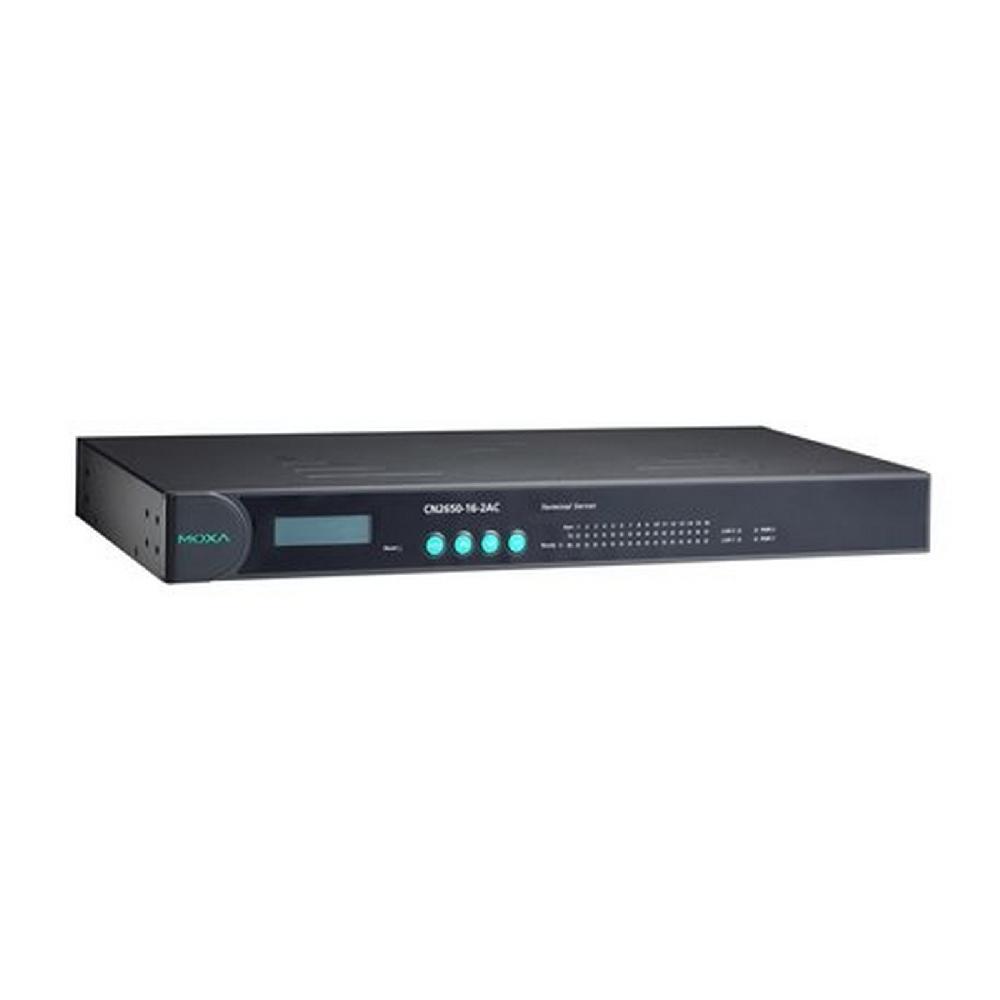

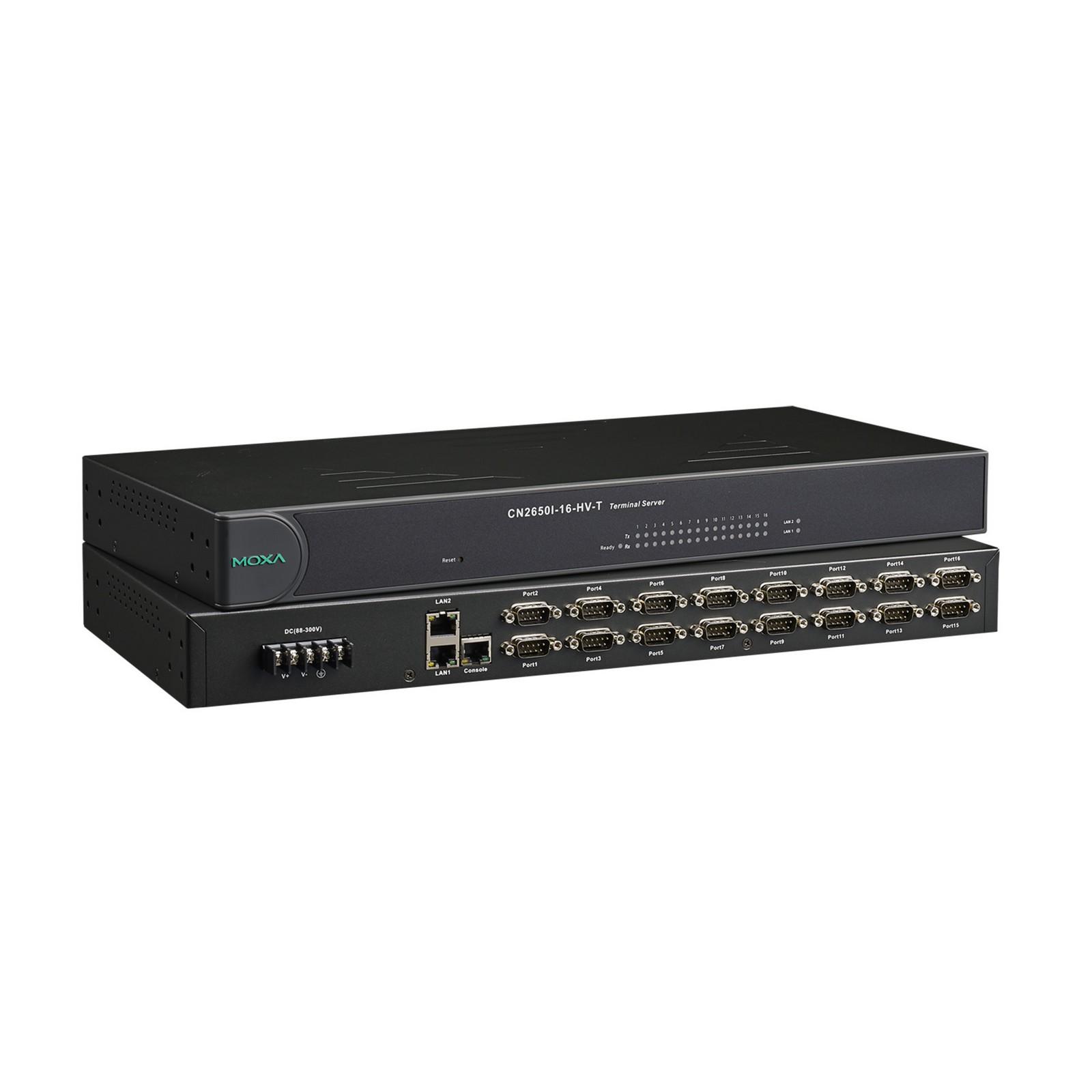

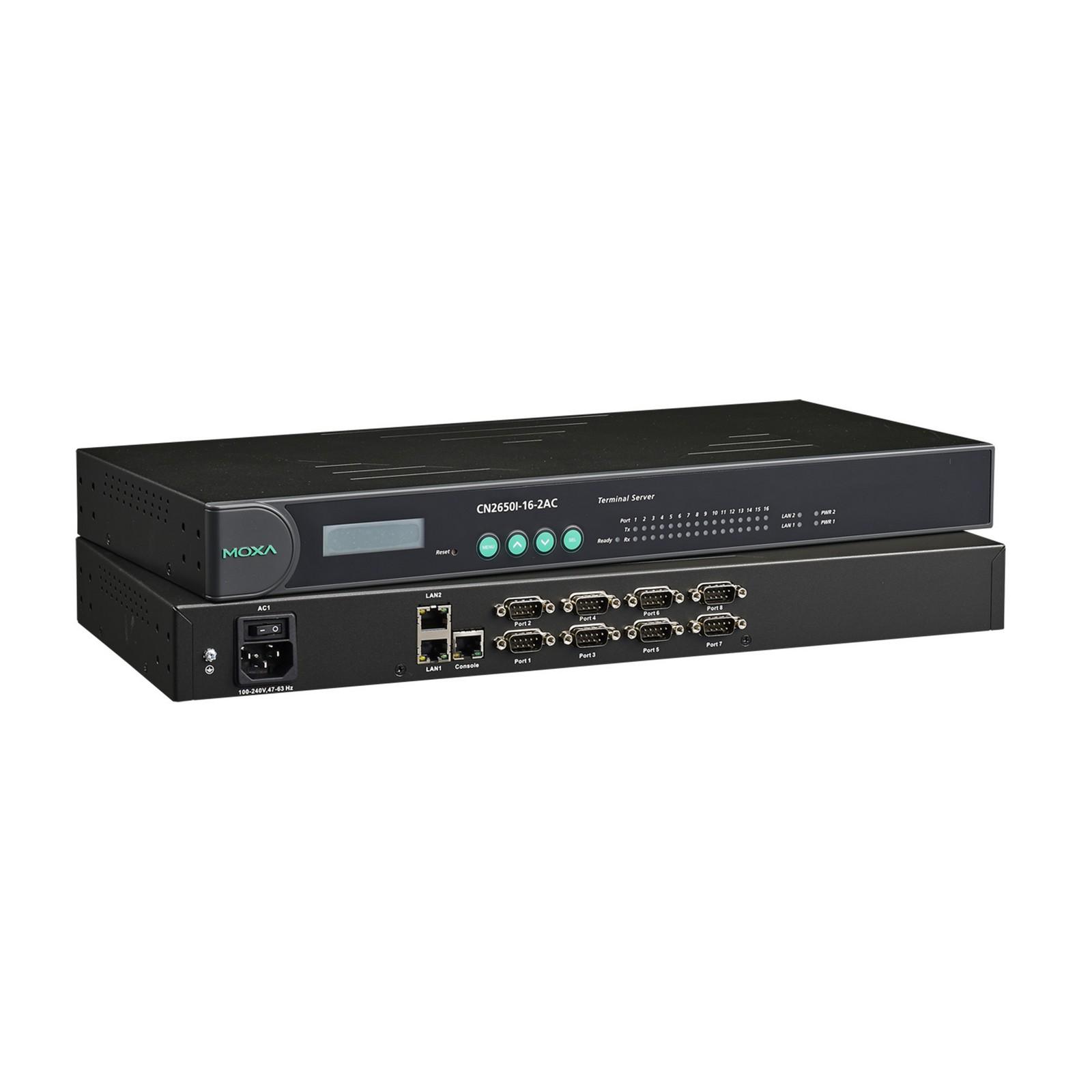

CN2600 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Device Servers  >   Terminal Servers

8 and 16-port RS-232/422/485 terminal servers with dual-LAN redundancy

Product Feature

  • LCD panel for easy IP address configuration (excluding wide-temperature range models)
  • Dual-LAN cards with two independent MAC addresses and IP addresses
  • Redundant COM function available when both LANs are active
  • Dual-host redundancy can be used to add a backup PC to your system
  • Dual-AC-power inputs (for AC models only)
  • Real COM/TTY drivers for Windows and Linux
  • Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC

Introduction

Redundancy is an important issue for industrial networks, and various types of solutions have been developed to provide alternative network paths when equipment or software failures occur. “Watchdog” hardware is installed to utilize redundant hardware, and a “Token”- switching software mechanism is applied. The CN2600 terminal server uses its built-in Dual-LAN ports to implement a “Redundant COM” mode that keeps your applications running uninterrupted.



Dual-LAN Redundancy

The CN2600 has two separate LAN ports that can be connected to separate LAN networks. Dual-LAN redundancy involves setting up two separate physical networks to connect the PC host with the CN2600 (the PC host also requires two LAN cards). If one connection fails, the PC host can still communicate with your serial devices over the alternative LAN connection.



Redundant COM

Moxa offers “Redundant COM,” an easy-to-use application to provide an alternative solution for network redundancy. When the CN2600 receives a data packet from a connected device, two identical data packets are sent over two independent LAN connections to prevent lost data packets if one LAN connection becomes unavailable. The CN2600 software is programmed to automatically discard duplicate data packets.



Dual-host Redundancy

The CN2600’s dual-LAN cards can also be used to set up “dual-host” redundancy. In this case, both networks (LAN A and LAN B in the figure) are connected to two different hosts. If either of the two hosts shuts down unexpectedly, the other host will still be able to communicate with serial devices connected to the CN2600.



Dual-AC Model Supported

Dual-power redundancy uses two power inputs and redundant internal power supplies to ensure that all of the CN2600’s functions will be available, even in the event of power circuit failures.





Ethernet Interface

10/100BaseT(X) Ports (RJ45
connector)		2
Magnetic Isolation Protection1.5 kV (built-in)

Ethernet Software Features

Configuration OptionsCN2610-8/CN2610-16: Serial Console, Telnet Console, Windows Utility, Device
Search Utility (DSU)
CN2650-8/CN2650-16/CN2600-2AC models: Serial Console, Telnet
Console, Windows Utility, Device Search Utility (DSU), Web console (HTTP/HTTPS)
ManagementARP, BOOTP, DDNS, DHCP Client, DNS, HTTP, IPv4, SMTP,
SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP, SLIP
MIBMIB-II
SecurityHTTPS/SSL, RADIUS, SSH, PAP, CHAP
Unicast RoutingRIPV1/V2, Static Route
Windows Real COM DriversWindows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10
(x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows
Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY DriversKernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY DriversSCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10,
FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android APIAndroid 3.1.x and later

Serial Interface

ConnectorCN2610/CN2650 models: 8-pin RJ45
CN2650I models: DB9 male
No. of PortsCN2600-8 models: 8
CN2600-16 models: 16
Serial StandardsCN2610 models: RS-232
CN2650 models: RS-232/422/485
Operation ModesReal COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode,
Terminal mode, Reverse Telnet mode, PPP mode, DRDAS mode, Redundant COM
mode, Disabled
Baudrate50 bps to 921.6 kbps
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Flow ControlNone, RTS/CTS, DTR/DSR, XON/XOFF
IsolationCN2650I models: 2 kV
RS-485 Data Direction ControlADDC® (automatic data direction control)
Pull High/Low Resistor for RS-4851 kilo-ohm, 150 kilo-ohms
Terminator for RS-485120 ohms
Console PortRS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND

Power Parameters

No. of Power Inputs-2AC models: 2
All other models: 1
Input Current-HV models: 200 mA @ 88 VDC
All other models: 130 mA @ 110 VAC
Input Voltage-HV models: 110 VDC (88 to 300 VDC)
All other models: 100 to 240 VAC, 47 to 63 Hz

Reliability

Automatic Reboot TriggerBuilt-in WDT
Alert ToolsBuilt-in buzzer and RTC (real-time clock)

Physical Characteristics

HousingMetal
Installation19-inch rack mounting
Dimensions (with ears)480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in)
Dimensions (without ears)440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in)
WeightCN2610-8/CN2650-8: 2,410 g (5.31 lb)
CN2610-16/CN2650-16: 2,460 g (5.42 lb)
CN2610-8-2AC/CN2650-8-2AC/CN2650-8-2AC-T: 2,560 g (5.64 lb)
CN2610-16-2AC/CN2650-16-2AC/CN2650-16-2AC-T: 2,640 g (5.82 lb)
CN2650I-8: 3,907 g (8.61 lb)
CN2650I-16: 4,046 g (8.92 lb)
CN2650I-8-2AC: 4,284 g (9.44 lb)
CN2650I-16-2AC: 4,423 g (9.75 lb)
CN2650I-8-HV-T: 3,848 g (8.48 lb)
CN2650I-16-HV-T: 3,987 g (8.79 lb)

Environmental Limits

Operating TemperatureStandard Models: 0 to 55°C (32 to 131°F)
CN2650-8-2AC-T/CN2650-16-2AC-T: -40 to 75°C (-40 to 167°F)
CN2650I-8-HV-T/CN2650I-16-HV-T: -40 to 85°C (-40 to 185°F)
Storage Temperature (package
included)		Standard Models: 0 to 55°C (32 to 131°F)
CN2650-8-2AC-T/CN2650-16-2AC-T: -40 to 75°C (-40 to 167°F)
CN2650I-8-HV-T/CN2650I-16-HV-T: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCCN2650I models: EN 55032/35
All other models: EN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMS-HV models:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
IEC 61000-4-8 PFMF

All other models:
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
SafetyCN2650I models: UL 62368-1
All other models: UL 60950-1
VibrationIEC 60068-2-6
FreefallIEC 60068-2-32

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

TimeCN2610-8: 831,925 hrs
CN2610-16: 639,332 hrs
CN2610-8-2AC/CN2650-8-2AC: 773,268 hrs
CN2610-16-2AC: 604,346 hrs
CN2650-8: 657,123 hrs
CN2650-16: 457,175 hrs
CN2650-16-2AC: 442,699 hrs
CN2650I-8: 374,652 hrs
CN2650I-8-2AC: 370,752 hrs
CN2650-8-2AC-T: 190,562 hrs
CN2650I-16: 248,847 hrs
CN2650I-16-2AC: 247,119 hrs
CN2650-16-2AC-T: 115,887 hrs
CN2650I-8-HV-T: 357,995 hrs
CN2650I-16-HV-T: 241,404 hrs
StandardsTelcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for CN2600 Series Datasheet V1.6 22 December 2020

CN2610-8

Serial Standards RS-232/422/485
No. of Serial Ports 8
Serial Connector 8-pin RJ45
Isolation -
No. of Power Inputs 1
Power Input 100-240 VAC
Operating Temp. 0 to 55°C

CN2610-16

Serial Standards RS-232/422/485
No. of Serial Ports 16
Serial Connector 8-pin RJ45
Isolation -
No. of Power Inputs 1
Power Input 100-240 VAC
Operating Temp. 0 to 55°C

CN2610-8-2AC

Serial Standards RS-232/422/485
No. of Serial Ports 8
Serial Connector 8-pin RJ45
Isolation -
No. of Power Inputs 2
Power Input 100-240 VAC
Operating Temp. 0 to 55°C

CN2610-16-2AC

Serial Standards RS-232/422/485
No. of Serial Ports 16
Serial Connector 8-pin RJ45
Isolation -
No. of Power Inputs 2
Power Input 100-240 VAC
Operating Temp. 0 to 55°C

CN2650-8

Serial Standards RS-232/422/485
No. of Serial Ports 8
Serial Connector 8-pin RJ45
Isolation -
No. of Power Inputs 1
No. of Power Inputs 1
Power Input 100-240 VAC
Operating Temp. 0 to 55°C

CN2650-16

Serial Standards RS-232/422/485
No. of Serial Ports 16
Serial Connector 8-pin RJ45
Isolation -
No. of Power Inputs 1
Power Input 100-240 VAC
Operating Temp. 0 to 55°C

CN2650-8-2AC

Serial Standards RS-232/422/485
No. of Serial Ports 8
Serial Connector 8-pin RJ45
Isolation -
No. of Power Inputs 2
Power Input 100-240 VAC
Operating Temp. 0 to 55°C

CN2650-16-2AC

Serial Standards RS-232/422/485
No. of Serial Ports 16
Serial Connector 8-pin RJ45
Isolation -
No. of Power Inputs 2
Power Input 100-240 VAC
Operating Temp. 0 to 55°C

CN2650I-8

Serial Standards RS-232/422/485
No. of Serial Ports 8
Serial Connector DB9 male
Isolation 2 kV
No. of Power Inputs 1
Power Input 100-240 VAC
Operating Temp. 0 to 55°C

CN2650I-16

Serial Standards RS-232/422/485
No. of Serial Ports 16
Serial Connector DB9 male
Isolation 2 kV
No. of Power Inputs 1
Power Input 100-240 VAC
Operating Temp. 0 to 55°C

CN2650I-8-2AC

Serial Standards RS-232/422/485
No. of Serial Ports 8
Serial Connector DB9 male
Isolation 2 kV
No. of Power Inputs 2
Power Input 100-240 VAC
Operating Temp. 0 to 55°C

CN2650I-16-2AC

Serial Standards RS-232/422/485
No. of Serial Ports 16
Serial Connector DB9 male
Isolation 2 kV
No. of Power Inputs 2
Power Input 100-240 VAC
Operating Temp. 0 to 55°C

CN2650-8-2AC-T

Serial Standards RS-232/422/485
No. of Serial Ports 8
Serial Connector 8-pin RJ45
Isolation -
No. of Power Inputs 2
Power Input 100-240 VAC
Operating Temp. -40 to 75°C

CN2650-16-2AC-T

Serial Standards RS-232/422/485
No. of Serial Ports 16
Serial Connector 8-pin RJ45
Isolation -
No. of Power Inputs 2
Power Input 100-240 VAC
Operating Temp. -40 to 75°C

CN2650I-8-HV-T

Serial Standards RS-232/422/485
No. of Serial Ports 8
Serial Connector DB9 male
Isolation 2 kV
No. of Power Inputs 1
Power Input 88-300 VDC
Operating Temp. -40 to 85°C

CN2650I-16-HV-T

Serial Standards RS-232/422/485
No. of Serial Ports 16
Serial Connector DB9 male
Isolation 2 kV
No. of Power Inputs 1
Power Input 88-300 VDC
Operating Temp. -40 to 85°C
