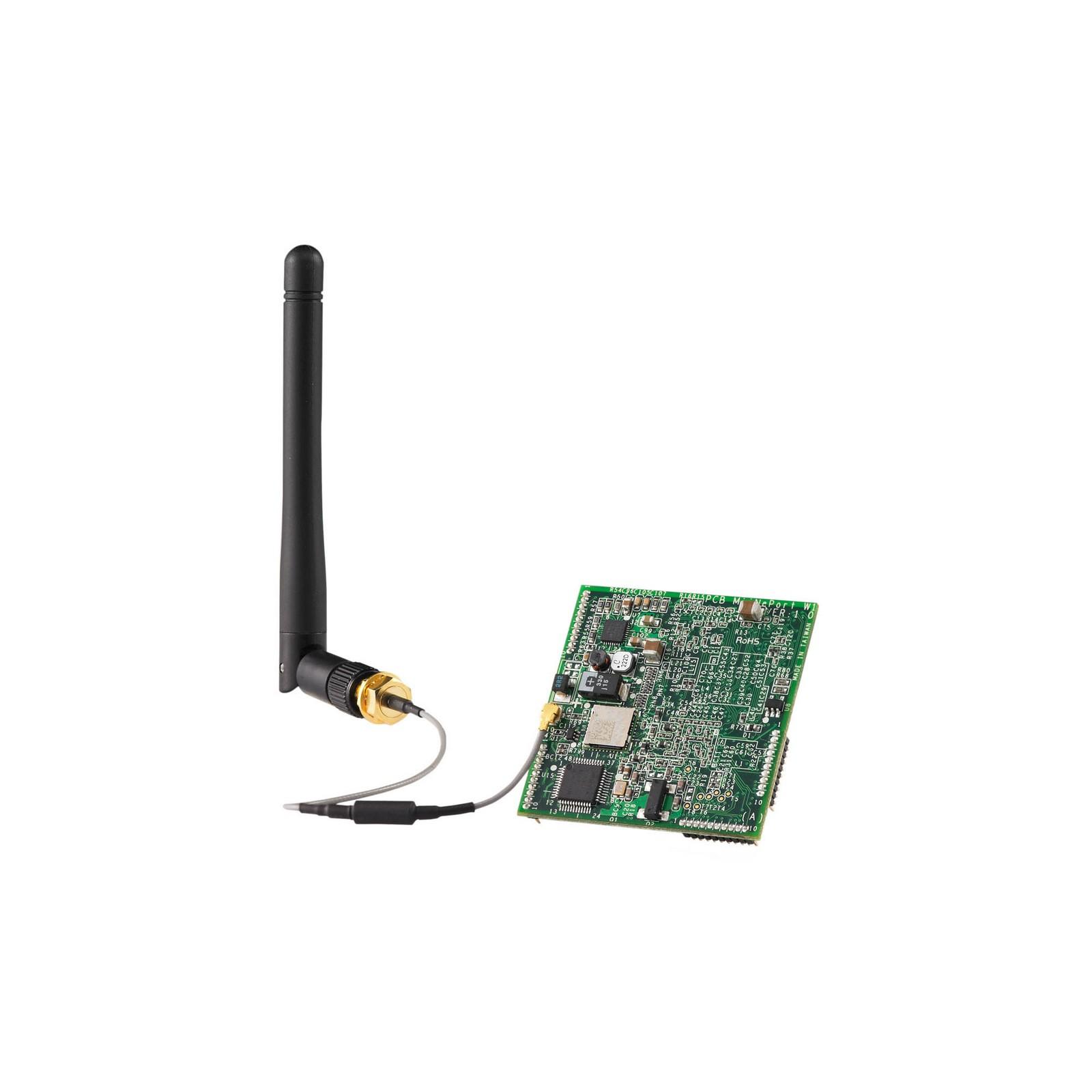

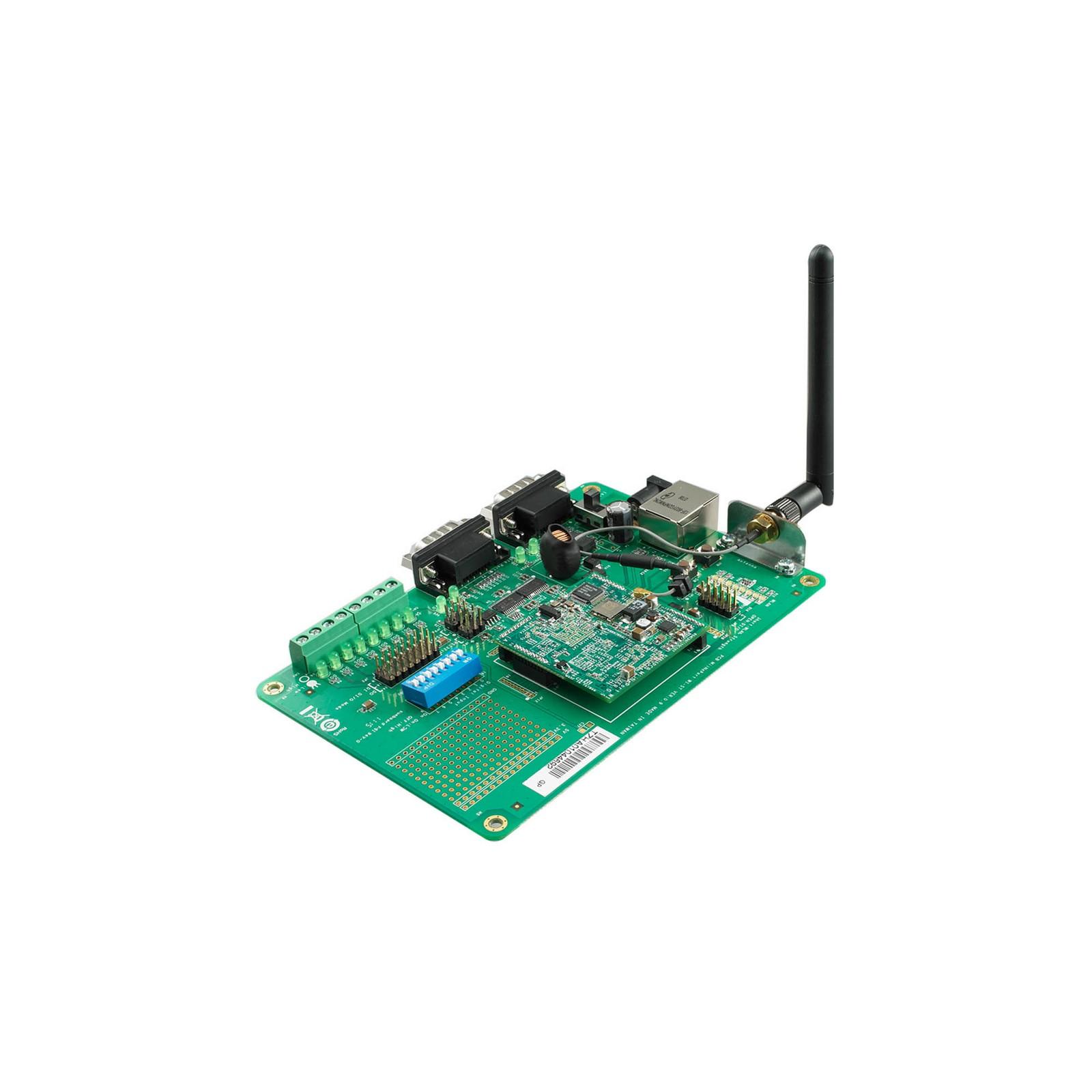

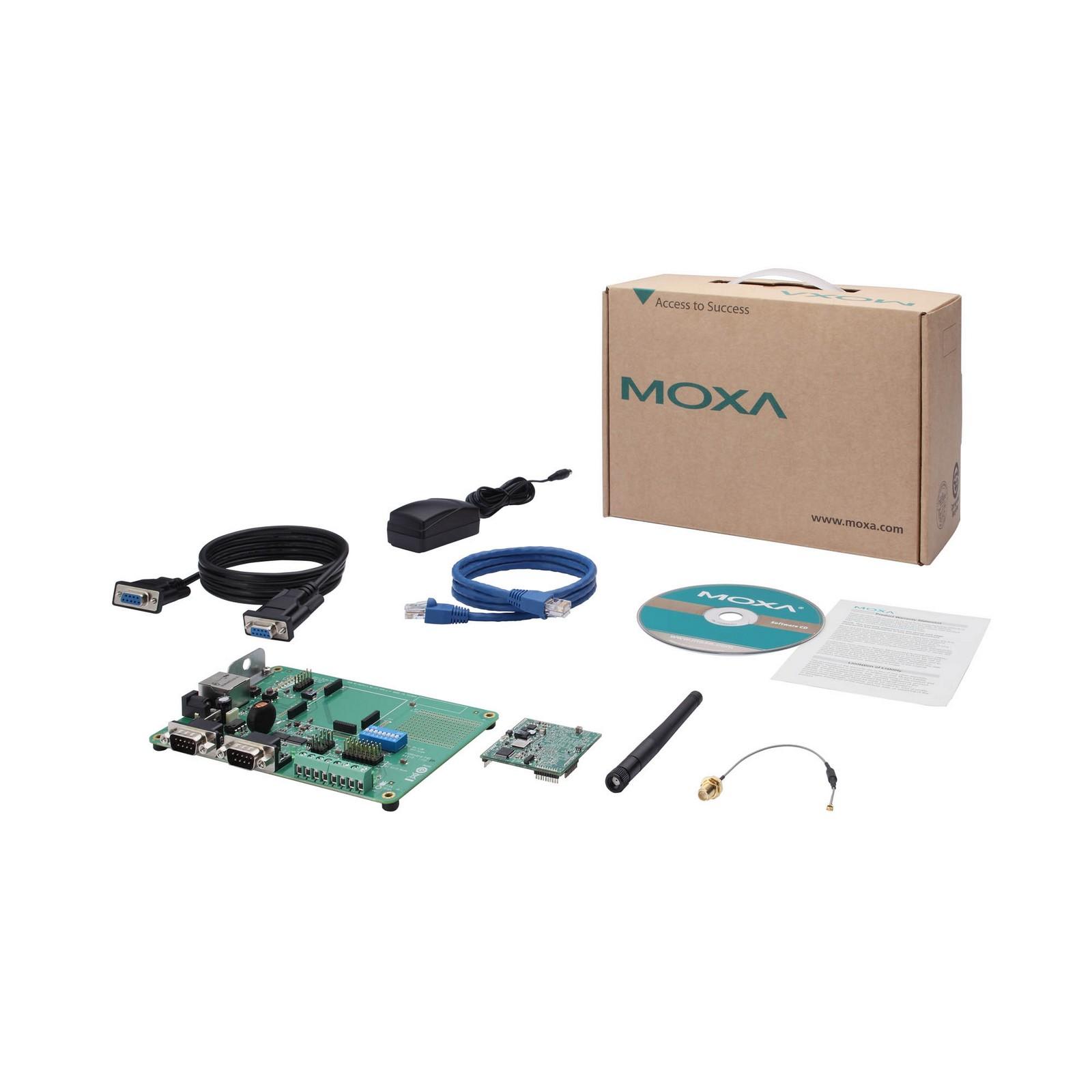

Embedded System |
| CPU | 32-bit Arm Core |
Memory |
| Flash | 16 MB |
| SDRAM | 64 MB |
Input/Output Interface |
Configurable DIO Channels (by
software) | 8 |
Ethernet Interface |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control |
| 10/100BaseT(X) Port | Auto MDI/MDI-X connection |
Ethernet Software Features |
| Configuration Options | Web Console (HTTP/HTTPS), Windows Utility, Telnet Console, Serial
Console |
| Management | ARP, BOOTP, Device Search Utility (DSU), DHCP Client, IPv4, SMTP,
SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10
(x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded
CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10,
FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
| MIB | Device Settings MIB, RFC1213, RFC1317 |
| Time Management | SNTP |
Serial Interface |
| No. of Ports | 1 |
| Serial Standards | TTL |
| Operation Modes | Real COM mode, TCP Server mode, TCP Client mode, UDP mode,
RFC2217 mode, Disabled |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd |
| Flow Control | None, RTS/CTS, XON/XOFF |
Serial Signals |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
WLAN Interface |
| Antenna | External, 2 dBi |
| Spread Spectrum | DSSS, OFDM |
| Transmission Rate | 802.11b: 11 Mbps
802.11g: 54 Mbps |
Receiver Sensitivity for 802.11g
(measured at 2.437 GHz) | Typ. -71 dBm @ 54 Mbps |
| Transmitter Power for 802.11b | 16±1.5 dBm @ 11 Mbps |
| Transmitter Power for 802.11g | 14±1.5 dBm @ 54 Mbps |
| WLAN Modes | Ad-hoc Mode, Infrastructure mode |
WLAN Module |
| Module Antenna Connectors | 1 I-PEX connectors |
Antenna Characteristics |
| Antenna Type | Omni-directional |
Power Parameters |
| Input Current | 400 mA @ 3.3 VDC |
| Input Voltage | 3.3 to 5 VDC |
Reliability |
| Automatic Reboot Trigger | Built-in WDT |
Physical Characteristics |
| Form Factor Type | Drop-in modules |
| Dimensions | 44.4 x 44.4 x 9.7 mm (1.75 x 1.75 x 0.38 in) |
| Weight | 15.35 g (0.03 lb) |
Environmental Limits |
| Operating Temperature | MiiNePort W1/W1-ST: 0 to 55°C (32 to 131°F)
MiiNePort W1-T: -40 to 75°C (-40 to 167°F) |
Storage Temperature (package
included) | -40 to 60°C (-40 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 8 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 |
| Environmental Testing | IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3 |
| Radio Frequency | EN 300 328, EN 301 489 |
| Safety | EN 60950-1, UL 60950-1 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
Declaration |
| Green Product | RoHS, CRoHS, WEEE |
MTBF |
| Time | 441,378 hrs |
| Standards | Telcordia SR332 |
Warranty |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
