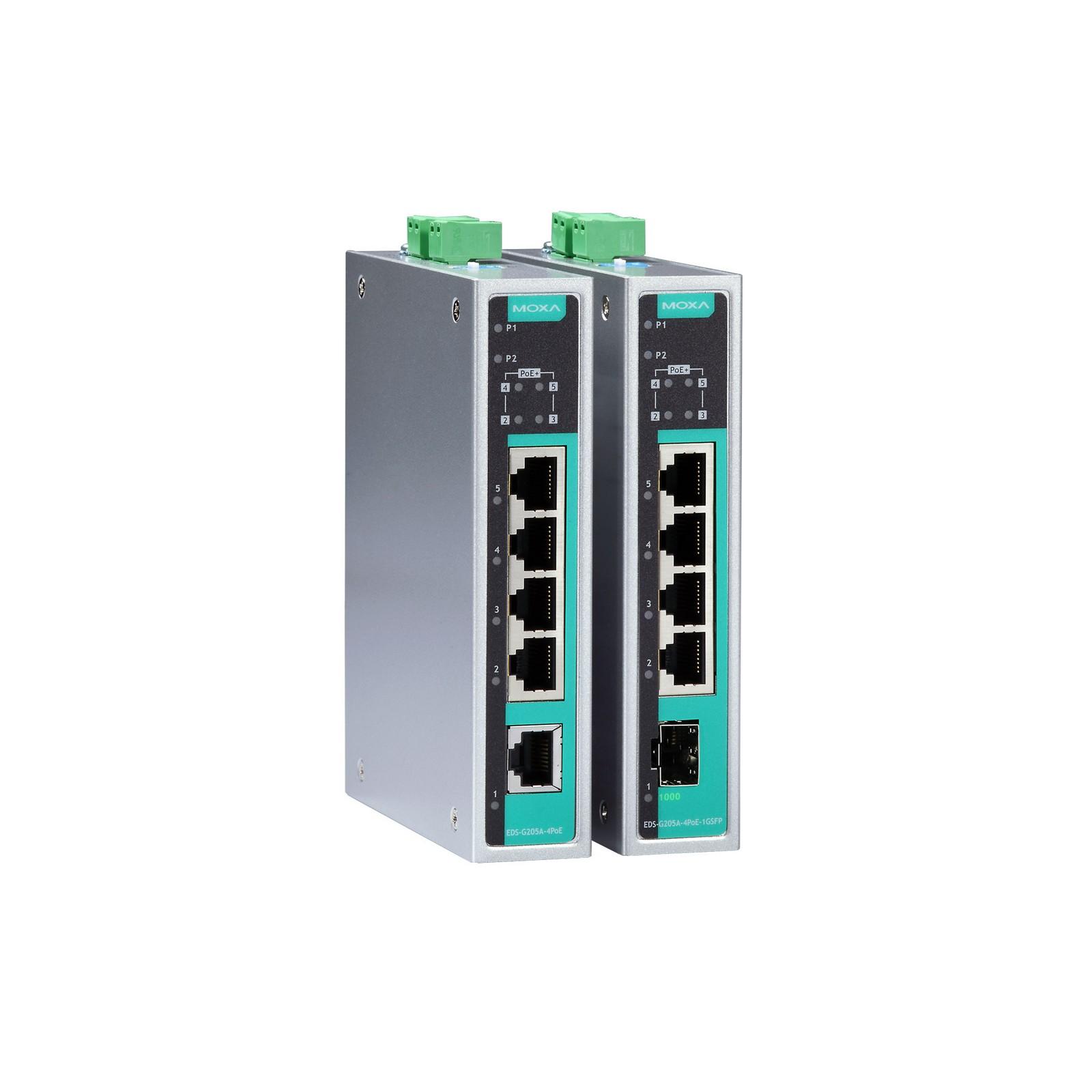

EDS-G205A Series

Introduction

The EDS-G205A-4PoE switches are smart, 5-port, unmanaged full Gigabit Ethernet switches supporting Power-over-Ethernet on ports 2 to 5. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-G205A-4PoE switches enable centralization of the power supply, providing up to 36 watts of power per port and reducing the effort needed for installing power.

The switches can be used to power IEEE 802.3af/at standard devices (power devices), eliminating the need for additional wiring, and they support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical high-bandwidth solution for your industrial Ethernet network.

Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector)	EDS-G205A-4PoE Series: 5 EDS-G205A-4PoE-1GSFP Series: 4 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
100/1000BaseSFP Ports	EDS-G205A-4PoE-1GSFP Series: 1
PoE Ports (10/100/1000BaseT(X), RJ45 connector)	4
Standards	IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX
PoE Pinout	V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)
Switch Properties
MAC Table Size	8 K
Packet Buffer Size	1 Mbits
Processing Type	Store and Forward
Jumbo Frame Size	10 KB
Power Parameters
Connection	2 removable 2-contact terminal block(s)
Input Voltage	12/24/48 VDC, Redundant dual inputs
Operating Voltage	12 to 57 VDC
Overload Current Protection	Supported
Power Consumption (Max.)	Max. 11.73 W full loading without PDs’ consumption
Reverse Polarity Protection	Supported
Input Current	5.65 A @ 24 VDC
Power Budget	62 W (max.) @ 12 VDC for total PD consumption; 36 W (max.) for each PoE port 120 W (max.) @ 24 VDC for total PD consumption; 36 W (max.) for each PoE port 144 W (max.) @ 48 VDC for total PD consumption; 36 W (max.) for each PoE port
Physical Characteristics
Housing	Metal
IP Rating	IP30
Dimensions	29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)
Weight	300 g (0.66 lb)
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature	Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Freefall	IEC 60068-2-32
EMC	EN 61000-6-2/-6-4
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Railway	EN 50121-4
Safety	UL 508
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
MTBF
Time	1,257,910 hrs
Standards	Telcordia (Bellcore), GB
Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty

Name		Type	Version	Release Date
Datasheet for EDS-G205A Series		Datasheet	V1.1	12 December 2019

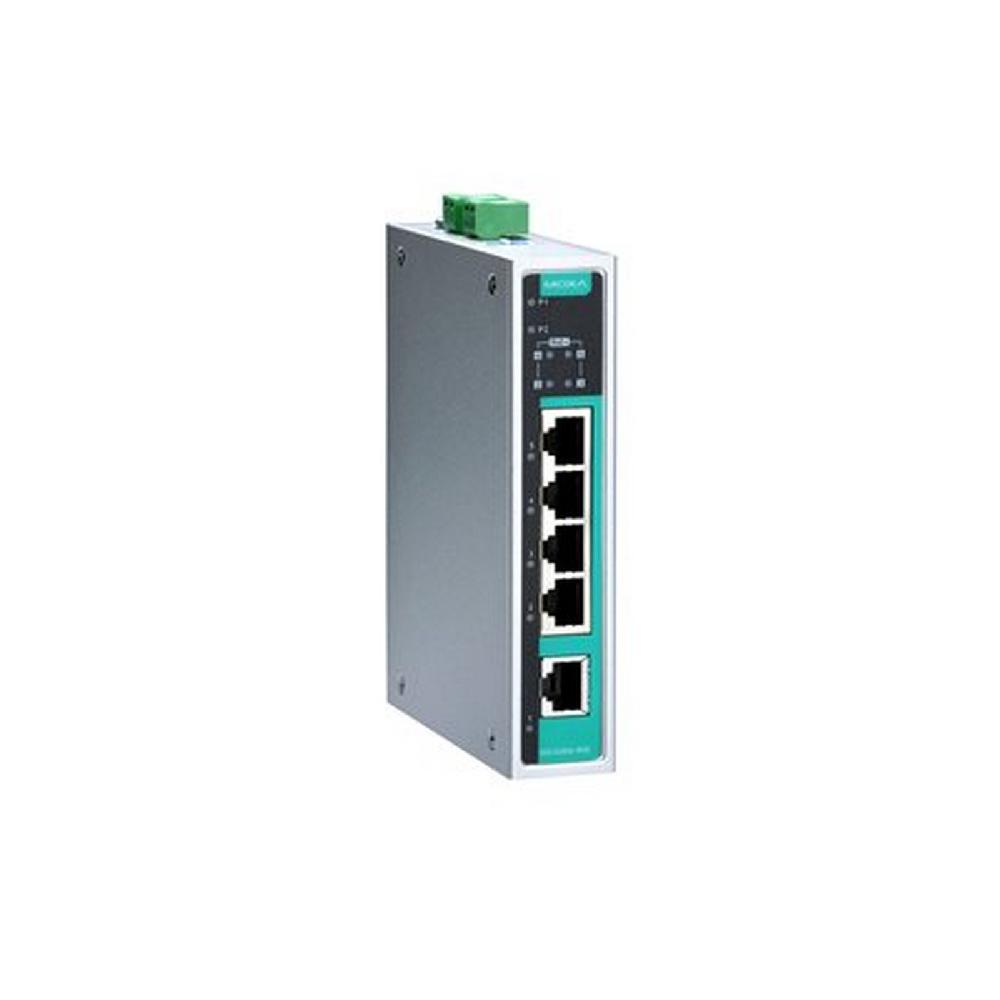

EDS-G205A-4PoE

10/100/1000BaseT(X) Ports RJ45 Connector	5
100/1000Base SFP Slots	-
PoE Ports 10/100/1000BaseT(X), RJ45 Connector	4
Operating Temp.	0 to 60°C

EDS-G205A-4PoE-1GSFP

10/100/1000BaseT(X) Ports RJ45 Connector	4
100/1000Base SFP Slots	1
PoE Ports 10/100/1000BaseT(X), RJ45 Connector	4
Operating Temp.	0 to 60°C

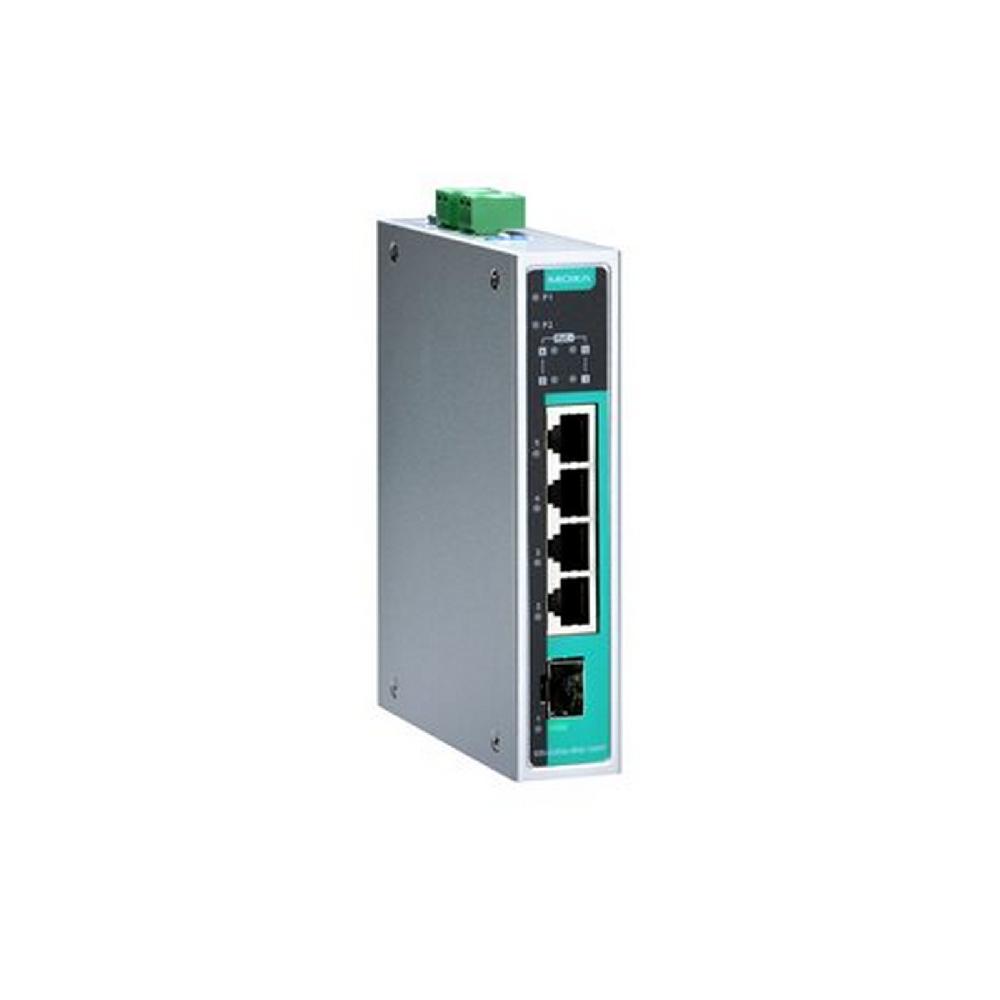

EDS-G205A-4PoE-1GSFP-T

10/100/1000BaseT(X) Ports RJ45 Connector	4
100/1000Base SFP Slots	1
PoE Ports 10/100/1000BaseT(X), RJ45 Connector	4
Operating Temp.	-40 to 75°C

EDS-G205A-4PoE-T

10/100/1000BaseT(X) Ports RJ45 Connector	5
100/1000Base SFP Slots	-
PoE Ports 10/100/1000BaseT(X), RJ45 Connector	4
Operating Temp.	-40 to 75°C

EDS-G205A Series

Product Feature

Introduction

Ethernet Interface

Switch Properties

Power Parameters

Physical Characteristics

Environmental Limits

Standards and Certifications

MTBF

Warranty

EDS-G205A-4PoE

EDS-G205A-4PoE-1GSFP

EDS-G205A-4PoE-1GSFP-T

EDS-G205A-4PoE-T
