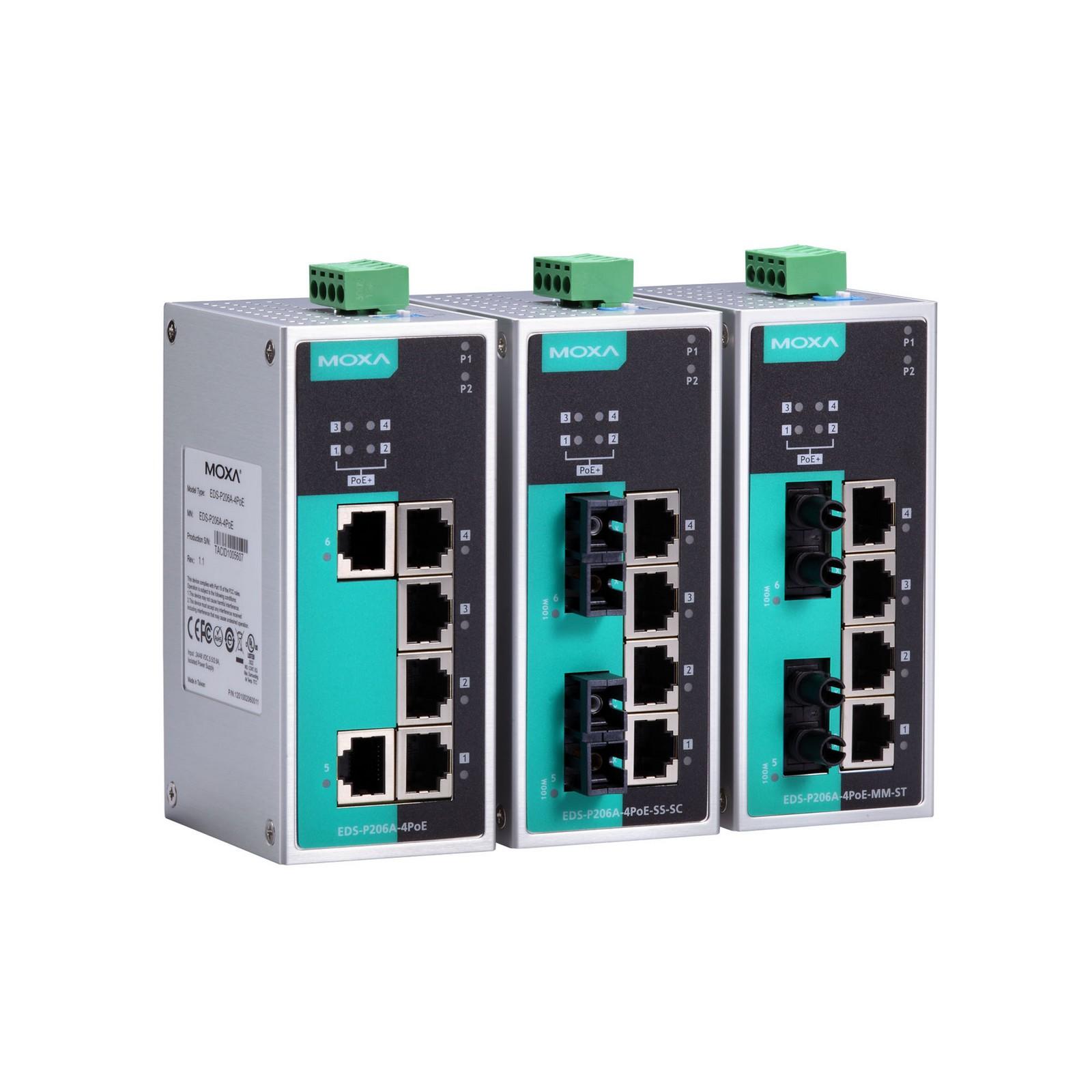

EDS-P206A Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   PoE Switches

6-port unmanaged Ethernet switches with 4 IEEE 802.3af/at PoE+ ports

Product Feature

  • IEEE 802.3af/at compliant PoE and Ethernet combo ports
  • Up to 30 W output per PoE port
  • 12/24/48 VDC redundant power inputs
  • Intelligent power consumption detection and classification
  • Redundant dual VDC power inputs
  • -40 to 75°C operating temperature range (-T models)

Introduction

The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port.

The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.

Ethernet Interface

10/100BaseT(X) Ports (RJ45
connector)		EDS-P206A-4PoE Series: 2
EDS-P206A-4PoE-M-SC/M-ST/S-SC Series: 1

Supported functions:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC
connector)		EDS-P206A-4PoE-M-SC Series: 1
EDS-P206A-4PoE-MM-SC Series: 2
100BaseFX Ports (multi-mode ST
connector)		EDS-P206A-4PoE-M-ST Series: 1
EDS-P206A-4PoE-MM-ST Series: 2
100BaseFX Ports (single-mode SC
connector)		EDS-P206A-4PoE-S-SC/P206A-4PoE-S-SC-T: 1
EDS-P206A-4PoE-SS-SC/P206A-4PoE-SS-SC-T: 2
PoE Ports (10/100BaseT(X), RJ45
connector)		4
StandardsIEEE 802.3 for 10BaseT
IEEE 802.3af/at for PoE/PoE+ output
IEEE 802.3x for flow control
IEEE 802.3u for 100BaseT(X)
PoE PinoutV+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)

Switch Properties

Packet Buffer Size768 kbits
MAC Table Size2 K
Processing TypeStore and Forward

Power Parameters

Input Current5.55 A @ 24 VDC
Connection1 removable 4-contact terminal block(s)
Operating Voltage12 to 57 VDC
Input Voltage12/24/48 VDC, Redundant dual inputs
Power BudgetMax. 120 W for total PD consumption
Max. 30 W for each PoE port
Power Consumption (Max.)Max. 13.2 W full loading without PDs’ consumption
Reverse Polarity ProtectionSupported
Overload Current ProtectionSupported

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions50.3 x 114 x 70 mm (1.98 x 4.53 x 2.76 in)
Weight375 g (0.83 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating TemperatureStandard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)		-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMICISPR 32, FCC Part 15B Class A
EMCEN 55032/24
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
SafetyUL 508

MTBF

Time1,398,743 hrs
StandardsTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-P206A Series Datasheet V1.0 12 November 2018

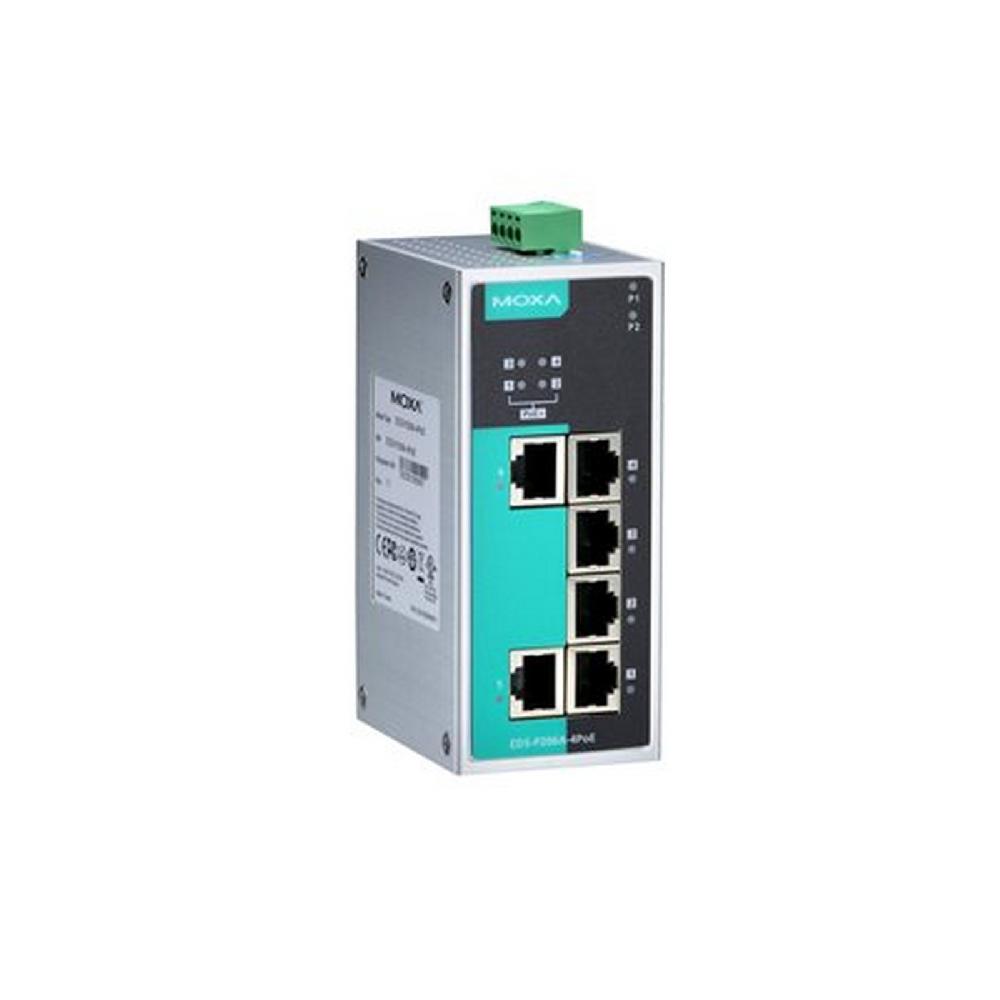

EDS-P206A-4PoE

10/100BaseT(X) Ports RJ45 Connector 2
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-P206A-4PoE-MM-SC

10/100BaseT(X) Ports RJ45 Connector -
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-P206A-4PoE-MM-SC-T

10/100BaseT(X) Ports RJ45 Connector -
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

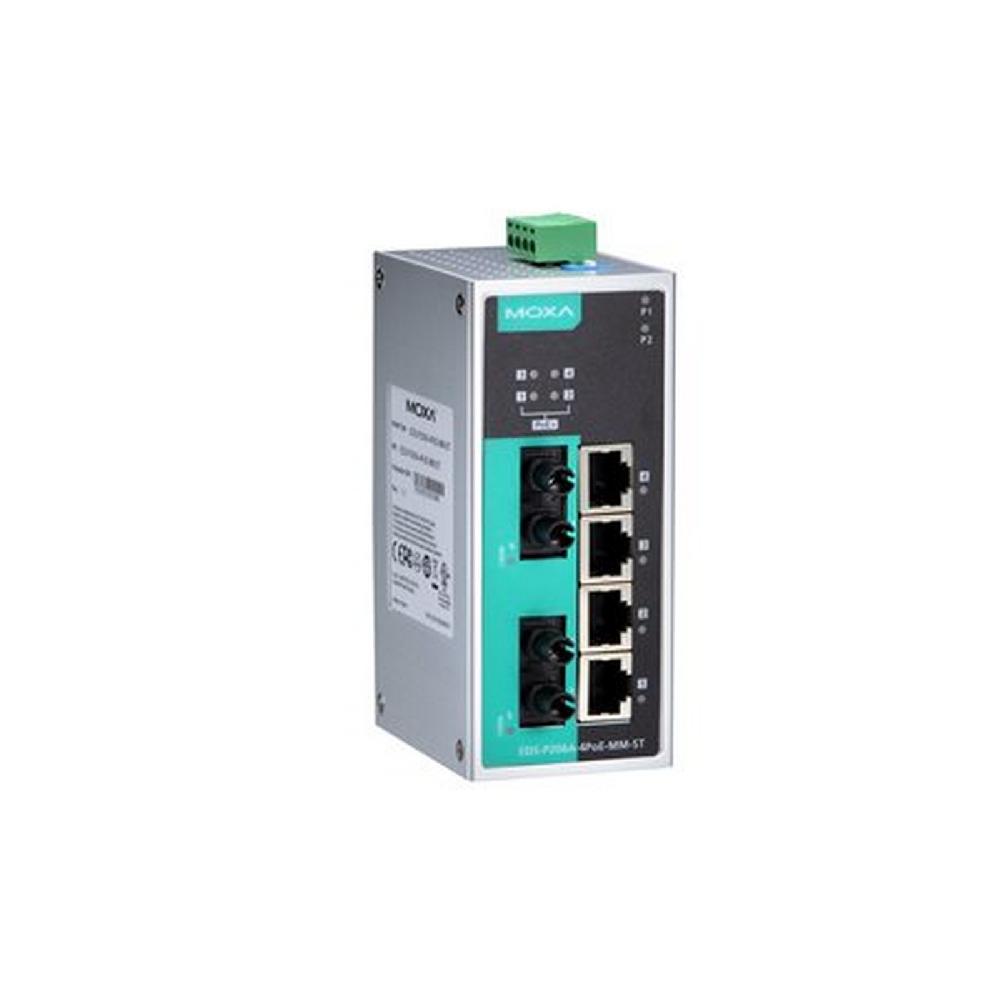

EDS-P206A-4PoE-MM-ST

10/100BaseT(X) Ports RJ45 Connector -
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 2
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-P206A-4PoE-MM-ST-T

10/100BaseT(X) Ports RJ45 Connector -
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 2
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

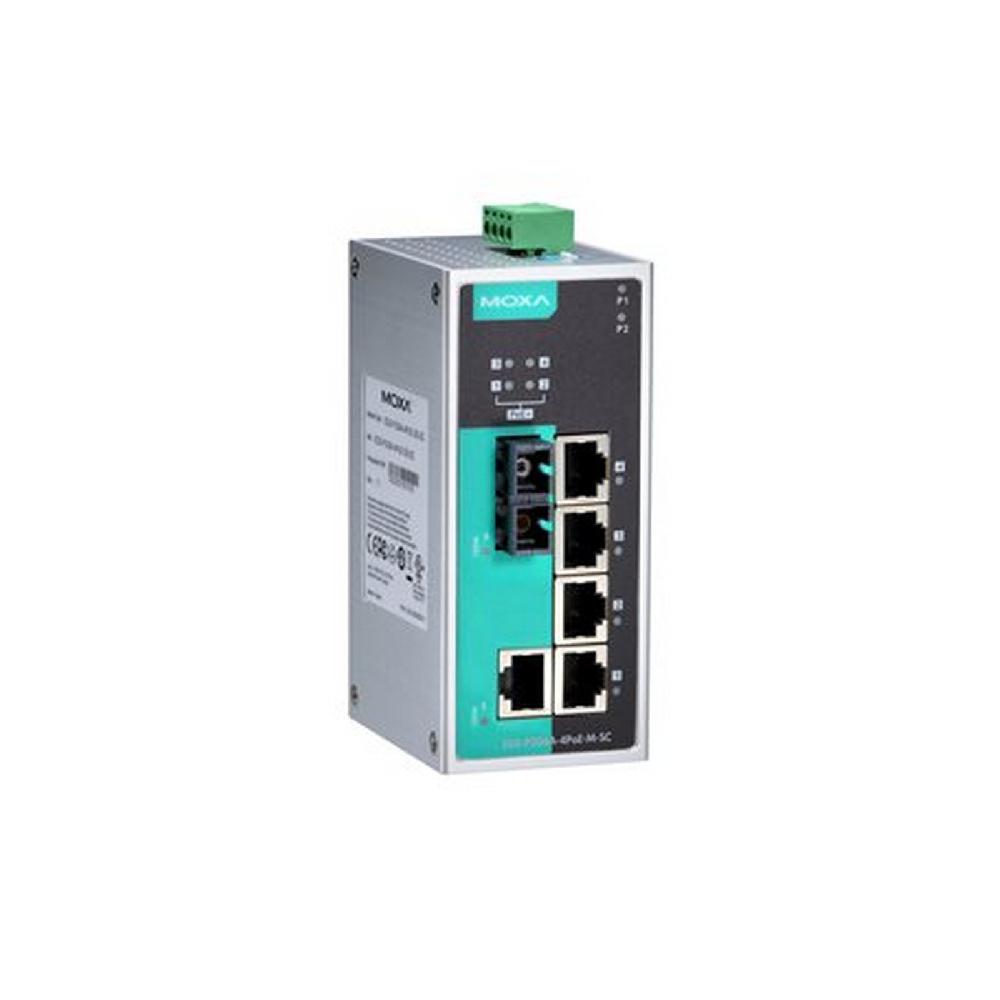

EDS-P206A-4PoE-M-SC

10/100BaseT(X) Ports RJ45 Connector 1
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector 1
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-P206A-4PoE-M-SC-T

10/100BaseT(X) Ports RJ45 Connector 1
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector 1
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-P206A-4PoE-M-ST

10/100BaseT(X) Ports RJ45 Connector 1
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 1
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-P206A-4PoE-M-ST-T

10/100BaseT(X) Ports RJ45 Connector 1
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 1
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-P206A-4PoE-S-SC

10/100BaseT(X) Ports RJ45 Connector 1
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 1
Operating Temp. -10 to 60°C

EDS-P206A-4PoE-S-SC-T

10/100BaseT(X) Ports RJ45 Connector 1
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 1
Operating Temp. -40 to 75°C

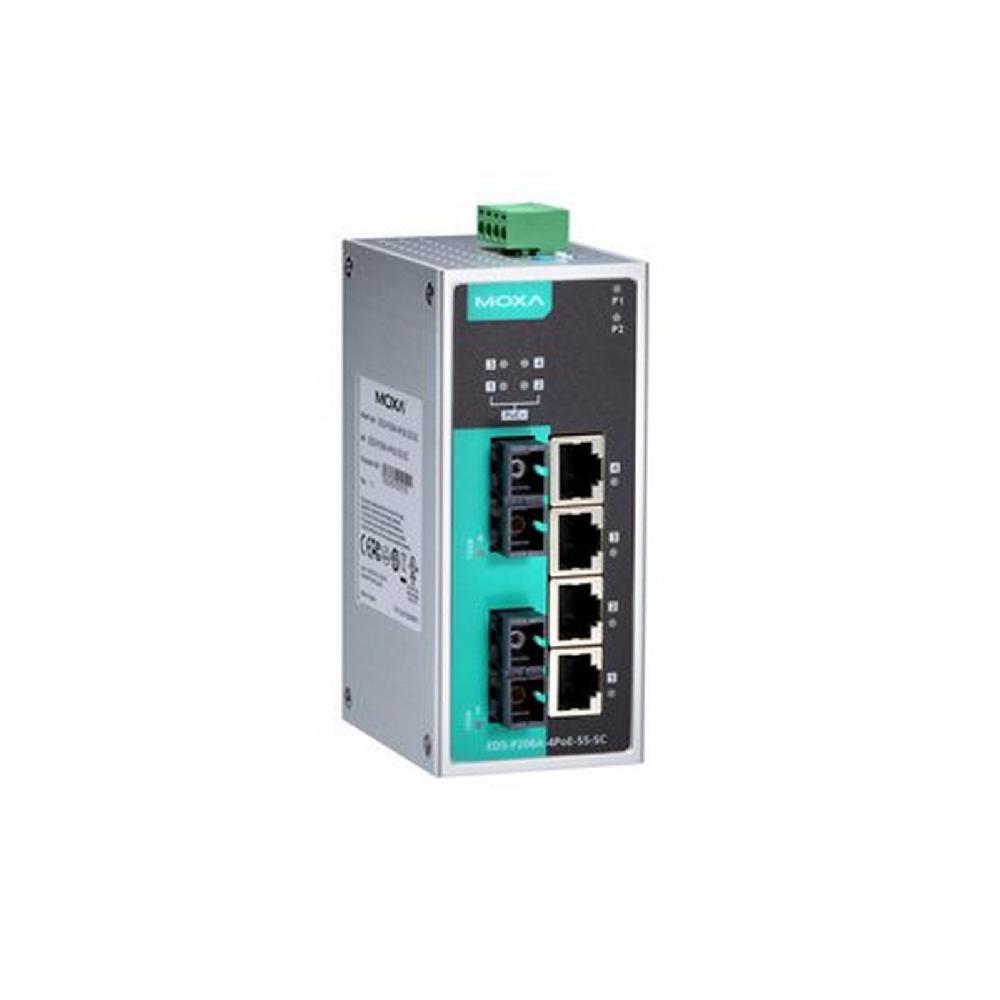

EDS-P206A-4PoE-SS-SC

10/100BaseT(X) Ports RJ45 Connector -
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -10 to 60°C

EDS-P206A-4PoE-SS-SC-T

10/100BaseT(X) Ports RJ45 Connector -
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -40 to 75°C

EDS-P206A-4PoE-T

10/100BaseT(X) Ports RJ45 Connector 2
PoE Ports, 10/100BaseT(X) RJ45 Connector 4
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C
