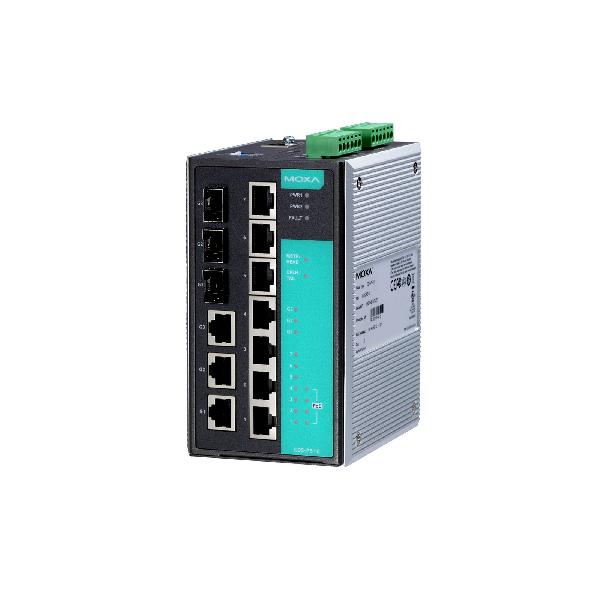

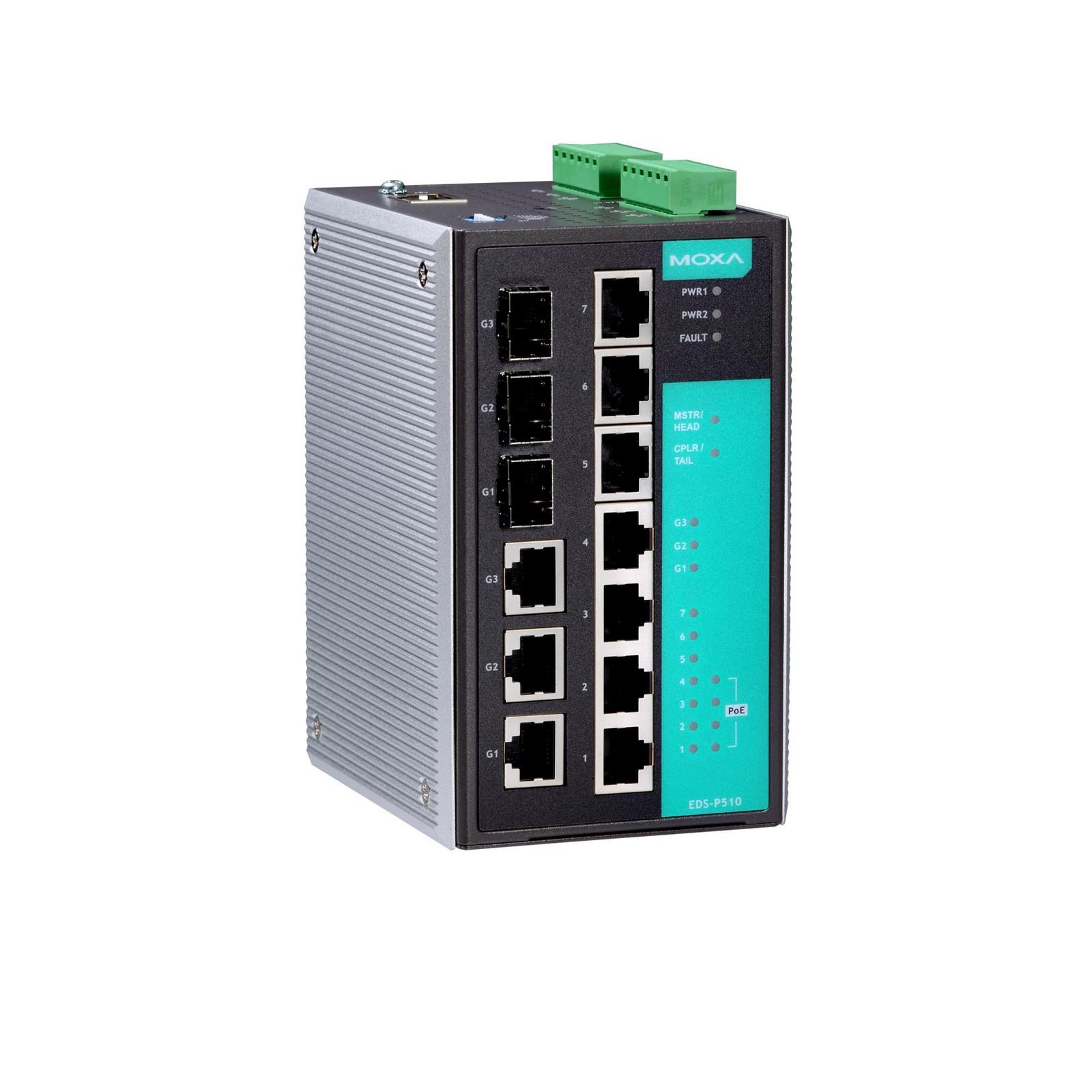

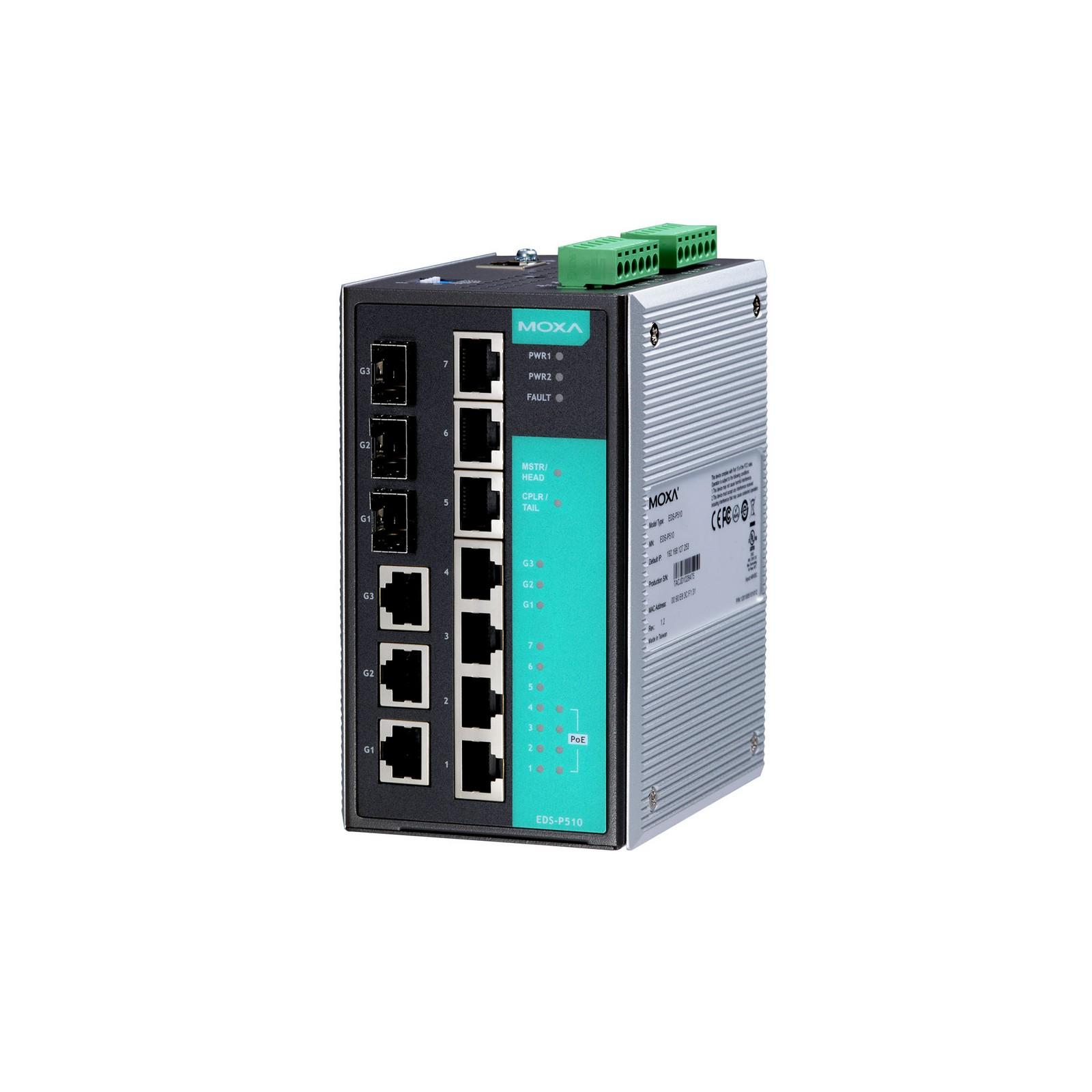

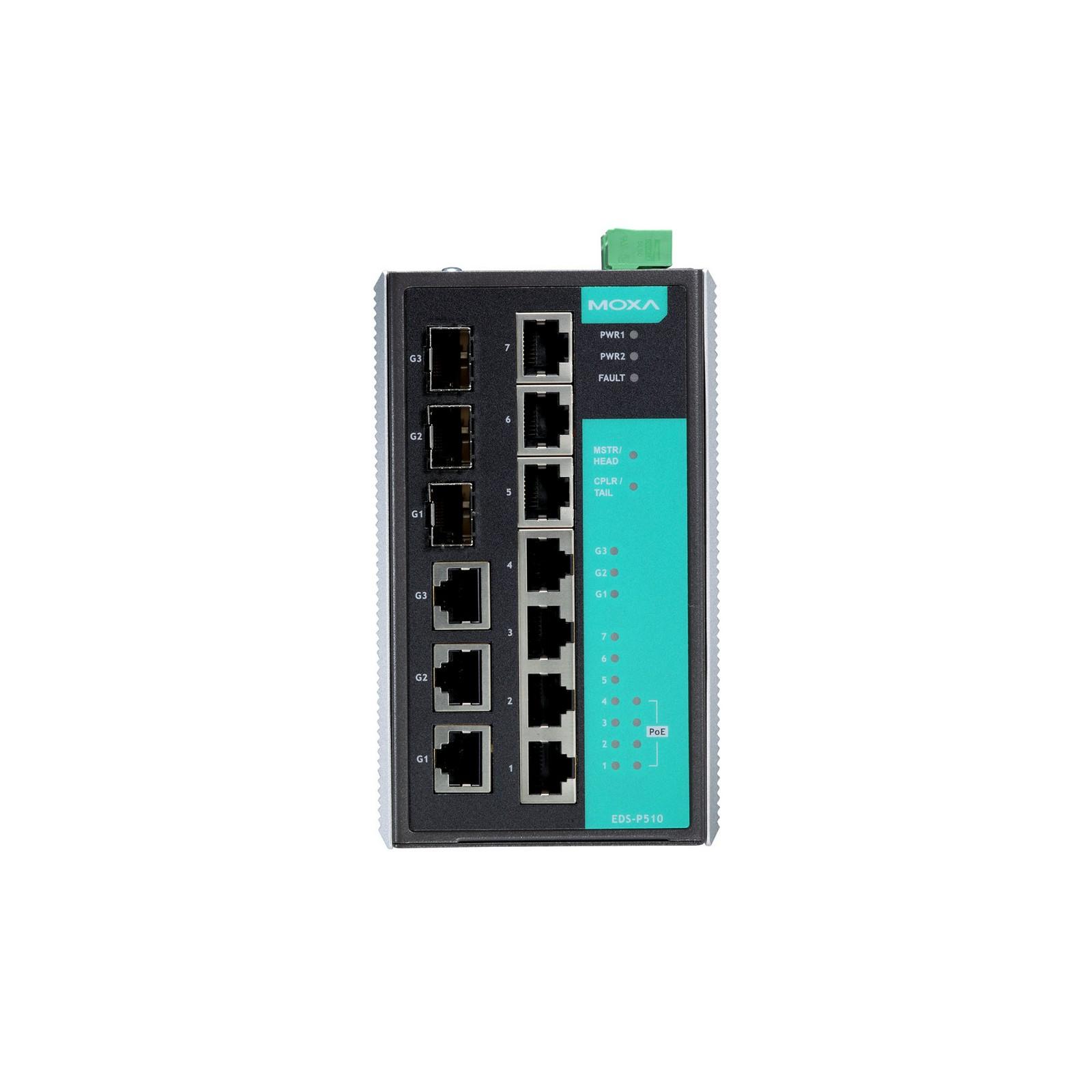

EDS-P510 Series

Introduction

The EDS-P510 Series Gigabit managed redundant Ethernet switches have 4 10/100BaseT(X) 802.3af (PoE) compliant Ethernet ports and 3 combo Gigabit Ethernet ports. The EDS-P510 switches provide up to 15.4 watts of power per PoE port, and allow power to be supplied to connected devices (such as surveillance cameras, wireless access points, and IP phones) when AC power is not readily available or is cost-prohibitive to provide locally. The EDS-P510 switches are highly versatile, and their SFP fiber port can transmit data up to 80 km from the device to the control center with high EMI immunity. The Ethernet switches support advanced management and security features. The EDS-P510 Series is designed especially for security automation applications such as IP surveillance and entry system gates, which can benefit from a scalable backbone construction and PoE.

Additional Features and Benefits

• Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)
• Command Line Interface (CLI) for quickly configuring major managed functions
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP and Modbus/TCP protocols for device management and monitoring
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
• QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
• Port Trunking for optimum bandwidth utilization
• TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
• Lock port function for blocking unauthorized access based on MAC address
• SNMPv1/v2c/v3 for different levels of network management
• RMON for efficient network monitoring and proactive capability
• Bandwidth management to prevent unpredictable network status
• Port mirroring for online debugging
• Automatic warning by exception through e-mail, relay output
