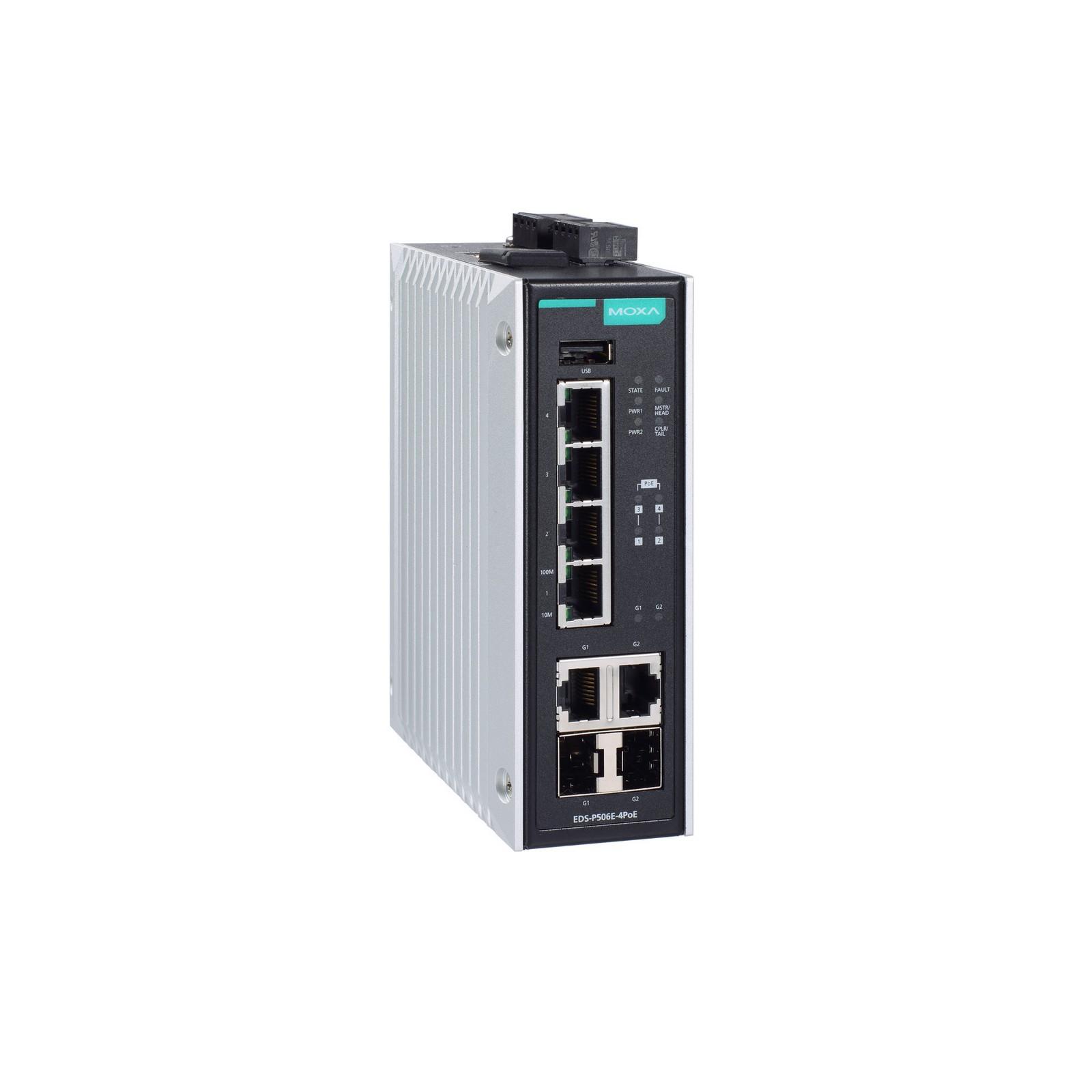

The EDS-P506E Series includes Gigabit managed PoE+ Ethernet switches that come standard with 4 10/100BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet ports, and 2 combo Gigabit Ethernet ports. The EDS-P506E Series provides up to 30 watts of power per PoE+ port in standard mode and allows a high-power output of up to 4-pair 60 W for industrial heavy-duty PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and rugged IP phones.
The EDS-P506E Series is highly versatile, and the SFP fiber ports can transmit data up to 120 km from the device to the control center with high EMI immunity. The Ethernet switches support a variety of management functions, including STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The EDS-P506E Series is designed especially for harsh outdoor applications with 4 kV surge protection to ensure uninterrupted reliability of PoE systems.
Ethernet Interface | |
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) | 2 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed |
| PoE Ports (10/100BaseT(X), RJ45 connector) | 4 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed |
| Standards | IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
Ethernet Software Features | |
| Filter | 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN |
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET |
| Management | Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| MIB | Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
| Redundancy Protocols | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Security | Broadcast storm protection, HTTPS/SSL, MAC ACL, TACACS+, MAB authentication, Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH |
| Time Management | IEEE 1588v2 PTP (software-based), NTP Server/Client, SNTP |
Switch Properties | |
| IGMP Groups | 256 |
| Jumbo Frame Size | 9.6 KB |
| MAC Table Size | 8 K |
| Packet Buffer Size | 12 Mbits |
| Priority Queues | 4 |
| Max. No. of VLANs | 64 |
| VLAN ID Range | VID 1 to 4094 |
USB Interface | |
| Storage Port | USB Type A |
LED Interface | |
| LED Indicators | PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 10/100/1000M (Gigabit Combo port), MSTR/HEAD, CPLR/TAIL, PoE |
Serial Interface | |
| Console Port | USB-serial console (Type B connector) |
Input/Output Interface | |
| Digital Input Channels | 1 |
| Digital Inputs | Max. input current: 8 mA +13 to +30 V for state 1 -30 to +3 V for state 0 |
| Alarm Contact Channels | 1, Relay output with current carrying capacity of 0.5 A @ 48 VDC |
| Buttons | Reset button |
DIP Switch Configuration | |
| Ethernet Interface | Turbo Ring, Master, Coupler, Reserve |
Power Parameters | |
| Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Operating Voltage | 12 to 57 VDC (> 50 VDC for PoE+ output recommended) |
| Input Current | 4.08 A @ 48 VDC |
| Max. PoE Power Output per Port | 60 W |
| Connection | 2 removable 4-contact terminal block(s) |
| Power Consumption (Max.) | Max. 18.96 W full loading without PDs’ consumption |
| Total PoE Power Budget | Max. 180 W for total PD's consumption @ 48 VDC input Max. 150 W for total PD's consumption @ 24 VDC input Max. 62 W for total PD's consumption @ 12 VDC input |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP40 |
| Dimensions | 49.1 x 135 x 116 mm (1.93 x 5.31 x 4.57 in) |
| Weight | 910 g (2.00 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Environmental Limits | |
| Operating Temperature | EDS-P506E-4PoE-2GTXSFP: -10 to 60°C (14 to 140°F) EDS-P506E-4PoE-2GTXSFP-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| Safety | UL 61010-2-201, EN 61010-2-201 |
| EMC | EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-6 CS: 10 V IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-11 DIPs IEC 61000-4-8 PFMF |
| Power Substation | IEEE 1613, IEC 61850-3 Edition 2.0 |
| Railway | EN 50121-4 |
| Traffic Control | NEMA TS2 |
| Vibration | IEC 60068-2-6 |
| Bump | IEC 61850-3 Edition 2.0 |
| Freefall | IEC 60068-2-31 |
| Shock | IEC 60068-2-27 |
MTBF | |
| Time | 755,167 hrs |
| Standards | Telcordia (Bellcore), GB |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for EDS-P506E Series | Datasheet | V1.3 | 10 Febuary 2020 |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP+ | 2 |
| PoE Ports 10/100BaseT(X), RJ45 Connector | 4 |
| Operating Temp. | -10 to 60°C |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP+ | 2 |
| PoE Ports 10/100BaseT(X), RJ45 Connector | 4 |
| Operating Temp. | -40 to 75°C |
