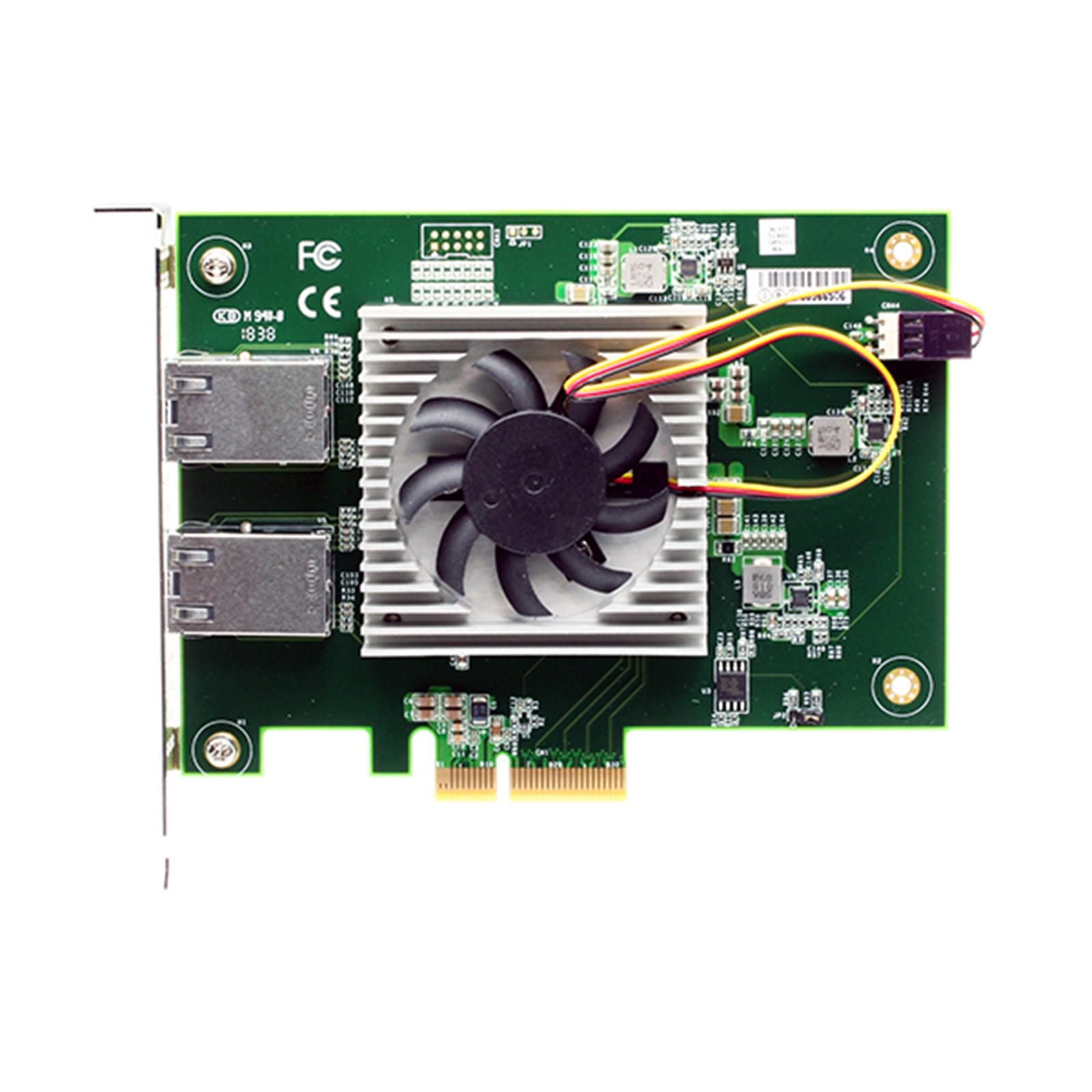

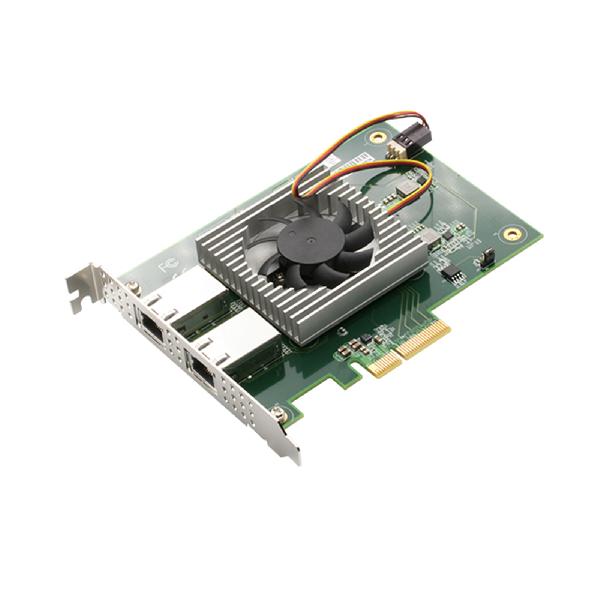

2 Ports Intel® 10GbE LAN PCI-E [x4] Frame Grabber Card
Product Feature
PCI-Express® [x4] Gen 2 Compliant
2 10Gigabit Ethernet Controller, Intel® x550
Support CAT-6/6a RJ45 cable
Supports NBASE-T and 1000BASE-T with CAT-5/ 5e cable
Supports 15.5 KB Jumbo Frame, NIC teaming and IEEE 1588
2 Ports Intel® 10GbE LAN PCI-E [x4] Frame Grabber Card
SYSTEM
BUS INTERFACE
PCI-Express® [x4], Gen 2 PCI-Express Specification Revision 2.1 at 5GT/s
USB
—
USB CONNECTOR
—
ETHERNET
2 Ports 10GbE Ethernet w/ Intel X550 Controller Fully compliant with IEEE 802.3 and IEEE 802.3u Support IEEE 1588 precision time synchronization Support 15.5 KB Jumbo Frame, teaming Support IEEE 802.3 Ethernet interface for 10GBASE-T (IEEE 802.3an) Support NBASE-T (IEEE 802.3bz) and 1000BASE-T (IEEE 802.3ab)
OS SUPPORT
Windows® 10(64-bit), Windows® 8.1 (64-bit), Windows® 7(64-bit), Linux 18.04.1
POWER SUPPLY
POWER REQUIREMENT
Max. 7.84W
MECHANICAL
DIMENSION
100mm(W) x 136mm(D)
ENVIRONMENTAL
OPERATING TEMPERATURE
32°F ~ 140°F(0°C ~ 60°C) (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
STORAGE TEMPERATURE
-49°F ~ 185°F (-45°C ~ 80°C)
STORAGE HUMIDITY
5 ~ 95% @ 40°C, non-condensing
