Fast Ethernet modules for IKS-6726A-2GTXSFP/6728A-4GTXSFP/6728A-8PoE-4GTXSFP modular managed switches

Product Feature

  • Modular design lets you choose from a variety of media combinations

Introduction

IM-6700A fast Ethernet modules are designed for the modular, managed, rack-mountable IKS-6700A Series switches. Each slot of an IKS-6700A switch can accommodate up to 8 ports, with each port supporting the TX, MSC, SSC, and MST media types. As an added plus, the IM-6700A-8PoE module is designed to give IKS-6728A-8PoE Series switches PoE capability. The modular design of the IKS-6700A Series ensures that the switches meet multiple application requirements.

 Ethernet Interface
 100BaseFX Ports (multi-mode SC
connector)
IM-6700A-2MSC4TX: 2
IM-6700A-4MSC2TX: 4
IM-6700A-6MSC: 6
 100BaseFX Ports (multi-mode
ST connector)
IM-6700A-2MST4TX: 2
IM-6700A-4MST2TX: 4
IM-6700A-6MST: 6
 100BaseFX Ports (single-mode SC
connector)
IM-6700A-2SSC4TX: 2
IM-6700A-4SSC2TX: 4
IM-6700A-6SSC: 6
 100BaseSFP Slots IM-6700A-8SFP: 8
 10/100BaseT(X) Ports (RJ45
connector)
IM-6700A-4MSC2TX/4MST2TX/4SSC2TX: 2
IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 4
IM-6700A-8TX: 8

Supported functions:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
 PoE Ports (10/100BaseT(X), RJ45
connector)
 IM-6700A-8PoE: Auto negotiation speed, Full/Half duplex mode
 Standards IM-6700A-8PoE: IEEE 802.3af/at for PoE/PoE+ output

Power Parameters

Power ConsumptionIM-6700A-8TX/8PoE: 1.21 W (max.)
IM-6700A-8SFP: 0.92 W (max.)
IM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 3.19 W (max.)
IM-6700A-6MST/6SSC/6MSC: 7.57 W (max.)
IM-6700A-4SSC2TX/4MSC2TX/4MST2TX: 5.28 W (max.)

Physical Characteristics

WeightIM-6700A-8TX: 225 g (0.50 lb)
IM-6700A-8SFP: 295 g (0.65 lb)
IM-6700A-2MSC4TX/2MST4TX/2SSC4TX/4MSC2TX/4MST2TX/4SSC2TX: 270 g (0.60 lb)
IM-6700A-6MSC/6SSC/6MSC: 390 g (0.86 lb)
IM-6700A-8PoE: 260 g (0.58 lb)

MTBF

TimeIM-6700A-2MSC4TX/2MST4TX/2SSC4TX: 1,031,180 hrs
IM-6700A-4MSC2TX: 530,268 hrs
IM-6700A-4MST2TX: 537,942 hrs
IM-6700A-4SSC2TX: 4,359,518 hrs
IM-6700A-6MSC: 366,119 hrs
IM-6700A-6MST/6SSC: 365,741 hrs
IM-6700A-8PoE: 338,800 hrs
IM-6700A-8SFP: 3,510,110 hrs
IM-6700A-8TX: 10,412,400 hrs
StandardsTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
 Details See www.moxa.com/warranty
Name Type Version Release Date
Datasheet for IM-6700A Module Series Datasheet V1.0 12 November 2018

IM-6700A-2MSC4TX

10/100BaseT(X) Ports 4
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
100Base SFP Ports -

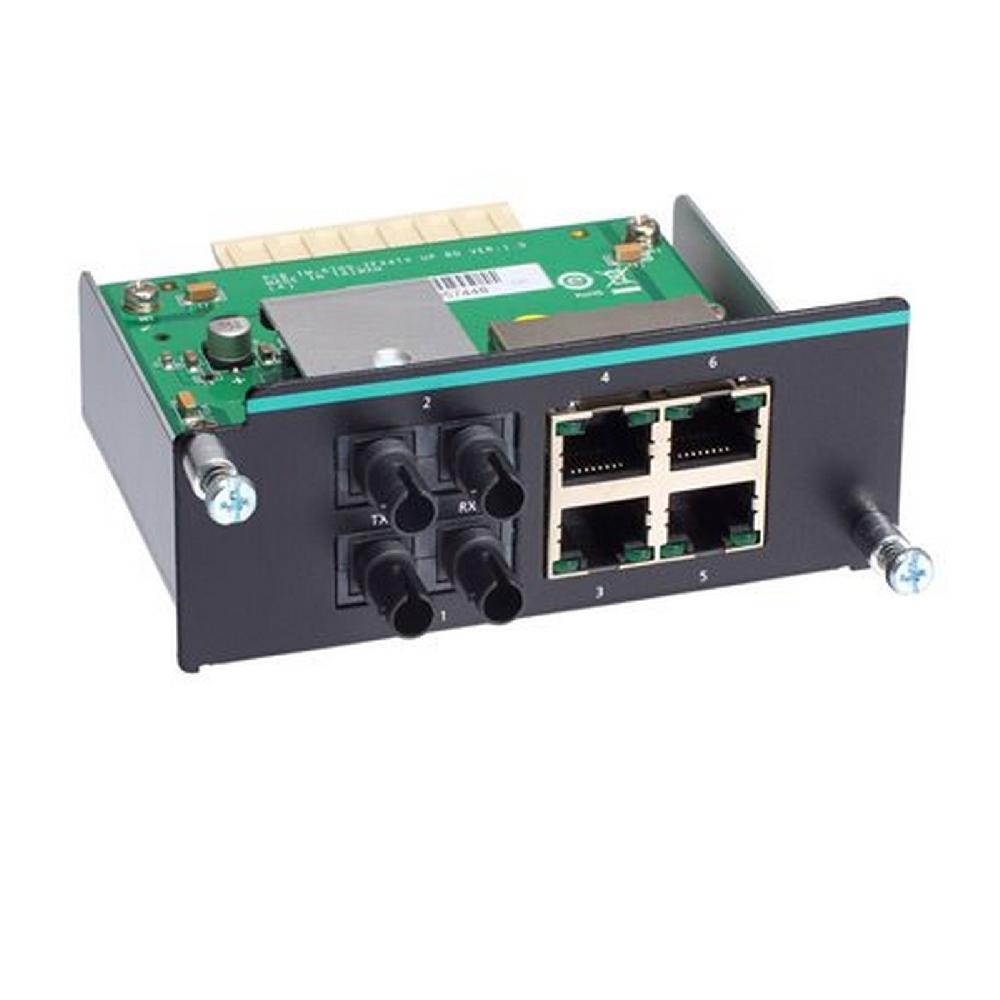

IM-6700A-2MST4TX

10/100BaseT(X) Ports 4
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 2
100BaseFX Ports Single-Mode, SC Connector -
100Base SFP Ports -

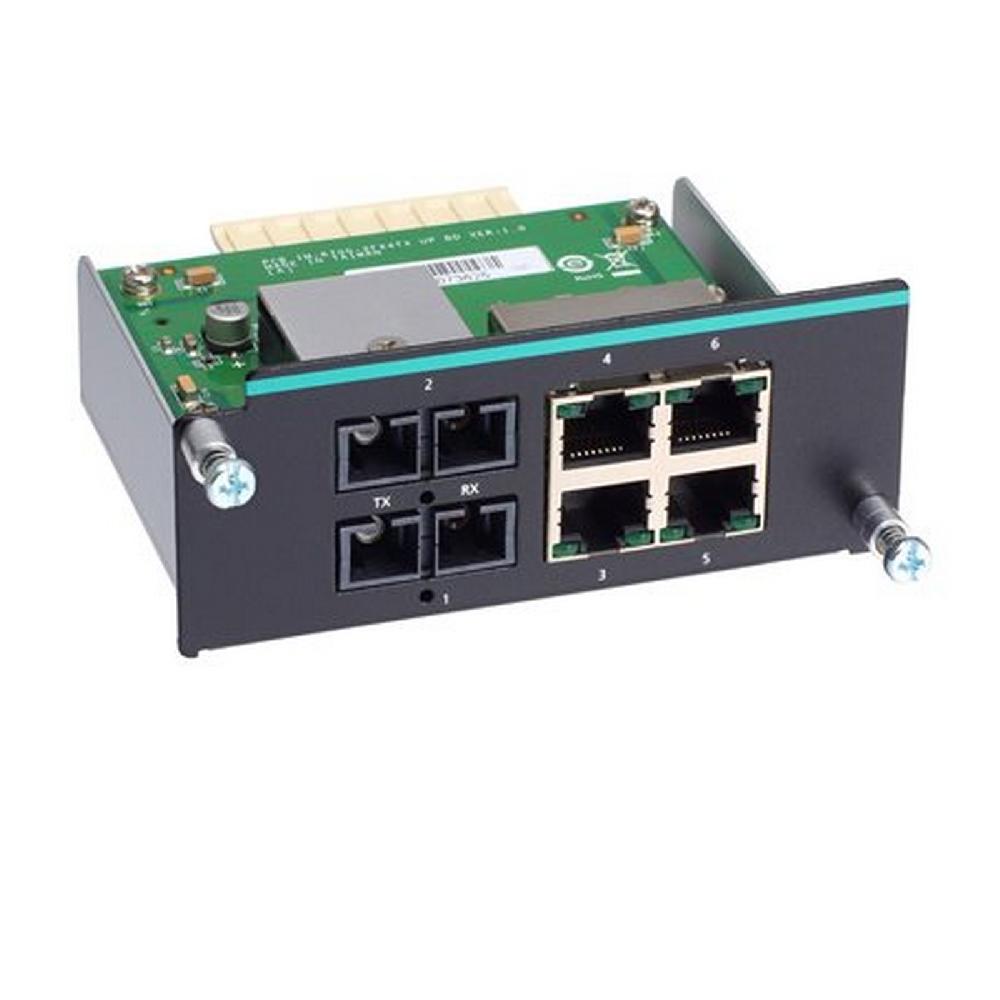

IM-6700A-2SSC4TX

10/100BaseT(X) Ports 4
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
100Base SFP Ports -

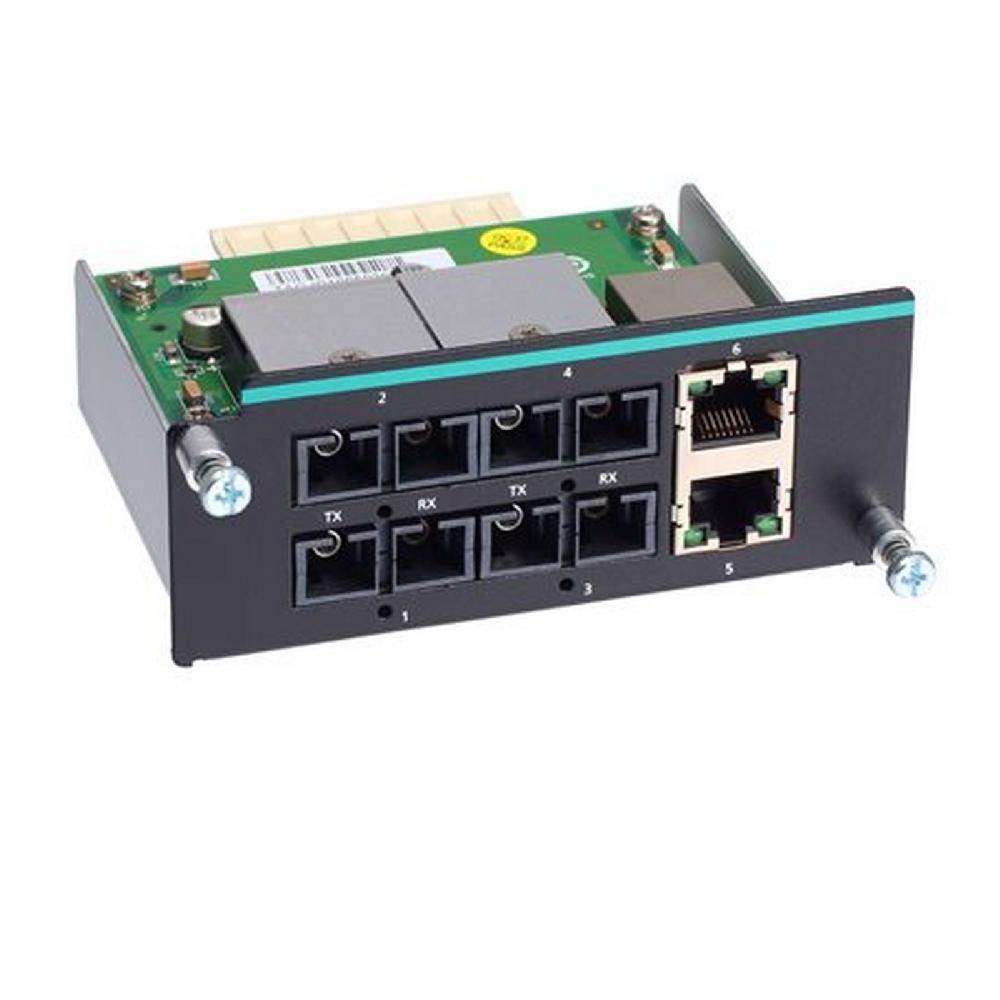

IM-6700A-4MSC2TX

10/100BaseT(X) Ports 2
100BaseFX Ports Multi-Mode, SC Connector 4
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
100Base SFP Ports -

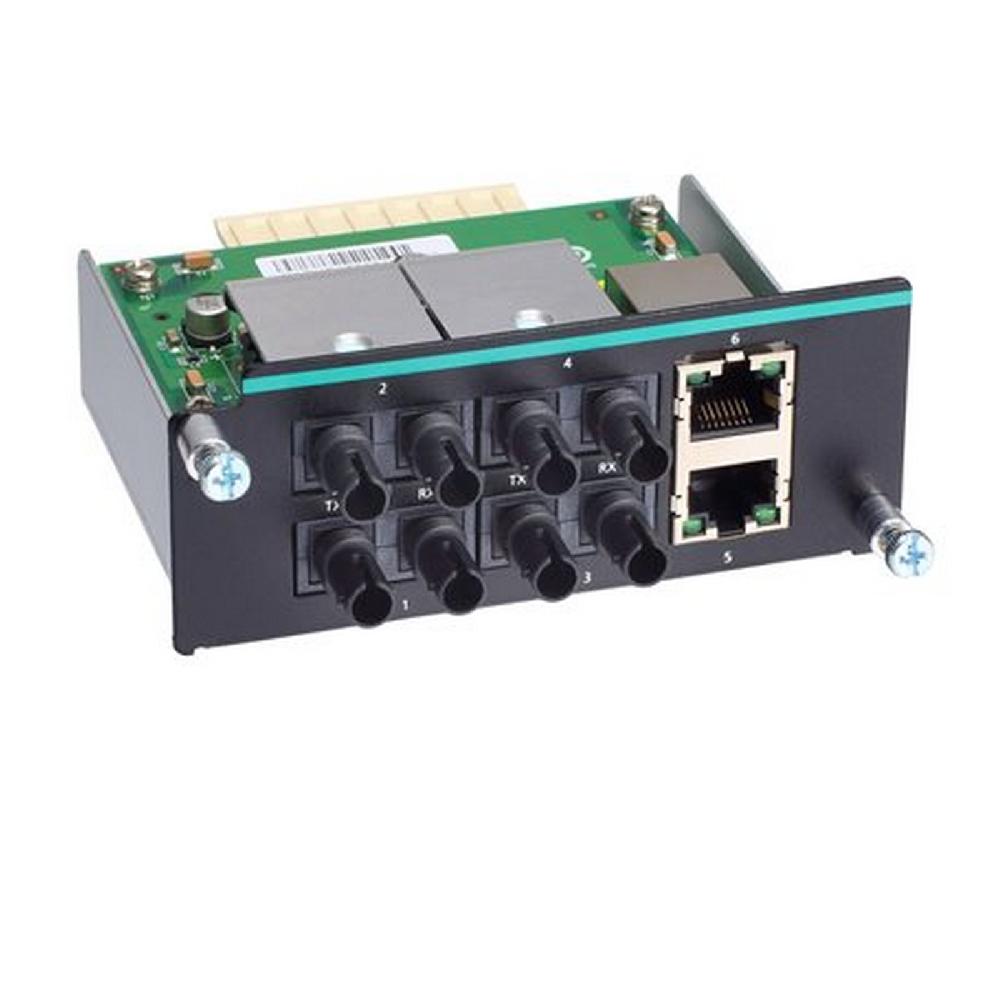

IM-6700A-4MST2TX

10/100BaseT(X) Ports 2
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 4
100BaseFX Ports Single-Mode, SC Connector -
100Base SFP Ports -

IM-6700A-4SSC2TX

10/100BaseT(X) Ports 2
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 4
100Base SFP Ports -

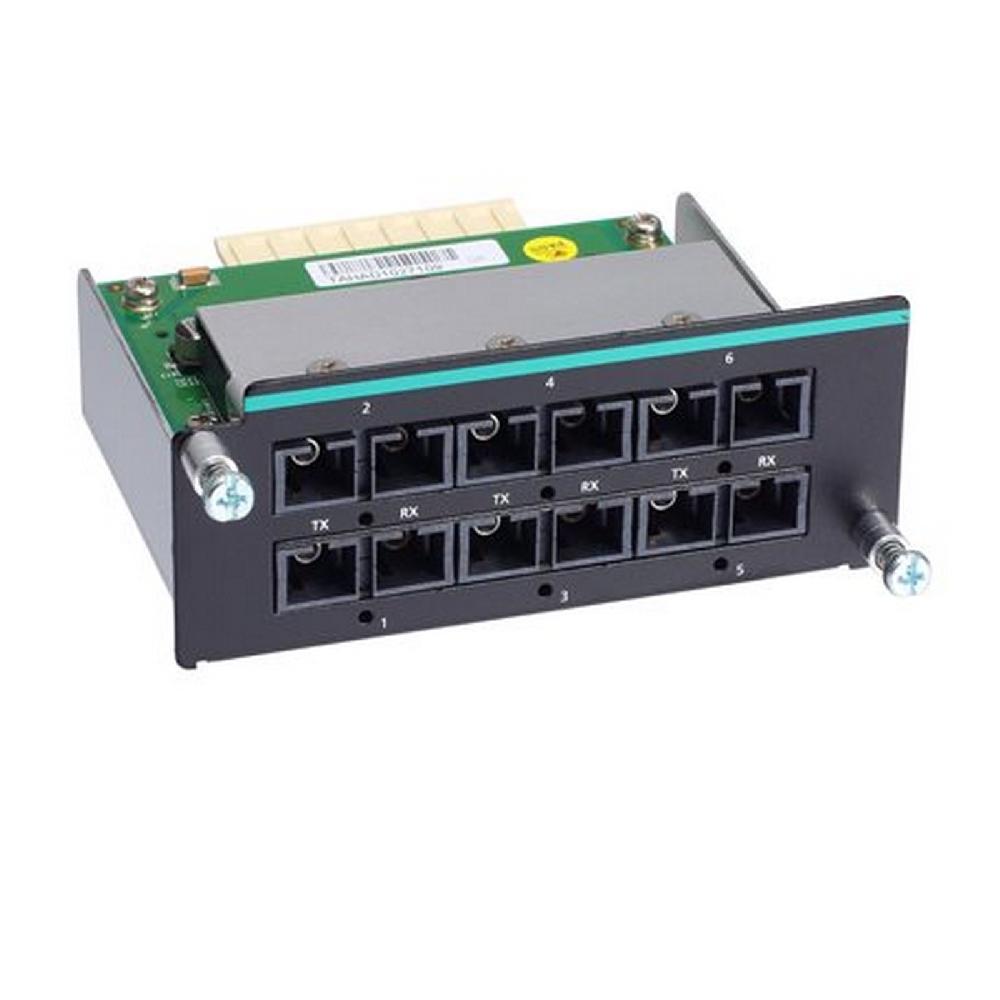

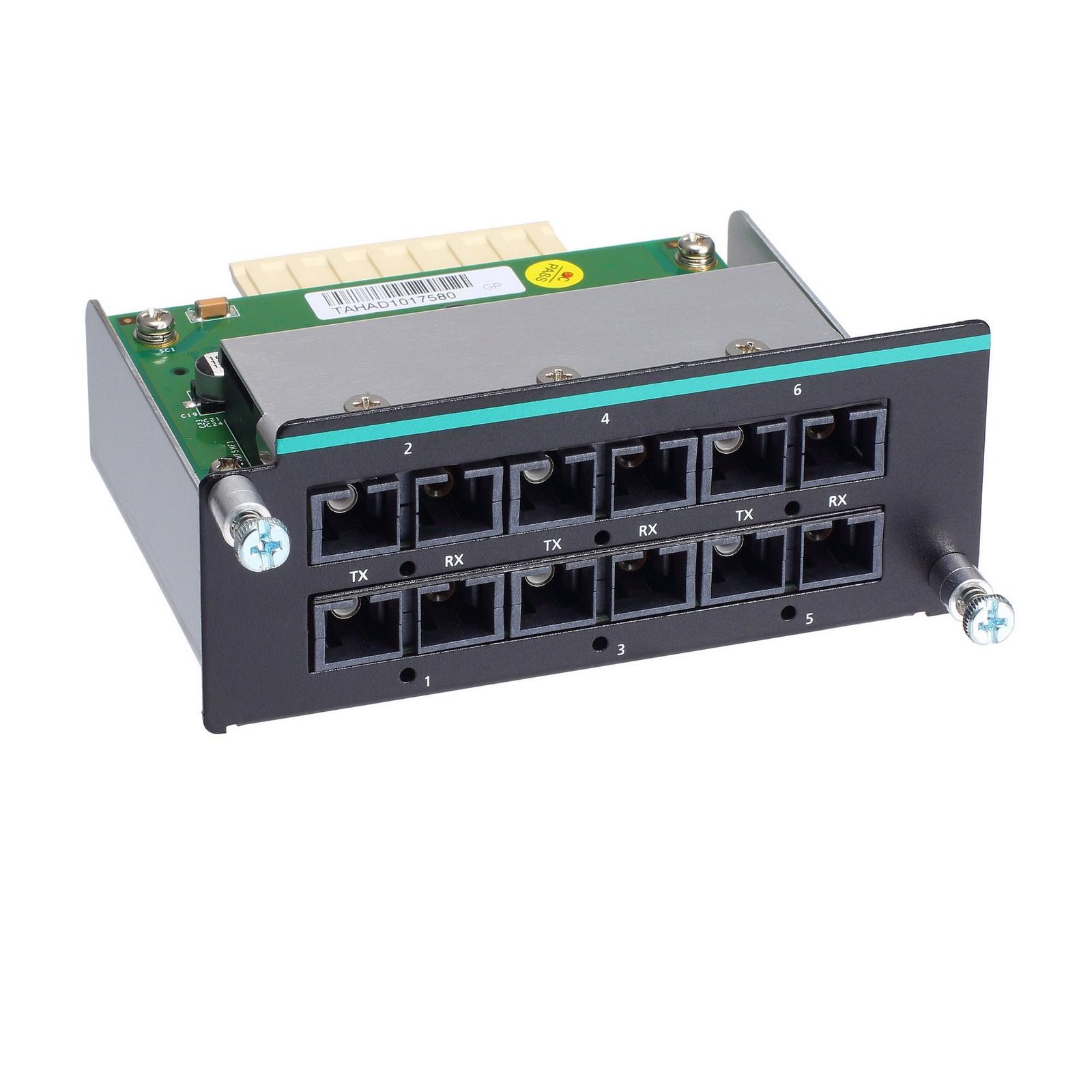

IM-6700A-6MSC

10/100BaseT(X) Ports -
100BaseFX Ports Multi-Mode, SC Connector 6
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
100Base SFP Ports -

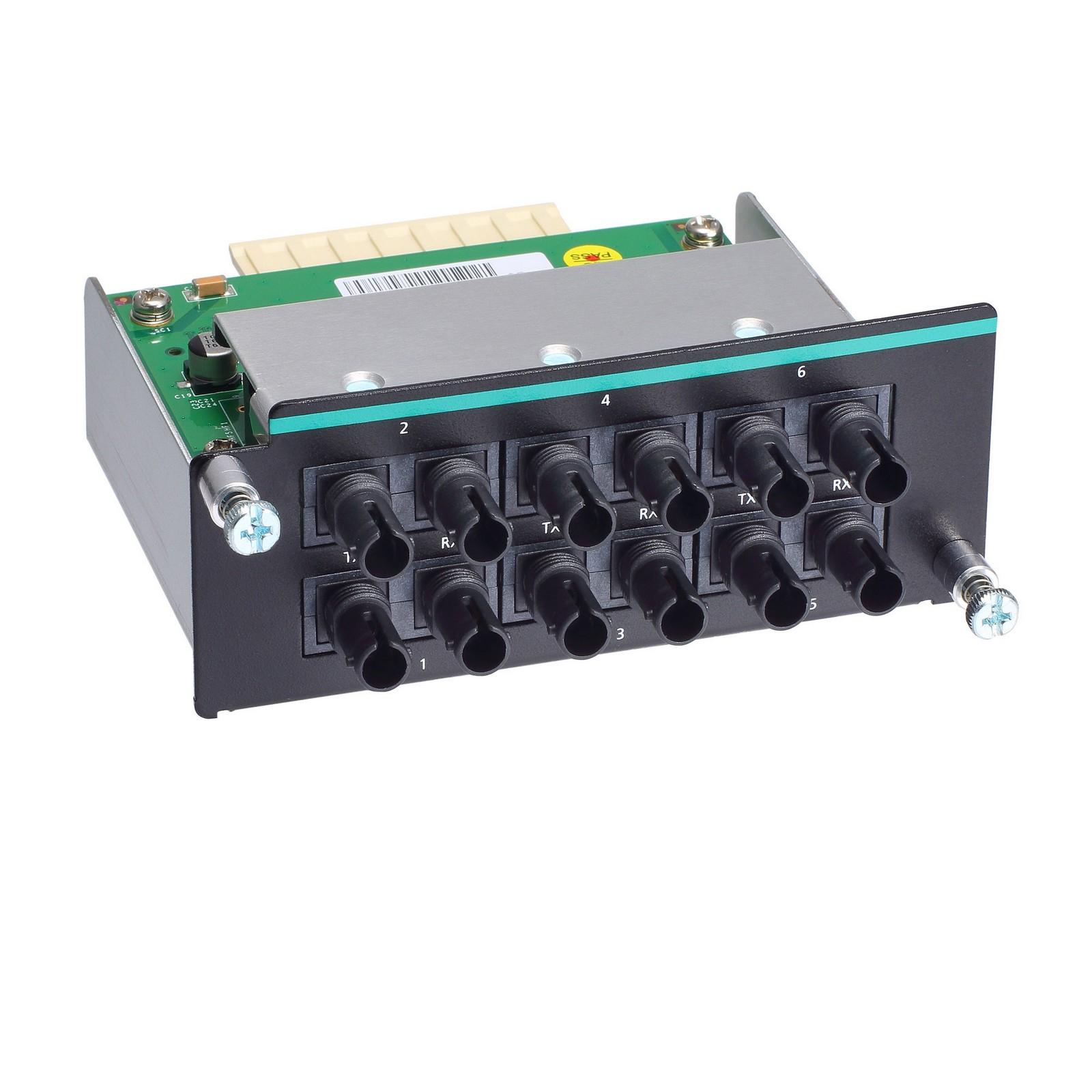

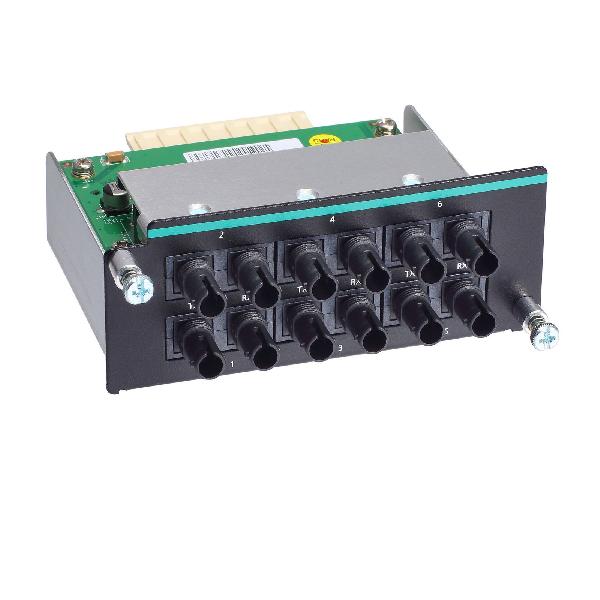

IM-6700A-6MST

10/100BaseT(X) Ports -
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 6
100BaseFX Ports Single-Mode, SC Connector -
100Base SFP Ports -

IM-6700A-6SSC

10/100BaseT(X) Ports -
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 6
100Base SFP Ports -

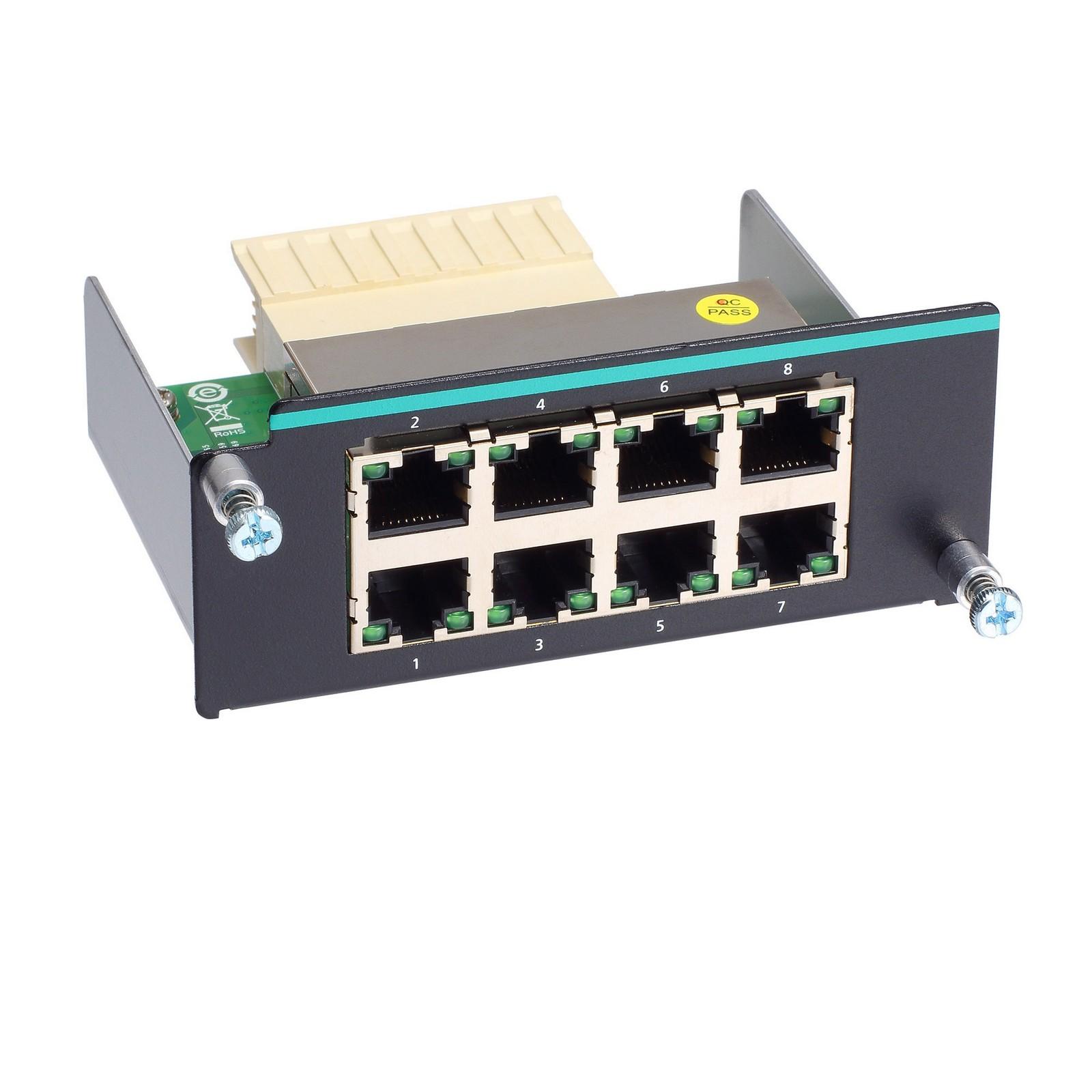

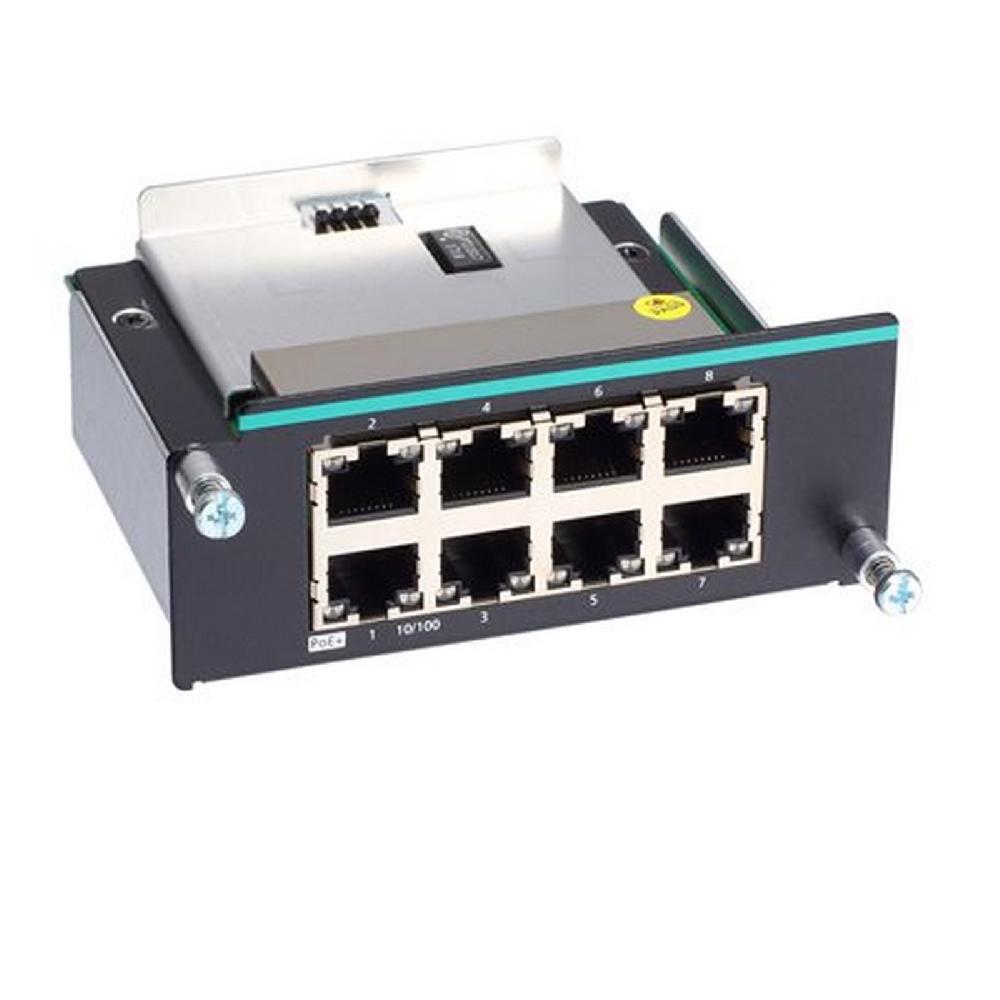

IM-6700A-8PoE

10/100BaseT(X) Ports 8 (PoE+ ports)
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
100Base SFP Ports -

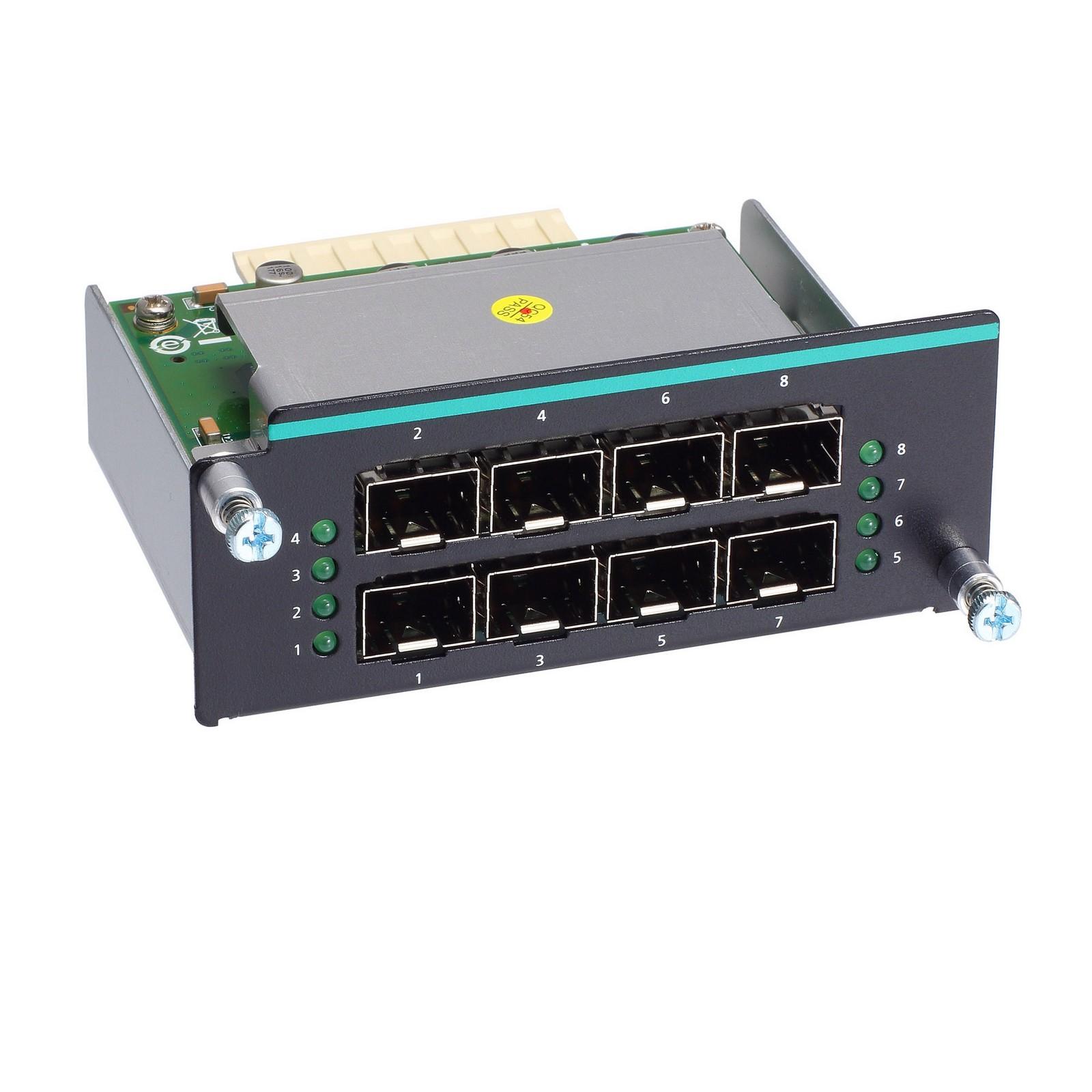

IM-6700A-8SFP

10/100BaseT(X) Ports -
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
100Base SFP Ports 8

IM-6700A-8TX

10/100BaseT(X) Ports 8
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
100Base SFP Ports -
